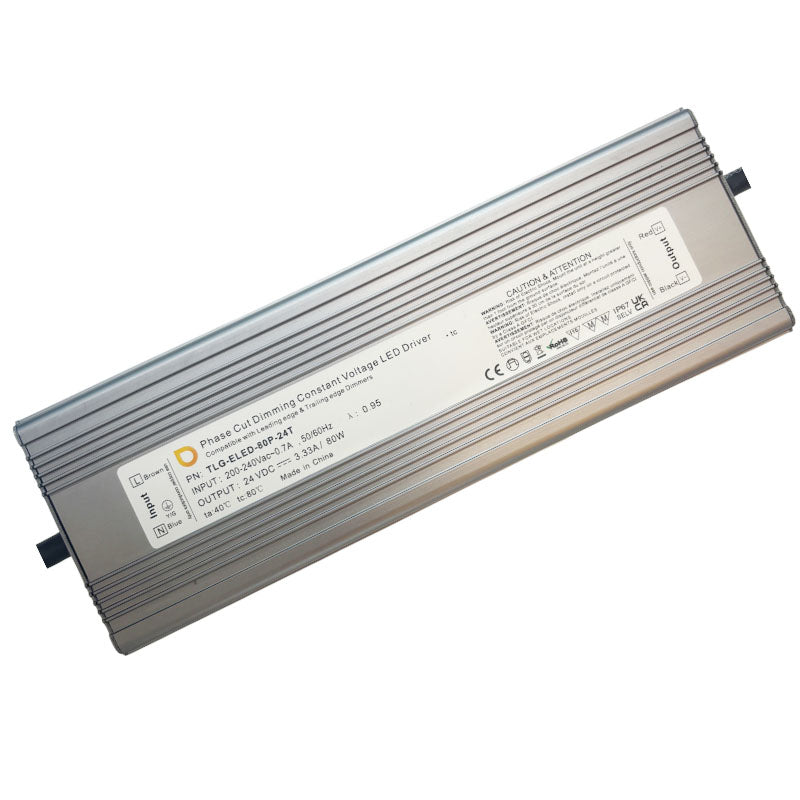

CV Driver 80W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-80P-24T
6088
£60.88
Unit price perEstimated delivery between January 23 and January 25.
| Product Details - Model: TLG-ELED-80P-24T | |
|---|---|
| Features | |
| Output | Constant voltage |
| AC Input Range | 200–240VAC |
| Efficiency | Up to 83% |
| Protections | Short circuit / Over loading / Over current / Over temperature |
| Housing | Full protection plastic housing, easy installation |
| IP Rating | IP66, indoor & outdoor installation |
| Cooling | Free air convection |

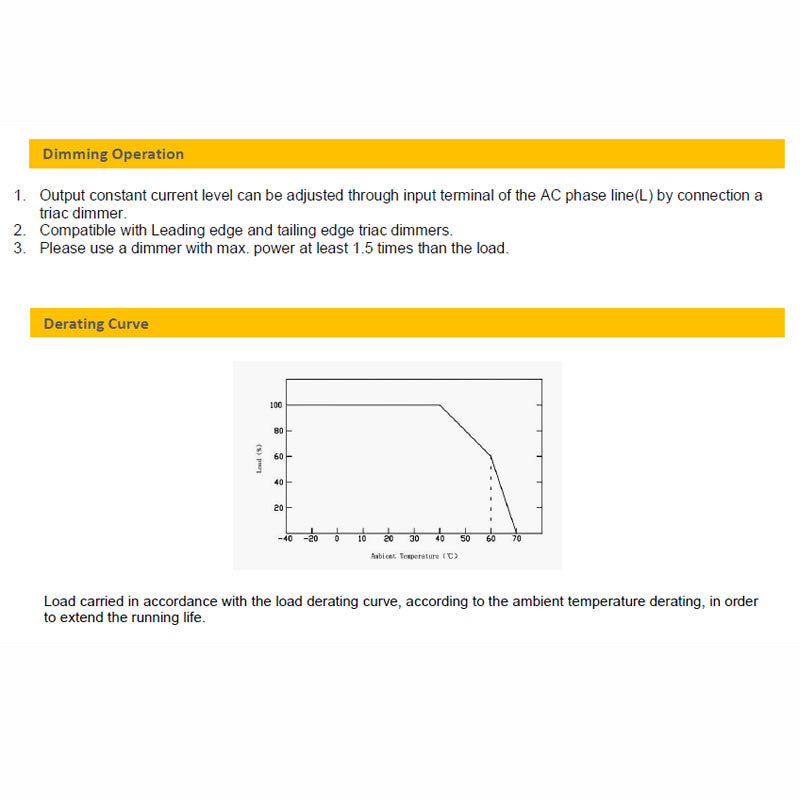

| Dimming | Leading & trailing edge TRIAC dimmers, strong compatibility |
| Flicker | Flicker-free dimming |
| Applications | LED lighting and moving sign applications |
| Output Specifications | |
| DC Voltage | 24V |
| Voltage Tolerance | ±0.5V |
| Rated Current | 3.33A |
| Rated Power | 80W |
| Input Specifications | |
| Voltage Range | 200–240VAC |
| Frequency Range | 47–63Hz |
| Full Load Efficiency | 83% (Typical) |
| AC Current (Max.) | 0.08A |
| Leakage Current | <0.50mA |
| Power Factor | PF ≥ 0.97 @ 200/230/240VAC (Full load) |
| Protection | |
| Short Circuit | Shutdown, re-power on to recover after fault is removed |
| Over Loading | ≤120%, constant current limiting, auto-recovery |
| Over Temperature | 100°C ±10°C, shutdown, re-power on to recover |
| Environment | |
| Working Temperature | -40 to +60°C |
| Working Humidity | 20–95% RH (non-condensing) |
| Storage Temp & Humidity | -40 to +80°C, 10–95% RH |
| Temperature Coefficient | ±0.03%/°C (0–40°C) |
| Vibration | 10–500Hz, 5G, 12min/cycle, 72min each axis (X, Y, Z) |
| Safety & EMC | |
| Safety Standards | EN61347-1, EN61347-2-13 |
| Withstand Voltage | I/P–O/P: 3.75KVAC; I/P–FG: 1.88KVAC; O/P–FG: 0.5KVAC |
| Isolation Resistance | 100MΩ / 500VDC / 25°C / 70% RH (I/P–O/P, I/P–FG, O/P–FG) |
| EMC Emission | EN55015, EN61000-3-2,3 (>60% load) |
| EMC Immunity | EN61000-4-2,3,4,5,6,11, EN61547 |
| Other Specifications | |
| Net Weight | 1.1 kg |

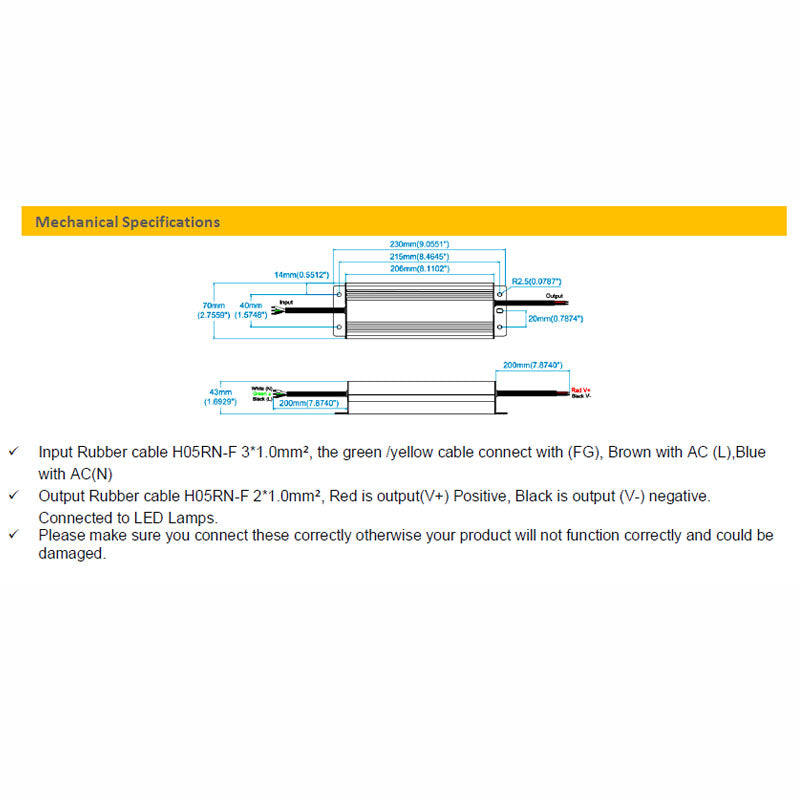

| Size (L×W×H) | 230 × 70 × 43 mm |
| Packing | 245 × 75 × 65 mm (inner box); 340 × 275 × 170 mm (10 PCS/CTN) |
| Notes | |
| All parameters NOT specially mentioned are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. The power supply is considered a component to be used with final equipment. EMC performance must be re-qualified in the complete installation. Loading range from 10% to 100%. |
|
