V20S OPTIC
A sleek 20 × 20 mm linear LED profile with advanced OPTIC lenses for precise beam control — choose from Grazing, Wash, or Flood effect. Surface- or recessed-mounted with IP50 (interior) or IP67 (exterior) options, it’s ideal for wall-grazing, display, or architectural accent lighting. Tunable colour (1800-4000 K) and high-CRI (up to 95 Ra) LEDs, dimmable drivers (0–10 V, DALI, Phase), and PowerTHRU click-connect cabling for long continuous runs.

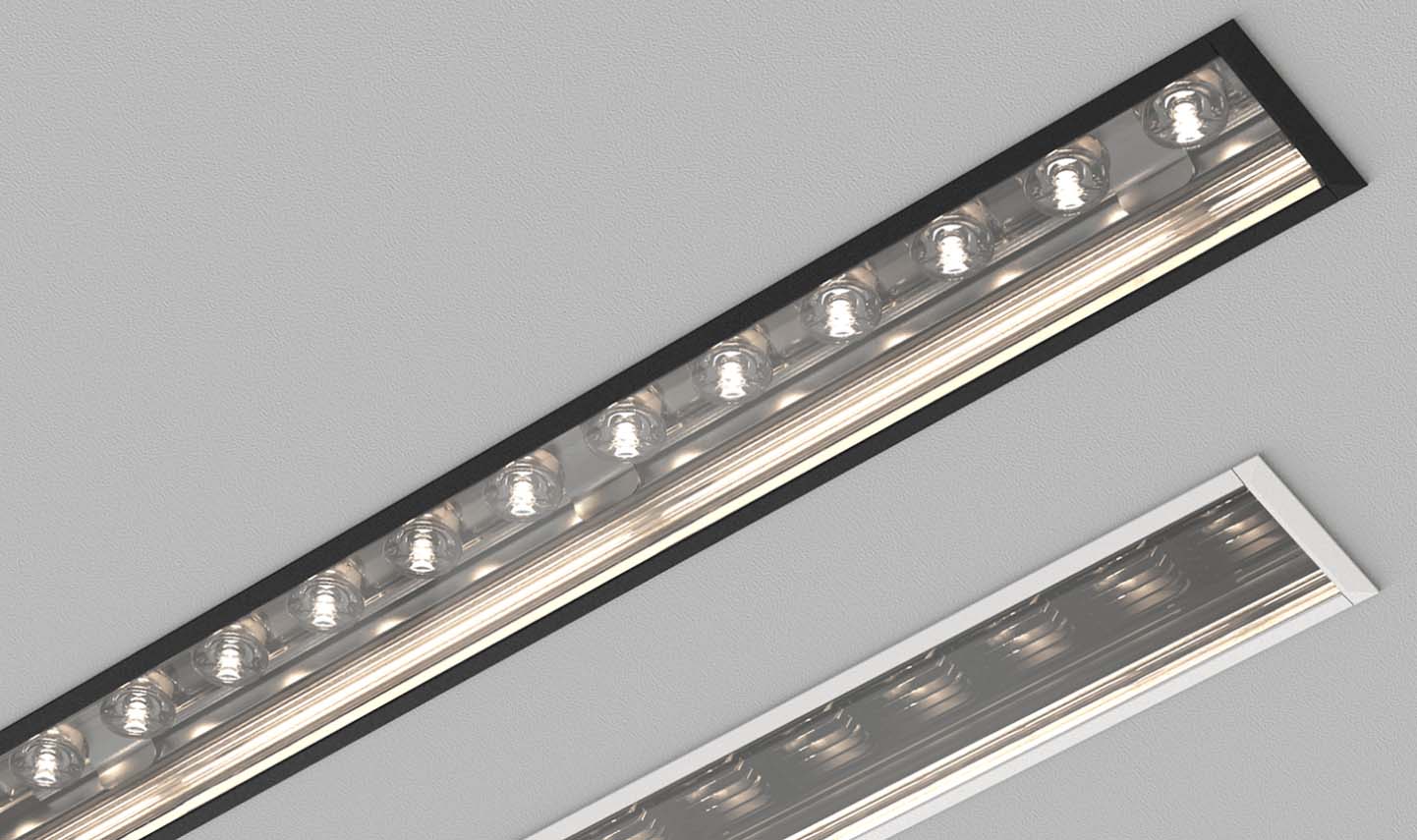

V36R OPTIC
A precision-engineered 36 mm recessed LED profile featuring OPTIC lenses (Narrow 18°, Wash 37°, or Graze 18°×45°) for controlled beam shaping and anti-glare options. Designed with Lumino’s high-CRI ColorCORE® Generation II LEDs (95 Ra, 2700–4000 K), the V36R OPTIC delivers up to 5215 lm/m from its 500 mA driver. It supports dimming via 0-10 V, DALI or wireless, and is available in IP50 (interior) or IP64 (exterior) versions — perfect for architectural wall-grazing and display applications.

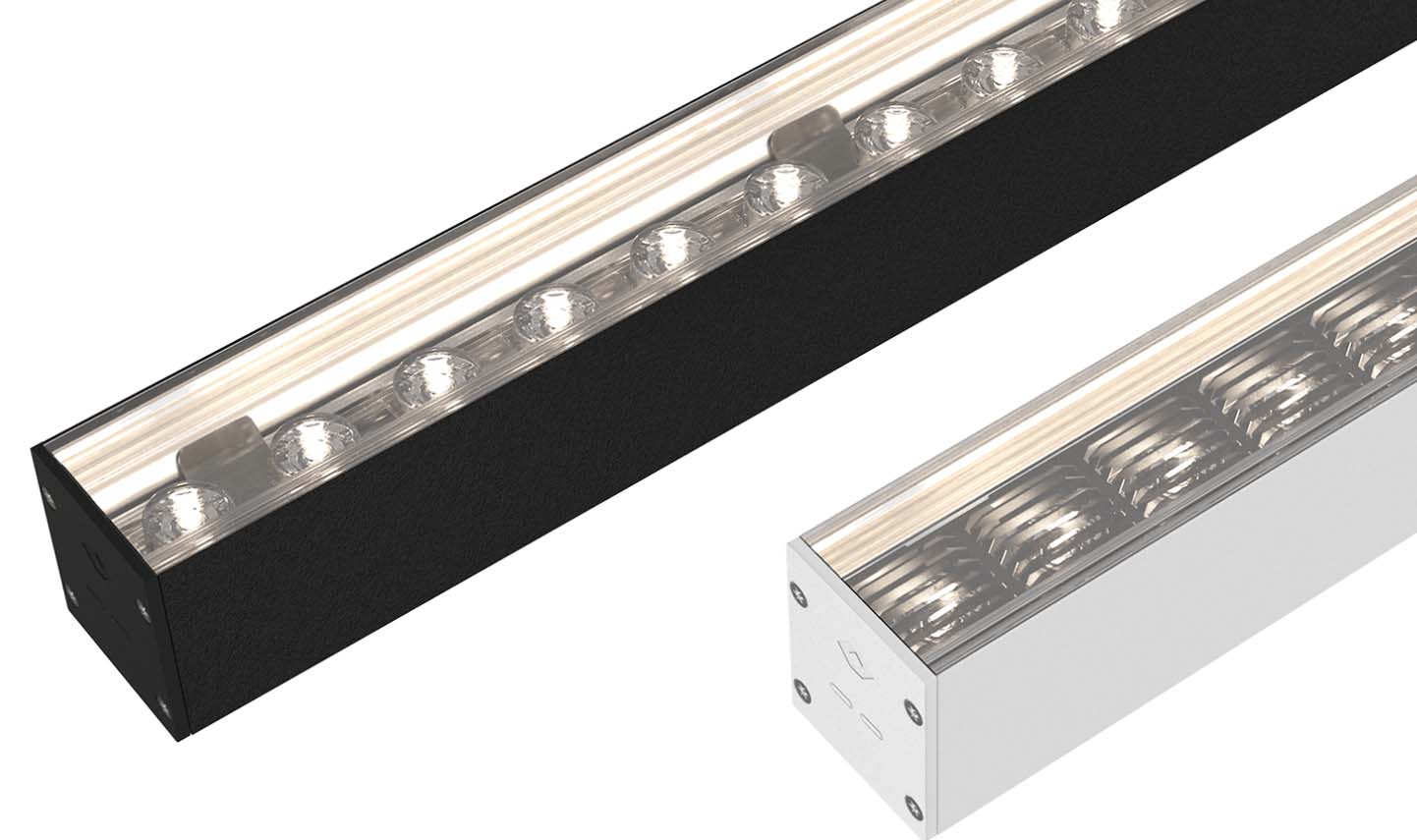

V36S OPTIC
The V36S OPTIC is a surface-mounted 36 × 42 mm linear lighting profile built for precision and performance. Equipped with OPTIC lenses — Narrow 18°, Wash 37°, or Graze 18° × 45° — it delivers clean, controlled beams with optional anti‑glare louvres. Rated IP50 for interior or IP64 for exterior use and IK08 for impact resistance, this profile suits wall grazing, wall washing, and display applications. Featuring high-CRI ColorCORE® Generation II LEDs (95 Ra, 2700–4000 K) and powerful dimmable drivers (350mA / 500mA) that offer up to 5,215 lm/m, it’s ideal for architectural lighting that demands both style and substance.

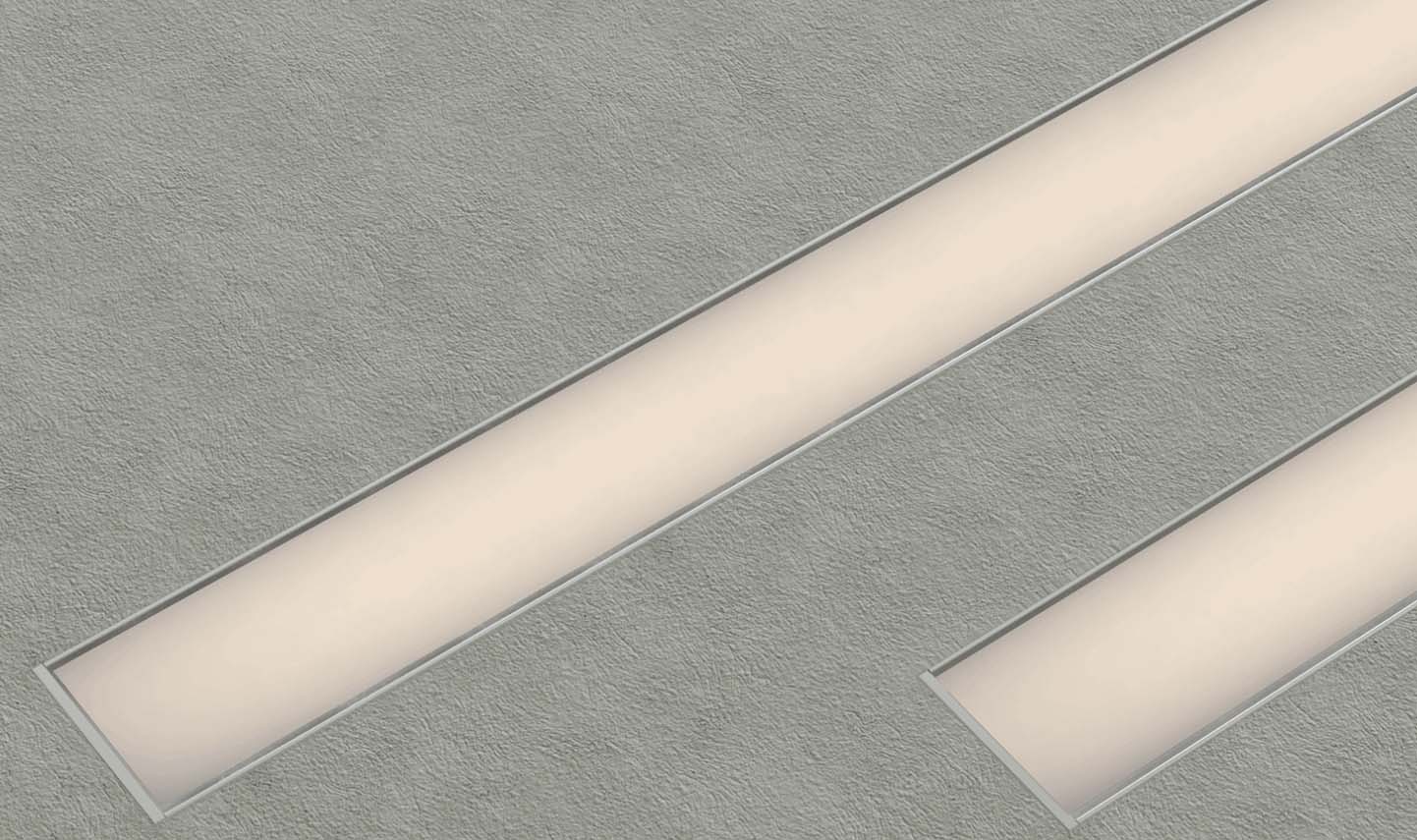

V36I
A rugged in-ground linear lighting profile (36 × 42 mm) rated IP68 for walkover applications, ideal for creating continuous ground lighting or architectural accents. It features a tough 8 mm glass diffuser bonded to a durable OPX™ ceramic layer, with IK09 impact resistance and up to 5 kN static load capacity. Powered via PowerTHRU for long runs, the V36I supports 0‑10 V, DALI, or 24V drivers. Lighting options include high-CRI ColorCORE® (95 Ra) tuning from 2200–4000K, color-tuning, warm-dim, and RGB/RGBW.
V10S
The V10S is an ultra-slim (10.5 × 6.8 mm) surface-mounted linear LED profile designed for subtle, concealed lighting — ideal for coving, under‑shelves, or cabinetry. It features high-CRI ColorCORE® (up to 95 Ra) and EQ options, as well as RGB, with custom lengths from 105 mm to 2005 mm. The clever rotation mount allows up to 90° tilt for precise light direction, and the PowerTHRU click‑connect system supports long, continuous runs. Rated IP20 for interior use, and driven by 24V DC dimmable drivers (0‑10V, DALI, or phase).
ZEN
The ZEN is a micro, 10×10 mm ultra‑slim linear LED profile, designed for discreet illumination in tight spaces like joinery, under-stairs, cabinets, and railings.
It uses an INFINITE™ continuous diffuser, PowerTHRU click‑connect cabling for seamless runs, and dimmable 24 V DC drivers (0‑10V, DALI, or phase).
Available with high-CRI ColorCORE® (95 Ra) or EQ LEDs from 2200K to 4000K, it delivers up to 790 lm/m.
Mounting is flexible — choose between clips, adhesive tape, or magnetic channels for clean, hidden installation.
