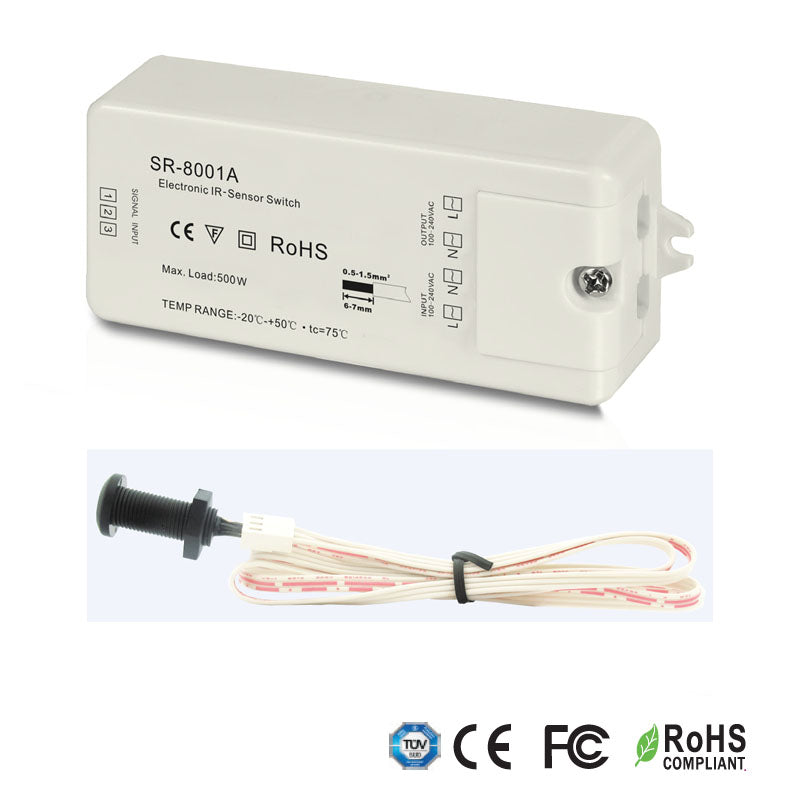

• IR Sensor Switch, 100-240 VAC, move hand to turn ON/OFF, applied like
sanitaryware
• Detection range: 1-6cm.
• Ideal for kitchen, bathroom etc.
• AC version
• Four sensor shells can be chosen. Dia. of driling hole:φ10mm & φ17mm.
• Waterproof grade: IP20

• Safe and reliable full isolation design
• Radio Frequency : 868/869.5/916.5/434mhz
•Triac dimmable and Mosfet dimmable
• Leading edge dimming and trailing edge dimming both available
• Supports resistive loads and capacitive loads
• Great compatibility with a variety of remote controls
• Innovative minimum brightness setting function
• To dim and switch single colour dimmable LED lamps, traditional incandescent and halogen lights
• Waterproof grade: Ip20

Product Data

• Radio Frequency : 869.5 / 916.5 / 434 mhz
• Waterproof grade: IP20

Manual

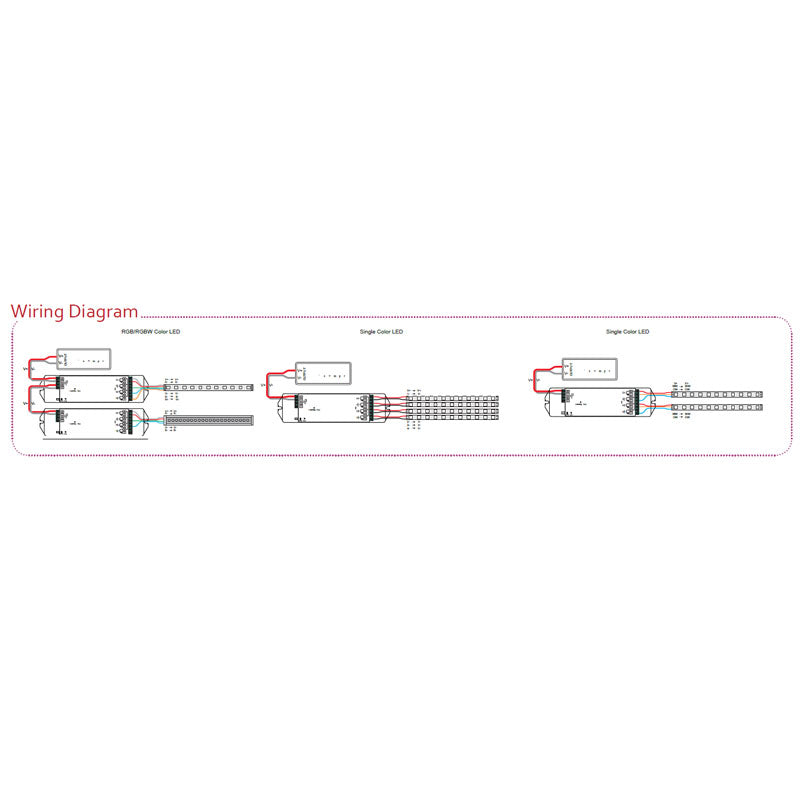

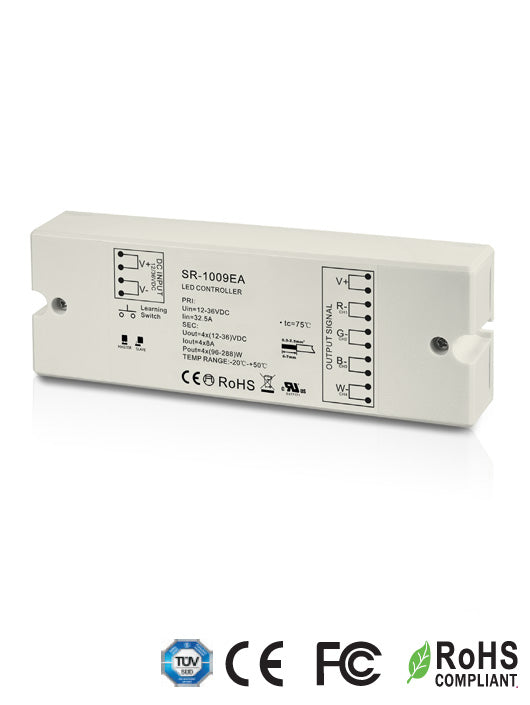

• 8A 4CH 12-36V constant voltage RF receiver
• Full compatibility waith a variety of single colour, dua colour and RGB/RGBW RF remotes
• Multiple zones can be controlled separately or synchronously with endledd receivers in each zone
• Each reciver can be controlled by 8 different remotes maximally
• Can be WiFi controlled by APP installed on IOS or Android mobile devices while working ith WiFi-RF conveter
• Brightness of each R, G, B and W can be adjusted to achieve millions of colors
• Radio Frequency available: 869.5 / 916.5 / 434 mhz

Product Data

Manual

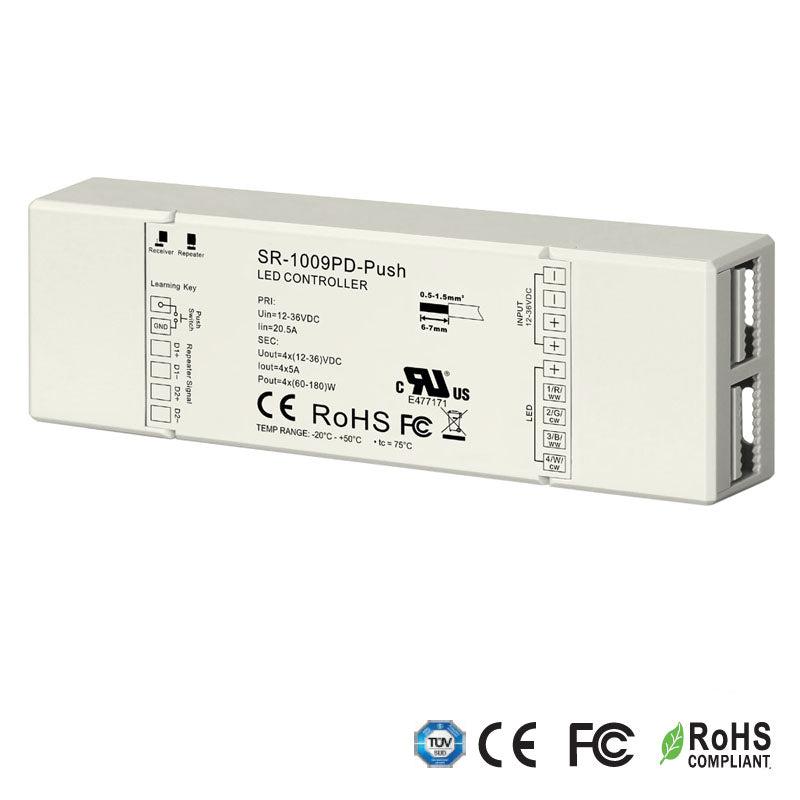

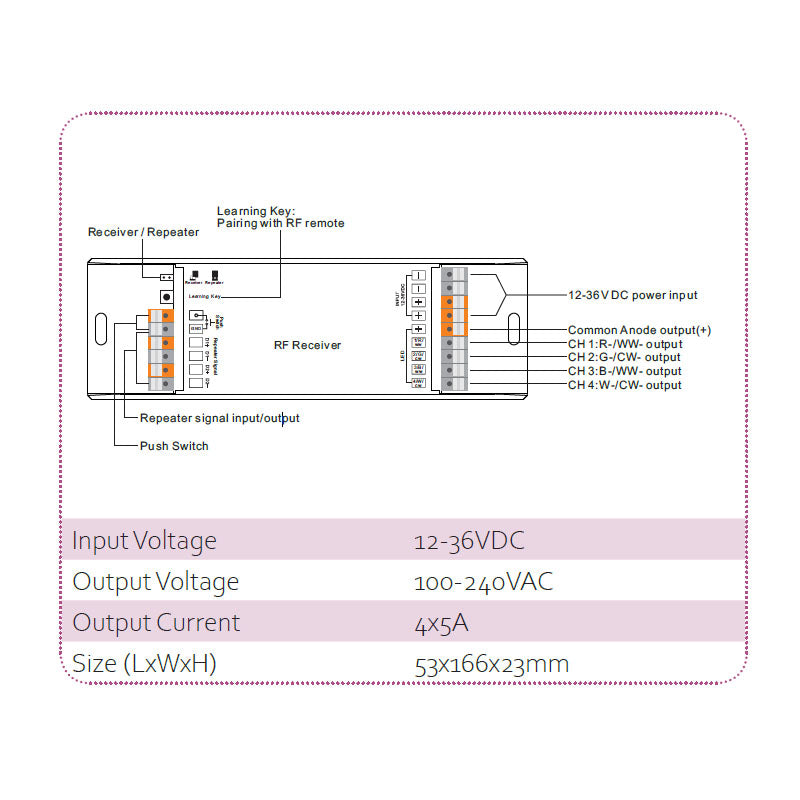

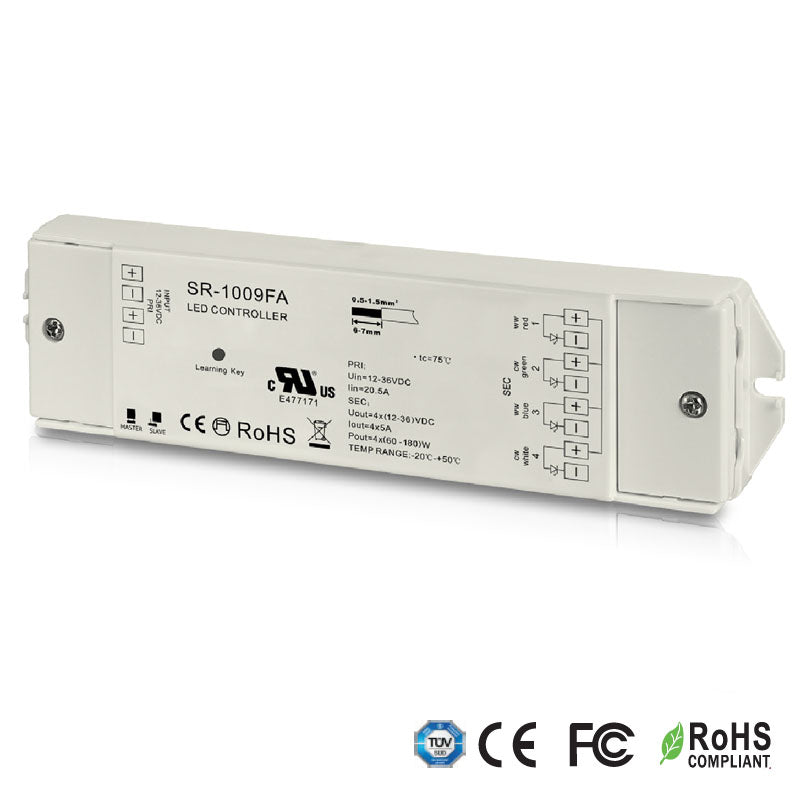

• 5A 4CH 12-36VDC constant voltage RF controller
• Updated shell with easy connection terminal without screws
• Full compatibility with a variety of single colour, dual and RGB/RGBW RF remotes
• Multiple zones can be controlled separately or synchronously with endless receivers in each zone
• Each receiver can be controlled by 8 different remotes
• Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-RF converter
• Brightness of each R, G, B and W can be adjustable to achieve millions of colours
• Unique receiver/repeater setting jumper
• Each receiver can connect with multiple repeaters to realise perfect sync and sync distance
can be over 100 meters with no volt drop
•Radio frequency available: 869.5/434/916.5 MHz

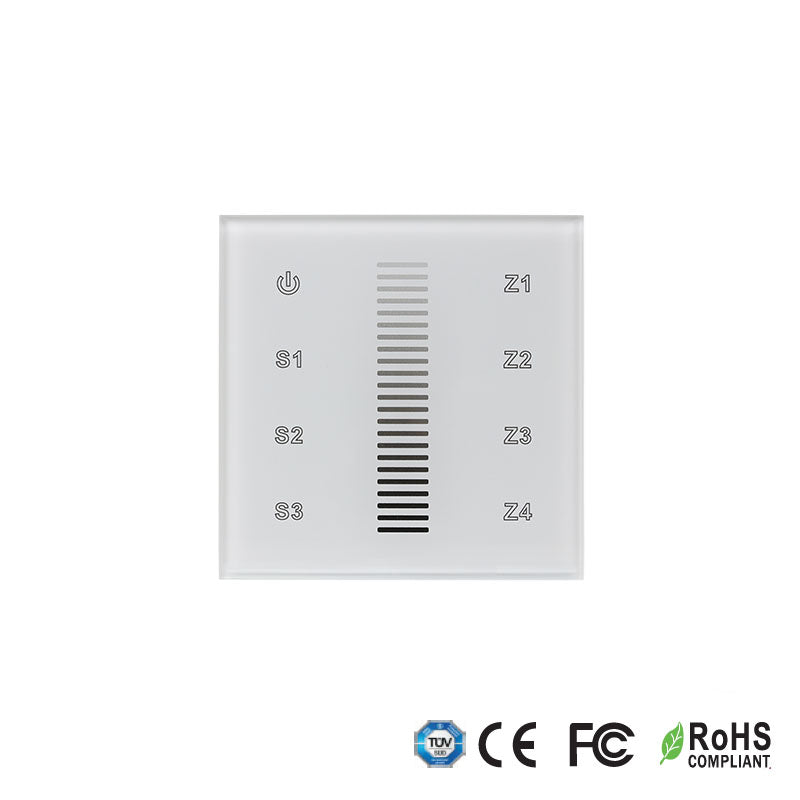

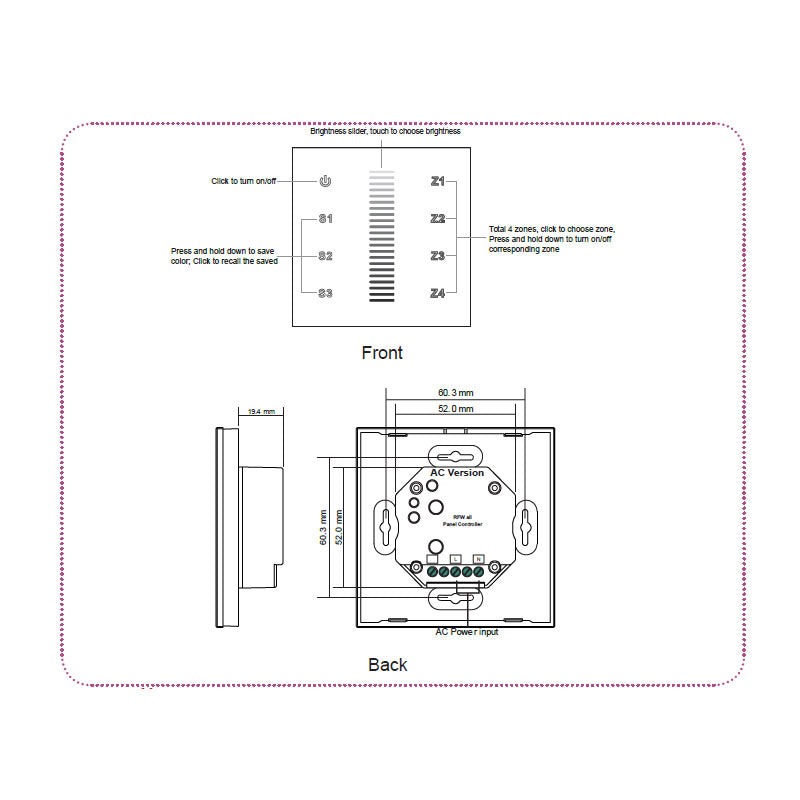

• Touch sensitive
• Glass interface(white & black)
• Compatible with all universal series RF receivers, radio
frequency: 869.5/434MHz
• Control CCT colour
• Control 4 zone of RF receiver synchronously and separately
•2 scenes
• Waterproof grade: IP20

• Touch sensitive
• Glass interface(white & black)
• Compatible with all universal series RF receivers, radio
frequency: 869.5/434MHz
• Control CCT colour
• Control 4 zone of RF receiver synchronously and separately
•2 scenes
• Waterproof grade: IP20

• Control 6 zones of RF receivers separately
• RGBW colour controller
• High sensitive & high stable fast & precise color control.
• Compatible with all universal series RF receivers
• 1 receiver can be paired by max 8 different remote controls
• Waterproof grade: IP20

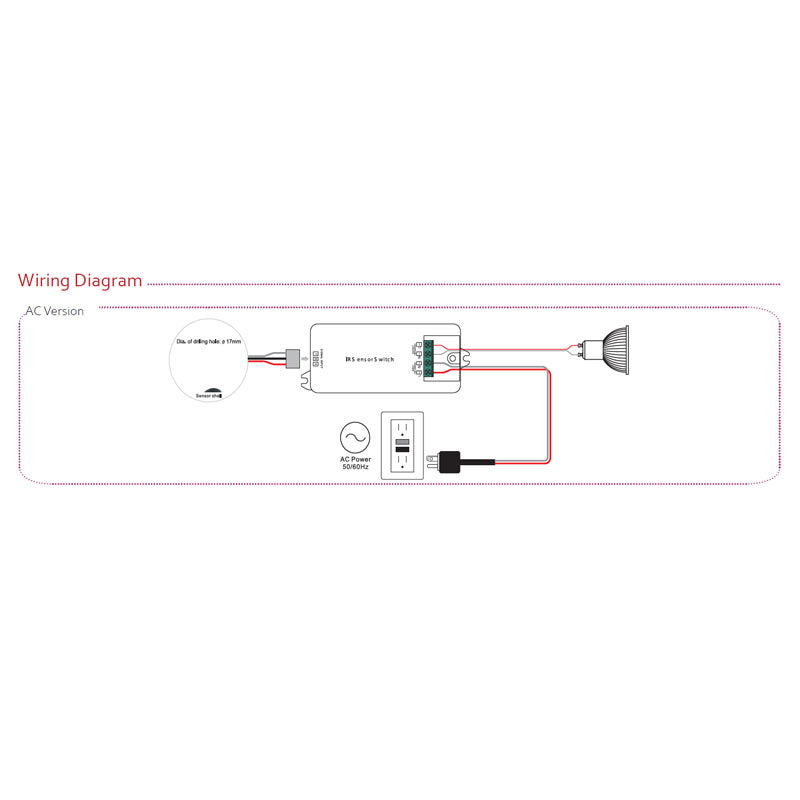

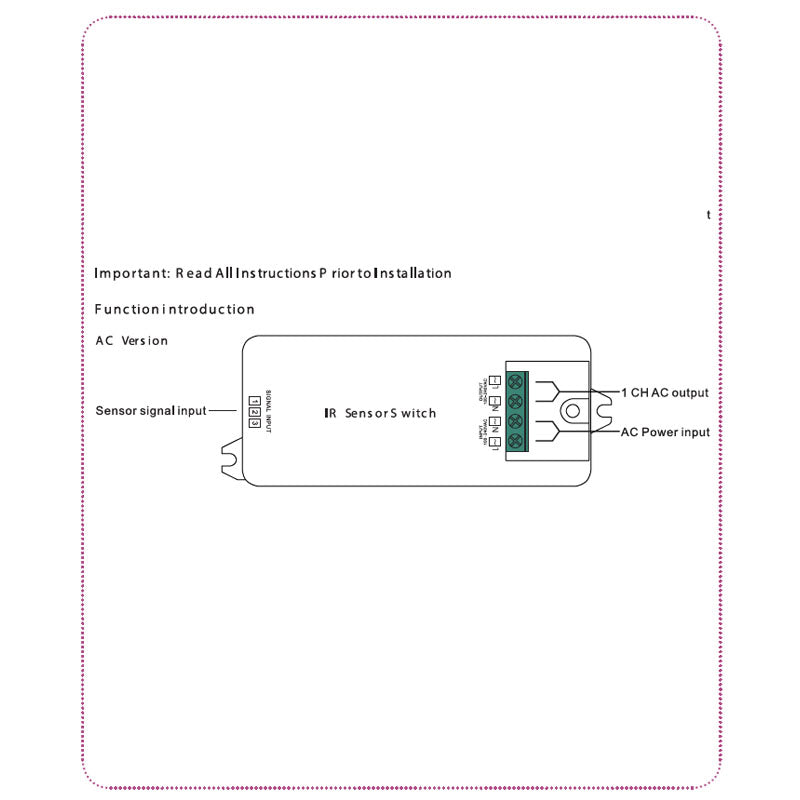

•IR Sensor Switch, 100-240 VAC, light ON when door open, light OFF when
door close, applied in cabinet furniture.
• Detection range: 1-6cm.
• For cabinet,door open light ON, door close light OFF
• Ideal for kitchen, furniture, mirror, etc.
• AC version
• Four sensor shells can be chosen. Dia. of driling hole:φ10mm & φ17mm.
• Waterproof grade: IP20

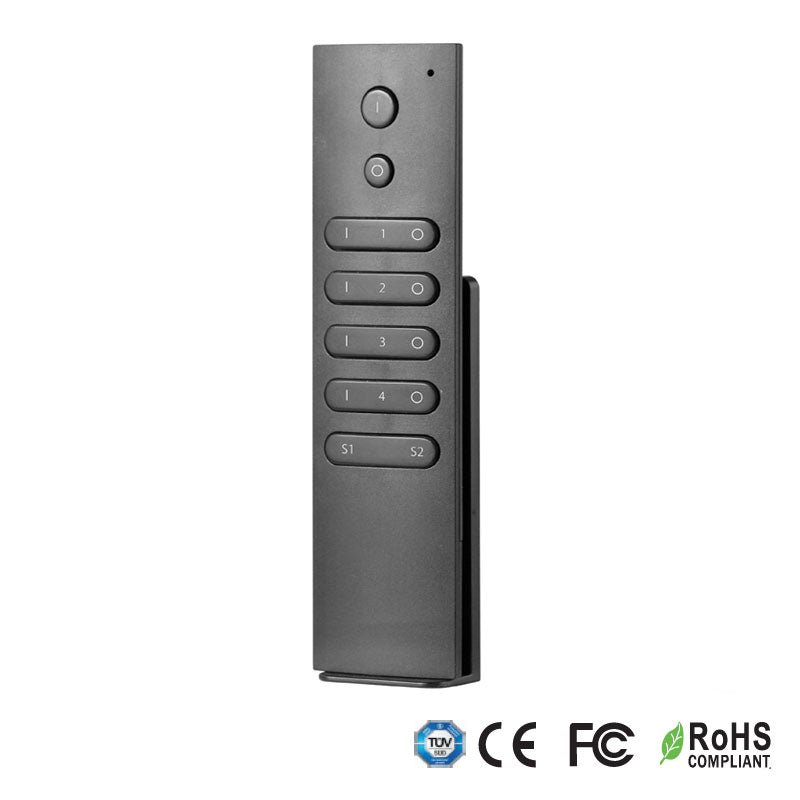

• Control 4 zones of RF receiver
• 4 scenes
• RGB+CCT colour controller
• Compatible with universal serie RF receiver
• 1 receiver can be paired by max 8 different remote
controls.
• Waterproof grade: IP20

How to stop running mode of single color LED light caused by RGBW sender interference:

1. When pairing single colour LED light to a single colorre mote, it might be interfered and paired by nearby RGBW senders, which might control the single color light into runningmode. The running mode can not be stopped by the paired
single colour remote or by delete pairing.
2. Then pair the remote to the receiver via above “Pair with RF receiver(Method 2)”, then touch the color wheel to stop the running mode.
3. Then delete pairing and pair the receiver to the single colorremote again, it can be controlled by the remote again.

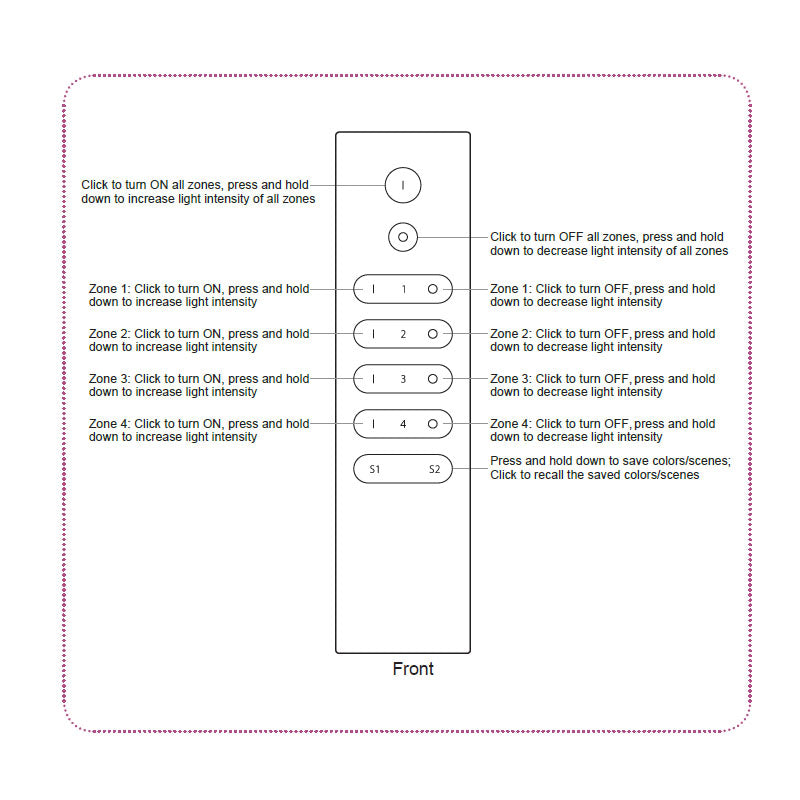

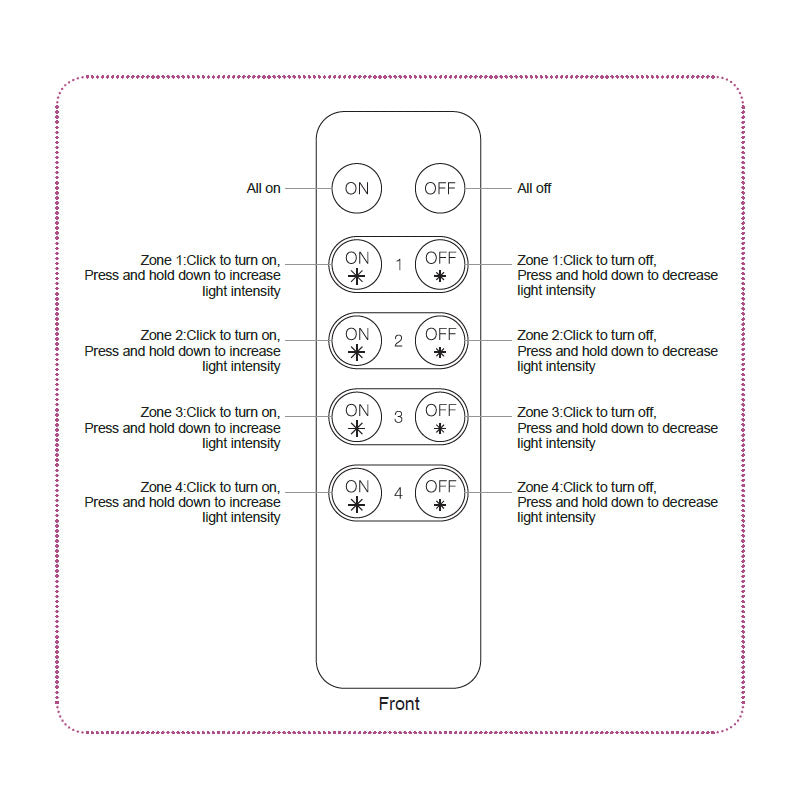

• Control 4 zones of receivers separately
• Single colour controller
• Compatible with all universal series RF receivers
• 1 receiver can be paired by max 8 different remote controls
• Waterproof grade: IP20

Safety & Warnings

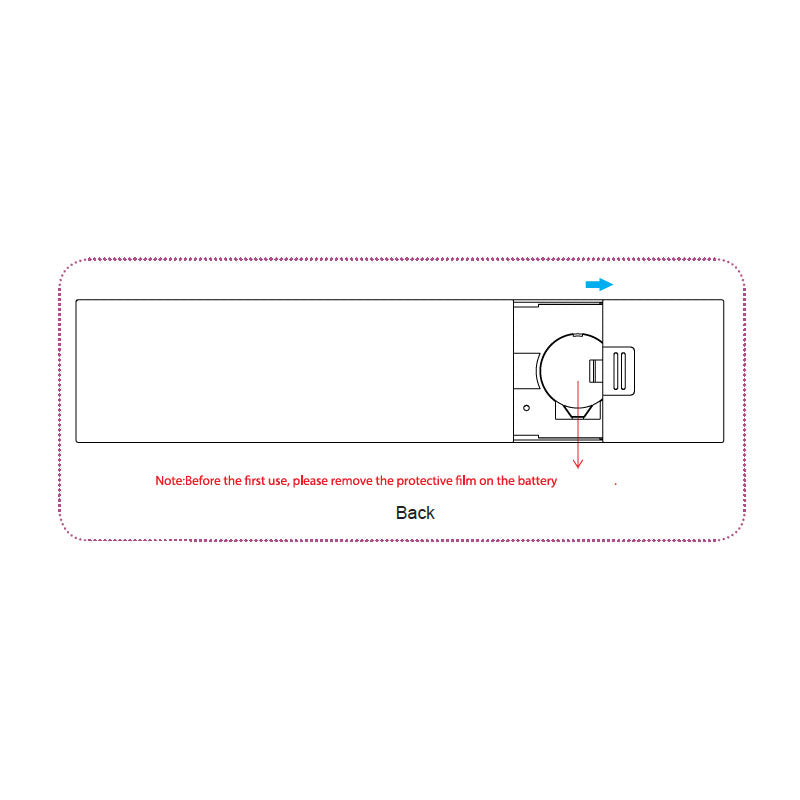

• This device contains a button lithium battery that shall be stored and disposed properly
• DO NOT expose the device to moisture

Product Data

• Radio Frequency : 868 / 869.5 / 916.5 / 434mhz
• Waterproof grade: IP20

Manual

Pair/delete the pairing with RF remote

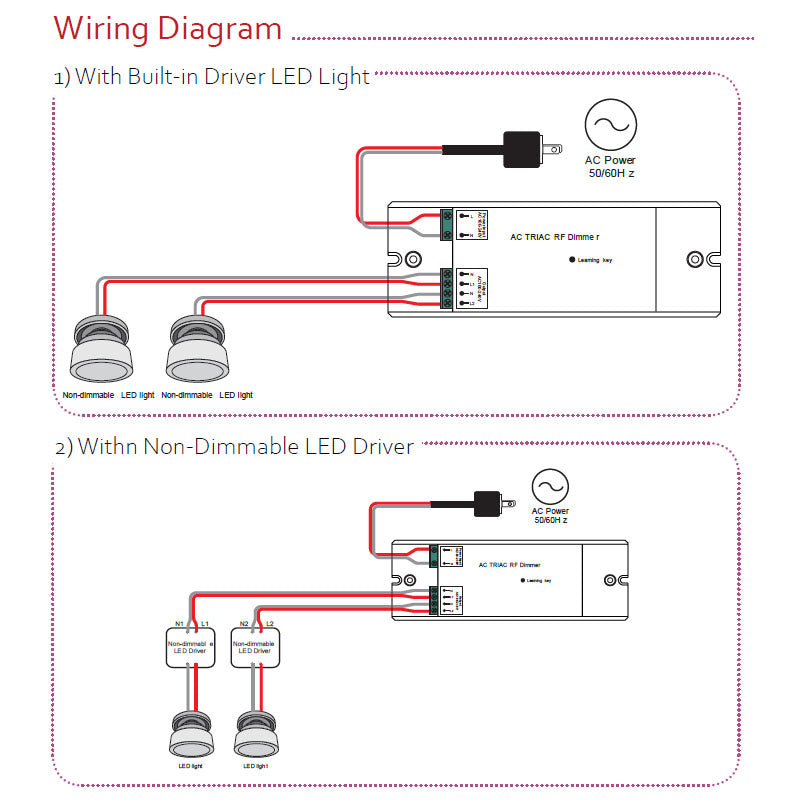

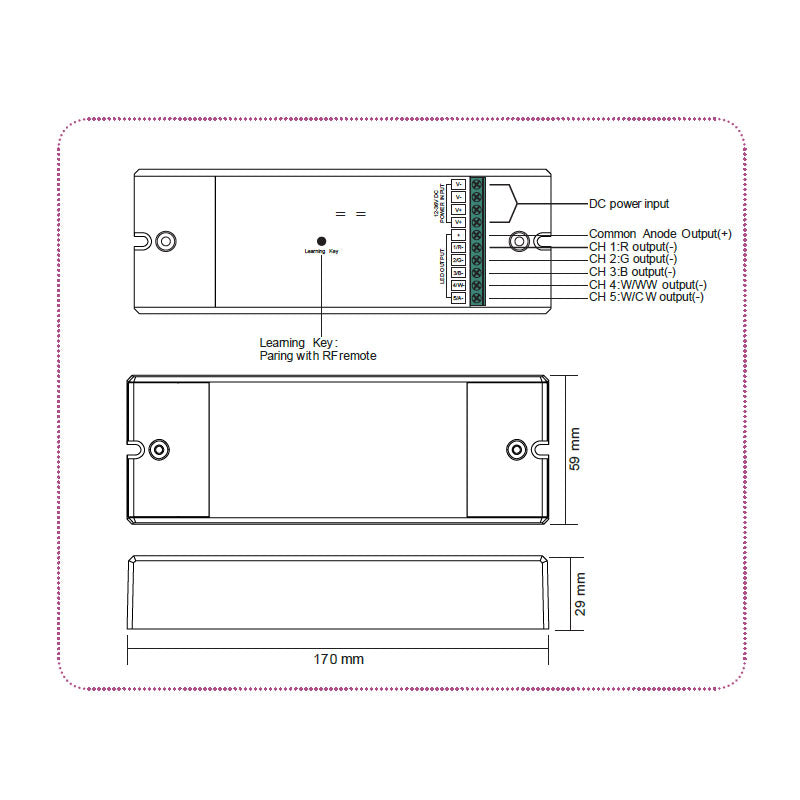

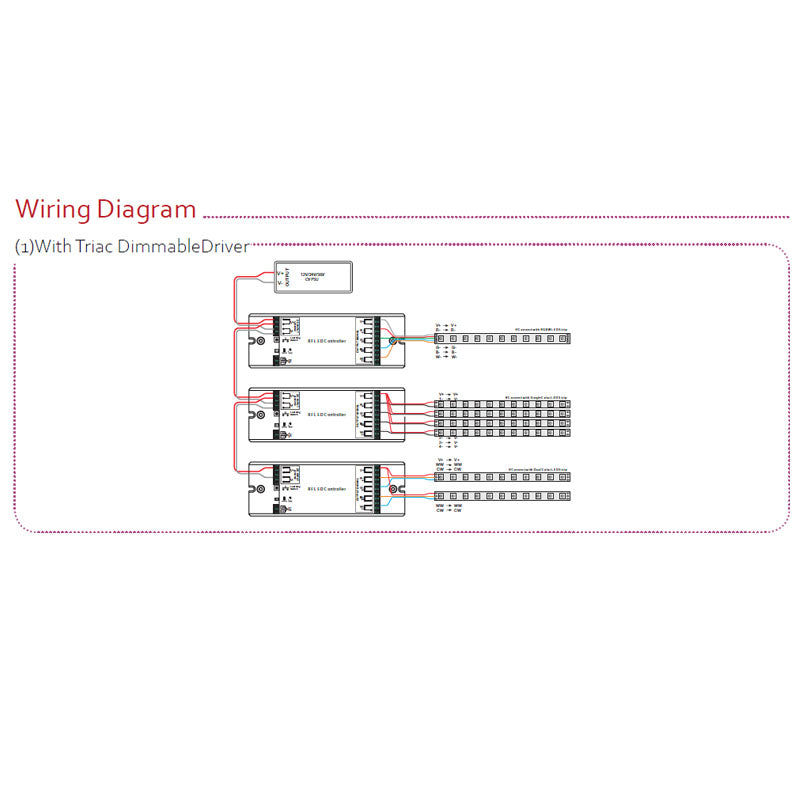

1.Do wiring according to connection diagram
2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that you would like to pair with
3.Delete the pairing:
(1)Wire up the RF receiver correctly, power on.
(2)Press and hold down the “ Learning Key” button on receiver for over 3 seconds until the connected light
flashes, which means well deleted

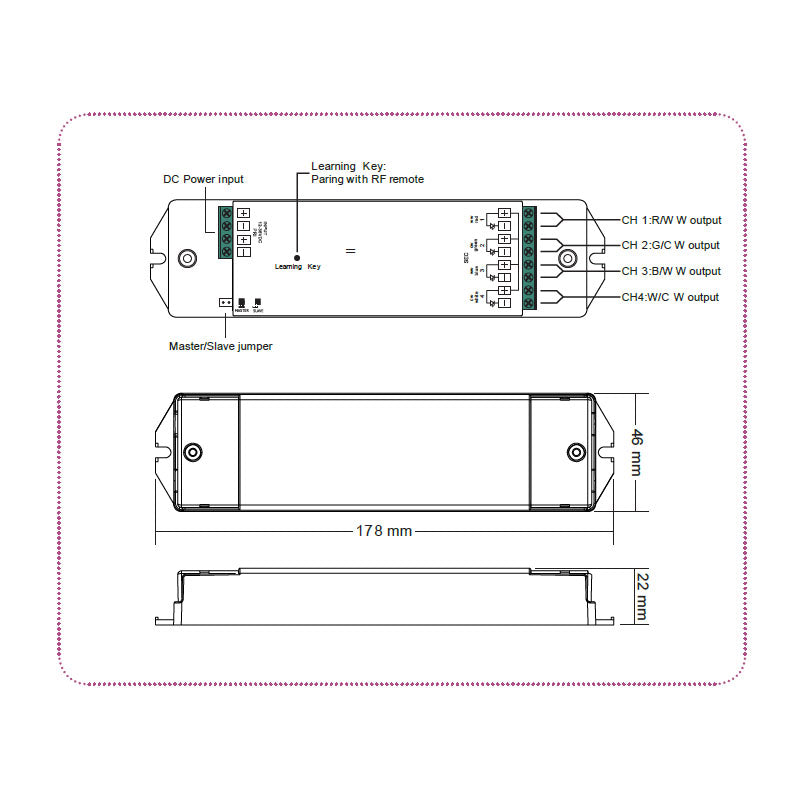

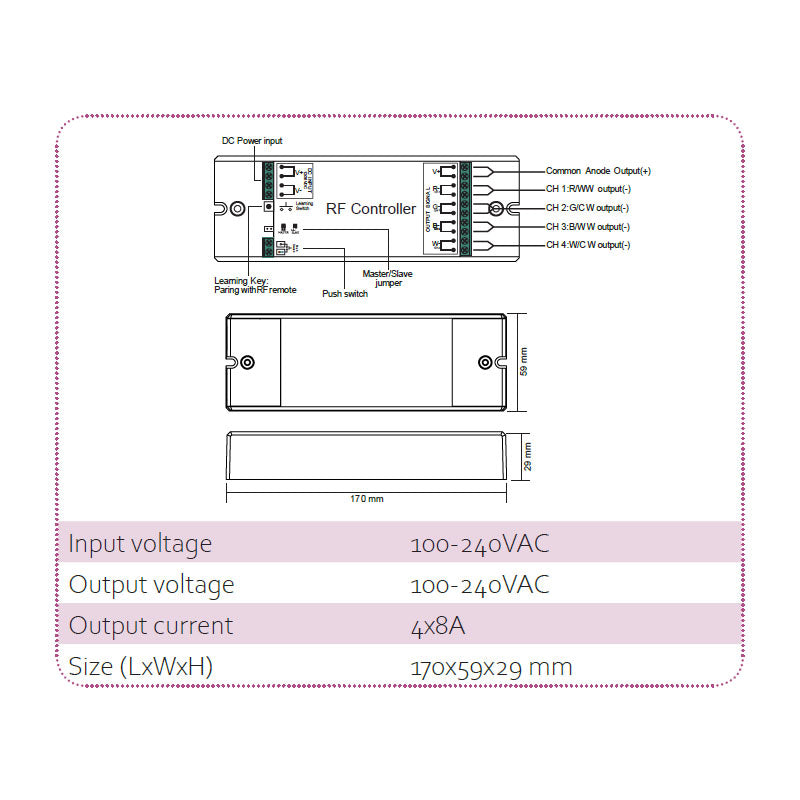

Master and Slave Setting:
1. The receiver has both master and slave functions which can be set with a jumper. Short circuit of the jumper means master function, and open circuit means slave function. Once short circuit the jumper on a receiver, please power off and power on the receiver to enable master function. Setting master and slave enables perfect synchronization of colour changing effects.
2. Set one receiver as master and pair it to any zone of a remote, and this zone shall only have one receiver which works as master. Set all other receivers as slave and pair them to other zones of the remote, and multiple receivers can be paired to each zone. Then choose all zones on the remote and play the colour changing effects, the master will send sync signal to the slaves to achieve perfect synchronization. The max. sync distance between the master and any slave is within 30m

Product Data

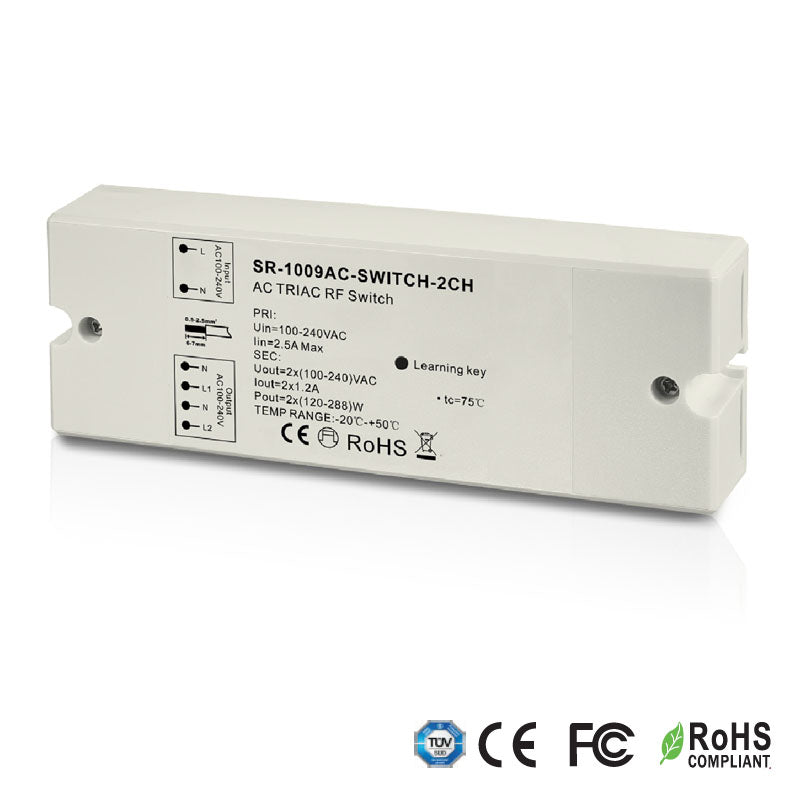

• Safe and reliable full isolation design
• Great compatibility with a variety of remote controls
• To switch on/off LED lamps, traditional incandescent and halogen lights
• 2 channels output
• Waterproof grade: IP20
• Radio Frequency : 868/869.5/916.5/434mhz

Manual

Pair/delete the pairing with RF remote
1.Do the wiring according to connection diagram
2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that you would like to pair with
3.Delete the pairing:
(1)Wire up the RF receiver correctly, power on
(2)Press and hold down the “ Learning Key” button on receiver for over 3 seconds until the connected light flashes, which means well deleted

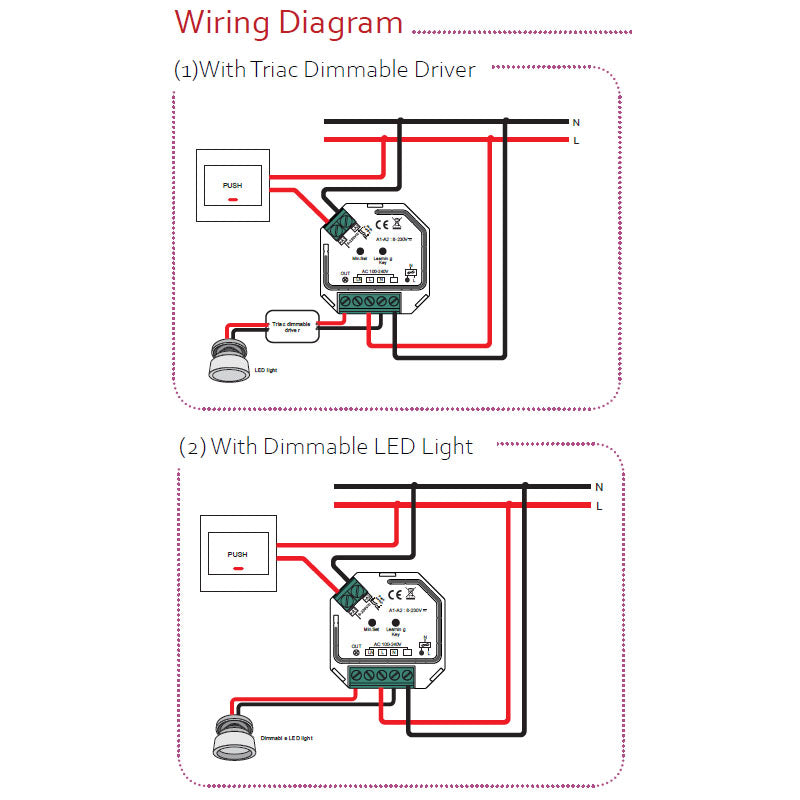

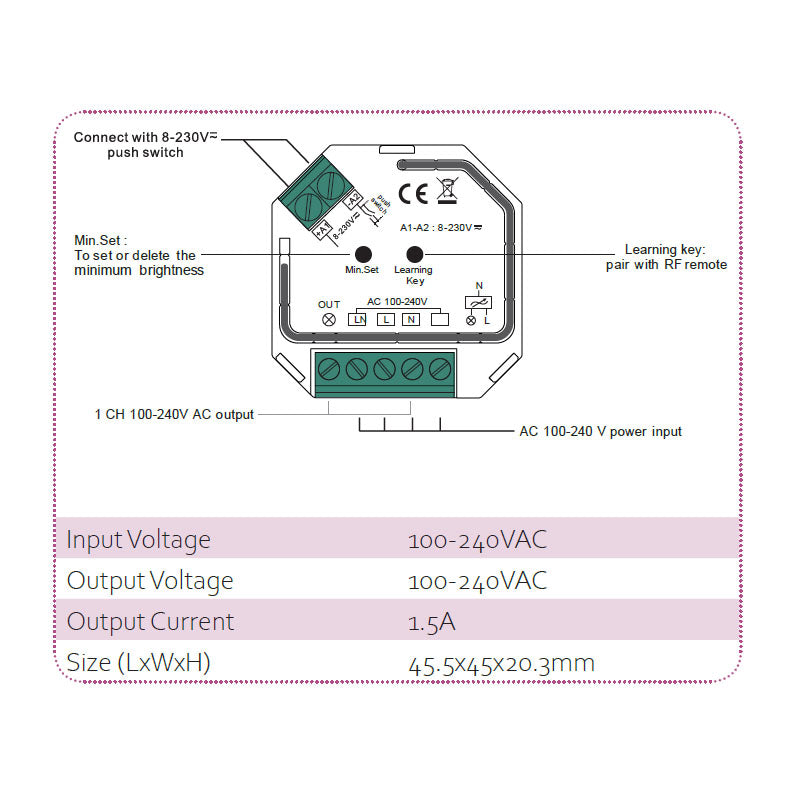

Compatible Load Types

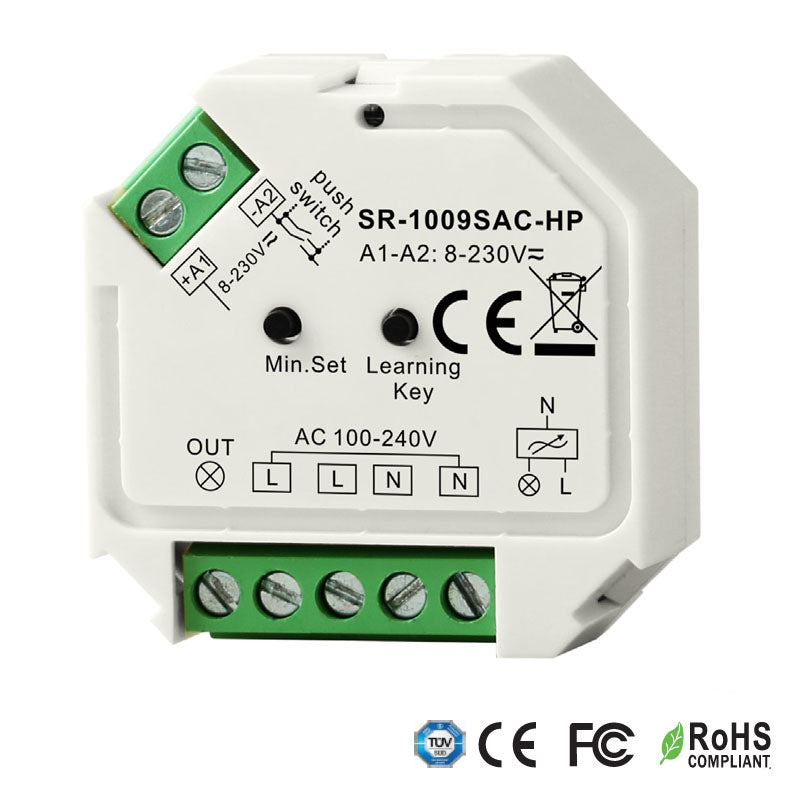

• 100-240VAC Wide Input and Output Voltage
• Radio Frequency : 868/869.5/916.5/434mhz
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Trailing edge dimming
• Supports resistive loads and capacitive loads
• Innovative minimum brightness setting function
• Single Wire Push Switch Input for Push Dim Function
• Great Compatibility with Universal 8V-230V~ Input Push Switches
• Great compatibility with a variety of Perfect RF series single colour remote controls
• To dim and switch single colour dimmable LED lamps, traditional incandescent and halogen lights

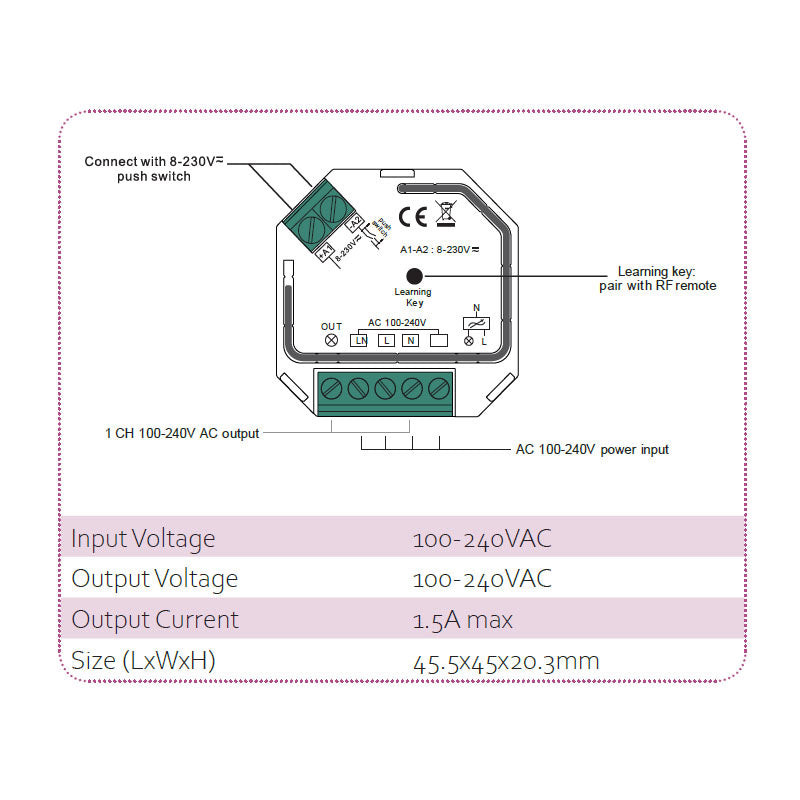

• Mini size, easy to install into a standard 86*86mm wall
box
• Waterproof grade: IP20

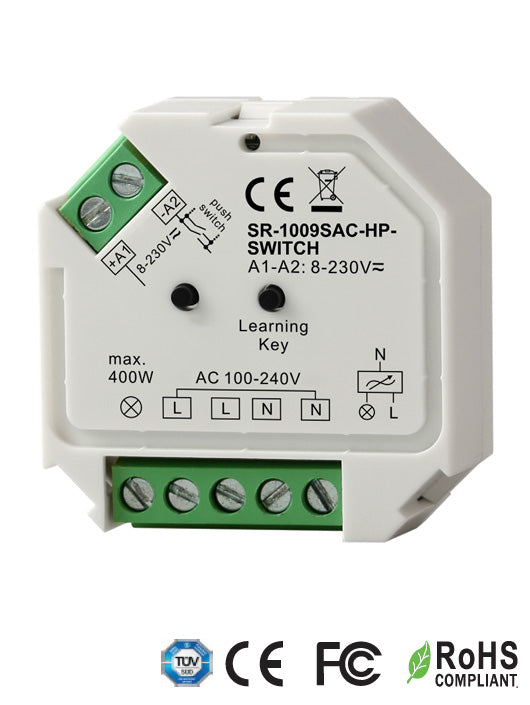

Compatible Load Types

• 100-240VAC Wide Input and Output Voltage
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Great Compatibility with Universal 8V-230V~ Input Push Switches
• Great compatibility with a variety of Perfect RF series single colour remote controls
• To switch single coluor LED lamps
• Mini size, easy to install into a standard 86*86mm wall box
• Radio Frequency : 868/869.5/916.5/434mhz
• Waterproof grade: IP20

Product Data

• Radio Frequency : 868 / 869.5 / 916.5 / 434mhz
• Waterproof grade: IP20

Manual

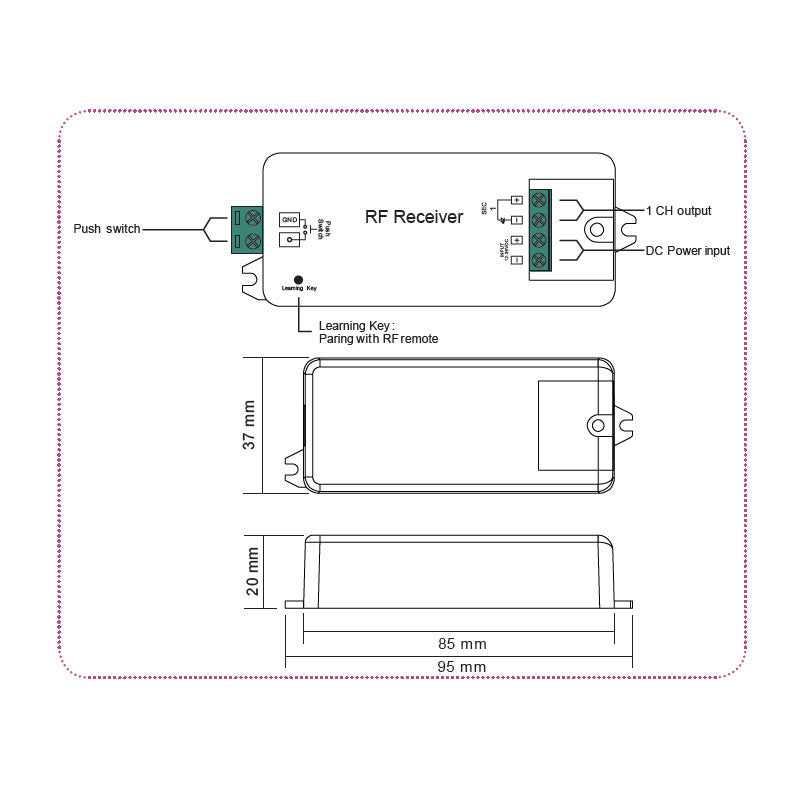

Pair/delete the pairing with RF remote

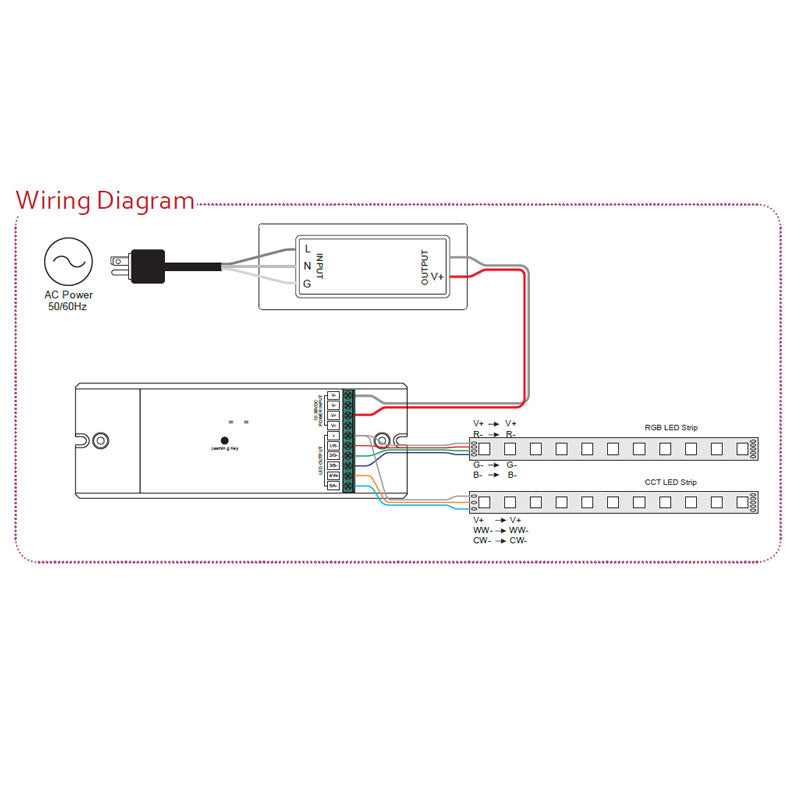

1.Do the wiring according to connection diagram.
2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that you would like to pair with
3.Delete the pairing:
(1)Wire up the RF receiver correctly, power on
(2)Press and hold down the “ Learning Key” button on receiver for over 3 seconds until the connected light flashes, which means
well deleted

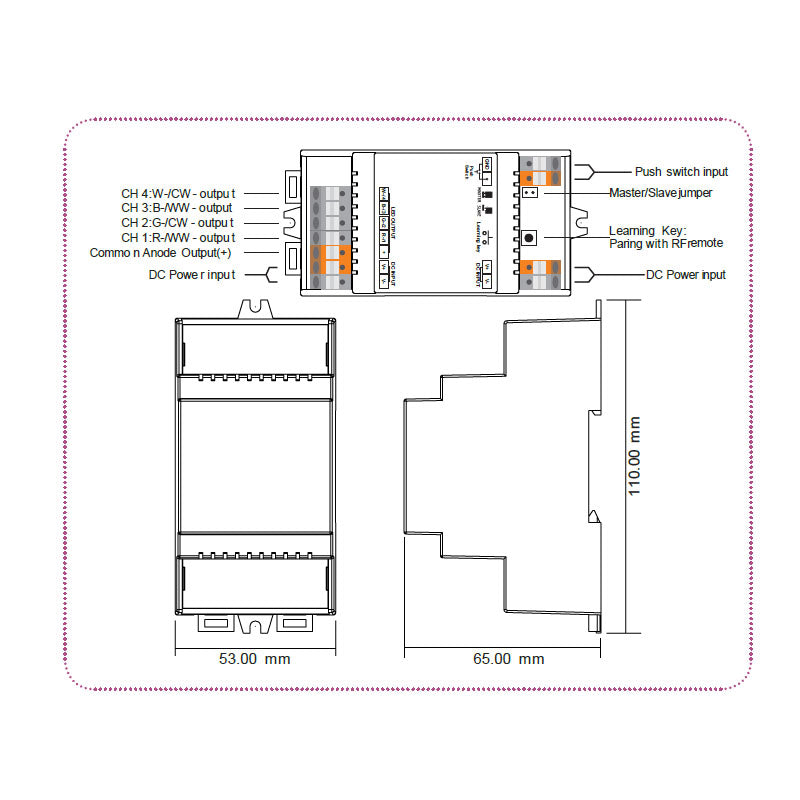

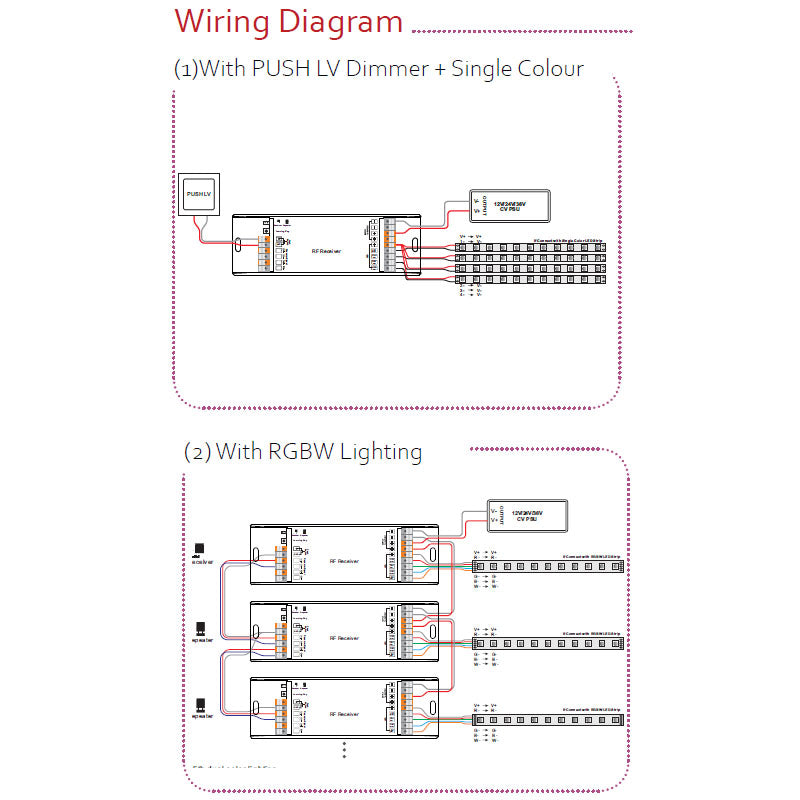

Master and Slave Setting:
1. The receiver has both master and slave functions which can be set with a jumper. Short circuit of the jumper means master function, and open circuit means slave function. Once short circuit the jumper on a receiver, please power off and power on the receiver to enable master function. Setting master and slave enables perfect synchronization of colour changing effects.
2. Set one receiver as master and pair it to any zone of a remote, and this zone shall only have one receiver which works as master. Set all other receivers as slave and pair them to other zones of the remote, and multiple receivers can be paired to each zone. Then choose all zones on the remote and play the colour changing effects, the master will send sync signal to the slaves to achieve perfect synchronization. The max. sync distance between the master and any slave is within 30m

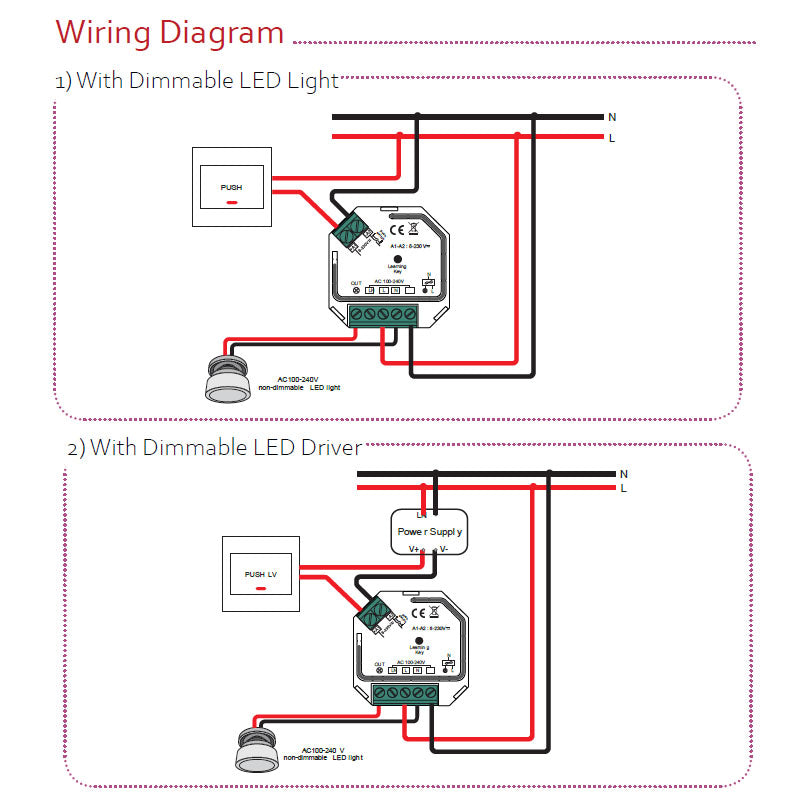

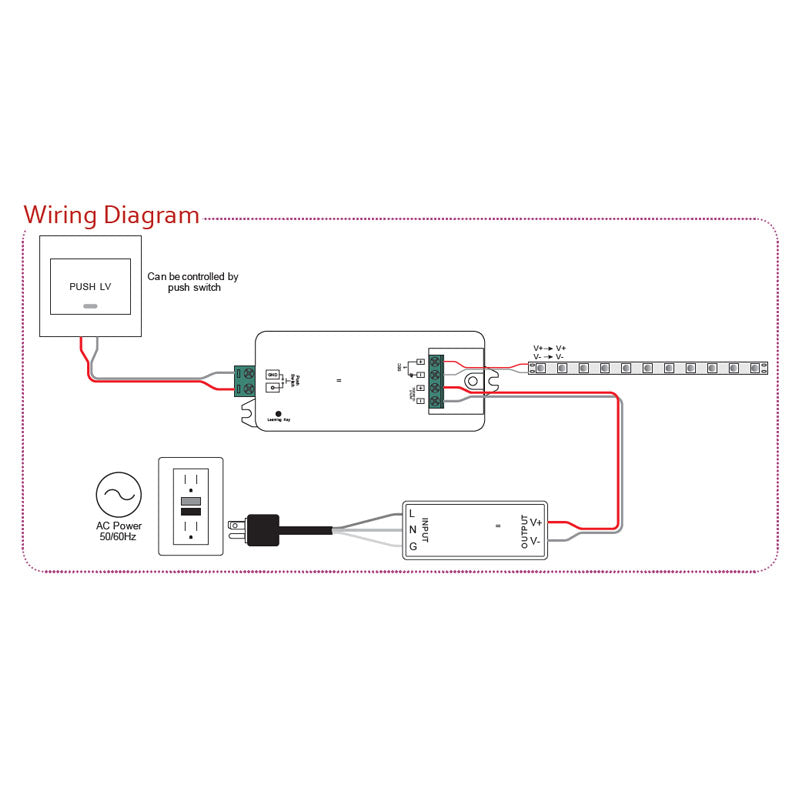

PUSH DIM:
While connected with PUSH LV, click the button to switch ON/OFF lights. Press and hold down the button to increase/decrease light intensity.

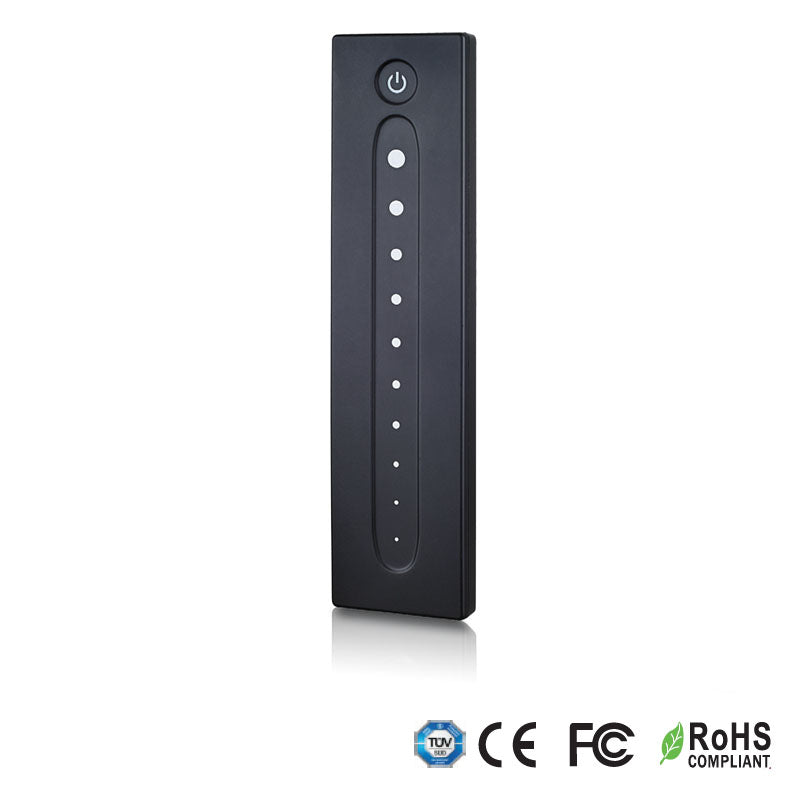

• Control 1 zone of RF receiver
• Single colour controller
• Compatible with universal series RF receiver
• 1 receiver can be paired by max 8 different remote controls.
• Waterproof grade: IP20

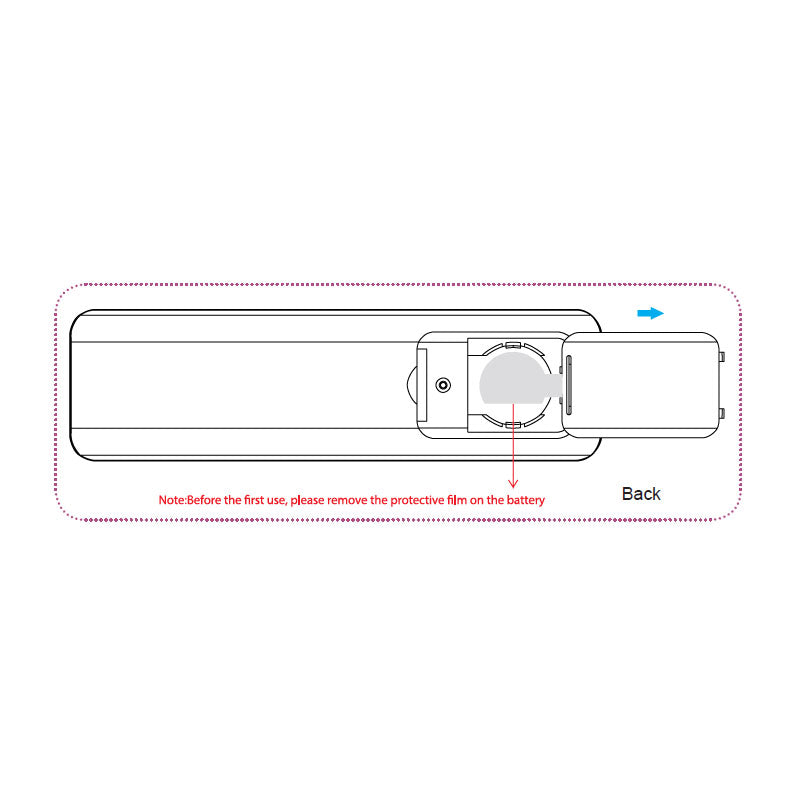

Safety & Warnings
• This device contains a button lithium battery that shall be
stored and disposed properly
• DO NOT expose the device to moisture
