LED Drivers

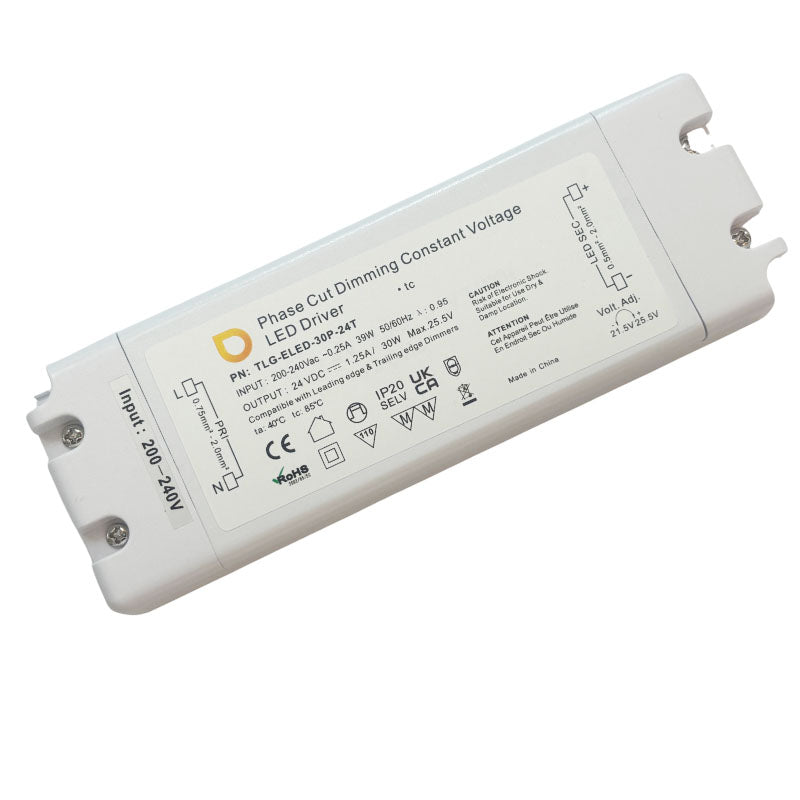

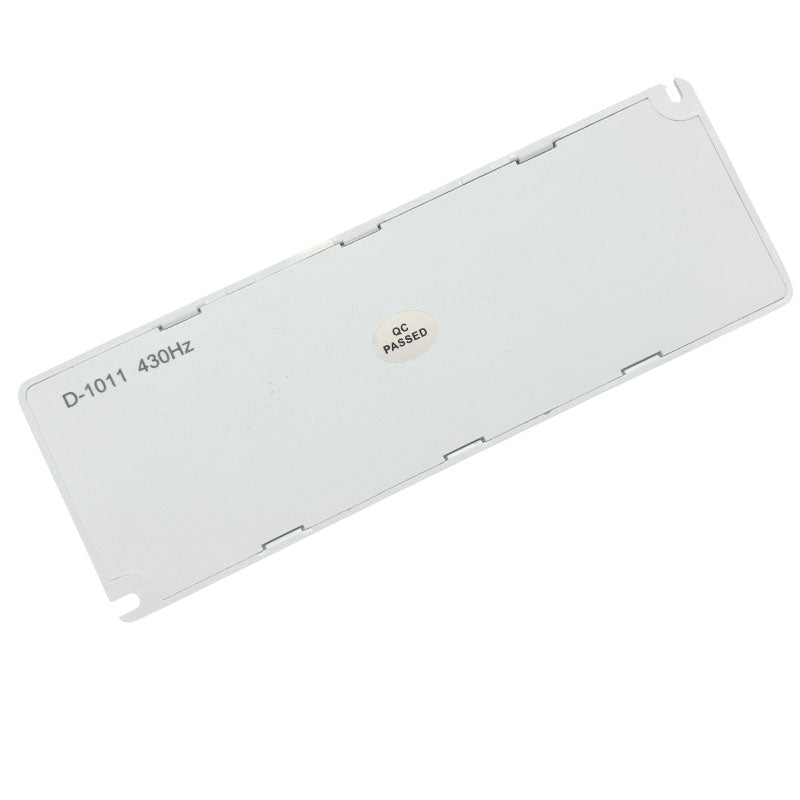

CV Driver 30W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-30P-24T

CV Driver 30W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-30P-24T

£28.31

Product Details - Model: TLG-ELED-30P-24T
Features
Output	Constant voltage
AC Input Range	200–240VAC
Efficiency	Up to 80%
Protections	Short circuit / Over loading / Over current / Over temperature
Housing	Full protection plastic housing, easy installation
IP Rating	IP20, indoor installation
Cooling	Free air convection
Dimming	Leading & trailing edge TRIAC dimmers, strong compatibility
Flicker	Flicker-free dimming
Applications	LED lighting and moving sign applications
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	1.25A
Rated Power	30W
Input Specifications
Voltage Range	200–240VAC
Frequency Range	47–63Hz
Full Load Efficiency	79% (Typical)
AC Current (Max.)	0.22A
Leakage Current	<0.50mA
Power Factor	PF ≥ 0.97 @ 200/230/240VAC (Full load)
Protection
Short Circuit	Shutdown, re-power on to recover after fault condition removed
Over Loading	≤120%, shutdown, re-power on to recover
Over Current	≤1.2 × Iout
Over Temperature	100°C ±10°C, shutdown, re-power on to recover
Environment
Working Temperature	-40 to +70°C
Working Humidity	20–90% RH (non-condensing)
Storage Temp & Humidity	-40 to +80°C, 10–95% RH
Temperature Coefficient	±0.03%/°C (0–50°C)
Vibration	10–500Hz, 2G, 10min/cycle, 72min each axis (X, Y, Z)
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P–O/P: 3.75KVAC
Isolation Resistance	I/P–O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC Emission	Compliant with EN55015, EN61000-3-2,3 (≥60% load)
Other Specifications
Net Weight	0.21 kg

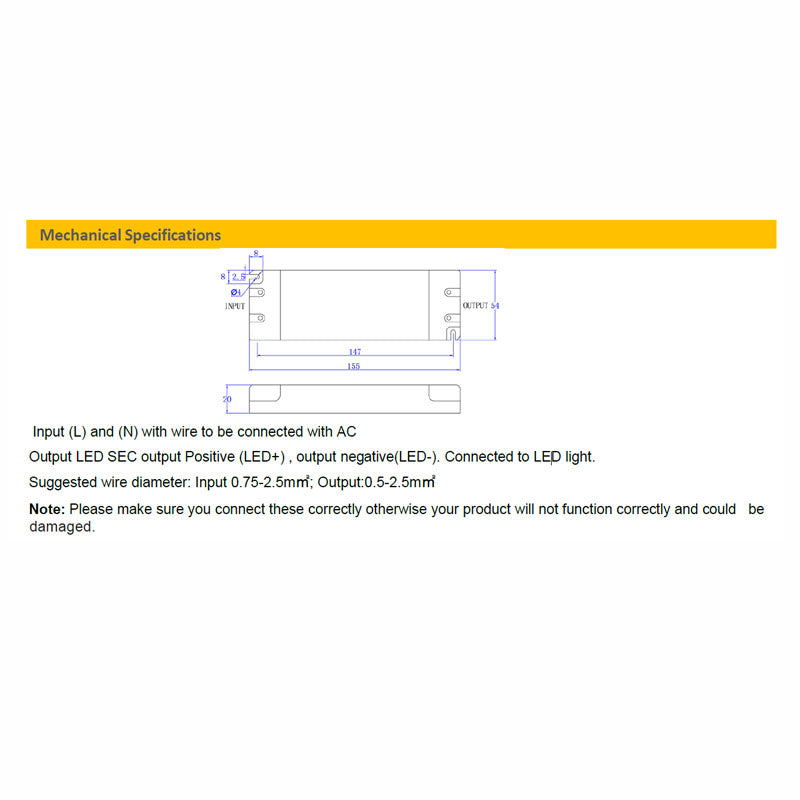

Size (L×W×H)	155 × 54 × 20 mm
Packing	160 × 60 × 23 mm (inner box), 350 × 240 × 130 mm (40 PCS/CTN)
Notes
All parameters NOT specially mentioned are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. The power supply is considered a component to be used with final equipment. EMC performance must be re-qualified in the complete installation. Loading range from 10% to 100%.

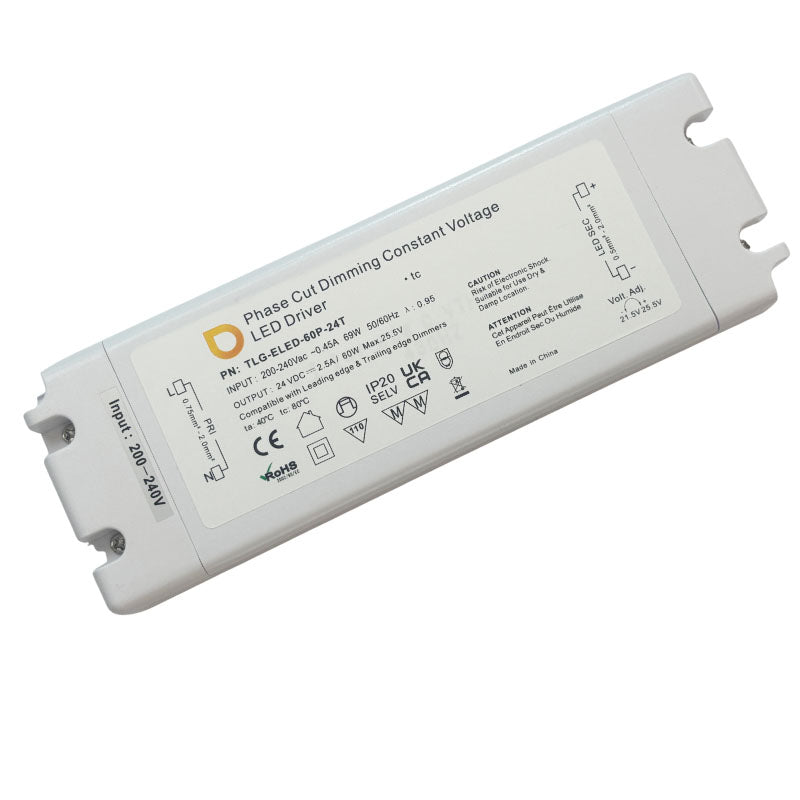

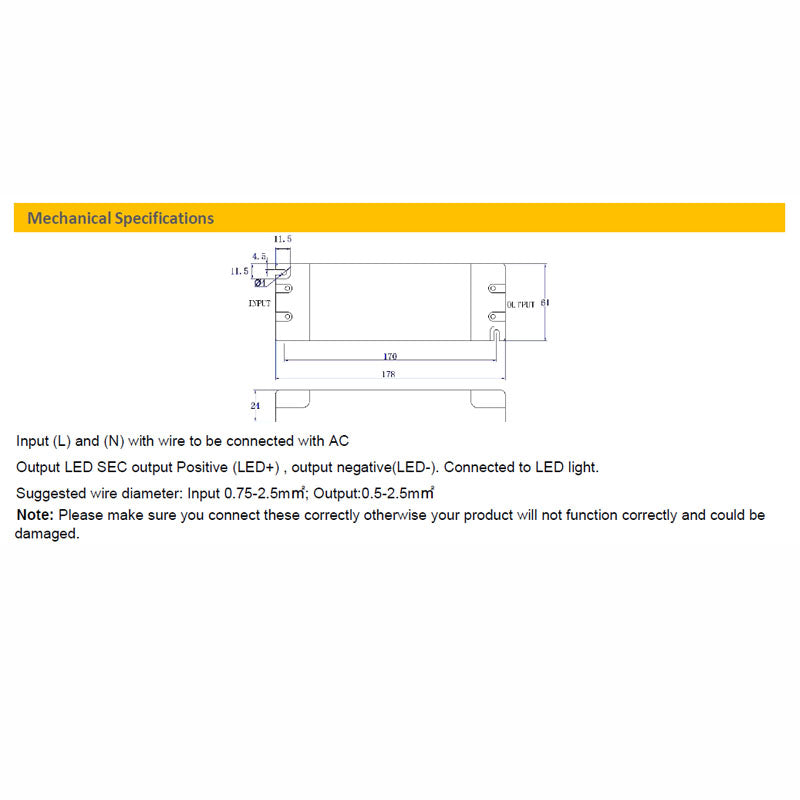

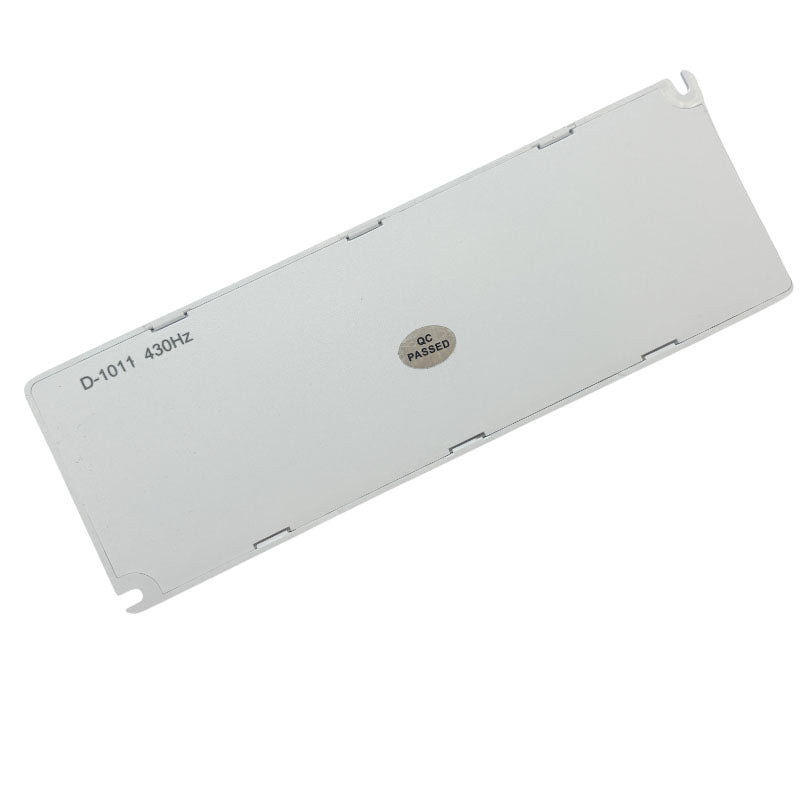

CV Driver 60W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-60P-24T

CV Driver 60W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-60P-24T

£47.29

Product Details - Model: TLG-ELED-60P-24T
Features
• Output constant voltage • Range AC input: 200-240VAC • Efficiency: up to 85% • Protections: Short circuit / Over loading / Over current / Over temperature • Full protection plastic housing easy installation • IP20 design for indoor installation • Cooling by free air convection • Work with leading edge and trailing edge TRIAC dimmers • Strong compatibility, flicker-free dimming • Suitable for LED lighting and moving sign application
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	1.25A
Rated Power	60W
Input Specifications
Voltage Range	200-240VAC
Frequency Range	47-63Hz
Full Load Efficiency	85%
AC Current (Max.)	0.38A
Leakage Current	<0.50mA
Power Factor	PF≧0.98/200VAC PF≧0.98/230VAC PF≧0.98/240VAC (Full Loading)
Protection
Short Circuit	Shut down o/p voltage, re-power on to recover after fault is removed
Over Loading	≤120%, hiccup mode, recovers automatically after fault is removed
Over Current	≤1.2 × I out
Over Temperature	100°C ±10°C, shut down o/p voltage, re-power on to recover
Environment
Working Temperature	-40 ~ +70℃
Working Humidity	20-90% RH, non-condensing
Storage Temperature & Humidity	-40 ~ +80℃, 10-95% RH
Temperature Coefficient	±0.03%/°C (0-50°C)
Vibration	10-500Hz, 2G 10min/1 cycle, 72min each on X, Y, Z axes
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P-O/P: 3.75KVAC
Isolation Resistance	I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC Emission	Compliance to EN55015, EN61000-3-2,3 (>60% load)
Other Specifications
Net Weight	0.35 kg
Size	178 × 61 × 24 mm (L × W × H)
Packing	185 × 65 × 28 mm (inner box) 290 × 215 × 240 mm (20 PCS/CTN)
Notes
• All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ ambient temperature • Tolerance includes setup tolerance, line regulation, and load regulation • The power supply is a component intended for use with final equipment; final EMC performance must be re-evaluated • Loading range: 10% to 100%

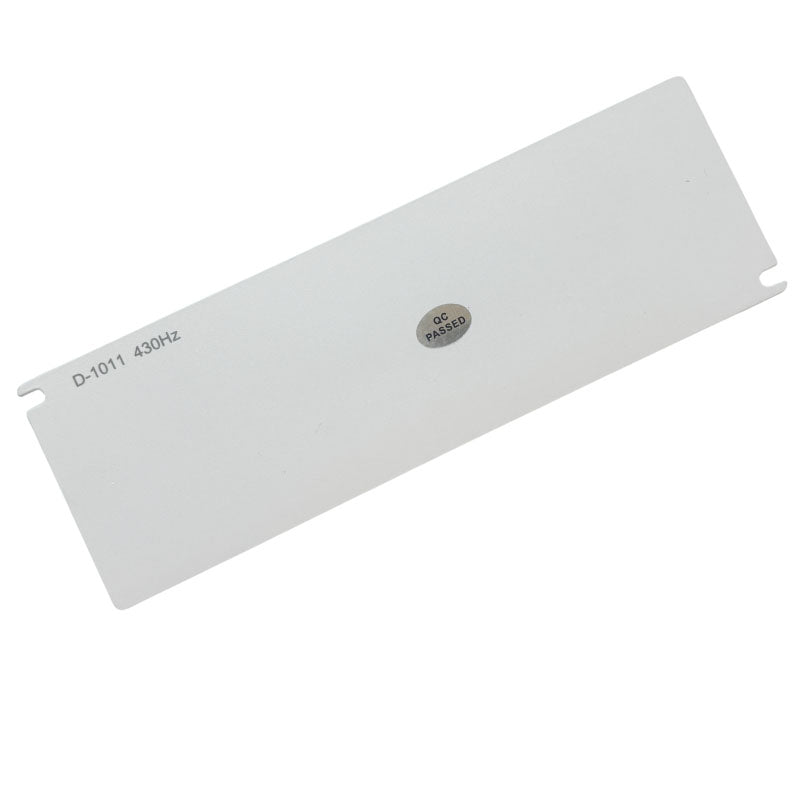

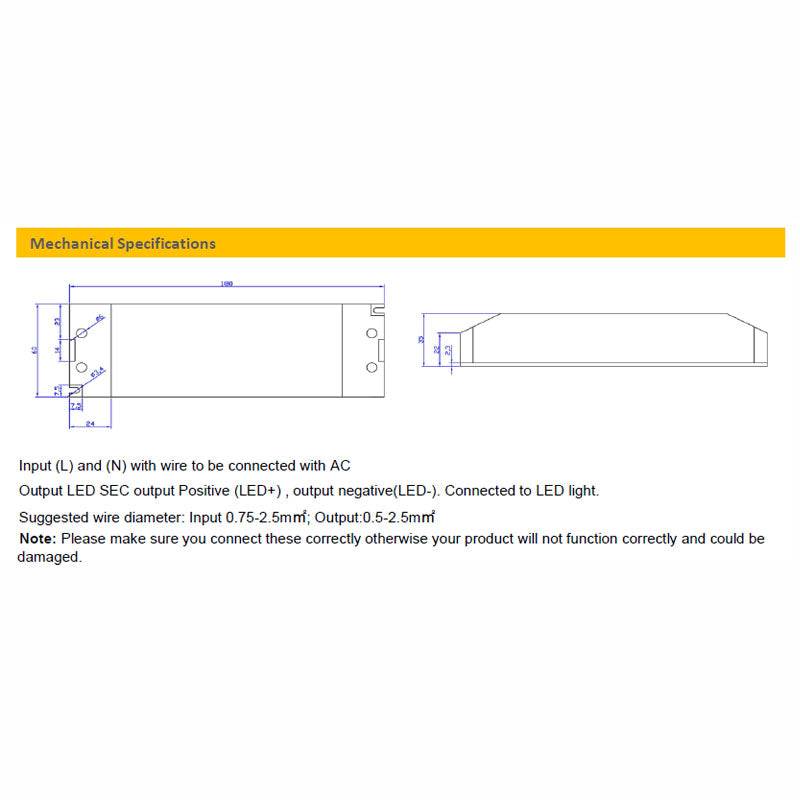

CV Driver 75W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-75P-24T

CV Driver 75W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-75P-24T

£57.68

Product Details - Model: TLG-ELED-75P-24T
Features
Output	Constant voltage
AC Input Range	200–240VAC
Efficiency	Up to 85%
Protections	Short circuit / Over loading / Over current / Over temperature
Housing	Full protection plastic housing, easy installation
IP Rating	IP20, indoor installation
Cooling	Free air convection
Dimming	Leading & trailing edge TRIAC dimmers, strong compatibility
Flicker	Flicker-free dimming
Applications	LED lighting and moving sign applications
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	3.125A
Rated Power	75W
Input Specifications
Voltage Range	200–240VAC
Frequency Range	47–63Hz
Full Load Efficiency	85% (Typical)
AC Current (Max.)	0.55A
Leakage Current	<0.50mA
Power Factor	PF ≥ 0.98 @ 200/230/240VAC (Full load)
Protection
Short Circuit	Shutdown, auto recovery after fault removal
Over Loading	≤120%, hiccup mode, auto recovery
Over Current	≤1.2 × Iout
Over Temperature	100°C ±10°C, shutdown, auto recovery
Environment
Working Temperature	-40 to +70°C
Working Humidity	20–90% RH (non-condensing)
Storage Temp & Humidity	40~+80°C, 10–95% RH
Temperature Coefficient	±0.03%/°C (0–50°C)
Vibration	10–500Hz, 2G, 10min/cycle, 72min each axis (X, Y, Z)
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P–O/P: 3.75KVAC
Isolation Resistance	I/P–O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC Emission	Compliant with EN55015, EN61000-3-2,3 (≥60% load)
Other Specifications
Net Weight	0.45 kg
Size (L×W×H)	180 × 60 × 35 mm
Packing	355 × 2150 × 215 mm (20 PCS/CTN)
Notes
All parameters NOT specially mentioned are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. The power supply is considered a component to be used with final equipment. EMC performance must be re-qualified in the complete installation. Loading range from 10% to 100%.

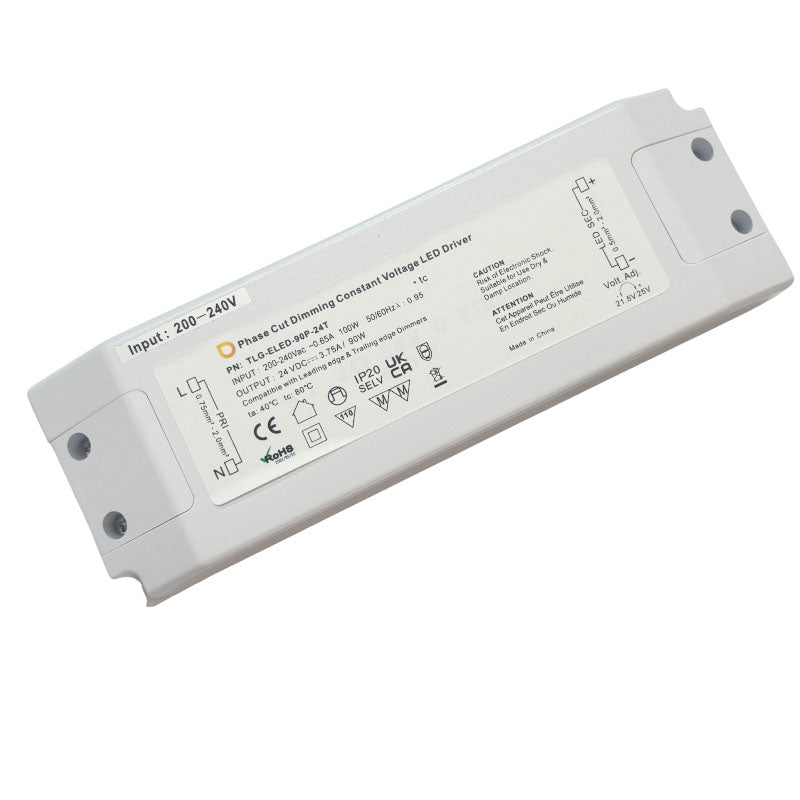

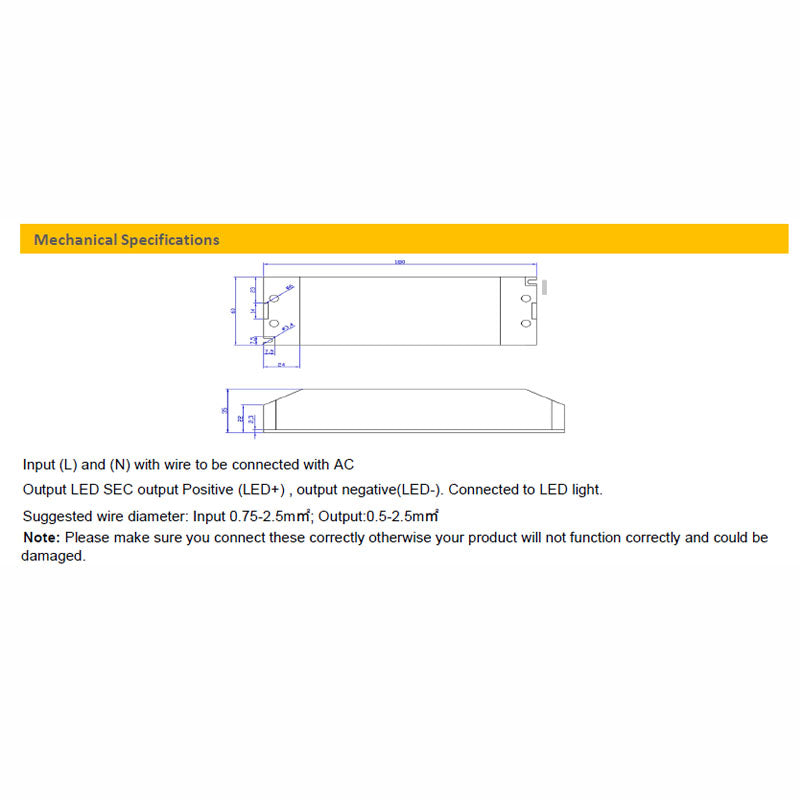

CV Driver 90W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-90P-24T

CV Driver 90W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-90P-24T

£72.76

Product Details - Model: TLG-ELED-90P-24T
Features
Output	Constant voltage, slightly adjustable
AC Input Range	200–240VAC
Efficiency	Up to 86%
Protections	Short circuit / Over loading / Over current / Over temperature
Housing	Full protection plastic housing, easy installation
IP Rating	IP20, indoor installation
Cooling	Free air convection
Dimming	Leading & trailing edge TRIAC dimmers, strong compatibility
Flicker	Flicker-free dimming
Applications	LED lighting and moving sign applications
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	3.75A
Rated Power	90W
Input Specifications
Voltage Range	200–240VAC
Frequency Range	47–63Hz
Full Load Efficiency	86% (Typical)
AC Current (Max.)	0.65A
Leakage Current	<0.50mA
Power Factor	PF ≥ 0.98 @ 200/230/240VAC (Full load)
Protection
Short Circuit	Shutdown, re-power on to recover after fault is removed
Over Loading	≤120%, hiccup mode, auto recovery after fault is removed
Over Current	≤1.2 × Iout
Over Temperature	100°C ±10°C, shutdown, re-power on to recover
Environment
Working Temperature	-40 to +70°C
Working Humidity	20–90% RH (non-condensing)
Storage Temp & Humidity	-40 to +80°C, 10–95% RH
Temperature Coefficient	±0.03%/°C (0–50°C)
Vibration	10–500Hz, 2G, 10min/cycle, 72min each axis (X, Y, Z)
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P–O/P: 3.75KVAC
Isolation Resistance	I/P–O/P: 100MΩ / 500VDC / 25°C / 70% RH
EMC Emission	EN55015, EN61000-3-2,3 (>60% load)
Other Specifications
Net Weight	0.45 kg
Size (L×W×H)	180 × 60 × 35 mm
Packing	355 × 2150 × 215 mm (20 PCS/CTN)
Notes
All parameters NOT specially mentioned are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. The power supply is considered a component to be used with final equipment. EMC performance must be re-qualified in the complete installation. Loading range from 10% to 100%.

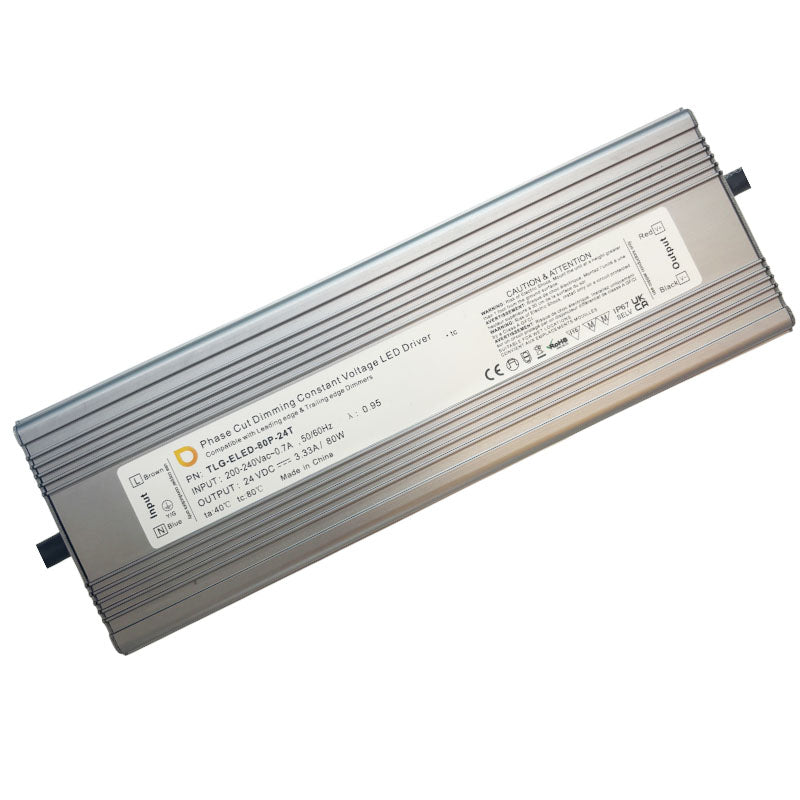

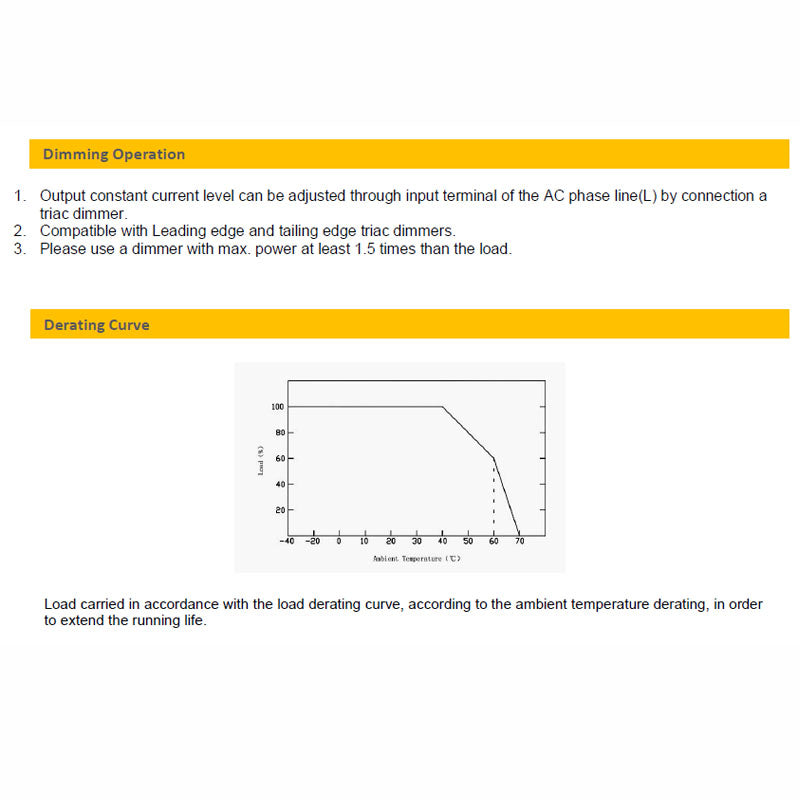

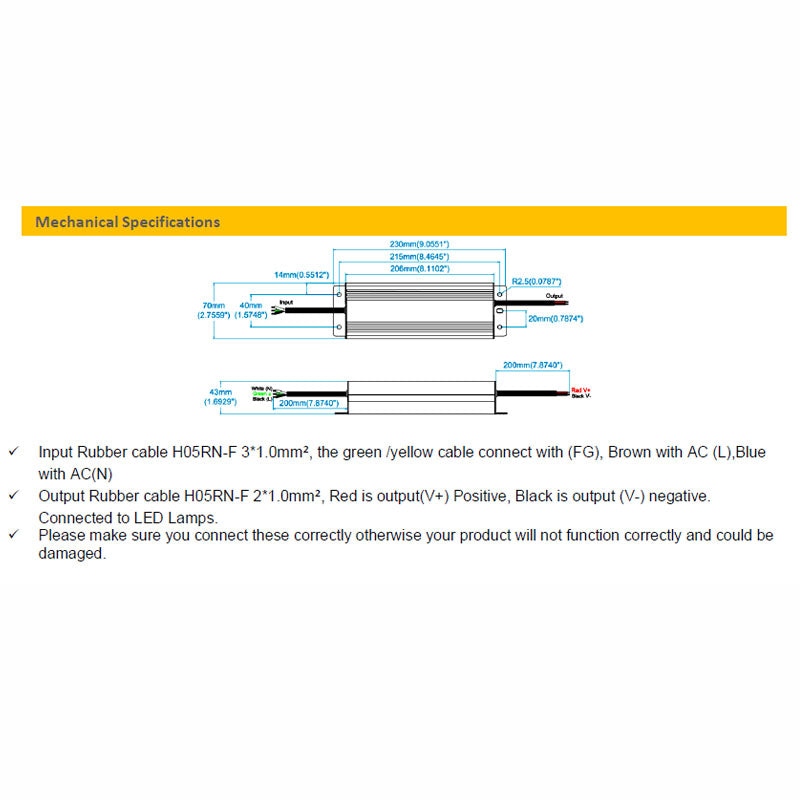

CV Driver 80W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-80P-24T

CV Driver 80W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-80P-24T

£60.88

Product Details - Model: TLG-ELED-80P-24T
Features
Output	Constant voltage
AC Input Range	200–240VAC
Efficiency	Up to 83%
Protections	Short circuit / Over loading / Over current / Over temperature
Housing	Full protection plastic housing, easy installation
IP Rating	IP66, indoor & outdoor installation
Cooling	Free air convection
Dimming	Leading & trailing edge TRIAC dimmers, strong compatibility
Flicker	Flicker-free dimming
Applications	LED lighting and moving sign applications
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	3.33A
Rated Power	80W
Input Specifications
Voltage Range	200–240VAC
Frequency Range	47–63Hz
Full Load Efficiency	83% (Typical)
AC Current (Max.)	0.08A
Leakage Current	<0.50mA
Power Factor	PF ≥ 0.97 @ 200/230/240VAC (Full load)
Protection
Short Circuit	Shutdown, re-power on to recover after fault is removed
Over Loading	≤120%, constant current limiting, auto-recovery
Over Temperature	100°C ±10°C, shutdown, re-power on to recover
Environment
Working Temperature	-40 to +60°C
Working Humidity	20–95% RH (non-condensing)
Storage Temp & Humidity	-40 to +80°C, 10–95% RH
Temperature Coefficient	±0.03%/°C (0–40°C)
Vibration	10–500Hz, 5G, 12min/cycle, 72min each axis (X, Y, Z)
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P–O/P: 3.75KVAC; I/P–FG: 1.88KVAC; O/P–FG: 0.5KVAC
Isolation Resistance	100MΩ / 500VDC / 25°C / 70% RH (I/P–O/P, I/P–FG, O/P–FG)
EMC Emission	EN55015, EN61000-3-2,3 (>60% load)
EMC Immunity	EN61000-4-2,3,4,5,6,11, EN61547
Other Specifications
Net Weight	1.1 kg
Size (L×W×H)	230 × 70 × 43 mm
Packing	245 × 75 × 65 mm (inner box); 340 × 275 × 170 mm (10 PCS/CTN)
Notes
All parameters NOT specially mentioned are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. The power supply is considered a component to be used with final equipment. EMC performance must be re-qualified in the complete installation. Loading range from 10% to 100%.

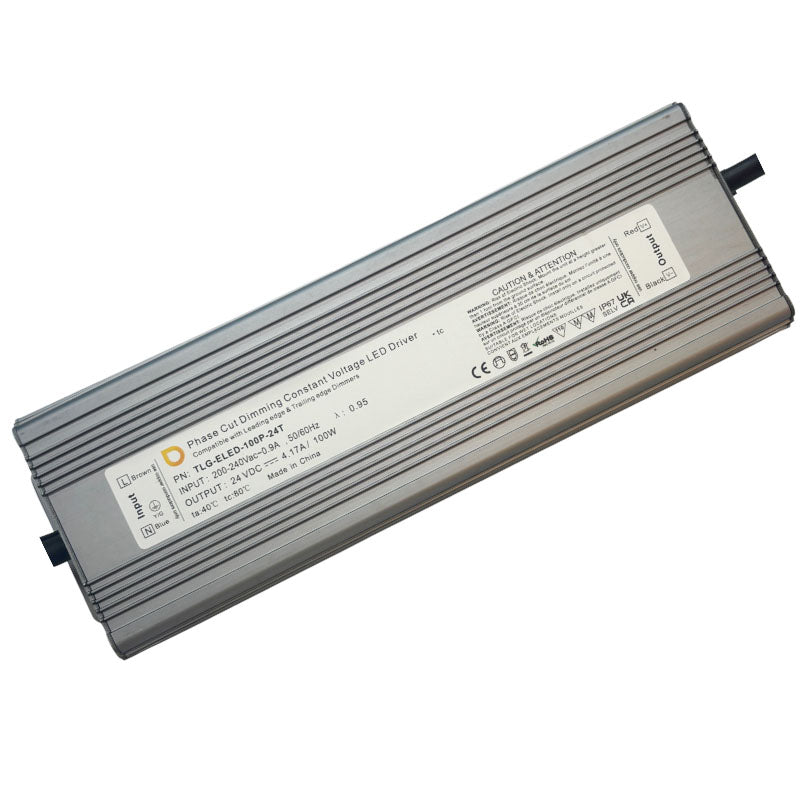

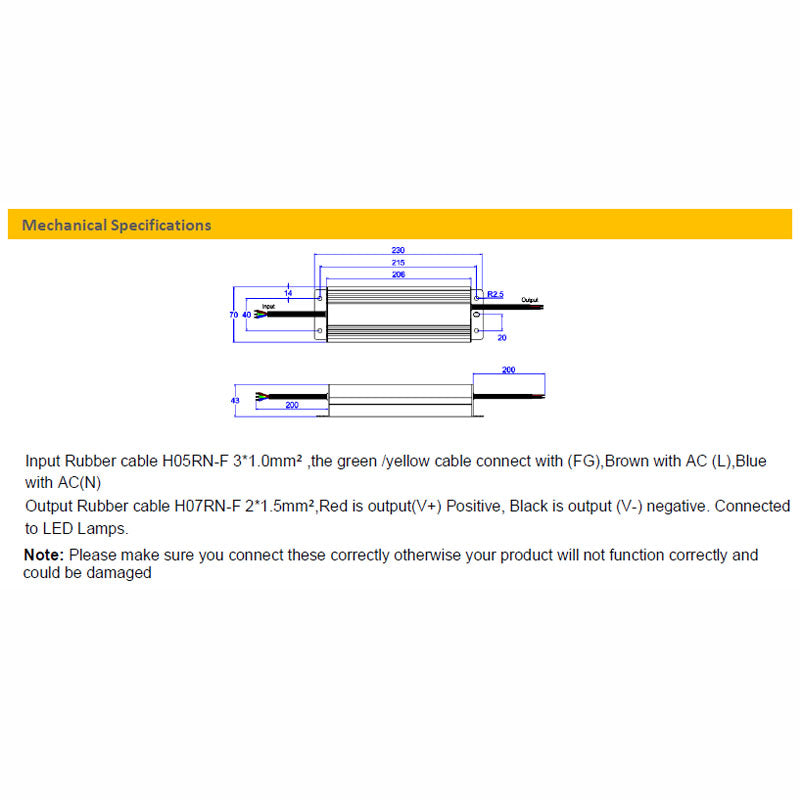

CV Driver 100W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-100P-24T

CV Driver 100W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-100P-24T

£76.00

Product Details - Model: TLG-ELED-100P-24T
Features
Output	Constant voltage
AC Input Range	200–240VAC
Power Factor	Built-in PFC, PF > 0.95
Load Range	10–100%
Efficiency	> 84%
Dimming Range	0–100%
Protections	Short circuit / Over loading / Over current / Over temperature
Housing	Full protection plastic housing, easy installation
IP Rating	IP66, suitable for indoor and outdoor installation
Cooling	Free air convection
Dimming	Leading & trailing edge TRIAC dimmers, strong compatibility
Flicker	Flicker-free dimming
Applications	LED lighting and moving sign applications
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	4.16A
Rated Power	100W
Input Specifications
Voltage Range	200–240VAC
Frequency Range	47–63Hz
Full Load Efficiency	84% (Typical)
AC Current (Max.)	0.08A
Leakage Current	<0.50mA
Power Factor	PF ≥ 0.97 @ 200/230/240VAC (Full load)
Protection
Short Circuit	Shutdown, re-power on to recover after fault is removed
Over Loading	≤120%, constant current limiting, auto recovery
Over Temperature	100°C ±10°C, shutdown, re-power on to recover
Environment

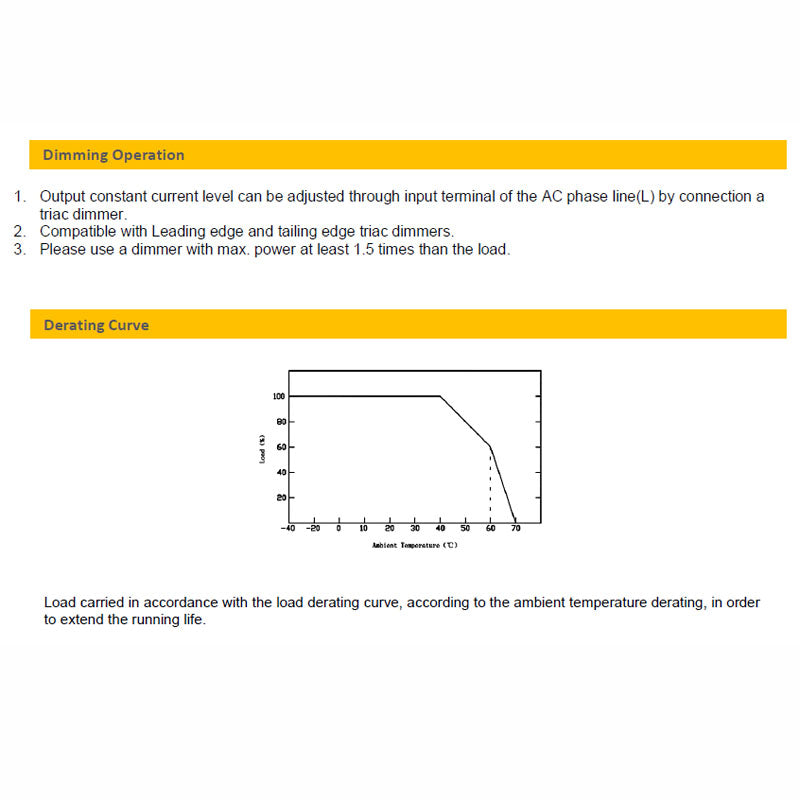

Working Temperature	-40 to +60°C (Refer to Derating Curve - Page 3)
Working Humidity	20–95% RH (non-condensing)
Storage Temp & Humidity	-40 to +80°C, 10–95% RH
Temperature Coefficient	±0.03%/°C (0–40°C)
Vibration	10–500Hz, 5G, 12min/cycle, 72min each axis (X, Y, Z)
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P–O/P: 3.75KVAC, I/P–FG: 1.88KVAC, O/P–FG: 0.5KVAC
Isolation Resistance	I/P–O/P, I/P–FG, O/P–FG: 100MΩ / 500VDC / 25°C / 70% RH
EMC Emission	EN55015, EN61000-3-2,3 (>60% load)
EMC Immunity	EN61000-4-2,3,4,5,6,11; EN61547
Other Specifications
Net Weight	1.1 kg
Size (L×W×H)	230 × 70 × 43 mm
Packing	Inner box: 245 × 75 × 65 mm Outer carton: 340 × 275 × 170 mm (10 PCS/CTN)
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2. To extend the driver's life, reduce the loading at lower input voltage. 3. Loading range from 10% to 100%.

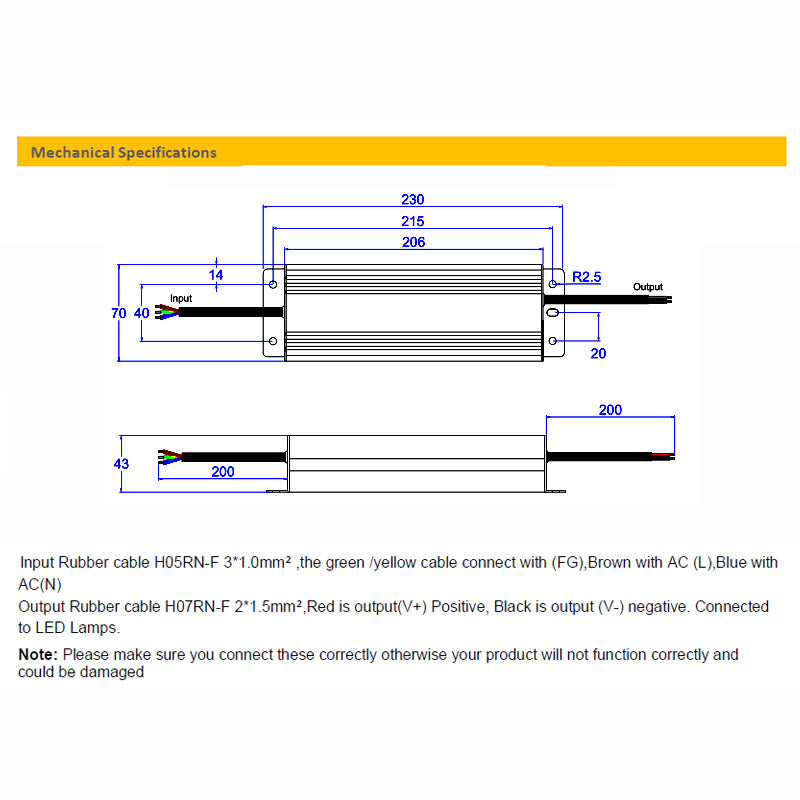

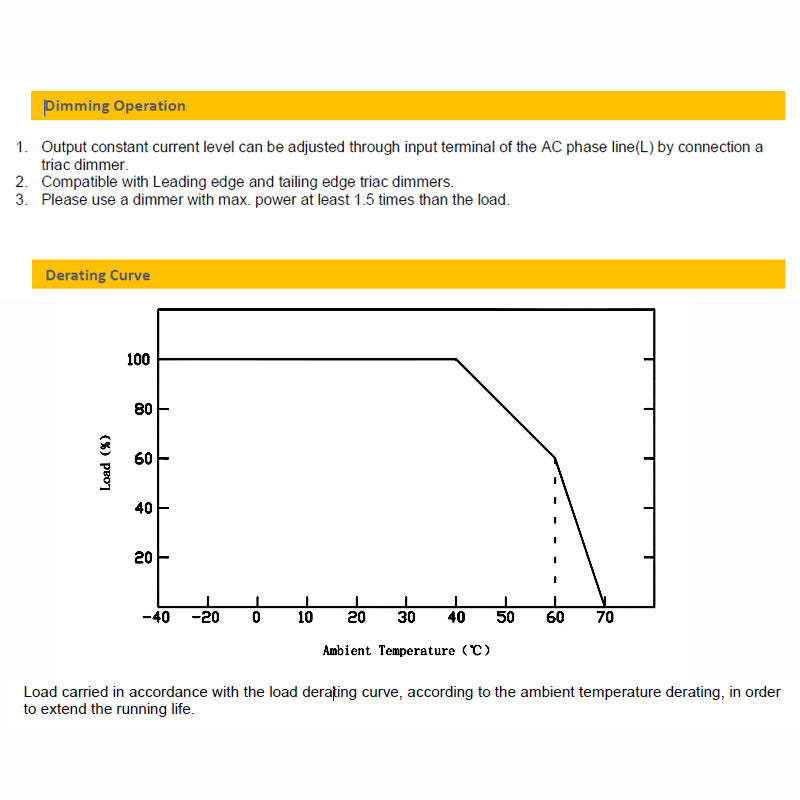

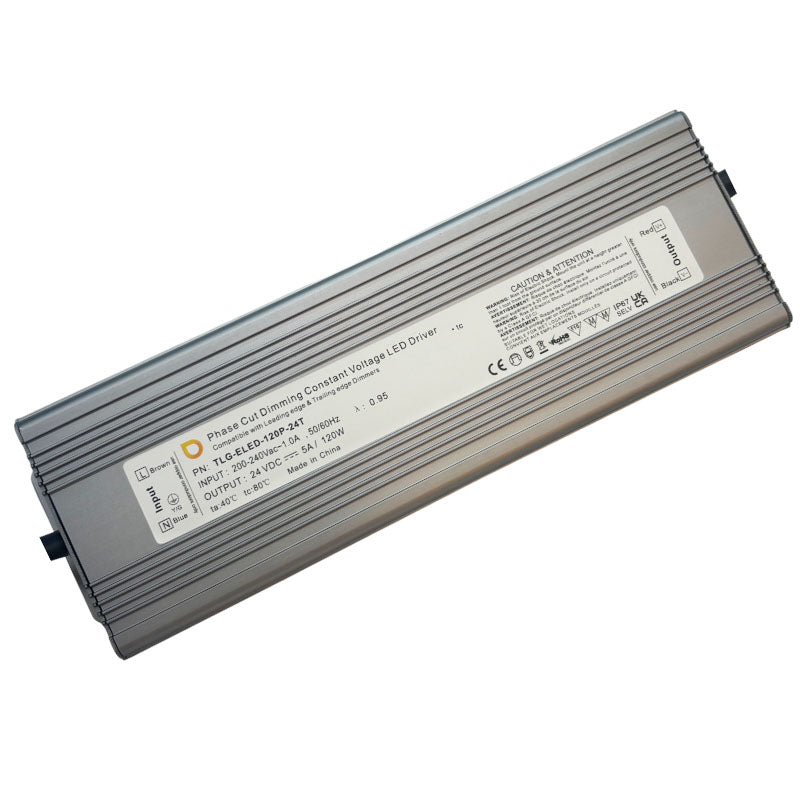

CV Driver 120W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-120P-24T

CV Driver 120W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-120P-24T

£78.55

Product Details - Model: TLG-ELED-120P-24T
Features
Output	Constant voltage
AC Input Range	200–240VAC
Power Factor	Built-in PFC, PF > 0.95
Load Range / Efficiency	10–100% / > 85%
Dimming Range	0–100%
Protections	Short circuit / Over loading / Over current / Over temperature
Housing	Full protection plastic housing, easy installation
IP Rating	IP66, suitable for indoor and outdoor installation
Cooling	Free air convection
Dimming	Leading & trailing edge TRIAC dimmers, strong compatibility
Flicker	Flicker-free dimming
Applications	LED lighting and moving sign applications
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	5A
Rated Power	120W
Input Specifications
Voltage Range	200–240VAC
Frequency Range	47–63Hz
Full Load Efficiency	85% (Typical)
AC Current (Max.)	1.0A
Leakage Current	<0.50mA
Power Factor	PF ≥ 0.97 @ 200/230/240VAC (Full load)
Protection
Short Circuit	Shut down output voltage, re-power on to recover after fault removed
Over Loading	≤120%, constant current limiting, auto recovery
Over Temperature	100°C ±10°C, shut down output voltage, re-power on to recover
Environment
Working Temperature	-40 to +60°C (Refer to Derating Curve - Page 3)
Working Humidity	20–95% RH (non-condensing)
Storage Temp & Humidity	-40 to +80°C, 10–95% RH
Temperature Coefficient	±0.03%/°C (0–40°C)
Vibration	10–500Hz, 5G, 12min/cycle, 72min each axis (X, Y, Z)
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P–O/P: 3.75KVAC, I/P–FG: 1.88KVAC, O/P–FG: 0.5KVAC
Isolation Resistance	I/P–O/P, I/P–FG, O/P–FG: 100MΩ / 500VDC / 25°C / 70% RH
EMC Emission	EN55015, EN61000-3-2,3 (>60% load)
EMC Immunity	EN61000-4-2,3,4,5,6,11; EN61547
Other Specifications
Net Weight	1.1 kg
Size (L×W×H)	230 × 70 × 43 mm
Packing	Inner box: 245 × 75 × 65 mm Outer carton: 340 × 275 × 170 mm (10 PCS/CTN)
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2. To extend the driver's use life, reduce the loading at lower input voltage. 3. Loading range from 10% to 100%.

CV Driver 150W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-150P-24T

CV Driver 150W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-150P-24T

£48.43

Product Details - Model: TLG-ELED-150P-24T
Features
Output	Constant voltage
AC Input Range	200–240VAC
Power Factor	Built-in PFC, PF > 0.95
Load Range / Efficiency	10–100% / >87%
Dimming Range	0–100%
Protections	Short circuit / Over loading / Over current / Over temperature
Housing	Full protection plastic housing, easy installation
IP Rating	IP66, suitable for indoor and outdoor installation
Cooling	Free air convection
Dimming	Leading & trailing edge TRIAC dimmers, strong compatibility
Flicker	Flicker-free dimming
Applications	LED lighting and moving sign applications
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	6.25A
Rated Power	150W
Input Specifications
Voltage Range	200–240VAC
Frequency Range	47–63Hz
Full Load Efficiency	86% (Typical)
AC Current (Max.)	1.2A
Leakage Current	<0.50mA
Power Factor	PF ≥ 0.97 @ 200/230/240VAC (Full load)
Protection
Short Circuit	Shut down output voltage, re-power on to recover after fault removed
Over Loading	≤120%, constant current limiting, auto recovery
Over Temperature	100°C ±10°C, shut down output voltage, re-power on to recover
Environment

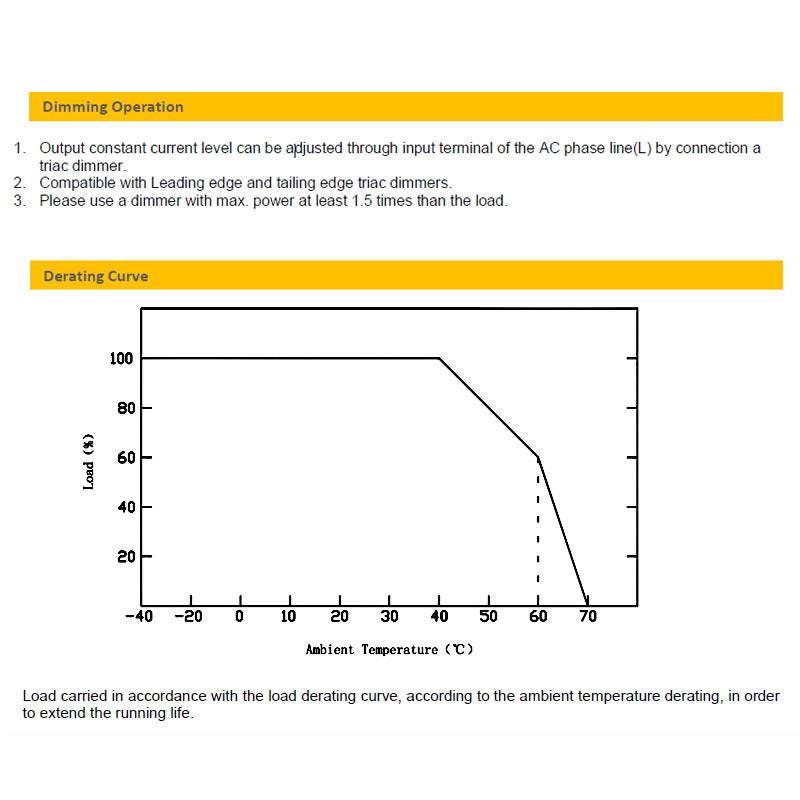

Working Temperature	-40 to +60°C (Refer to Derating Curve - Page 3)
Working Humidity	20–95% RH (non-condensing)
Storage Temp & Humidity	-40 to +80°C, 10–95% RH
Temperature Coefficient	±0.03%/°C (0–40°C)
Vibration	10–500Hz, 5G, 12min/cycle, 72min each axis (X, Y, Z)
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P–O/P: 3.75KVAC, I/P–FG: 1.88KVAC, O/P–FG: 0.5KVAC
Isolation Resistance	I/P–O/P, I/P–FG, O/P–FG: 100MΩ / 500VDC / 25°C / 70% RH
EMC Emission	EN55015, EN61000-3-2,3 (>60% load)
EMC Immunity	EN61000-4-2,3,4,5,6,11; EN61547
Other Specifications
Net Weight	1.45 kg

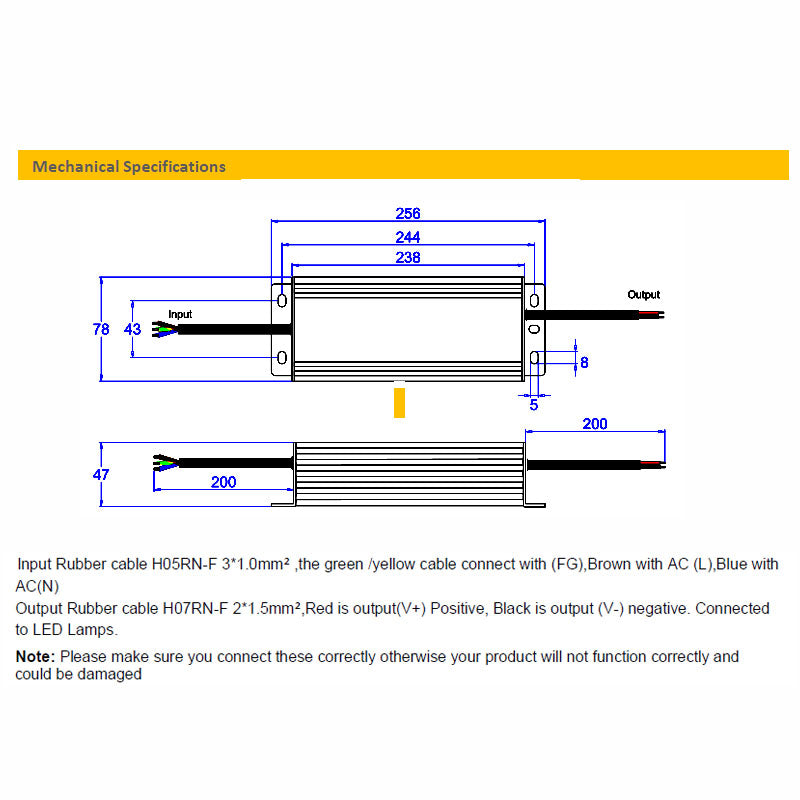

Size (L×W×H)	256 × 78 × 47 mm
Packing	Inner box: 265 × 83 × 65 mm Outer carton: 340 × 280 × 185 mm (10 PCS/CTN)
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2. To extend the driver's use life, reduce the loading at lower input voltage. 3. Loading range from 10% to 100%.

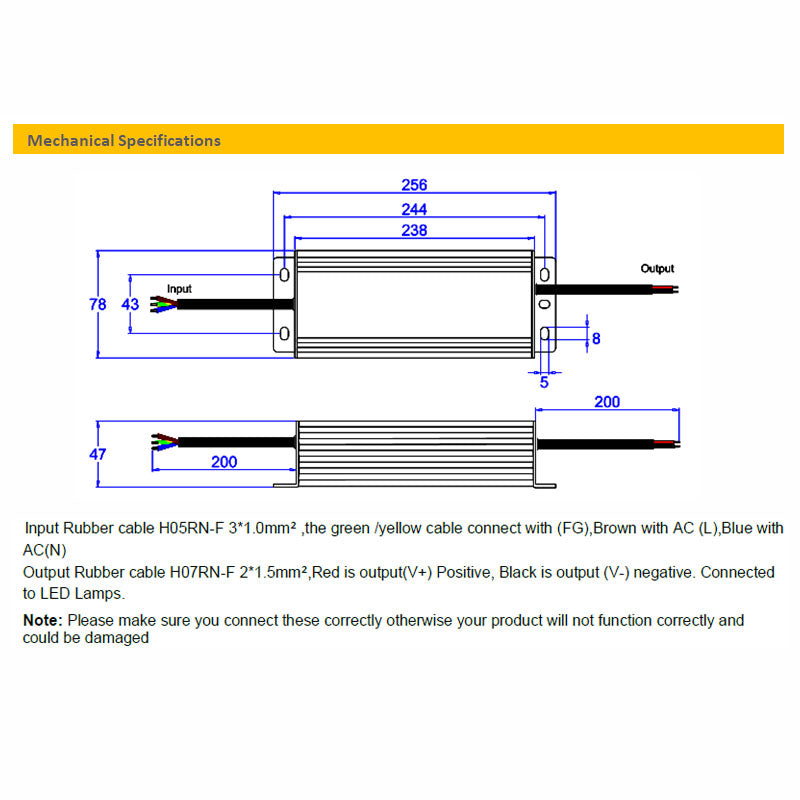

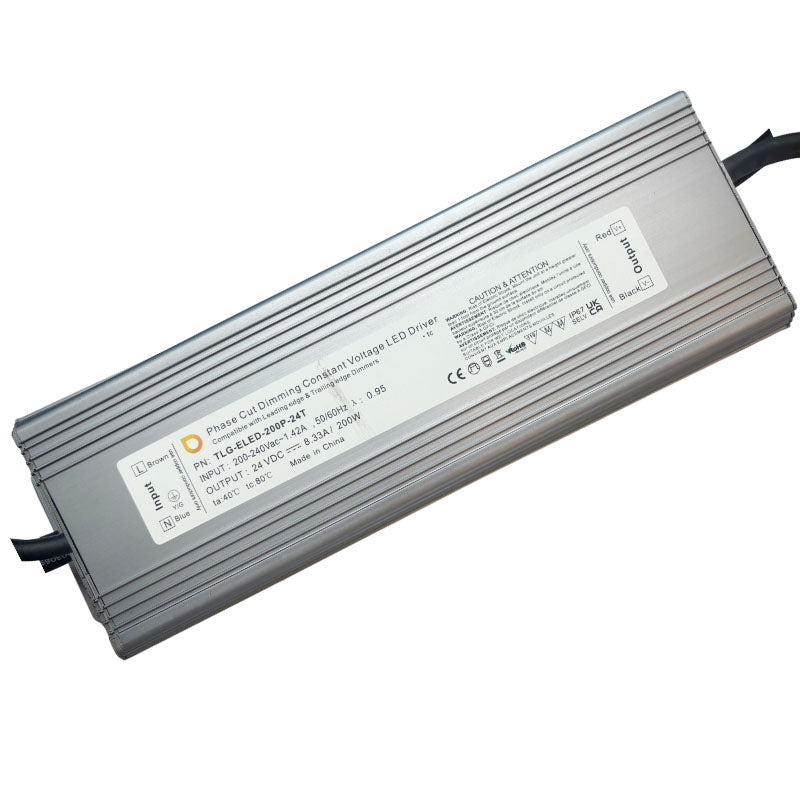

CV Driver 200W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-200P-24T

CV Driver 200W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-200P-24T

£98.66

Product Details - Model: TLG-ELED-200P-24T
Features
Output	Constant voltage
AC Input Range	200–240VAC
Power Factor	Built-in PFC, PF > 0.95
Load Range / Efficiency	10–100% / >87%
Dimming Range	0–100%
Protections	Short circuit / Over loading / Over current / Over temperature
Housing	Full protection plastic housing, easy installation
IP Rating	IP66, suitable for indoor and outdoor installation
Cooling	Free air convection
Dimming	Leading & trailing edge TRIAC dimmers, strong compatibility
Flicker	Flicker-free dimming
Applications	LED lighting and moving sign applications
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	8.3A
Rated Power	200W
Input Specifications
Voltage Range	200–240VAC
Frequency Range	47–63Hz
Full Load Efficiency	87% (Typical)
AC Current (Max.)	1.4A
Leakage Current	<0.50mA
Power Factor	PF ≥ 0.97 @ 200/230/240VAC (Full load)
Protection
Short Circuit	Shut down output voltage, re-power on to recover after fault removed
Over Loading	≤120%, constant current limiting, auto recovery
Over Temperature	100°C ±10°C, shut down output voltage, re-power on to recover
Environment

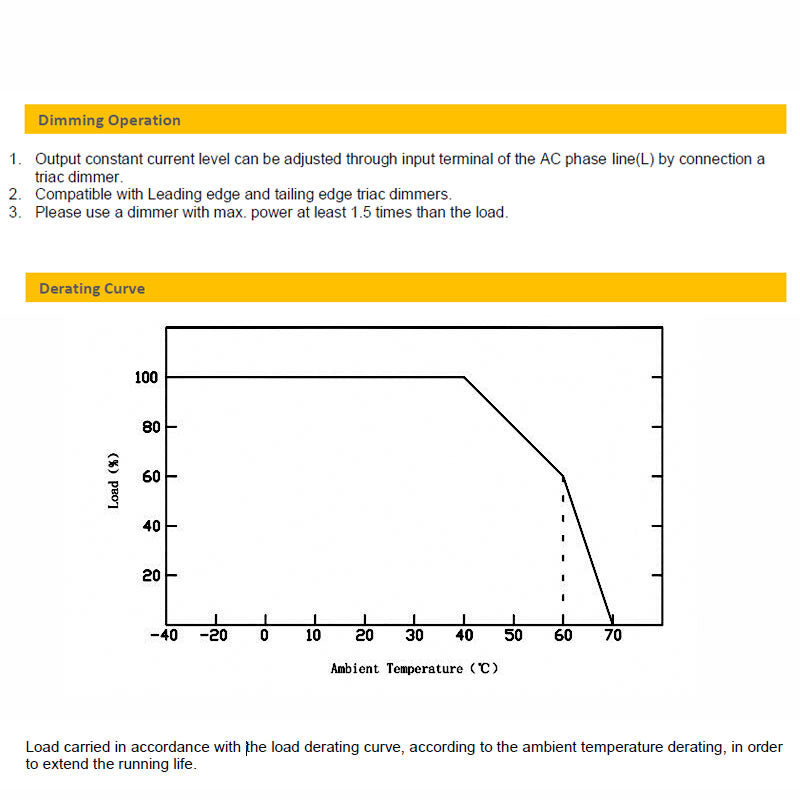

Working Temperature	-40 to +60°C (Refer to Derating Curve - Page 3)
Working Humidity	20–95% RH (non-condensing)
Storage Temp & Humidity	-40 to +80°C, 10–95% RH
Temperature Coefficient	±0.03%/°C (0–40°C)
Vibration	10–500Hz, 5G, 12min/cycle, 72min each axis (X, Y, Z)
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P–O/P: 3.75KVAC, I/P–FG: 1.88KVAC, O/P–FG: 0.5KVAC
Isolation Resistance	I/P–O/P, I/P–FG, O/P–FG: 100MΩ / 500VDC / 25°C / 70% RH
EMC Emission	EN55015, EN61000-3-2,3 (>60% load)
EMC Immunity	EN61000-4-2,3,4,5,6,11; EN61547
Other Specifications
Net Weight	1.45 kg
Size (L×W×H)	256 × 78 × 47 mm
Packing	Inner box: 265 × 83 × 65 mm Outer carton: 340 × 280 × 185 mm (10 PCS/CTN)
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2. To extend the driver's use life, reduce the loading at lower input voltage. 3. Loading range from 10% to 100%.

CV Driver 300W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-300P-24T

CV Driver 300W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-300P-24T

£131.56

Product Details - Model: TLG-ELED-300P-24T
Features
Output	Constant voltage
AC Input Range	200–240VAC
Power Factor	Built-in PFC, PF > 0.95
Load Range / Efficiency	10–100% / >89%
Dimming Range	0–100%
Protections	Short circuit / Over loading / Over current / Over temperature
Housing	Full protection plastic housing, easy installation
IP Rating	IP66, suitable for indoor and outdoor installation
Cooling	Free air convection
Dimming	Leading & trailing edge TRIAC dimmers, strong compatibility
Flicker	Flicker-free dimming
Applications	LED lighting and moving sign applications
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	12.5A
Rated Power	300W
Input Specifications
Voltage Range	200–240VAC
Frequency Range	47–63Hz
Full Load Efficiency	89% (Typical)
AC Current (Max.)	2.0A
Leakage Current	<0.50mA
Power Factor	PF ≥ 0.97 @ 200/230/240VAC (Full load)
Protection
Short Circuit	Shut down output voltage, re-power on to recover after fault removed
Over Loading	≤120%, constant current limiting, auto recovery
Over Temperature	100°C ±10°C, shut down output voltage, re-power on to recover
Environment

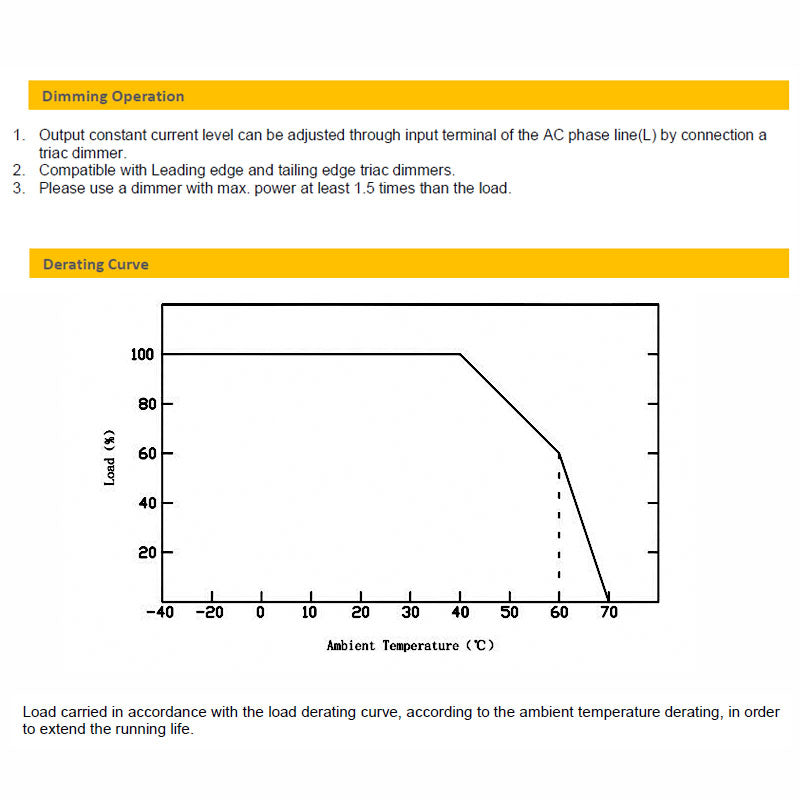

Working Temperature	-40 to +60°C (Refer to Derating Curve - Page 3)
Working Humidity	20–95% RH (non-condensing)
Storage Temp & Humidity	-40 to +80°C, 10–95% RH
Temperature Coefficient	±0.03%/°C (0–40°C)
Vibration	10–500Hz, 5G, 12min/cycle, 72min each axis (X, Y, Z)
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P–O/P: 3.75KVAC, I/P–FG: 1.88KVAC, O/P–FG: 0.5KVAC
Isolation Resistance	I/P–O/P, I/P–FG, O/P–FG: 100MΩ / 500VDC / 25°C / 70% RH
EMC Emission	EN55015, EN61000-3-2,3 (>60% load)
EMC Immunity	EN61000-4-2,3,4,5,6,11; EN61547
Other Specifications
Net Weight	1.67 kg

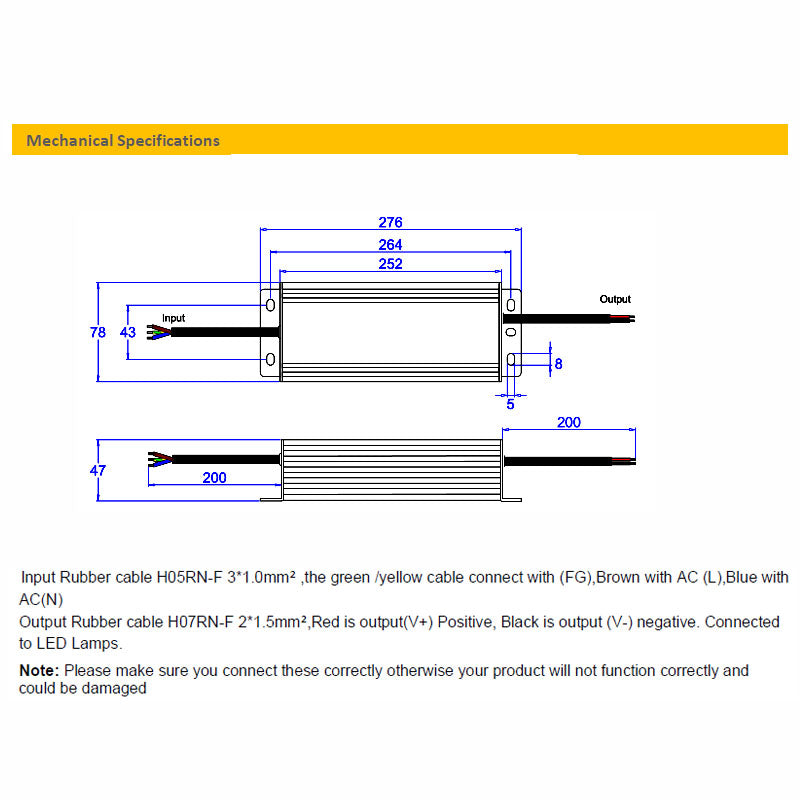

Size (L×W×H)	276 × 78 × 47 mm
Packing	Inner box: 336 × 121 × 61 mm Outer carton: 350 × 310 × 260 mm (10 PCS/CTN)
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2. To extend the driver's use life, reduce the loading at lower input voltage. 3. Loading range from 10% to 100%.

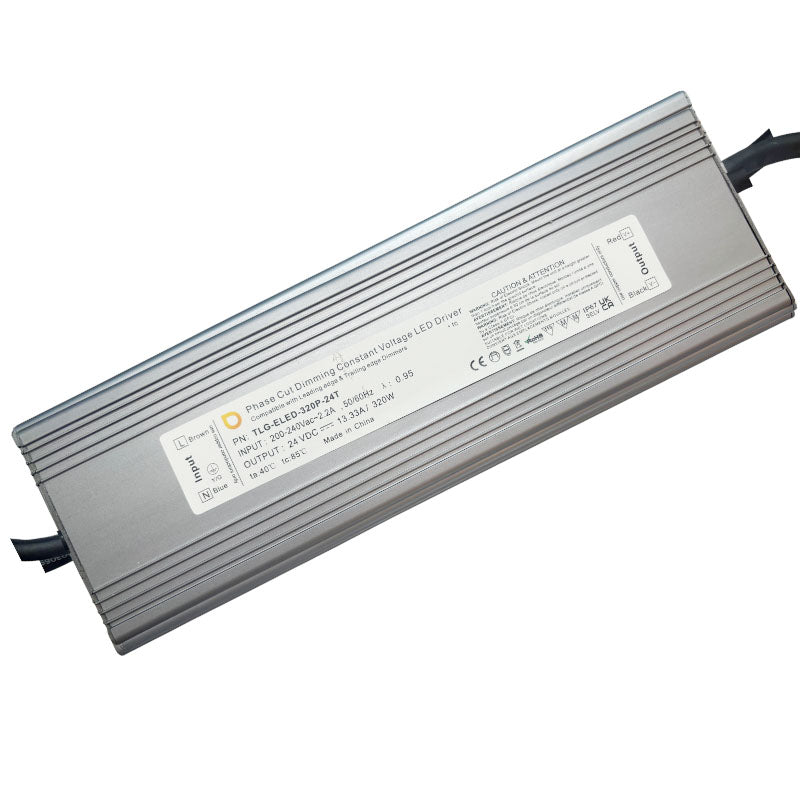

CV Driver 320W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-320P-24T

CV Driver 320W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-320P-24T

£163.64

Product Details - Model: TLG-ELED-320P-24T
Features
Output	Constant voltage
AC Input Range	200–240VAC
Power Factor	Built-in PFC, PF > 0.95
Load Range / Efficiency	10–100% / >89%
Dimming Range	0–100%
Protections	Short circuit / Over loading / Over current / Over temperature
Housing	Full protection plastic housing, easy installation
IP Rating	IP66, suitable for indoor and outdoor installation
Cooling	Free air convection
Dimming	Leading & trailing edge TRIAC dimmers, strong compatibility
Flicker	Flicker-free dimming
Applications	LED lighting and moving sign applications
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	13.3A
Rated Power	320W
Input Specifications
Voltage Range	200–240VAC
Frequency Range	47–63Hz
Full Load Efficiency	89% (Typical)
AC Current (Max.)	2.2A
Leakage Current	<0.50mA
Power Factor	PF ≥ 0.97 @ 200/230/240VAC (Full load)
Protection
Short Circuit	Shut down output voltage, re-power on to recover after fault removed
Over Loading	≤120%, constant current limiting, auto recovery
Over Temperature	100°C ±10°C, shut down output voltage, re-power on to recover
Environment
Working Temperature	-40 to +60°C (Refer to Derating Curve - Page 3)
Working Humidity	20–95% RH (non-condensing)
Storage Temp & Humidity	-40 to +80°C, 10–95% RH
Temperature Coefficient	±0.03%/°C (0–40°C)
Vibration	10–500Hz, 5G, 12min/cycle, 72min each axis (X, Y, Z)
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P–O/P: 3.75KVAC, I/P–FG: 1.88KVAC, O/P–FG: 0.5KVAC
Isolation Resistance	I/P–O/P, I/P–FG, O/P–FG: 100MΩ / 500VDC / 25°C / 70% RH
EMC Emission	EN55015, EN61000-3-2,3 (>60% load)
EMC Immunity	EN61000-4-2,3,4,5,6,11; EN61547
Other Specifications
Net Weight	1.67 kg
Size (L×W×H)	276 × 78 × 47 mm
Packing	Inner box: 336 × 121 × 61 mm Outer carton: 350 × 310 × 260 mm (10 PCS/CTN)
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2. To extend the driver's use life, reduce the loading at lower input voltage. 3. Loading range from 10% to 100%.

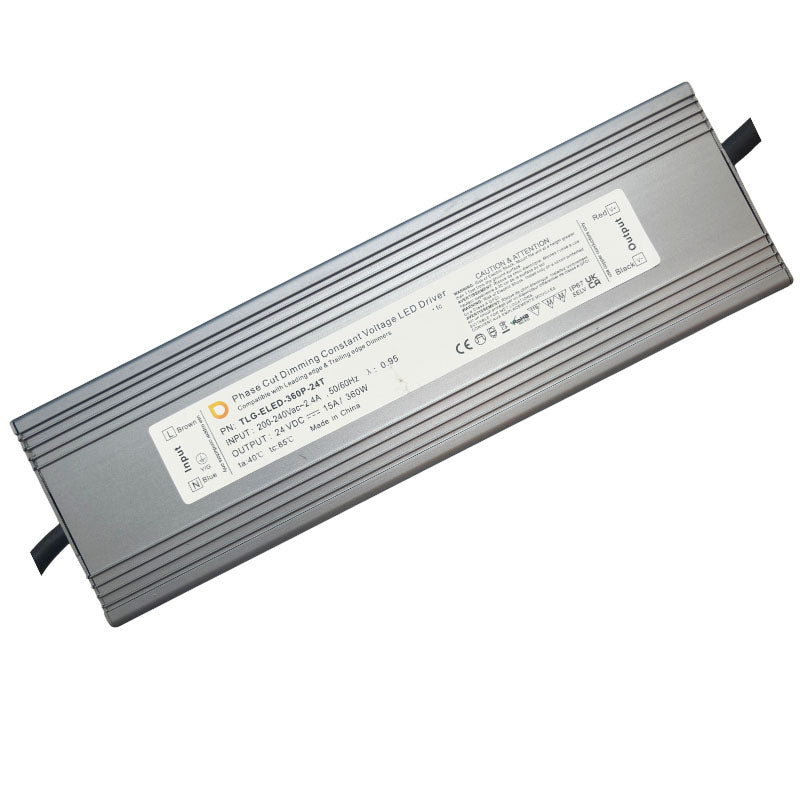

CV Driver 360W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-360P-24T

CV Driver 360W 24VDC IP20 Triac Dimmable180-240V TLG-ELED-360P-24T

£200.01

Product Details - Model: TLG-ELED-360P-24T
Features
Output	Constant voltage
AC Input Range	200–240VAC
Power Factor	Built-in PFC, PF > 0.95
Load Range / Efficiency	10–100% / >89%
Dimming Range	0–100%
Protections	Short circuit / Over loading / Over current / Over temperature
Housing	Full protection plastic housing, easy installation
IP Rating	IP66, suitable for indoor and outdoor installation
Cooling	Free air convection
Dimming	Leading & trailing edge TRIAC dimmers, strong compatibility
Flicker	Flicker-free dimming
Applications	LED lighting and moving sign applications
Output Specifications
DC Voltage	24V
Voltage Tolerance	±0.5V
Rated Current	15A
Rated Power	360W
Input Specifications
Voltage Range	200–240VAC
Frequency Range	47–63Hz
Full Load Efficiency	89% (Typical)
AC Current (Max.)	2.4A
Leakage Current	<0.50mA
Power Factor	PF ≥ 0.97 @ 200/230/240VAC (Full load)
Protection
Short Circuit	Shut down output voltage, re-power on to recover after fault removed
Over Loading	≤120%, constant current limiting, auto recovery
Over Temperature	100°C ±10°C, shut down output voltage, re-power on to recover
Environment
Working Temperature	-40 to +60°C (Refer to Derating Curve - Page 3)
Working Humidity	20–95% RH (non-condensing)
Storage Temp & Humidity	-40 to +80°C, 10–95% RH
Temperature Coefficient	±0.03%/°C (0–40°C)
Vibration	10–500Hz, 5G, 12min/cycle, 72min each axis (X, Y, Z)
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13
Withstand Voltage	I/P–O/P: 3.75KVAC, I/P–FG: 1.88KVAC, O/P–FG: 0.5KVAC
Isolation Resistance	I/P–O/P, I/P–FG, O/P–FG: 100MΩ / 500VDC / 25°C / 70% RH
EMC Emission	EN55015, EN61000-3-2,3 (>60% load)
EMC Immunity	EN61000-4-2,3,4,5,6,11; EN61547
Other Specifications
Net Weight	1.67 kg
Size (L×W×H)	276 × 78 × 47 mm
Packing	Inner box: 336 × 121 × 61 mm Outer carton: 350 × 310 × 260 mm (10 PCS/CTN)
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2. To extend the driver's use life, reduce the loading at lower input voltage. 3. Loading range from 10% to 100%.

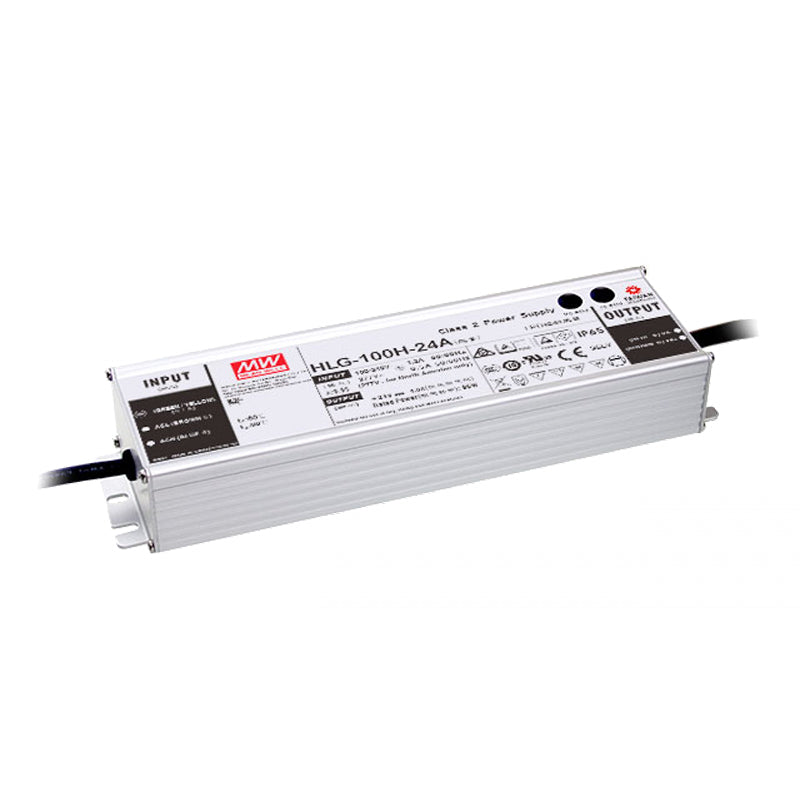

CV-24V-HLG-100W- Non Dimmable LED Driver, IP65 - HLG-100H-24A

£62.50

Download Datasheet

Product Details - Model: HLG-100H-A Series
Features
Output	Constant Voltage LED Driver
AC Input Range	90–305VAC, 127–431VDC
Efficiency	Up to 94%
Protections	Short Circuit / Over Current / Over Voltage / Over Temperature
Housing	Aluminium case with full protection
IP Rating	IP67, suitable for indoor or outdoor installations
Cooling	Convection cooling
Dimming	Built-in adjustable output voltage and current (A-Type)
Applications	LED lighting, architectural lighting, outdoor LED systems, moving signs
Output Specifications
DC Voltage	24V (other models available: 12V / 15V / 20V / 36V / 48V)
Voltage Adjustment Range	±10%
Rated Current	4A
Rated Power	96W
Ripple & Noise	≤150mVp-p
Input Specifications
Voltage Range	90–305VAC, 127–431VDC
Frequency Range	47–63Hz
Full Load Efficiency	Up to 94%
AC Current (Max.)	1.1A @ 230VAC
Inrush Current	65A @ 230VAC (Cold start)
Power Factor	PF ≥ 0.95 @ Full Load
Protection
Short Circuit	Auto recovery after fault removed
Over Current	110–150% rated output current, constant current limiting
Over Voltage	Up to 115–140% rated output voltage
Over Temperature	Shut down o/p voltage, auto recovery after cooling
Environment
Working Temperature	-40 to +70°C (case temp. +90°C max.)
Working Humidity	20–95% RH non-condensing
Storage Temp & Humidity	-40 to +80°C, 10–95% RH
Vibration	10–500Hz, 5G 10min/cycle, 60min each axis
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13, UL8750, CSA C22.2
EMC Emission	EN55015, EN61000-3-2, EN61000-3-3
EMC Immunity	EN61000-4-2,3,4,5,6,8,11
Other Specifications
Net Weight	0.88 kg
Size (L×W×H)	220 × 68 × 38.8 mm
Notes
All parameters are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. This power supply is a component intended for integration into a final system; EMC performance must be re-verified in the end equipment. For outdoor use, ensure proper waterproofing of cable connections.

CV-24-HLG-120W Non Dimmable LED Driver IP65 HLG-120H-24A

£70.00

Download Datasheet

Product Details ‒ Model: HLG-120H-A Series
Features
Power Rating	120W Constant Voltage LED Driver
Input Voltage	90–305 VAC / 127–431 VDC (full range) :contentReference[oaicite:0]{index=0}
Efficiency	Up to 94% :contentReference[oaicite:1]{index=1}
Protections	Short circuit / Over current / Over voltage / Over temperature :contentReference[oaicite:2]{index=2}
IP Rating	IP67 / IP65 – suitable for indoor or outdoor installations :contentReference[oaicite:3]{index=3}
Cooling	Free air convection – fanless design :contentReference[oaicite:4]{index=4}
Built-in Features	Active PFC; Output voltage adjustable via cable or internal potentiometer; 3-in-1 dimming (1-10VDC, PWM, or resistance) :contentReference[oaicite:5]{index=5}
Output Specs
Output Voltage Options	12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V :contentReference[oaicite:6]{index=6}
Rated Current (depending on voltage)	Ranges from ~10A (12V model) down to ~2.3A (54V model) :contentReference[oaicite:7]{index=7}
Environmental & Regulatory Specs
Operating Temperature	-40°C to +70°C (case) with derating per datasheet :contentReference[oaicite:8]{index=8}
Working Humidity	20–95% RH non-condensing :contentReference[oaicite:9]{index=9}
Safety & EMC Standards	TÜV, EN61347-1 / EN61347-2-13, EN55015, EN61000-3-2/3, etc. :contentReference[oaicite:10]{index=10}
Mechanical / Physical
Dimensions (L × W × H)	220 × 68 × 38.8 mm :contentReference[oaicite:11]{index=11}
Weight	Approx. 1.12 kg :contentReference[oaicite:12]{index=12}
Notes
All parameters are measured at 230VAC input, rated load, and 25°C ambient. Output voltage variance ±10%. Warranty & usage conditions apply per the manufacturer’s data sheet. Ensure adequate ventilation and correct installation in wet/damp conditions. :contentReference[oaicite:13]{index=13}

CV-24V-HLG-150W- Non Dimmable LED Driver, IP65 HLG-150H-24A

£62.00

Download Datasheet

Product Details ‒ Model: HLG-150H-A Series
Features
Power Rating	150W Constant Voltage LED Driver
Input Voltage	90-305VAC / 127-431VDC (Universal AC Input) :contentReference[oaicite:0]{index=0}
Protection Features	Short Circuit / Over Current / Over Voltage / Over Temperature :contentReference[oaicite:1]{index=1}
IP Rating	IP65 / IP67 – suitable for indoor or outdoor installations :contentReference[oaicite:2]{index=2}
Efficiency	Up to 95% typical :contentReference[oaicite:3]{index=3}
Dimming Options	3-in-1 dimming (1-10V DC, PWM, Resistance) :contentReference[oaicite:4]{index=4}
Output Specifications
Output Voltages Available	12V / 15V / 20V / 24V / 30V / 36V / 42V / 48V / 54V :contentReference[oaicite:5]{index=5}
Voltage Adjustment Range	±10% of rated output voltage via built-in potentiometer or output cable adjustment :contentReference[oaicite:6]{index=6}
Environmental & Regulatory Specs
Operating Temperature	-40°C to +70°C (case temp; refer to derating curves) :contentReference[oaicite:7]{index=7}
Safety Standards	UL8750, TUV EN61347-1 / EN61347-2-13, etc. :contentReference[oaicite:8]{index=8}
EMC / Surge Protection	4kV surge immunity (IEC61000-4-5); complies with EN55015, EN61000-4-2/3/4/5/6 etc. :contentReference[oaicite:9]{index=9}
Mechanical / Physical
Dimensions (L × W × H)	~ 228 × 68 × 38.8 mm :contentReference[oaicite:10]{index=10}
Weight	Approx. 1.12 kg :contentReference[oaicite:11]{index=11}
Notes
All parameters are measured at 230VAC input, at full rated load, and 25°C ambient. Output voltage adjustment ±10%. Check derating curves for high temp / low input situations. Warranty and usage according to manufacturer datasheet. :contentReference[oaicite:12]{index=12}

CV-24V-HLG-185W- Non Dimmable LED Driver, IP65 HLG-185H-24A

£74.00

Download Datasheet

Product Details ‒ Model: HLG-185H-A Series
Features
Power Rating	~185 W
AC Input Range	90-305 VAC / 127-431 VDC
Efficiency	Up to 94%
IP Rating	IP65 / IP67 (Indoor & Outdoor)
Protections	Short-Circuit / Over-Current / Over-Voltage / Over-Temperature
Cooling	Free-air convection, fanless
Output Specifications
Available Output Voltages	12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V
Environmental & Mechanical
Operating Temp	-40 °C to +70 °C (case), with derating
Dimensions (L × W × H)	228 × 68 × 38.8 mm
Other Specifications
Warranty	7 years (manufacturer) :contentReference[oaicite:10]{index=10}
Typical Life Expectancy	> 62,000 hours :contentReference[oaicite:11]{index=11}

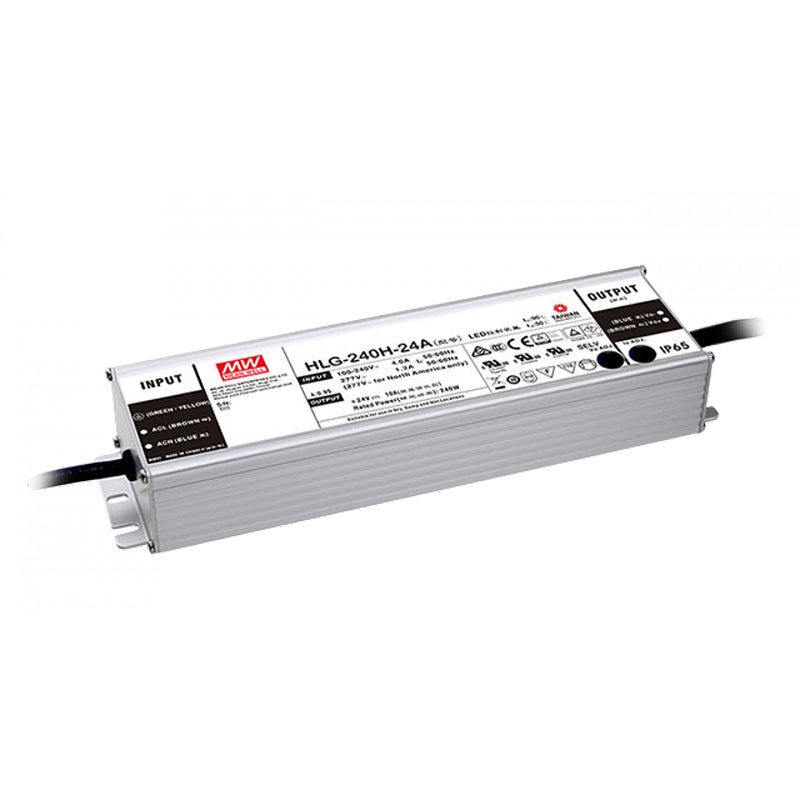

CV-24V-HLG-240W- Non Dimmable LED Driver, IP65 HLG-240H-24A

£87.00

Download Datasheet

Product Details – Model: HLG-240H-24A
Features
Output	Constant Voltage
Rated Power	240W
AC Input Range	90–305VAC / 127–431VDC
Efficiency	Up to 94%
IP Rating	IP65 / IP67 – suitable for indoor & outdoor use
Protections	Short-Circuit / Over-Current / Over-Voltage / Over-Temperature
Cooling	Free air convection (fanless)
Dimming	Non-Dimmable (A-Type: adjustable via internal potentiometer for CV & CC)
Output Specifications
DC Voltage	24V
Rated Current	10A
Rated Power	240W
Voltage Adjustment Range	22 ~ 28V (via internal potentiometer)
Current Adjustment Range	50% ~ 100% (via internal potentiometer)
Input Specifications
Voltage Range	90–305VAC (127–431VDC)
Frequency Range	47–63Hz
Power Factor	PF ≥ 0.95 @ 230VAC Full Load
Leakage Current	<0.5mA @ 240VAC
Environment
Operating Temp	-40°C ~ +70°C (case)
Storage Temp & Humidity	-40°C ~ +80°C, 10–95% RH
Humidity	20–95% RH, non-condensing
Vibration	10–500Hz, 5G 12min/cycle, 72min each axis
Safety & EMC
Safety Standards	EN61347-1, EN61347-2-13, UL8750, CSA C22.2 No. 250.0
EMC Standards	EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,11
Withstand Voltage	I/P–O/P: 3.75KVAC
Isolation Resistance	I/P–O/P: 100MΩ / 500VDC
Other Specifications
Dimensions	244 × 68 × 38.8 mm
Net Weight	~1.1 kg
Warranty	7 Years (Manufacturer)
Lifespan	> 62,000 hours

CV-24V-HLG-320W- Non Dimmable LED Driver, IP65 HLG-320H-24A

£114.00

Download Datasheet

Product Details ‒ Model: HLG-320H-24A
Features
Power Rating	320 W Constant-Voltage LED Driver
Input Voltage	90-305 VAC / 127-431 VDC (Universal Input) :contentReference[oaicite:0]{index=0}
Efficiency	Up to ~95% :contentReference[oaicite:1]{index=1}
Protections	Short circuit / Over current / Over voltage / Over temperature :contentReference[oaicite:2]{index=2}
IP Rating	IP65 / IP67 – suitable for indoor & outdoor installations :contentReference[oaicite:3]{index=3}
Cooling	Free-air convection, fanless design :contentReference[oaicite:4]{index=4}
Dimming	Non-dimmable / Single output; for this model CV only (no built-in dimming) :contentReference[oaicite:5]{index=5}
Output Specifications
Output Voltage	24 V DC :contentReference[oaicite:6]{index=6}
Rated Current	13.34 A :contentReference[oaicite:7]{index=7}
Rated Power	320 W :contentReference[oaicite:8]{index=8}
Voltage Adjustment Range	≈ ±6% via output cable or internal potentiometer :contentReference[oaicite:9]{index=9}
Environmental & Regulatory Specs
Operating Temperature	-40 °C to +70 °C (case); refer to derating curves for high ambient temperatures :contentReference[oaicite:10]{index=10}
Certifications / Standards	UL8750, TUV EN61347-1/2-13, etc. EMC / Surge immunity 4kV per IEC61000-4-5 :contentReference[oaicite:11]{index=11}
Mechanical / Physical
Dimensions (L × W × H)	252 × 90 × 43.8 mm :contentReference[oaicite:12]{index=12}
Weight	~1.88 kg :contentReference[oaicite:13]{index=13}
Warranty	7 years (manufacturer) :contentReference[oaicite:14]{index=14}

Leds Drivers

Bundle & Save

Leds Drivers

Bundle & Save

Subscribe to our emails
