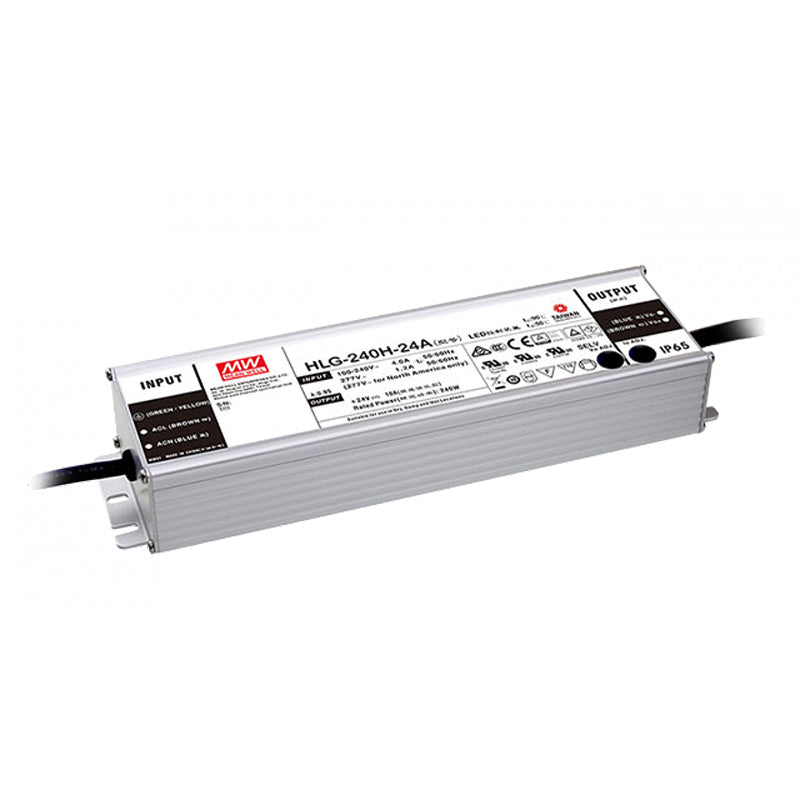

CV-24V-HLG-240W- Non Dimmable LED Driver, IP65 HLG-240H-24A
8700
£87.00
Unit price perEstimated delivery between January 23 and January 25.
| Download Datasheet |
|
| Product Details – Model: HLG-240H-24A | |
|---|---|
| Features | |
| Output | Constant Voltage |
| Rated Power | 240W |
| AC Input Range | 90–305VAC / 127–431VDC |
| Efficiency | Up to 94% |
| IP Rating | IP65 / IP67 – suitable for indoor & outdoor use |
| Protections | Short-Circuit / Over-Current / Over-Voltage / Over-Temperature |
| Cooling | Free air convection (fanless) |
| Dimming | Non-Dimmable (A-Type: adjustable via internal potentiometer for CV & CC) |
| Output Specifications | |
| DC Voltage | 24V |
| Rated Current | 10A |
| Rated Power | 240W |
| Voltage Adjustment Range | 22 ~ 28V (via internal potentiometer) |
| Current Adjustment Range | 50% ~ 100% (via internal potentiometer) |
| Input Specifications | |
| Voltage Range | 90–305VAC (127–431VDC) |
| Frequency Range | 47–63Hz |
| Power Factor | PF ≥ 0.95 @ 230VAC Full Load |
| Leakage Current | <0.5mA @ 240VAC |
| Environment | |
| Operating Temp | -40°C ~ +70°C (case) |
| Storage Temp & Humidity | -40°C ~ +80°C, 10–95% RH |
| Humidity | 20–95% RH, non-condensing |
| Vibration | 10–500Hz, 5G 12min/cycle, 72min each axis |
| Safety & EMC | |
| Safety Standards | EN61347-1, EN61347-2-13, UL8750, CSA C22.2 No. 250.0 |
| EMC Standards | EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,11 |
| Withstand Voltage | I/P–O/P: 3.75KVAC |
| Isolation Resistance | I/P–O/P: 100MΩ / 500VDC |
| Other Specifications | |
| Dimensions | 244 × 68 × 38.8 mm |
| Net Weight | ~1.1 kg |
| Warranty | 7 Years (Manufacturer) |
| Lifespan | > 62,000 hours |
