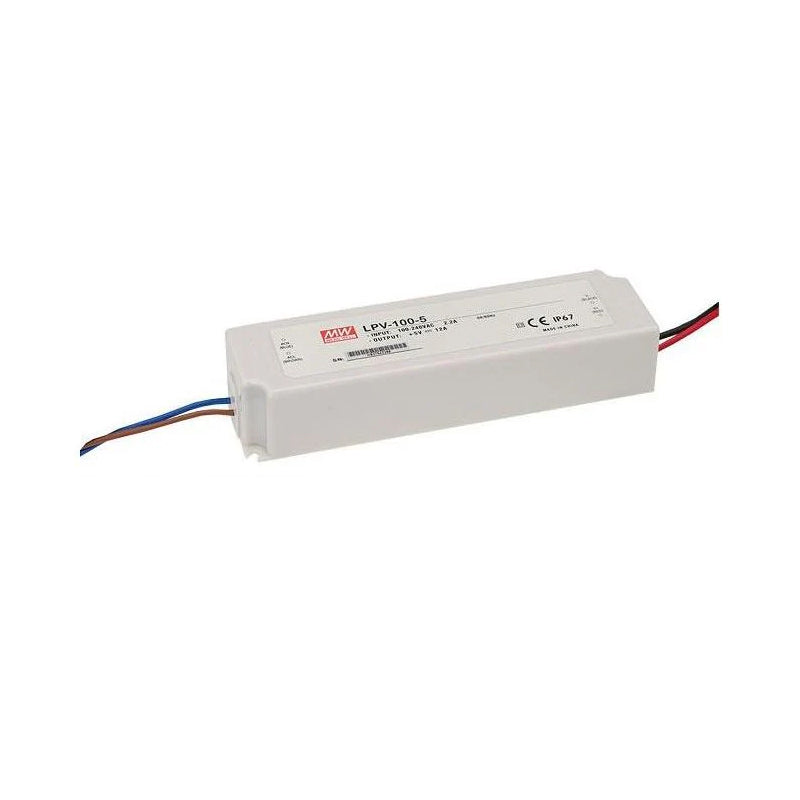

CV 24V-100W-Non Dimmable LED Driver, IP67 LPV-100-24TF
3300
£33.00
Unit price perEstimated delivery between January 23 and January 25.
| Download Datasheet |
|
| Product Details – Model: LPV-100-24 | |
|---|---|
| Features | |
| Output Type | Constant Voltage (CV) |
| Power Rating | 100 W (≈100.8 W) |
| Output Voltage | 24 V DC |
| Rated Current | 4.2 A |
| Input Voltage Range | 90-264 VAC / 127-370 VDC :contentReference[oaicite:0]{index=0} |
| Efficiency (Typical) | ≈ 89% :contentReference[oaicite:1]{index=1} |
| IP Rating | IP67 – suitable for damp or outdoor use :contentReference[oaicite:2]{index=2} |
| Dimming | Non-dimmable |
| Output & Physical Specs | |
| Ripple & Noise (Max) | ≈ 150 mVp-p (for 24V model) :contentReference[oaicite:3]{index=3} |
| Line Regulation | ±1% :contentReference[oaicite:4]{index=4} |
| Load Regulation | ±5% :contentReference[oaicite:5]{index=5} |
| Dimensions (L × W × H) | 190 × 52 × 37 mm :contentReference[oaicite:6]{index=6} |
| Weight | ≈ 0.63 kg :contentReference[oaicite:7]{index=7} |
| Environment & Compliance | |
| Working Temperature | -25-70 °C (ambient) non-condensing :contentReference[oaicite:8]{index=8} |
| Storage Temperature / Humidity | -40-80 °C, 10-95% RH :contentReference[oaicite:9]{index=9} |
| Safety Standards | UL8750, CE, EN55032 / EN61000-3-2 / EMC & Surge compliance :contentReference[oaicite:10]{index=10} |
| Other Notes | |
| Fully encapsulated plastic housing. Free-air convection cooling. Suitable for LED signage, outdoor lighting, architectural lighting. Warranty and specifications per Mean Well datasheet. :contentReference[oaicite:11]{index=11} | |
