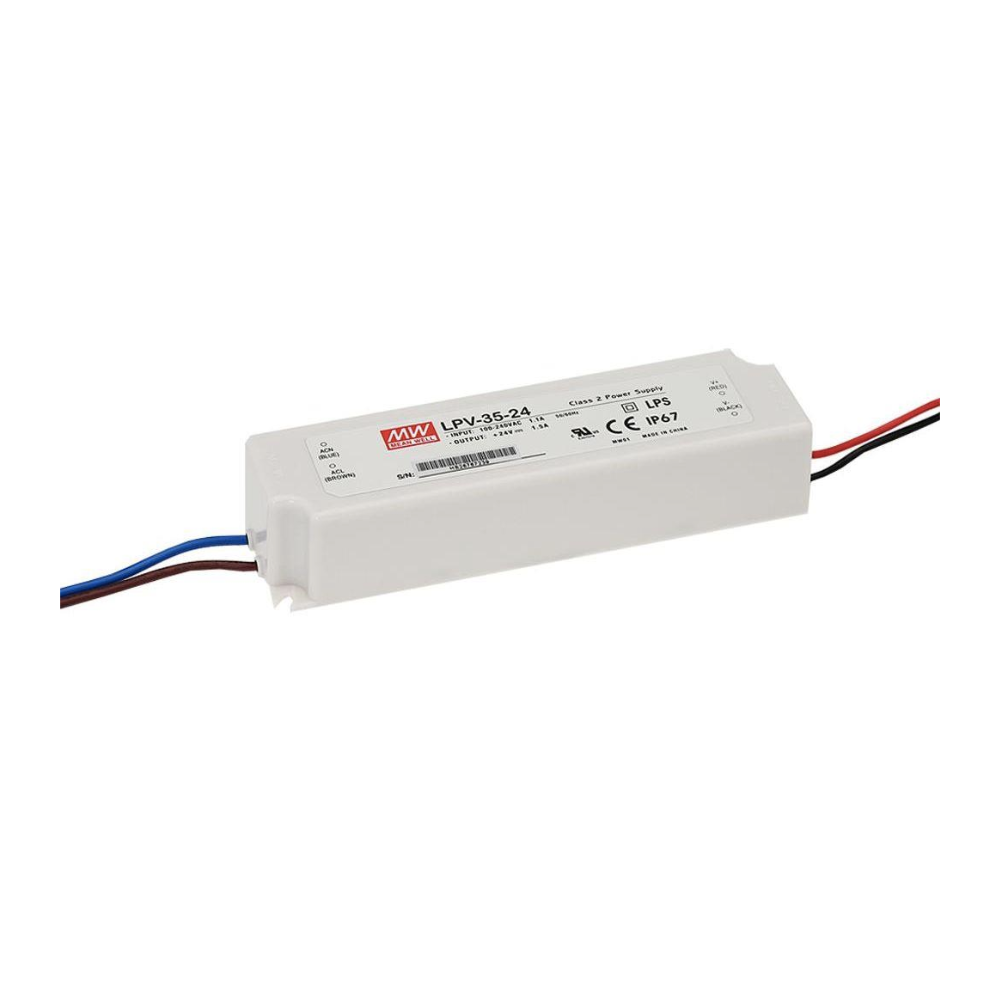

CV-24V-35W-Non Dimmable LED Driver, IP67 LPV-35-24TF
1760
£17.60
Unit price perEstimated delivery between January 23 and January 25.
| Download Datasheet |
|
| Product Details - Model: LPV-35-24TF | |
|---|---|
| Features | |
| Output | Constant voltage |
| AC Input Range | 90–264VAC |
| Maximum Output Power | 35W |
| Protections | Short circuit / Overload / Overvoltage |
| Housing | IP67, waterproof and dust-tight |
| Cooling | Free air convection |
| Dimming | Non-dimmable |
| Applications | LED lighting, signage, commercial and outdoor use |
| Output Specifications | |
| DC Voltage | 24V |
| Voltage Tolerance | ±0.5V |
| Rated Current | 0–1.46A |
| Rated Power | 35W |
| Input Specifications | |
| Voltage Range | 90–264VAC |
| Frequency Range | 47–63Hz |
| Full Load Efficiency | Up to 85% |
| AC Current (Max.) | 0.35A |
| Leakage Current | <0.5mA |
| Power Factor | PF ≥ 0.9 @ full load |
| Environment | |
| Working Temperature | -30 to +70°C |
| Working Humidity | 20–90% RH (non-condensing) |
| Storage Temp & Humidity | -40 to +80°C, 10–95% RH |
| Safety & EMC | |
| Safety Standards | UL1310, UL879, IEC/EN 62368-1 |
| Isolation Resistance | ≥100MΩ / 500VDC |
| EMC Emission | Compliant with EN55015, EN61000-3-2,3 |
| Other Specifications | |
| Net Weight | 0.22 kg |
| Dimensions (L×W×H) | 118 × 45 × 30 mm |
| Notes | |
| All parameters are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. IP67 housing suitable for outdoor installation. | |
