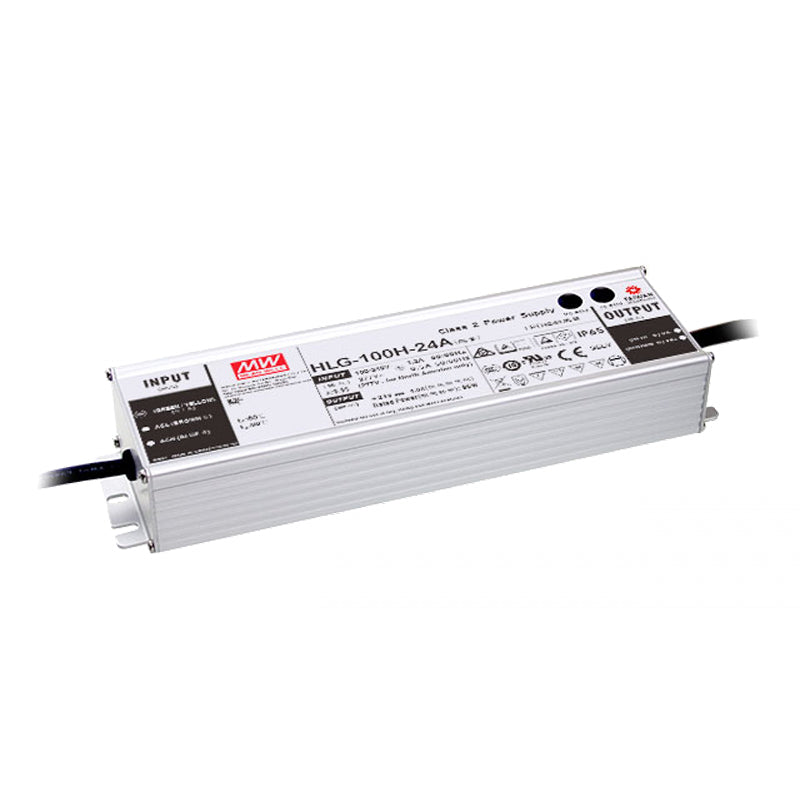

CV-24V-HLG-100W- Non Dimmable LED Driver, IP65 - HLG-100H-24A
6250
£62.50
Unit price perEstimated delivery between January 23 and January 25.
| Download Datasheet |
|
| Product Details - Model: HLG-100H-A Series | |
|---|---|
| Features | |
| Output | Constant Voltage LED Driver |
| AC Input Range | 90–305VAC, 127–431VDC |
| Efficiency | Up to 94% |
| Protections | Short Circuit / Over Current / Over Voltage / Over Temperature |
| Housing | Aluminium case with full protection |
| IP Rating | IP67, suitable for indoor or outdoor installations |
| Cooling | Convection cooling |
| Dimming | Built-in adjustable output voltage and current (A-Type) |
| Applications | LED lighting, architectural lighting, outdoor LED systems, moving signs |
| Output Specifications | |
| DC Voltage | 24V (other models available: 12V / 15V / 20V / 36V / 48V) |
| Voltage Adjustment Range | ±10% |
| Rated Current | 4A |
| Rated Power | 96W |
| Ripple & Noise | ≤150mVp-p |
| Input Specifications | |
| Voltage Range | 90–305VAC, 127–431VDC |
| Frequency Range | 47–63Hz |
| Full Load Efficiency | Up to 94% |
| AC Current (Max.) | 1.1A @ 230VAC |
| Inrush Current | 65A @ 230VAC (Cold start) |
| Power Factor | PF ≥ 0.95 @ Full Load |
| Protection | |
| Short Circuit | Auto recovery after fault removed |
| Over Current | 110–150% rated output current, constant current limiting |
| Over Voltage | Up to 115–140% rated output voltage |
| Over Temperature | Shut down o/p voltage, auto recovery after cooling |
| Environment | |
| Working Temperature | -40 to +70°C (case temp. +90°C max.) |
| Working Humidity | 20–95% RH non-condensing |
| Storage Temp & Humidity | -40 to +80°C, 10–95% RH |
| Vibration | 10–500Hz, 5G 10min/cycle, 60min each axis |
| Safety & EMC | |
| Safety Standards | EN61347-1, EN61347-2-13, UL8750, CSA C22.2 |
| EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 |
| Other Specifications | |
| Net Weight | 0.88 kg |
| Size (L×W×H) | 220 × 68 × 38.8 mm |
| Notes | |
| All parameters are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. This power supply is a component intended for integration into a final system; EMC performance must be re-verified in the end equipment. For outdoor use, ensure proper waterproofing of cable connections. |
|
