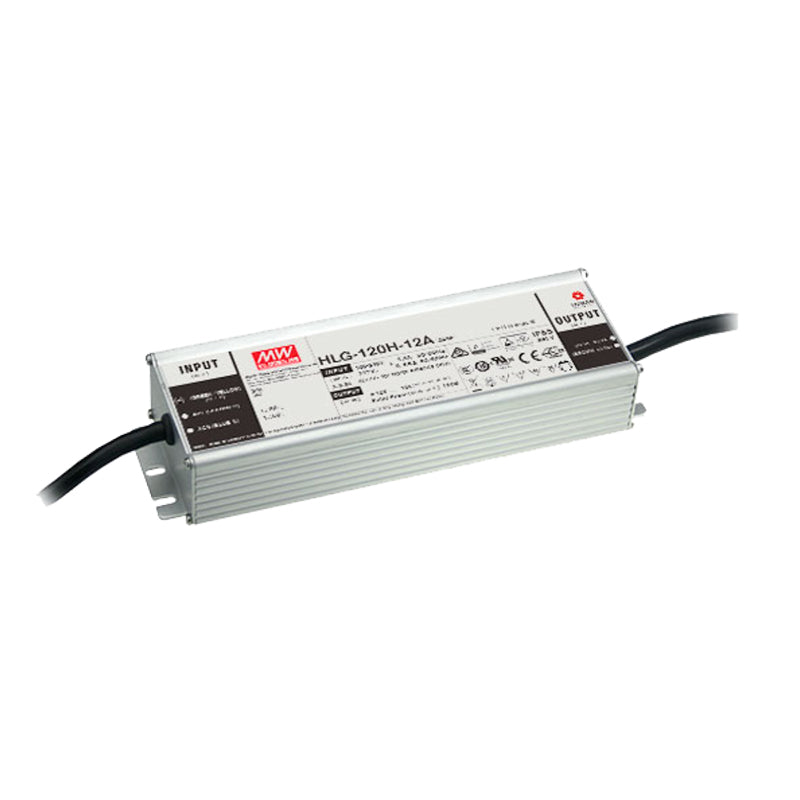

CV-24-HLG-120W Non Dimmable LED Driver IP65 HLG-120H-24A
7000
£70.00
Unit price perEstimated delivery between January 23 and January 25.
| Download Datasheet |
|
| Product Details ‒ Model: HLG-120H-A Series | |
|---|---|
| Features | |
| Power Rating | 120W Constant Voltage LED Driver |
| Input Voltage | 90–305 VAC / 127–431 VDC (full range) :contentReference[oaicite:0]{index=0} |
| Efficiency | Up to 94% :contentReference[oaicite:1]{index=1} |
| Protections | Short circuit / Over current / Over voltage / Over temperature :contentReference[oaicite:2]{index=2} |
| IP Rating | IP67 / IP65 – suitable for indoor or outdoor installations :contentReference[oaicite:3]{index=3} |
| Cooling | Free air convection – fanless design :contentReference[oaicite:4]{index=4} |
| Built-in Features | Active PFC; Output voltage adjustable via cable or internal potentiometer; 3-in-1 dimming (1-10VDC, PWM, or resistance) :contentReference[oaicite:5]{index=5} |
| Output Specs | |
| Output Voltage Options | 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V :contentReference[oaicite:6]{index=6} |
| Rated Current (depending on voltage) | Ranges from ~10A (12V model) down to ~2.3A (54V model) :contentReference[oaicite:7]{index=7} |
| Environmental & Regulatory Specs | |
| Operating Temperature | -40°C to +70°C (case) with derating per datasheet :contentReference[oaicite:8]{index=8} |
| Working Humidity | 20–95% RH non-condensing :contentReference[oaicite:9]{index=9} |
| Safety & EMC Standards | TÜV, EN61347-1 / EN61347-2-13, EN55015, EN61000-3-2/3, etc. :contentReference[oaicite:10]{index=10} |
| Mechanical / Physical | |
| Dimensions (L × W × H) | 220 × 68 × 38.8 mm :contentReference[oaicite:11]{index=11} |
| Weight | Approx. 1.12 kg :contentReference[oaicite:12]{index=12} |
| Notes | |
| All parameters are measured at 230VAC input, rated load, and 25°C ambient. Output voltage variance ±10%. Warranty & usage conditions apply per the manufacturer’s data sheet. Ensure adequate ventilation and correct installation in wet/damp conditions. :contentReference[oaicite:13]{index=13} | |
