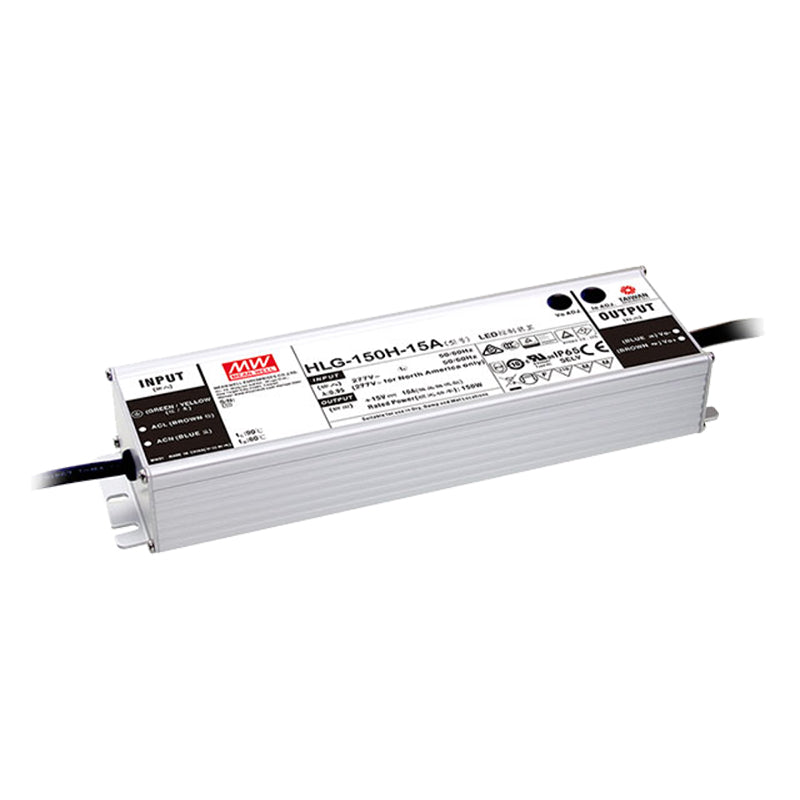

CV-24V-HLG-150W- Non Dimmable LED Driver, IP65 HLG-150H-24A
6200
£62.00
Unit price perEstimated delivery between January 23 and January 25.
| Download Datasheet |
|
| Product Details ‒ Model: HLG-150H-A Series | |
|---|---|
| Features | |
| Power Rating | 150W Constant Voltage LED Driver |
| Input Voltage | 90-305VAC / 127-431VDC (Universal AC Input) :contentReference[oaicite:0]{index=0} |
| Protection Features | Short Circuit / Over Current / Over Voltage / Over Temperature :contentReference[oaicite:1]{index=1} |
| IP Rating | IP65 / IP67 – suitable for indoor or outdoor installations :contentReference[oaicite:2]{index=2} |
| Efficiency | Up to 95% typical :contentReference[oaicite:3]{index=3} |
| Dimming Options | 3-in-1 dimming (1-10V DC, PWM, Resistance) :contentReference[oaicite:4]{index=4} |
| Output Specifications | |
| Output Voltages Available | 12V / 15V / 20V / 24V / 30V / 36V / 42V / 48V / 54V :contentReference[oaicite:5]{index=5} |
| Voltage Adjustment Range | ±10% of rated output voltage via built-in potentiometer or output cable adjustment :contentReference[oaicite:6]{index=6} |
| Environmental & Regulatory Specs | |
| Operating Temperature | -40°C to +70°C (case temp; refer to derating curves) :contentReference[oaicite:7]{index=7} |
| Safety Standards | UL8750, TUV EN61347-1 / EN61347-2-13, etc. :contentReference[oaicite:8]{index=8} |
| EMC / Surge Protection | 4kV surge immunity (IEC61000-4-5); complies with EN55015, EN61000-4-2/3/4/5/6 etc. :contentReference[oaicite:9]{index=9} |
| Mechanical / Physical | |
| Dimensions (L × W × H) | ~ 228 × 68 × 38.8 mm :contentReference[oaicite:10]{index=10} |
| Weight | Approx. 1.12 kg :contentReference[oaicite:11]{index=11} |
| Notes | |
| All parameters are measured at 230VAC input, at full rated load, and 25°C ambient. Output voltage adjustment ±10%. Check derating curves for high temp / low input situations. Warranty and usage according to manufacturer datasheet. :contentReference[oaicite:12]{index=12} | |
