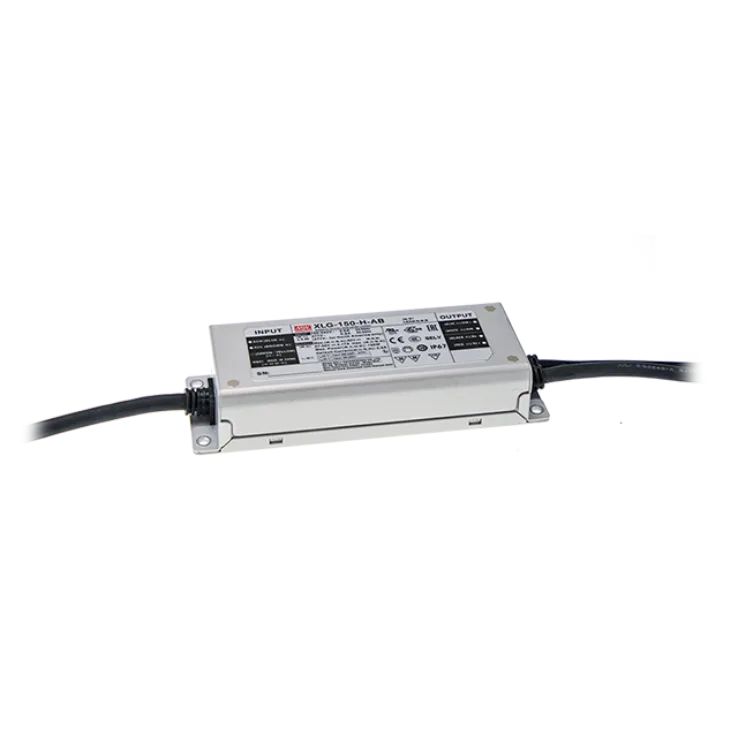

Constant Voltage LED Driver 150W 24V DC IP67 Non-Dimmable 100-305V XLG-150-24-A
4600
£46.00
Unit price perEstimated delivery between July 29 and July 31.
| Download Datasheet |
|
| Product Details - Model: XLG-150-24-A | |
|---|---|
| Features | |
| Output | Constant Voltage / Constant Current |
| AC Input Range | 100–305VAC |
| Maximum Output Power | 150W |
| Protections | Short circuit / Over voltage / Over temperature / Over power |
| Housing | Metal housing with IP67 rating |
| Cooling | Free air convection |
| Dimming | Non-dimmable |
| Applications | LED lighting, signage, commercial and outdoor use |
| Output Specifications | |
| DC Voltage | 24V |
| Voltage Tolerance | ±0.5V |
| Rated Current | 6.25A |
| Rated Power | 150W |
| Input Specifications | |
| Voltage Range | 100–305VAC |
| Frequency Range | 47–63Hz |
| Full Load Efficiency | Up to 93% |
| AC Current (Max.) | 1.8A |
| Leakage Current | <0.5mA |
| Power Factor | PF ≥ 0.9 @ full load |
| Environment | |
| Working Temperature | -40 to +90°C |
| Working Humidity | 20–90% RH (non-condensing) |
| Storage Temp & Humidity | -40 to +80°C, 10–95% RH |
| Safety & EMC | |
| Safety Standards | UL8750, UL879 |
| Withstand Voltage | 4.2kVAC |
| Isolation Resistance | ≥100MΩ / 500VDC |
| EMC Emission | Compliant with EN55015, EN61000-3-2,3 |
| Other Specifications | |
| Net Weight | 0.8 kg |
| Dimensions (L×W×H) | 169 × 63 × 35.5 mm |
| Notes | |
| All parameters are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. IP67 housing suitable for outdoor installation. | |
