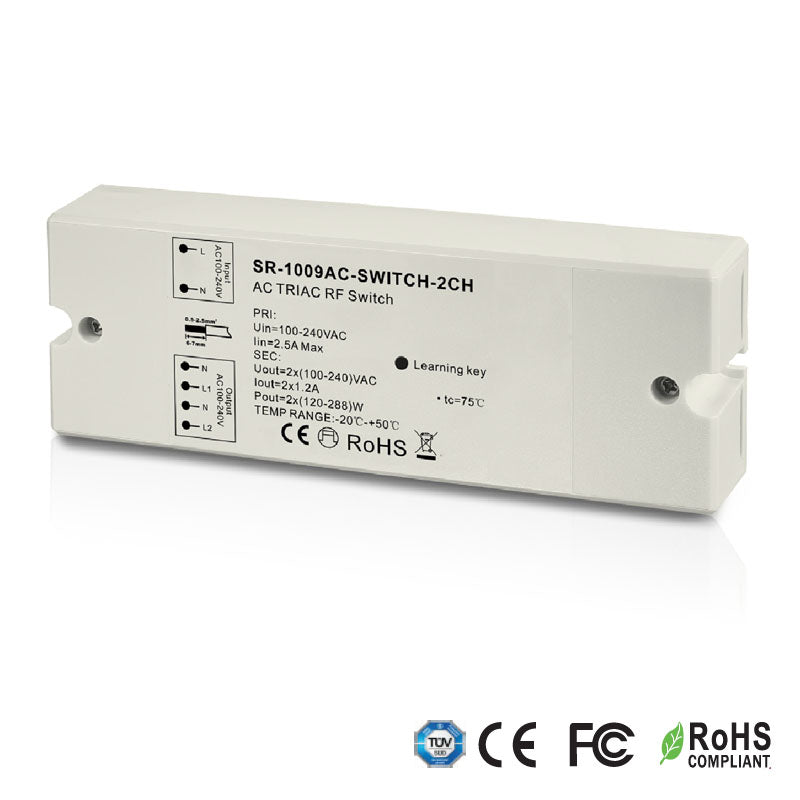

SR-1009AS-SWITCH
£25.00
Unit price perEstimated delivery between July 29 and July 31.
Product Data
| No. | Input Voltage | Output Current | Output Power | Remarks | Size (LxWxH) |
| 1 | 100-240VAC | 2x(100-240)VAC | 2x(120-288)W | 2x1.2A | 170x59x29mm |
• Safe and reliable full isolation design
• Great compatibility with a variety of remote controls
• To switch on/off LED lamps, traditional incandescent and halogen lights
• 2 channels output
• Waterproof grade: IP20
• Radio Frequency : 868/869.5/916.5/434mhz
Manual
Pair/delete the pairing with RF remote

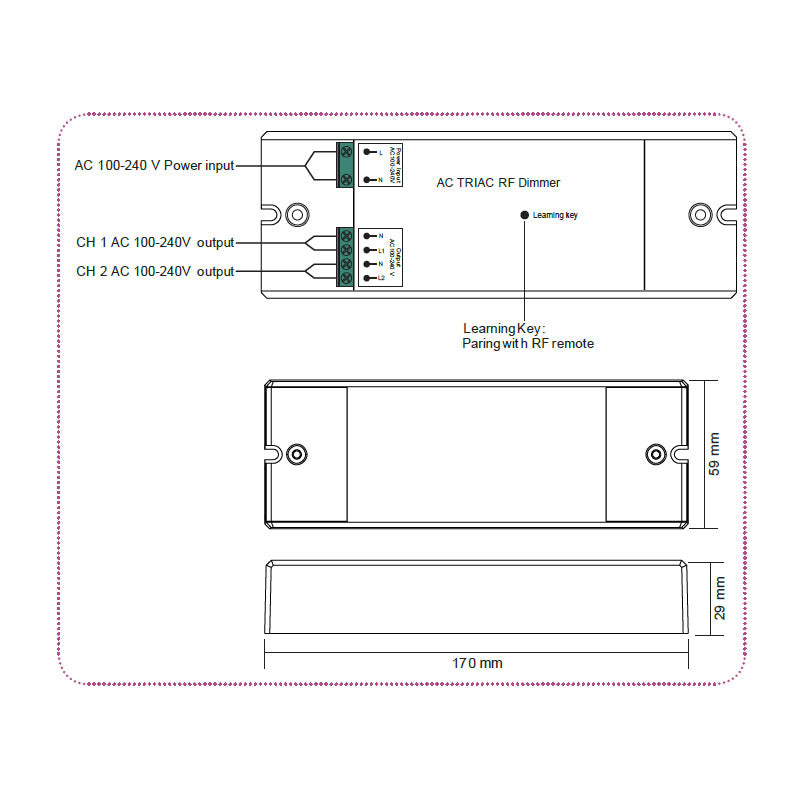

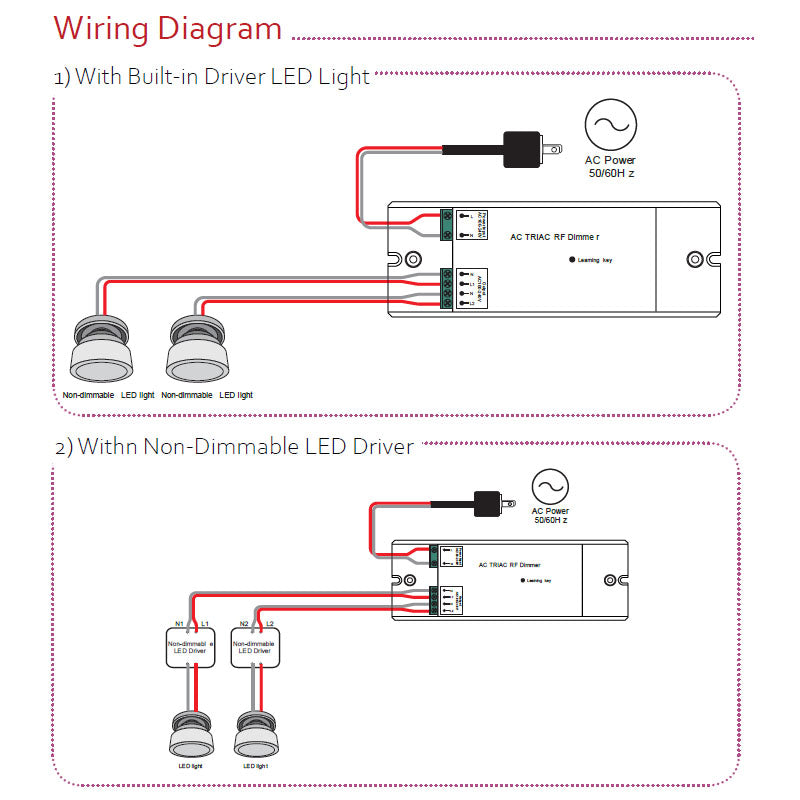

1.Do the wiring according to connection diagram
2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that you would like to pair with
3.Delete the pairing:
(1)Wire up the RF receiver correctly, power on
(2)Press and hold down the “ Learning Key” button on receiver for over 3 seconds until the connected light flashes, which means well deleted
