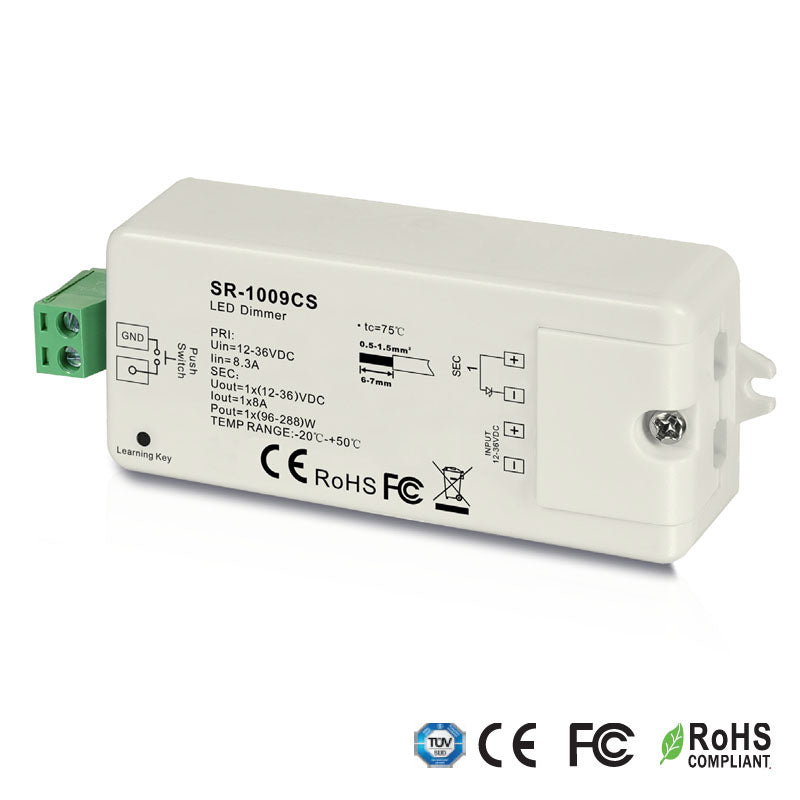

SR-1009CS

£24.50

Estimated delivery between January 23 and January 25.

Quantity

Product Data
1	12 - 36VDC	1x8A	1x(96-288)W	Constant Voltage	95x37x20mm
• Radio Frequency: 868 / 869.5 / 916.5 / 434MHz • Waterproof Grade: IP20 Manual Pair/delete the pairing with RF remote 1.Do wiring according to connection diagram 2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that you would like to pair with 3.Delete the pairing: (1)Wire up the RF receiver correctly, power on (2)Press and hold down the “ Learning Key” button on receiver for over 3 seconds until the connected light flashes, which means well deleted PUSH DIM: While connected with PUSH LV, click the button to switch ON/OFF lights. Press and hold down the button to increase/decrease light intensity

Product Data

No.

Input Voltage

Output Current

Output Power

Remarks

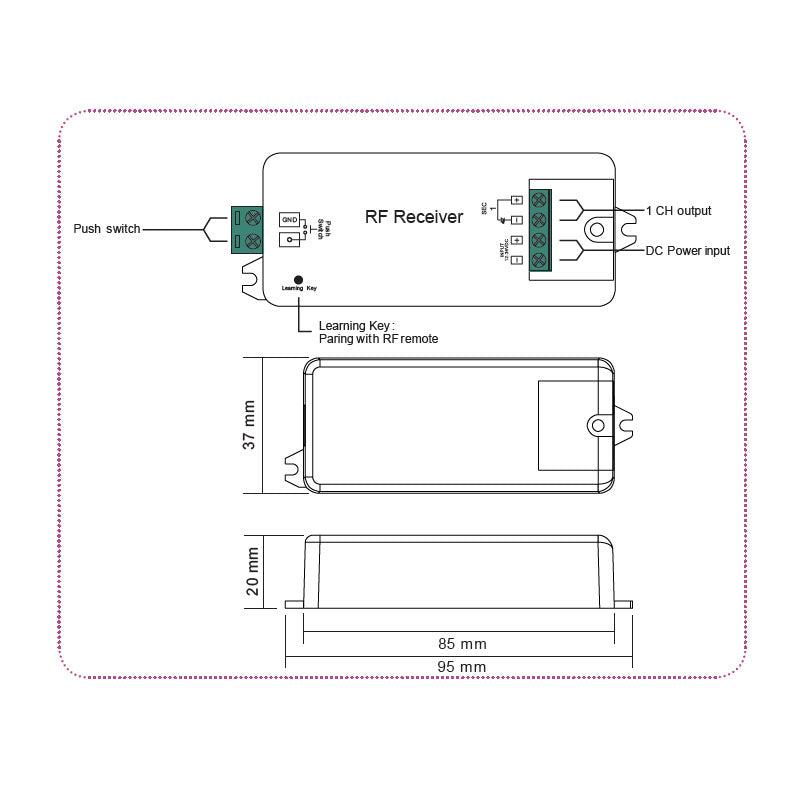

Size (LxWxH)

1

12 - 36VDC

1x8A

1x(96-288)W

Constant Voltage

95x37x20mm

• Radio Frequency: 868 / 869.5 / 916.5 / 434MHz
• Waterproof Grade: IP20

Manual

Pair/delete the pairing with RF remote

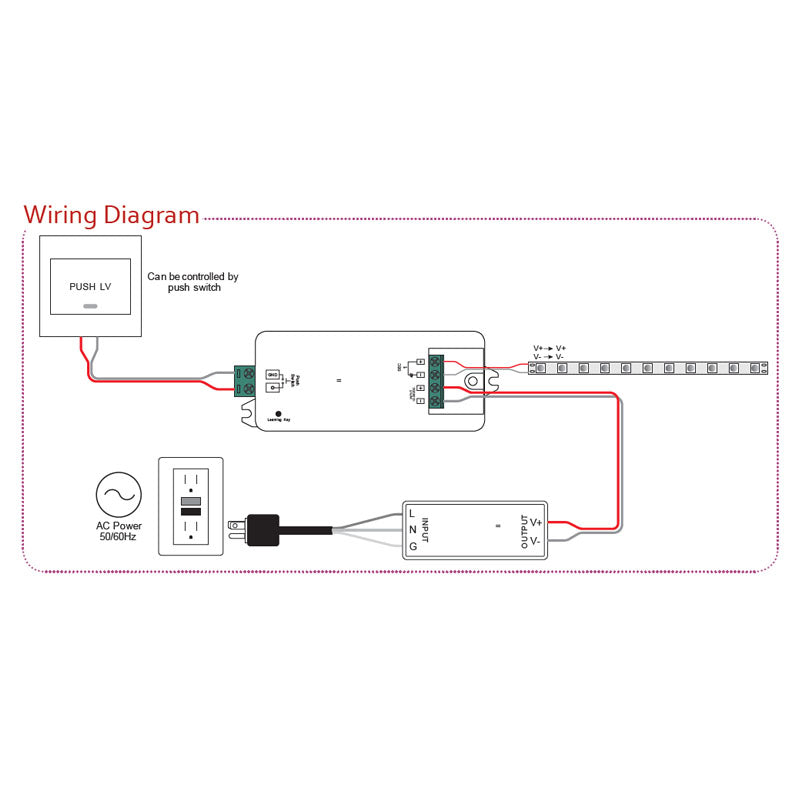

1.Do wiring according to connection diagram
2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that
you would like to pair with
3.Delete the pairing:
(1)Wire up the RF receiver correctly, power on
(2)Press and hold down the “ Learning Key” button on receiver for over 3 seconds until
the connected light
flashes, which means well deleted

PUSH DIM:
While connected with PUSH LV, click the button to switch ON/OFF lights. Press and
hold down the button to increase/decrease light intensity

Product Data
1	12 - 36VDC	1x8A	1x(96-288)W	Constant Voltage	95x37x20mm
• Radio Frequency: 868 / 869.5 / 916.5 / 434MHz • Waterproof Grade: IP20 Manual Pair/delete the pairing with RF remote 1.Do wiring according to connection diagram 2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that you would like to pair with 3.Delete the pairing: (1)Wire up the RF receiver correctly, power on (2)Press and hold down the “ Learning Key” button on receiver for over 3 seconds until the connected light flashes, which means well deleted PUSH DIM: While connected with PUSH LV, click the button to switch ON/OFF lights. Press and hold down the button to increase/decrease light intensity
