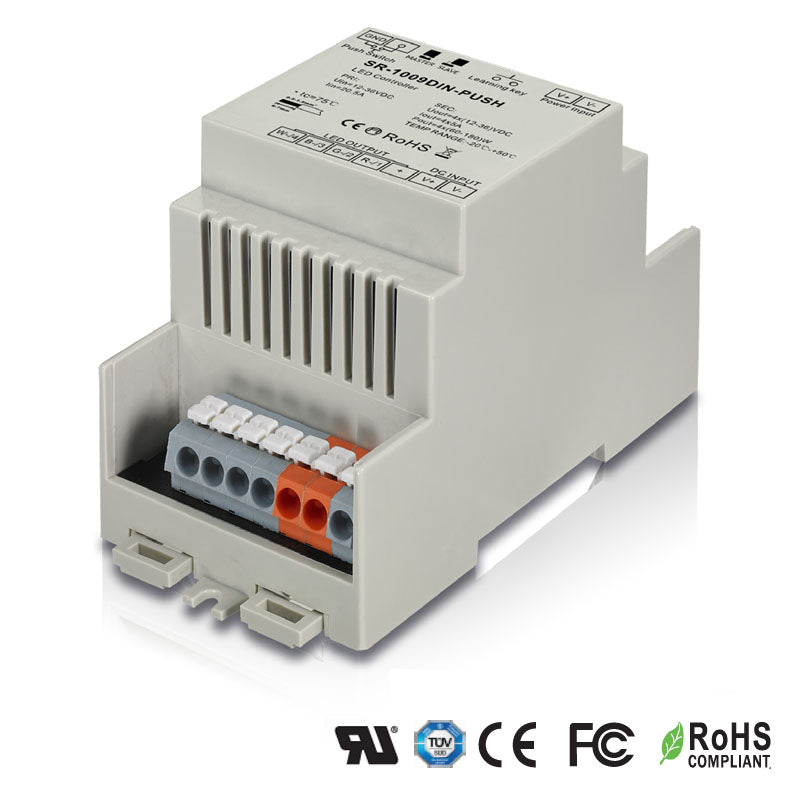

SR-1009DIN-PUSH
£45.00
Unit price perEstimated delivery between January 23 and January 25.
Product Data
| No. | Input Voltage | Output Current | Output Power | Remarks | Size (LxWxH) |
| 1 | 12-36VDC | 4x5A | 4x(60-180)W | Constant Voltage | 110x53x65mm |
• Radio Frequency : 868 / 869.5 / 916.5 / 434mhz
• Waterproof grade: IP20
Manual
Pair/delete the pairing with RF remote

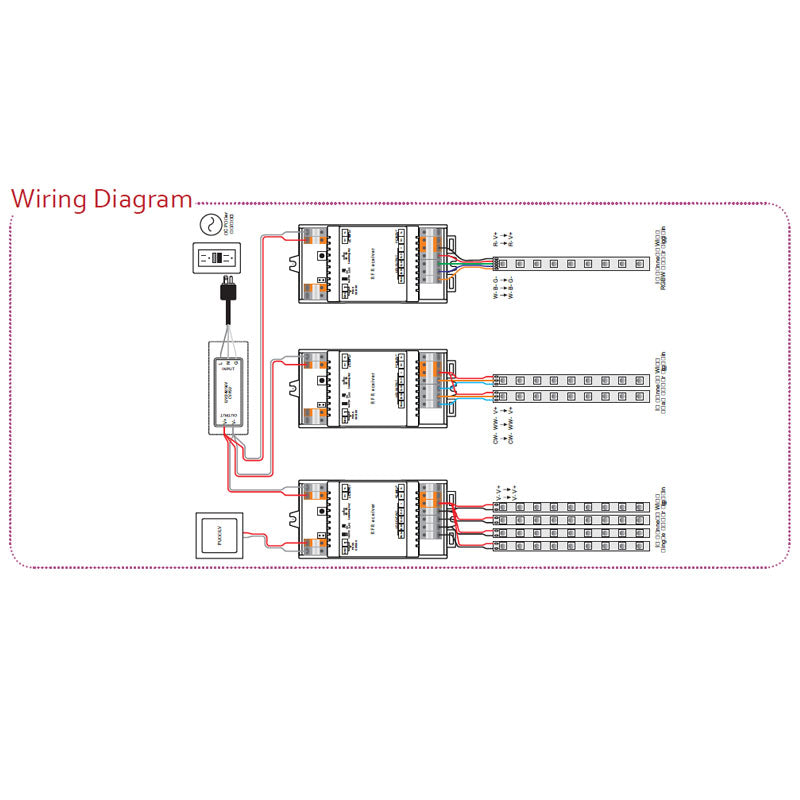

1.Do the wiring according to connection diagram.
2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that you would like to pair with
3.Delete the pairing:
(1)Wire up the RF receiver correctly, power on
(2)Press and hold down the “ Learning Key” button on receiver for over 3 seconds until the connected light flashes, which means
well deleted
Master and Slave Setting:

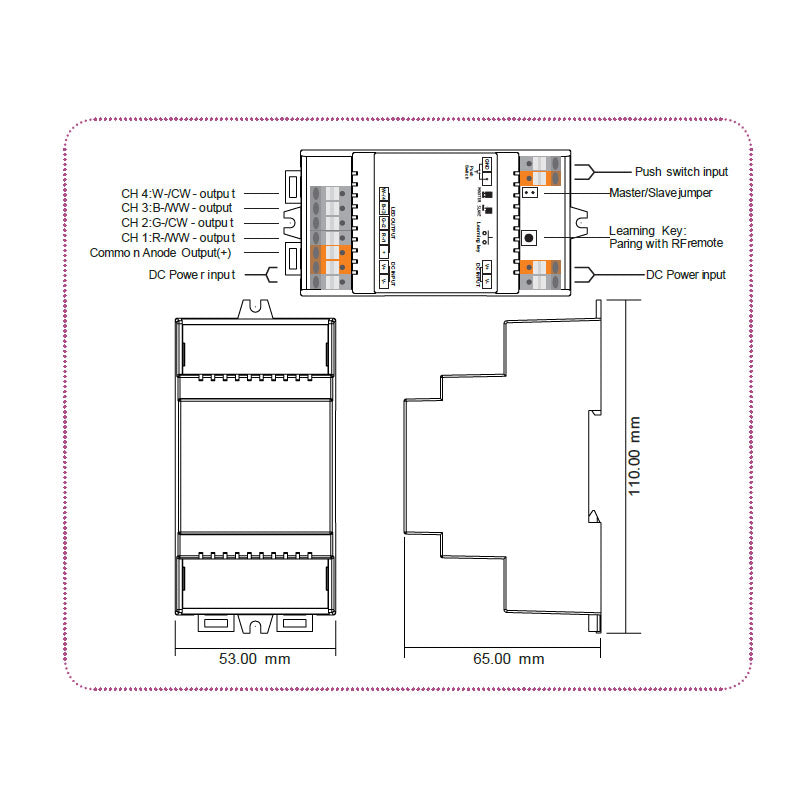

1. The receiver has both master and slave functions which can be set with a jumper. Short circuit of the jumper means master function, and open circuit means slave function. Once short circuit the jumper on a receiver, please power off and power on the receiver to enable master function. Setting master and slave enables perfect synchronization of colour changing effects.
2. Set one receiver as master and pair it to any zone of a remote, and this zone shall only have one receiver which works as master. Set all other receivers as slave and pair them to other zones of the remote, and multiple receivers can be paired to each zone. Then choose all zones on the remote and play the colour changing effects, the master will send sync signal to the slaves to achieve perfect synchronization. The max. sync distance between the master and any slave is within 30m
PUSH DIM:
While connected with PUSH LV, click the button to switch ON/OFF lights. Press and hold down the button to increase/decrease light intensity.
