SR-1009EA-5C - 5CH 8A Constant Voltage RGB & CCT RF LED Receiver

~~£86.84~~ £45.00

Estimated delivery between September 13 and September 15.

Quantity

Product Data
12 - 36VDC	5x5A	5x(60-180)W	Constant Voltage	170x59x29mm
• Radio Frequency: 868 / 869.5 / 916.5 / 434MHz • Waterproof Grade: IP20 Manual Pair/delete the pairing with RF remote 1.Do the wiring according to connection diagram 2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that you would like to pair with 3.Delete the pairing: (1)Wire up the RF receiver correctly, power on (2)Press and hold down the “ Learning Key” button on receiver for over 3 seconds until the connected light flashes, which means well deleted

Product Data

Input Voltage

Output Current

Output Power

Remarks

Size (LxWxH)

12 - 36VDC

5x5A

5x(60-180)W

Constant Voltage

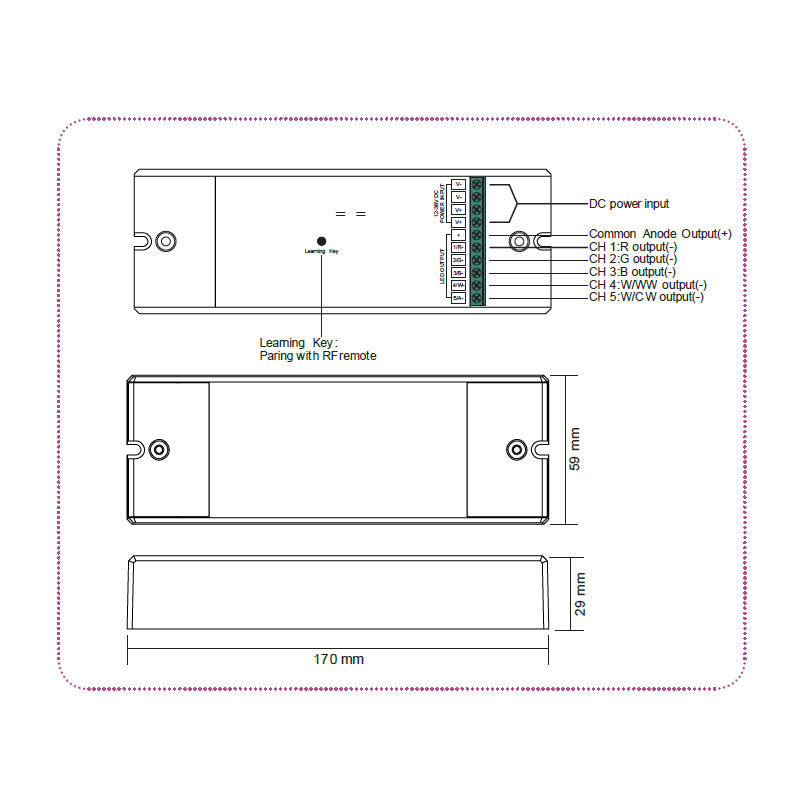

170x59x29mm

• Radio Frequency: 868 / 869.5 / 916.5 / 434MHz
• Waterproof Grade: IP20

Manual

Pair/delete the pairing with RF remote

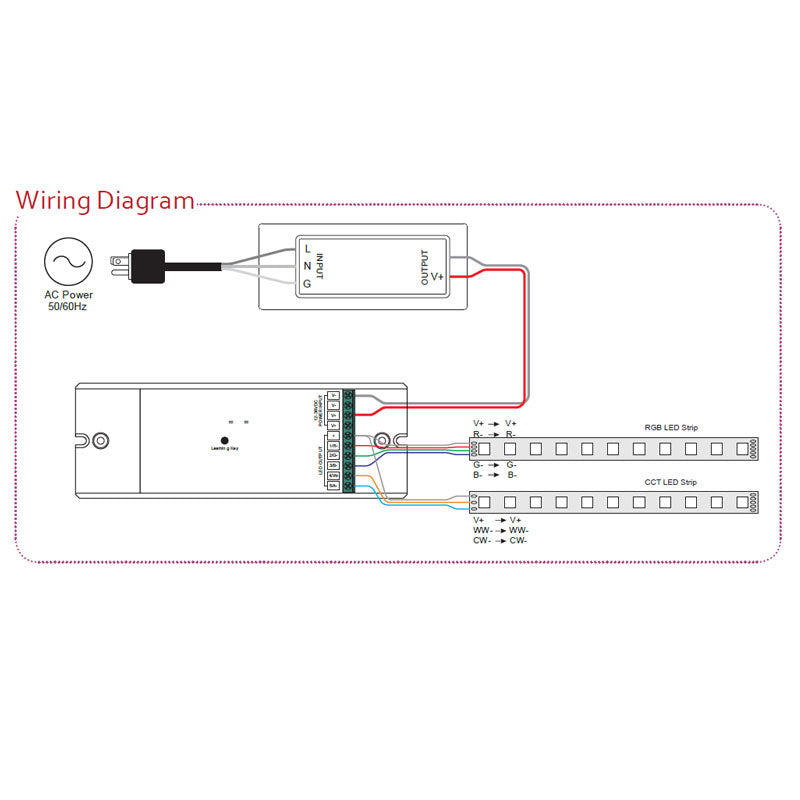

1.Do the wiring according to connection diagram
2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that you would like to pair with
3.Delete the pairing:
(1)Wire up the RF receiver correctly, power on
(2)Press and hold down the “ Learning Key” button on receiver for over 3 seconds until the connected light flashes, which means
well deleted

Product Data
12 - 36VDC	5x5A	5x(60-180)W	Constant Voltage	170x59x29mm
• Radio Frequency: 868 / 869.5 / 916.5 / 434MHz • Waterproof Grade: IP20 Manual Pair/delete the pairing with RF remote 1.Do the wiring according to connection diagram 2.Pair RF Receiver with RF remote: please refer to the instruction of the remote that you would like to pair with 3.Delete the pairing: (1)Wire up the RF receiver correctly, power on (2)Press and hold down the “ Learning Key” button on receiver for over 3 seconds until the connected light flashes, which means well deleted
