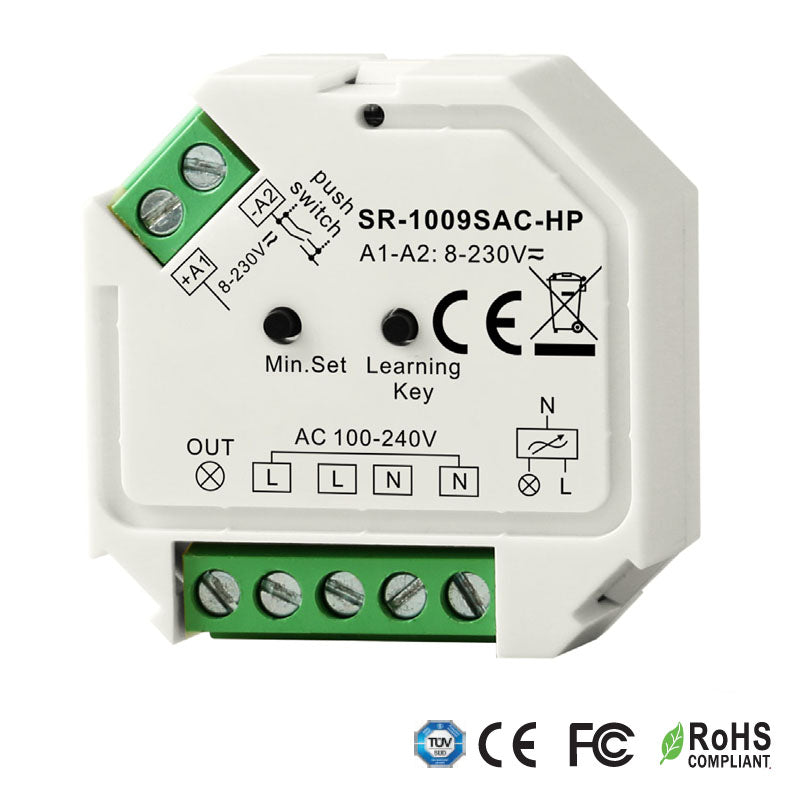

SR-1009SAC-HP
£28.00
Unit price perEstimated delivery between January 23 and January 25.
Compatible Load Types
| No. | Load Symbol | Load Type | Maximum Load | Remarks |
| 1 |  |
LED lamps | 200W @ 220V 100W @ 110V |
Due to variety of LED lamp designs, maximum number of LED lamps is further dependent on power factor result when connected to dimmer. |
| 2 |  |
LED drivers | 200W @ 220V 100W @ 110V |
Maximum permitted number of drivers is 200W divided by driver nameplate power rating. |
| 3 |  |
Incandescent lighting, HV Halogen lamps |
400W @ 220V 200W @ 110V |
|
| 4 |  |
Low voltage halogen lighting with electronic transformers |
200W @ 220V 100W @ 110V |
• 100-240VAC Wide Input and Output Voltage
• Radio Frequency : 868/869.5/916.5/434mhz
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Trailing edge dimming
• Supports resistive loads and capacitive loads
• Innovative minimum brightness setting function
• Single Wire Push Switch Input for Push Dim Function
• Great Compatibility with Universal 8V-230V~ Input Push Switches
• Great compatibility with a variety of Perfect RF series single colour remote controls
• To dim and switch single colour dimmable LED lamps, traditional incandescent and halogen lights
• Mini size, easy to install into a standard 86*86mm wall
box
• Waterproof grade: IP20
