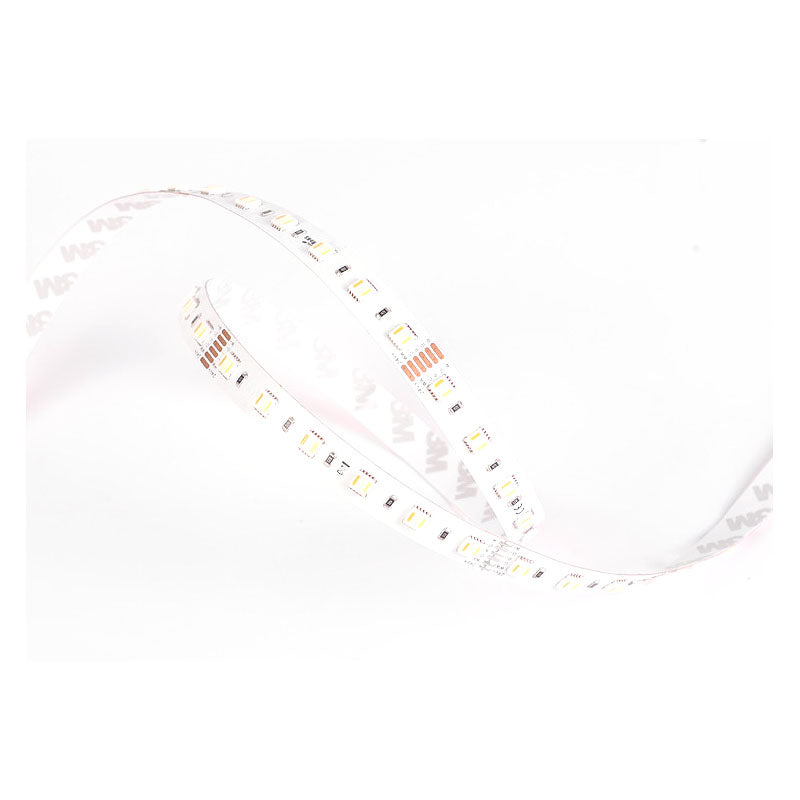

24V RGB + Warm White LED Tapes – 19.2W/m, 5050SMD, 60 LEDs/m, IP33 LUK-D560-IP33
10852
£108.52
Unit price perEstimated delivery between January 23 and January 25.
| Product Details - Model: LUK-D560-RGB-WW-W-IP33 | |
|---|---|
| Features | |
| Max. Length | 5m |

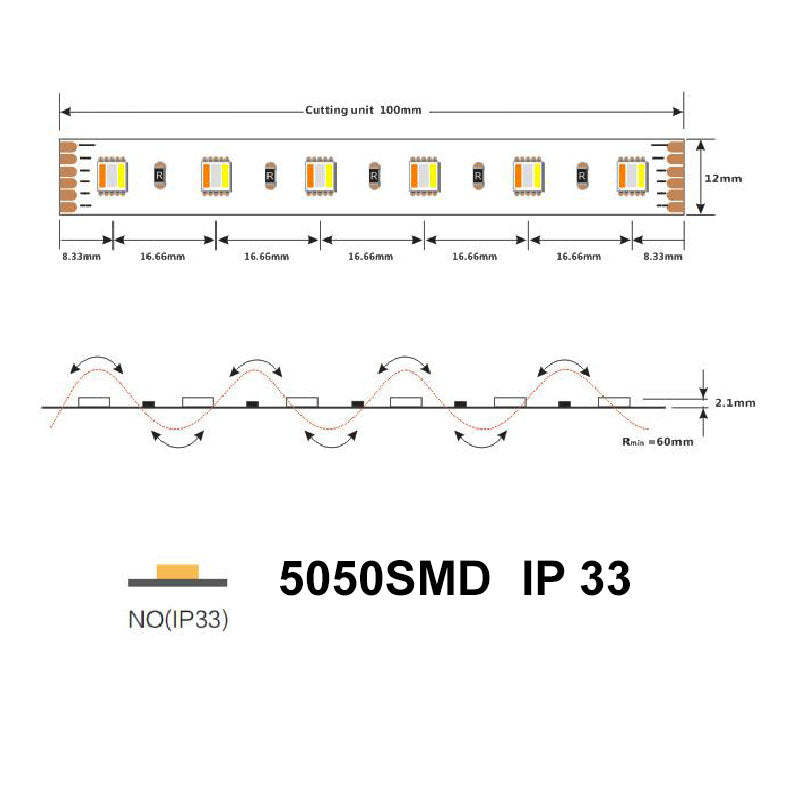

| Cutting Unit | 100mm / 6 LEDs |
| LED Pitch | 16.66mm |
| Min. Bend Diameter | Φ60 mm |
| Mounting | 3M Tape |
| IP Rating | IP33 |
| Input Voltage | 24VDC |
| LEDs per Meter | 60 |
| Rated Current | 0.75A (1m) / 3.14A (5m) |
| Typical Power | 18W (1m) / 75.4W (5m) |
| Power Range | 16 - 20W |
| Max. Power | 20W (IF = 16.6mA) |
| CRI | 80 |
| On-Off Times | 10,000 (test times) |

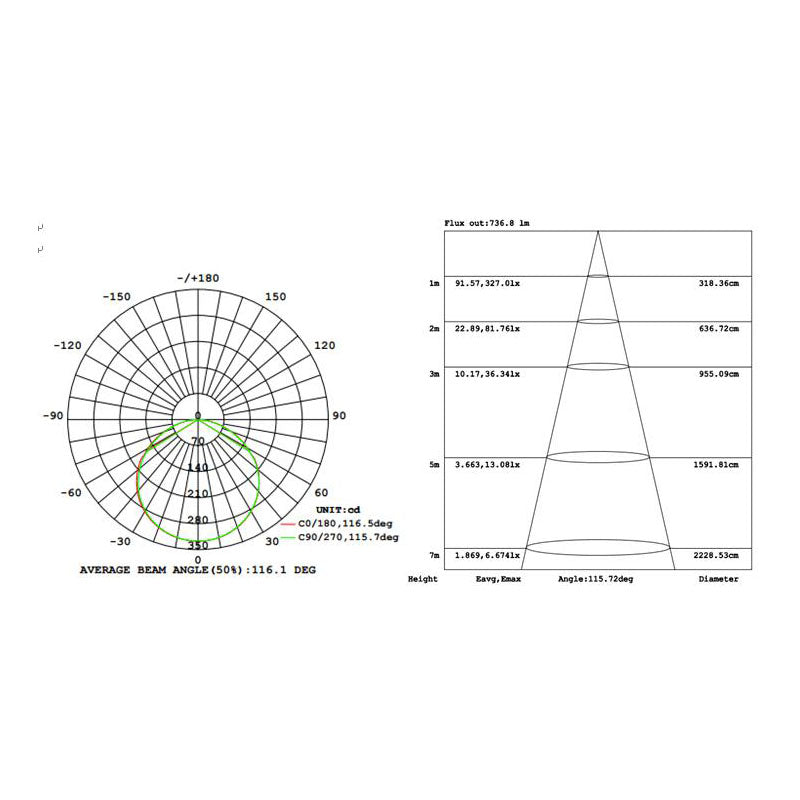

| Photometric Data | |
| Model | LUK-D560-RGB-WW-W-IP33 |
| Temperature (K) |
RGB 2300K+6500K |
| Lumens (lm/m) |
1101lm 344lm |
| Efficiency Class | A+ |
| Notes | |
| 1. The tolerance of the output data can vary up to 10%. 2. The output data tested according to IES LM-79-08. 3. The output data is based on IP33/m. 4. IP protection process leads to changes in size, CCT, and luminous flux. |
|
