24V LED Tape Light 20.2W/m IP33 – 196 LEDs/m SMD2835 | LUK-D8196
£29.70
Unit price perEstimated delivery between September 13 and September 15.
24V High-Efficiency LED Tape Light – LUK-D8196-IP33 Series

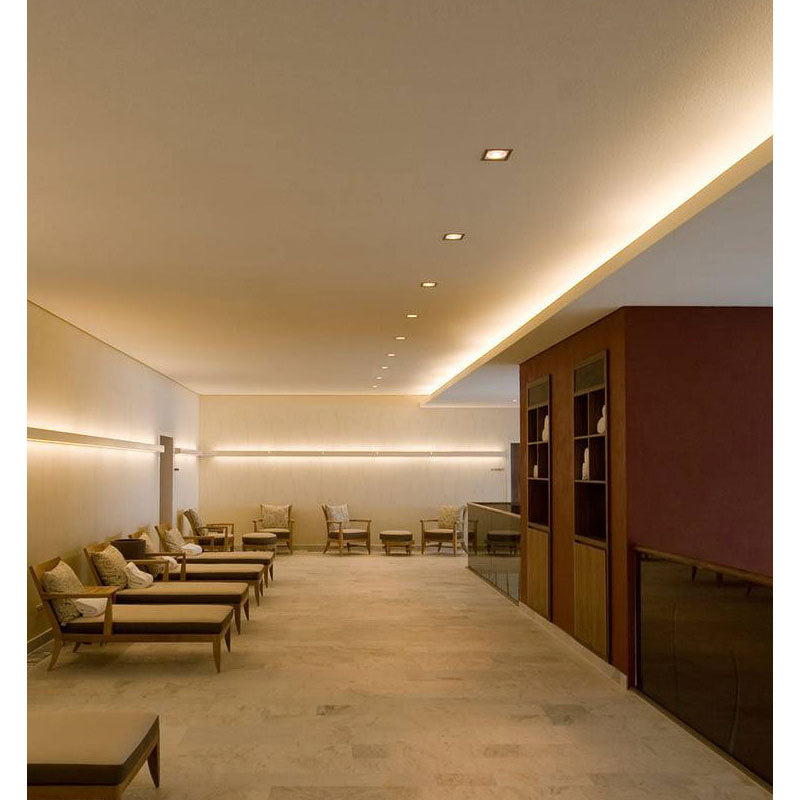

The LUK-D8196-IP33 is built for installations where light quality and output truly matter. Powered by premium SMD2835 LEDs at 196 per metre, this 24V tape delivers an outstanding 2,406 lm/m with an efficacy of up to 127 lm/W — making it one of the most efficient LED tapes in its class. Whether used in display cabinets, cove lighting, or high-end interior schemes, the LUK-D8196 produces beautifully even, high-brightness illumination with zero compromise on energy efficiency.
Key Benefits
- Exceptional Efficacy — up to 127 lm/W and 2,406 lm/m; one of the highest-output indoor LED tapes available
- Premium SMD2835 LEDs — high-performance chip for superior colour rendering and longevity
- 3 Colour Temperatures — choose from 3000K (warm white), 4000K (cool white), or 6000K (daylight)
- Energy Class A+ — exceptionally efficient across all colour temperature variants
- Easy Installation — 3M adhesive backing; cuttable every 71mm (14 LEDs)
- 24V DC Input — stable and safe for runs up to 5m
Technical Specifications
| Product Details - Model: Mat LED Strip | |
|---|---|
| Features | |
| Max. Length | 5m |

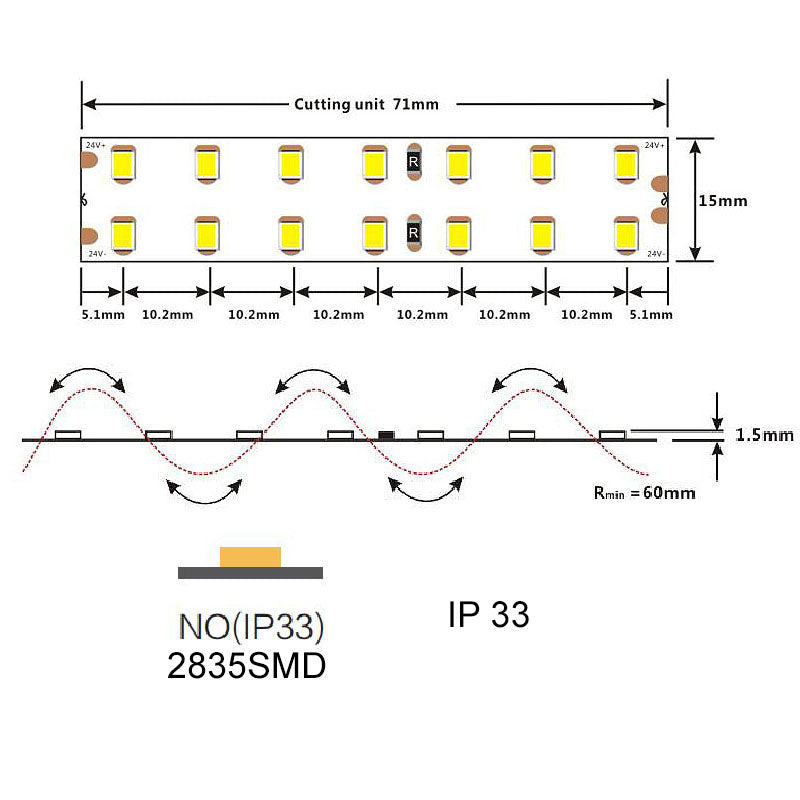

| Cutting Unit | 71mm / 14 LEDs |
| LED Pitch | 10.2mm |
| Min. Bend Diameter | Φ60 mm |
| Mounting | 3M Tape |
| IP Rating | IP33 |
| Input Voltage | 24VDC |
| LEDs per Metre | 196 |
| Rated Current | 0.787A (1m) / 3.29A (5m) |
| Typical Power | 18.9W (1m) / 79W (5m) |
| Power Range | 17.5 – 20.2W |
| Max. Power | 20.2W (IF = 30mA) |
| CRI (Colour Rendering Index) | 80 |
| On-Off Switching Times | 10,000 (tested cycles) |
| Models & Colour Temperature | |
| LUK-D8196-WW-IP33 | 3000K |
| LUK-D8196-DW-IP33 | 4000K |
| LUK-D8196-W-IP33 | 6000K |
| Lumen Output & Efficiency | |
| Lumen Output (LM/m) | 2334 lm (3000K / 6000K), 2406 lm (4000K) |
| Lm/W | 123 (3000K / 6000K), 127 (4000K) |
| Energy Class | A+ |
| Notes | |
| 1. The tolerance of the output data can vary up to 10%. 2. The output data is tested according to IES LM-79-08. 3. The output data is based on IP33 performance per metre. 4. The IP protection process may result in changes to size, CCT, and luminous flux. | |
