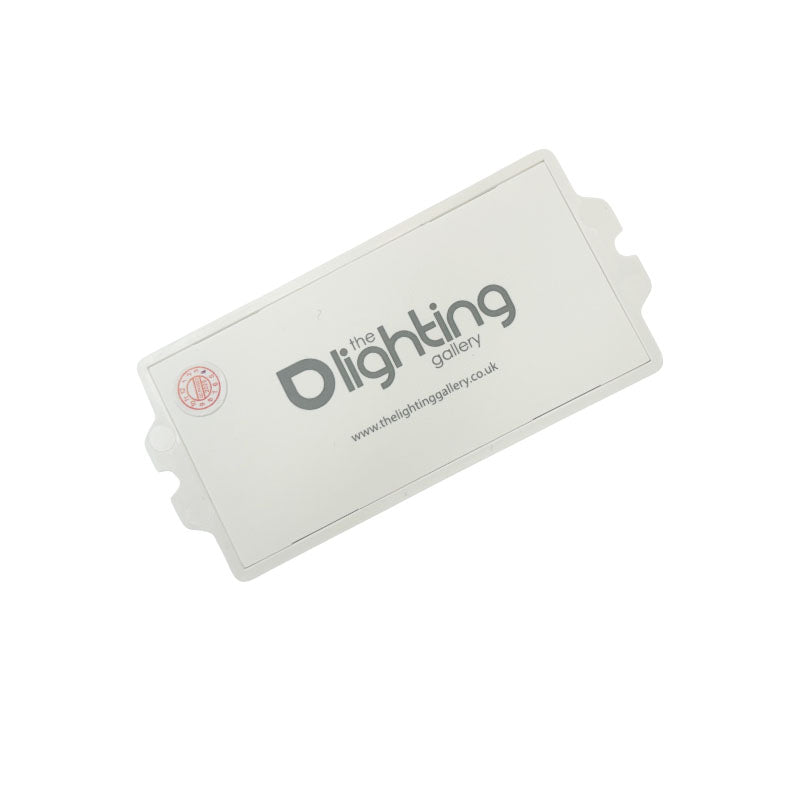

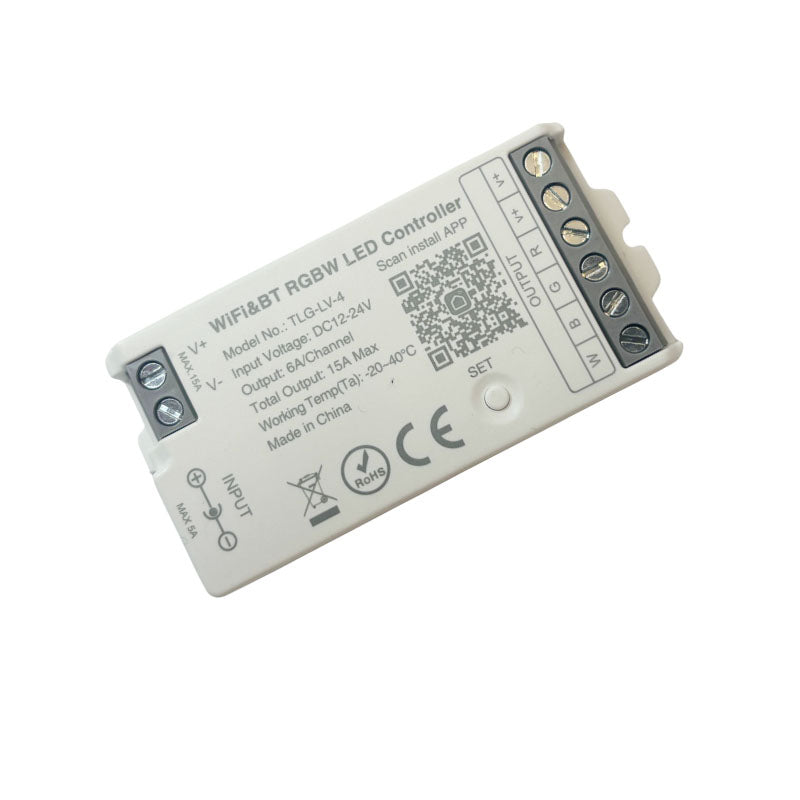

WiFi + Bluetooth RGBW LED Controller
6205
£62.05
Unit price perEstimated delivery between December 08 and December 10.
| Product Details - Model: WiFi + Bluetooth RGBW LED Controller | |
|---|---|

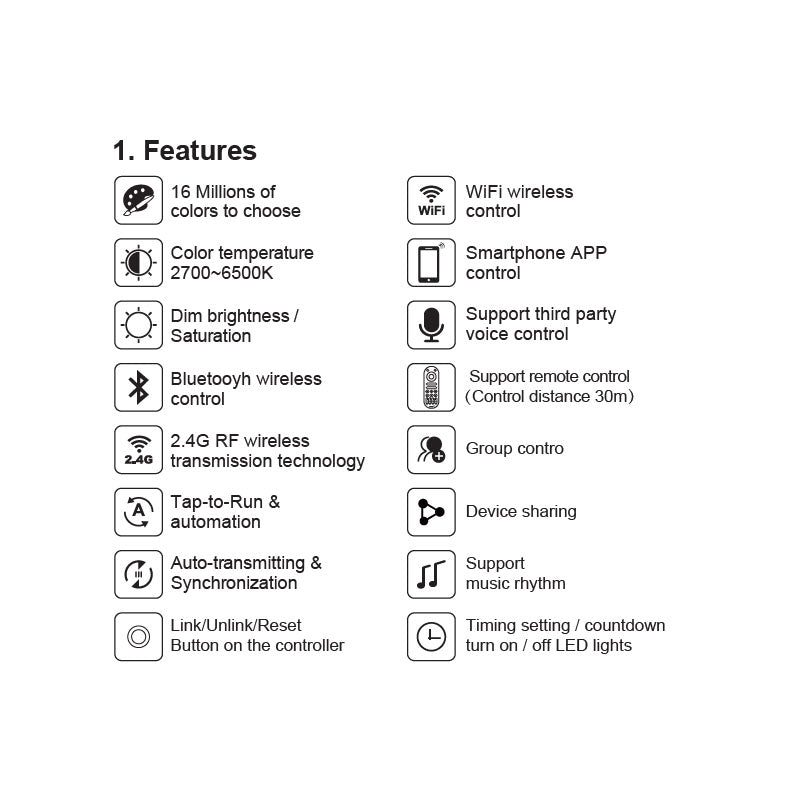

| Features | |
| Device Type | WiFi + Bluetooth RGBW LED Controller |
| Control App | Smart Life / Tuya Smart |
| Remote Control | 2.4GHz RF Compatible |
| Voice Control | Supports Amazon Alexa, Google Assistant, and other third-party voice assistants |
| Bluetooth Control | Yes, within 20 meters when WiFi is off |
| Control Distance | 30 meters |
| Specifications | |
| Input Voltage | DC12-24V (5.5*2.1mm) |
| Output | 4 Channels (RGBW), 6A per channel; Total 15A Max |
| Working Temperature | -20~40°C |
| Size | 74.5 × 35.6 × 16.5 mm |
| Support | WiFi & 2.4GHz RF & Bluetooth |
| Smartphone Setup | |

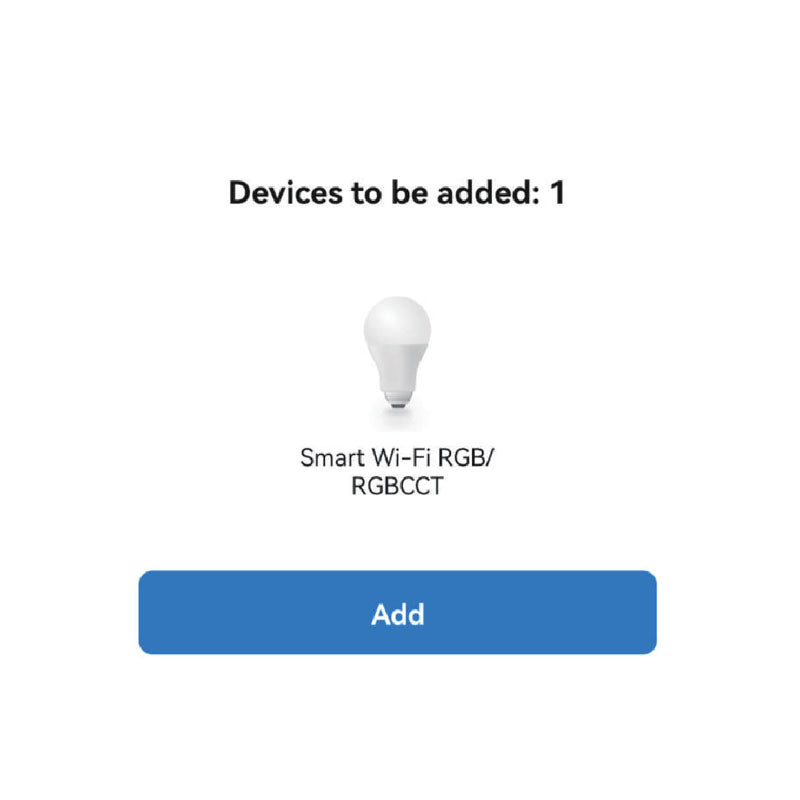

| App Setup | Download Tuya Smart or Smart Life, register/login, follow pairing steps |
| Pairing Mode | Long press SET or toggle power 4 times until light blinks |
| Bluetooth Pairing | After WiFi off, open Bluetooth and wait to control within 20m |
| Remote Control | |

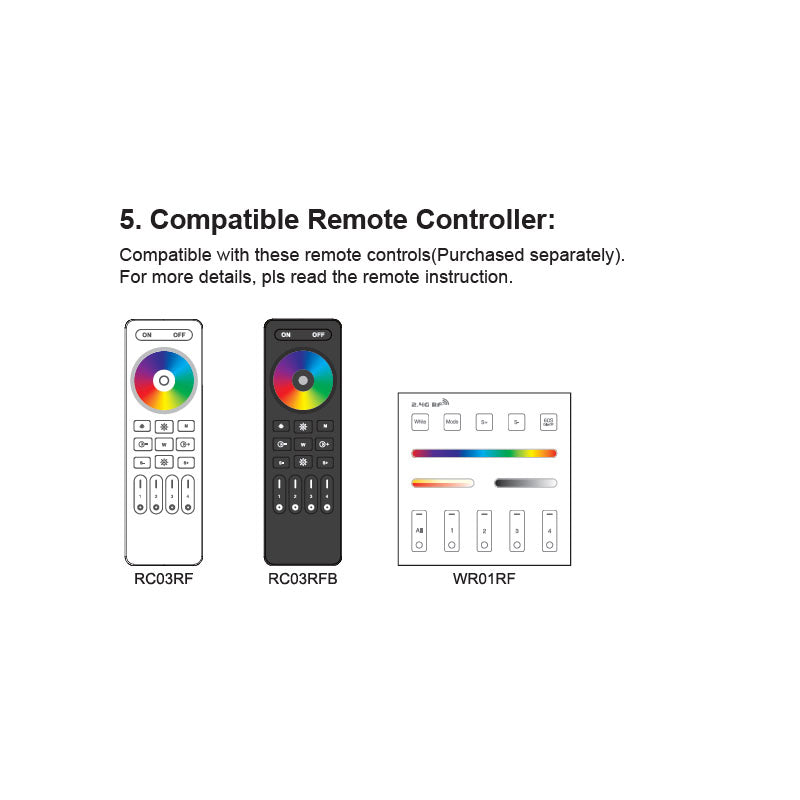

| Remote Compatibility | Multiple remote types (sold separately) |
| Signal Transmission | Up to 30m from one controller to another |

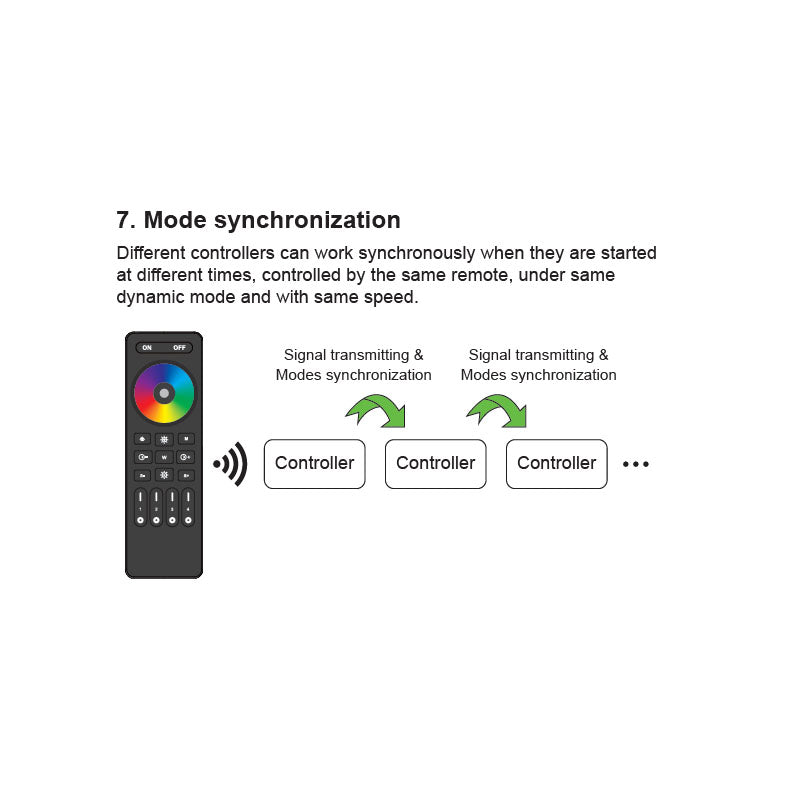

| Mode Synchronization | Yes, if same remote, mode, and speed used |
| Pairing & Unlinking | |
| Pairing (1st Way) | Hold SET 3s, then press remote ON 3× within 5s |
| Pairing (2nd Way) | Turn light off → wait 10s → turn on → press ON 3× within 5s |
| Unlink (1st Way) | Hold SET 3s → press ON 5× → light blinks 10× |
| Unlink (2nd Way) | Turn off → wait 10s → turn on → press ON 5× within 5s |
| Notes | |
| 1. Ensure input voltage is DC12-24V and connections are correct. 2. Controller damaged above 24V. 3. Do not dismantle the unit. 4. Avoid direct sunlight, moisture, or high temperature. 5. Avoid metal surroundings or magnetic fields. 6. Use ≥1.5mm² wire for 15A load. 7. For load >10A, keep cable <40cm between DC port and strip. 8. Ensure installation in well-ventilated area. |
|
