MiBoxer FUT035W-PLUS 2-in-1 Single Colour & CCT LED Receiver — WiFi & 2.4GHz RF (12V/24V DC, 12A)
The MiBoxer FUT035W-PLUS is a compact 2-in-1 LED receiver and controller for single colour and colour temperature (CCT) LED strips at 12V or 24V DC, up to 12A maximum output. It can be controlled wirelessly via 2.4GHz RF handsets and wall panels, or through the Tuya app on your smartphone or smart speaker — no gateway required. A push dimming input allows a hard-wired momentary switch to switch and dim connected LED strips directly. The PWM frequency can be set to 16kHz or 250Hz to reduce flicker and banding in photography and video. A mode indicator glows red for single colour and green for CCT (dual colour) mode. Multiple units synchronise wirelessly to form a MESH network, with each receiver passing the signal to the next within a 30-metre range. Suitable for commercial and domestic LED strip installations.
Key Features
- 2-in-1 Single Colour & CCT Control — switch between single colour (red indicator) and dual colour/CCT mode (green indicator) via the set button
- RF + Wi-Fi Control — compatible with 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — units sync wirelessly within 30m, extending range across grouped zones
- Push Dimming Input — wire a momentary push switch for manual switching and dimming
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Selectable PWM Frequency — 16kHz or 250Hz to minimise flicker in photography and video
- Common Anode Output
- 5-Year Guarantee
| Product Details — Model: FUT035W-PLUS | |
|---|---|
| Electrical | |
| Input Voltage | 12V / 24V DC |
| Output Voltage | 12V / 24V DC |
| Max Output Current | 12A |
| Output per Channel | 12A |
| Output Type | Common Anode |
| Voltage Type | Constant Voltage |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi (IEEE 802.11b/g/n) |
| Wireless Range | Up to 30 metres |
| PWM Frequency | 16kHz or 250Hz (selectable) |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Dimensions | 74.5mm x 36mm x 17mm |
| Operating Temperature | -10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | FUT035W-PLUS |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What's in the Box
- 1 x FUT035W-PLUS MiBoxer 2-in-1 RF / Wi-Fi LED Receiver
- Sticky fixing pad
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| FUT035W-PLUS MiBoxer — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
PW2 MiBoxer 2-In-1 Controller / Receiver WiFi / 2.4G RF (12V to 48V)
PW2 MiBoxer 2-In-1 Controller / Receiver WiFi / 2.4G RF (12V to 48V)
MiBoxer PW2 2-in-1 Single Colour & CCT LED Controller / Receiver — WiFi & 2.4GHz RF (12V–48V DC, 20A)
The MiBoxer PW2 is a versatile 2-in-1 LED controller and receiver for single colour and colour temperature (CCT) LED strips, compatible with 12V to 48V DC systems up to 20A. It can be controlled wirelessly via 2.4GHz RF handsets and wall panels, or through the Tuya app on your smartphone or smart speaker — no gateway required. A push dimming input allows a hard-wired momentary switch to switch and dim connected LED strips directly. The PWM frequency can be set to 16kHz or 250Hz to reduce flicker and banding in photography and video. A mode indicator glows red for single colour and green for CCT (dual colour) mode. Multiple units synchronise wirelessly to form a MESH network, with each receiver passing the signal to the next within a 30-metre range. The do-not-disturb function retains the last lighting state or sets the output to off when power is restored. Suitable for commercial and domestic LED strip installations.
Key Features
- 2-in-1 Single Colour & CCT Control — switch between single colour (red indicator) and dual colour/CCT mode (green indicator) via the set button
- RF + Wi-Fi Control — compatible with 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- Wide Voltage Range — 12V to 48V DC, up to 20A total output
- MESH Networking — units sync wirelessly within 30m, extending range across grouped zones
- Push Dimming Input — wire a momentary push switch for manual switching and dimming
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Selectable PWM Frequency — 16kHz or 250Hz to minimise flicker in photography and video
- Do Not Disturb Function — returns to last setting or off state after a power interruption
- Fast Latch Lever Connections — tool-free wiring for quick installation
- 5-Year Guarantee
| Product Details — Model: PW2 | |
|---|---|
| Electrical | |
| Input Voltage | 12V – 48V DC |
| Output Voltage | 12V – 48V DC |
| Max Output Current | 20A |
| Output per Channel | 6A |
| Voltage Type | Constant Voltage |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Wireless Range | Up to 30 metres |
| PWM Frequency | 16kHz or 250Hz (selectable) |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Operating Temperature | -10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | PW2 |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What's in the Box
- 1 x PW2 MiBoxer 2-in-1 Controller / Receiver
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| PW2 MiBoxer 2-In-1 Controller — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.

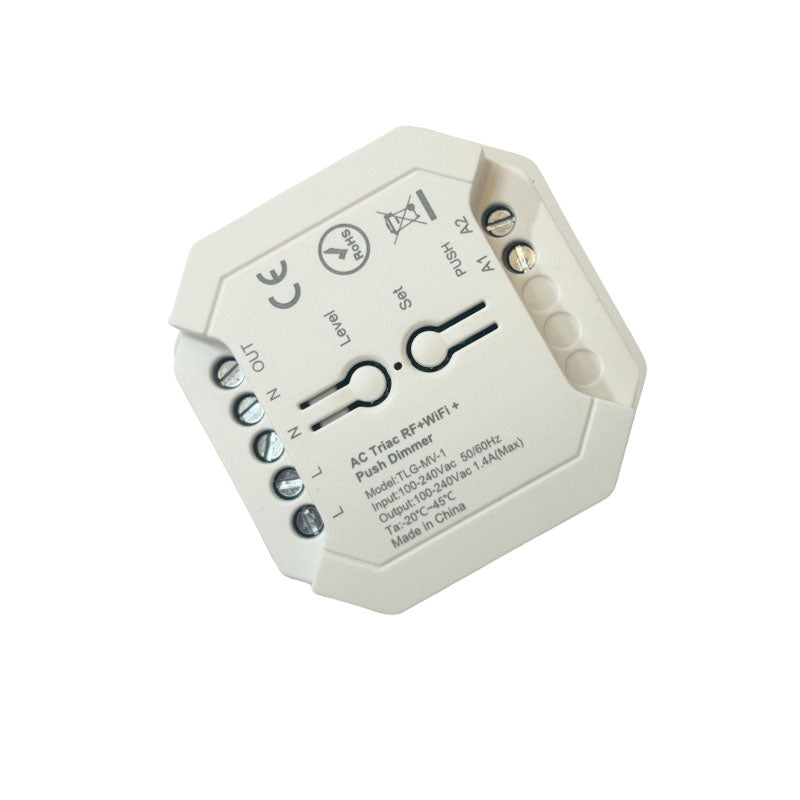

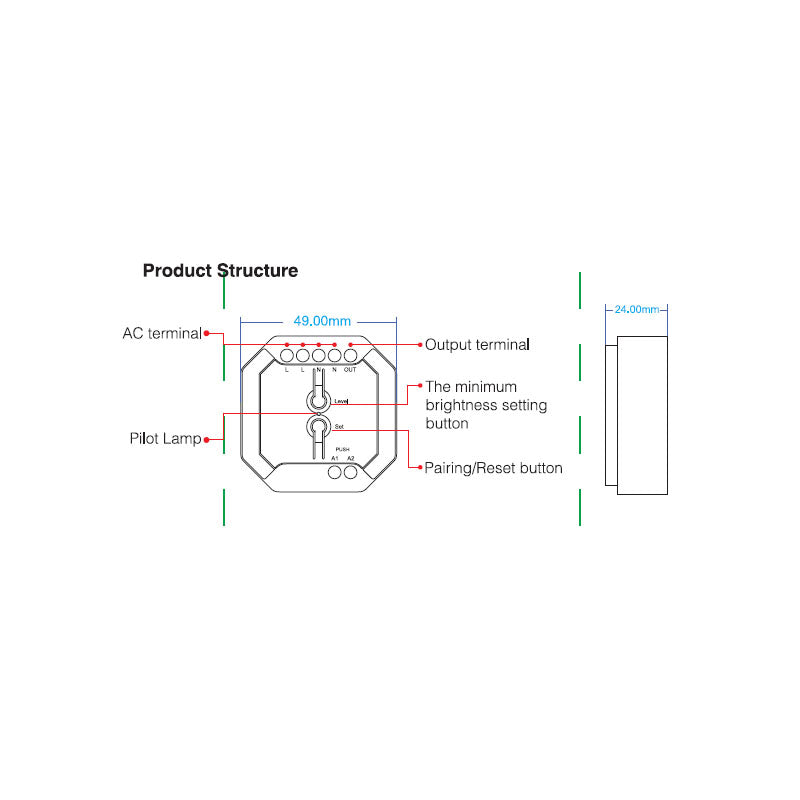

AC Triac Dimmer with Wi-Fi, 2.4GHz RF & Push Switch Control (300W)
The MiBoxer TRIC1WR is a compact AC Triac dimmer for controlling mains-powered dimmable lighting wirelessly via 2.4GHz RF handsets, wall panels, or the Tuya app on your smartphone or smart speaker — no gateway required. It supports mains voltages from 100V to 240V AC and can dim loads up to 300W at 220V AC. A hard-wired push switch input allows a momentary switch to be connected directly to the unit for manual on/off and dimming control. Multiple units can synchronise wirelessly to form a MESH network, passing the signal from one unit to the next within a 30-metre range. A minimum brightness setting allows lighting to be pre-set to dim down to a defined level, and the do-not-disturb function returns the unit to its last setting or off state when power is restored. Suitable for commercial and domestic dimmable lighting installations.
Key Features
- AC Triac Dimmer — dims mains-powered dimmable lighting from 100V–240V AC up to 300W
- RF + Wi-Fi Control — compatible with 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — units sync wirelessly within 30m, extending range across grouped zones
- Push Switch Input — wire a momentary push switch directly to the unit for manual on/off and dimming
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Minimum Brightness Setting — pre-set a minimum dim level to suit your installation
- Do Not Disturb Function — returns to last setting or off state after a power interruption
- 5-Year Guarantee
| Product Details — Model: TRIC1WR | |
|---|---|
| Electrical | |
| Input Voltage | 100V – 240V AC |
| Output Voltage | 100V – 240V AC |
| Max Output Current | 1.36A |
| Max Load | 300W at 220V AC |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Wireless Range | Up to 30 metres |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Dimensions | 49mm x 51.4mm x 25.5mm (without bracket); Bracket: 37.6mm x 53.8mm x 19.6mm |
| Operating Temperature | -10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | TRIC1WR |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What's in the Box
- 1 x TRIC1WR MiBoxer AC Triac RF / Wi-Fi + Push Dimmer
- Mounting bracket
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| TRIC1WR MiBoxer AC TRIAC Dimmer — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Wi-Fi & 2.4GHz RF Smart Mains Switch with MESH Networking (10A)
The MiBoxer WLSW1 is a compact smart switch for controlling mains-powered devices wirelessly via 2.4GHz RF handsets, wall panels, or the Tuya app on your smartphone or smart speaker — no gateway required. It supports mains voltages from 100V to 240V AC and can switch loads up to 10A. A hard-wired push switch input allows a momentary switch to be connected directly to the unit for manual on/off control. Multiple units can synchronise wirelessly to form a MESH network, passing the signal from one unit to the next to extend range indefinitely. Timers and routines can be configured via the Tuya app. Suitable for commercial and domestic installations.
Key Features
- Mains Smart Switch — controls 100V–240V AC devices up to 10A
- RF + Wi-Fi Control — compatible with 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — units sync wirelessly, extending range indefinitely
- Push Switch Input — wire a momentary push switch directly to the unit for manual control
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Timers & Routines — schedule on/off times via the Tuya app
- Compact Design — 49mm x 49mm x 25mm
- 5-Year Guarantee
| Product Details — Model: WLSW1 | |
|---|---|
| Electrical | |
| Input Voltage | 100V – 240V AC |
| Output Voltage | 100V – 240V AC |
| Max Output Current | 10A |
| Total Output | Max 15A |
| Output per Channel | 6A |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Wireless Range | Up to 30 metres |
| Transmitting Power | 6dBm |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Dimensions | 49mm x 49mm x 25mm |
| Operating Temperature | -20°C to +60°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | WLSW1 |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What's in the Box
- 1 x WLSW1 Wi-Fi & 2.4GHz Smart Switch
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| WLSW1 MiBoxer WiFi & 2.4G Smart Switch — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
2-in-1 LED Controller — RF & Wi-Fi with MESH Networking (30A)
The MiBoxer HW2 is a high-current 2-in-1 receiver and controller for 12V to 48V DC LED strips, supporting up to 30A maximum output. It can be controlled wirelessly via 2.4GHz RF handsets, wall panels, or the Tuya app on your smartphone or smart speaker — no gateway required. The unit can be set to single colour dimming or colour temperature (CCT) mode, with the indicator light glowing red for single colour mode or green for dual colour (CCT) mode. Push Dimming allows a momentary push switch to be wired directly to the unit for manual switching and dimming. Multiple receivers can synchronise wirelessly to form a MESH network, with each unit passing signal to the next (up to 30m apart) — no interconnecting control cables needed. The Do Not Disturb function returns the lighting to its last state or off should power be interrupted. PWM frequency is selectable at 250Hz or 16KHz to minimise flicker and banding. Suitable for commercial and domestic installations.
Key Features
- 2-in-1 Mode — single colour dimming or colour temperature (CCT)
- High Current Output — up to 30A maximum, ideal for larger installations
- RF + Wi-Fi Control — compatible with all 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — receivers sync wirelessly, up to 30m between each unit
- Push Dimming — wire a momentary push switch directly to the receiver
- Do Not Disturb — returns to last setting or off state after a power interruption
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Adjustable PWM Frequency — 250Hz or 16KHz to reduce flicker and banding
- 5-Year Guarantee
| Product Details — Model: HW2 | |
|---|---|
| Electrical | |
| Input Voltage | 12V – 48V DC |
| Output Voltage | 12V – 48V DC |
| Max Output Current | 30A |
| Rated Current per Channel | 12A |
| Voltage Type | Constant Voltage |
| PWM Frequency | 250Hz or 16KHz (selectable) |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Frequency Range | 2.4GHz |
| Wireless Range | Up to 30m |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Operating Temperature | -10 to 40C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| LED Strip Brands | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | HW2 |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What's in the Box
- HW2 2-in-1 RF (2.4G) & WiFi Receiver / Controller
- Data Sheet
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| HW2 MiBoxer 2-In-1 Controller — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
5-in-1 LED Controller — RF, Wi-Fi & MESH Networking (30A)
The MiBoxer HW5 is a high-current 5-in-1 receiver and controller for 12V to 48V DC LED strips, supporting up to 30A maximum output. It can be controlled wirelessly via 2.4GHz RF handsets, wall panels, or the Tuya app on your smartphone or smart speaker — no gateway required. The unit can be set to single colour dimming, colour temperature (CCT), RGB, RGBW, or RGB+CCT mode, with the indicator light showing the active colour mode. Push Dimming allows a momentary push switch to be wired directly to the unit for manual switching and dimming. Multiple receivers can synchronise wirelessly to form a MESH network, with each unit passing signal to the next (up to 30m apart) — no interconnecting control cables needed. The “Do Not Disturb” function returns the lighting to its last state or off should power be interrupted. PWM frequency is selectable at 250Hz or 16KHz to minimise flicker and banding. Suitable for commercial and domestic installations.
Key Features
- 5-in-1 Mode — single colour dimming, CCT, RGB, RGBW, RGB+CCT
- High Current Output — up to 30A maximum, ideal for larger installations
- RF + Wi-Fi Control — compatible with all 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — receivers sync wirelessly, up to 30m between each unit
- Push Dimming — wire a momentary push switch directly to the receiver
- Do Not Disturb — returns to last setting or off state after a power interruption
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Adjustable PWM Frequency — 250Hz or 16KHz to reduce flicker and banding
- 5-Year Guarantee
| Product Details — Model: HW5 | |
|---|---|
| Electrical | |
| Input Voltage | 12V – 48V DC |
| Output Voltage | 12V – 48V DC |
| Max Output Current | 30A |
| Rated Current per Channel | 12A |
| Voltage Type | Constant Voltage |
| PWM Frequency | 250Hz or 16KHz (selectable) |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Frequency Range | 2.4GHz |
| Wireless Range | Up to 200 metres |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Operating Temperature | −10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| LED Strip Brands | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | HW5 |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What's in the Box
- HW5 5-in-1 RF (2.4G) & WiFi Receiver / Controller
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| HW5 MiBoxer 5-In-1 Receiver — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Smart AC Dimming — Wired, Wireless & App-Controlled
The MiBoxer TRIPW AC Triac Dimmer gives you complete control over your mains lighting through RF remote, Wi-Fi app, or a hard-wired push switch — all from a single compact unit. Compatible with the full range of 2.4G Mi-Light and Mi-Boxer handsets and wall panels, it also connects directly to your smartphone via the Tuya app or any smart speaker, with no gateway required.
Key Features
- RF + Wi-Fi + Push Switch — three control methods in one unit
- MESH Networking — sync multiple receivers in the same zone; devices within 30m of each other form a cable-free mesh
- Minimum Brightness Setting — pre-set a lower dim limit to suit your space
- Breaker Mode — converts the unit into a wireless AC switch (no dimming) for non-dimmable loads
- Do Not Disturb — returns to last setting or off state after a power interruption
- Wide Voltage Compatibility — works on 100V–240V AC mains
- 5-Year Guarantee
| Product Details — Model: TRIPW | |
|---|---|
| Electrical | |
| Input Voltage | 100V – 240V AC |
| Output Voltage | 100V – 240V AC |
| Max Output Current | 2.27A |
| Max Load | 500W at 220V AC |
| Connectivity | |
| Wireless Protocol | 2.4G RF (433MHz) & Wi-Fi |
| Wireless Range | Up to 30 metres |
| App Control | Tuya (no gateway required) |
| Smart Speaker Compatible | Yes |
| Physical | |
| Dimensions | 117mm × 45mm × 24mm |
| IP Rating | IP20 (indoor use) |
| Operating Temperature | −10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| Product Code | TRIPW |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What’s in the Box
- TRIPW MiBoxer AC Triac RF + Wi-Fi + Push Dimmer
- Instruction manual
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| TRIPW MiBoxer Triac Dimmer — Product Data Sheet | |
Need help choosing the right controller for your project? Contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
5-in-1 LED Controller — RF, Wi-Fi & MESH Networking
This feature rich 5-in-1, 2.4GHz RF and Wi-Fi controller / receiver from Mi-Light can be controlled wirelessly using a compatible 2.4GHz Mi-Light & Mi-Boxer handset or wall panel. It can also connect to your smartphone or smart speaker via the Tuya app — no additional gateway required. The receiver can be set to single channel dimming, colour temperature (CCT), RGB, RGBW, or RGB+CCT modes, and is suitable for 12V to 48V LED strips up to a maximum load of 20A. Multiple receivers can synchronise wirelessly to form a MESH network — signal passes from receiver to receiver (up to 30m apart) with no interconnecting control cables. The “Do Not Disturb” function returns the lighting to full brightness or off state should power be lost and restored. Suitable for both commercial and domestic installations. PWM frequency is adjustable from 250Hz to 16KHz.
Key Features
- 5-in-1 Mode — single dimming, CCT, RGB, RGBW, RGB+CCT
- RF + Wi-Fi Control — compatible with all 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — receivers sync wirelessly, up to 30m between each unit
- Do Not Disturb — returns to last setting or off state after a power interruption
- Wide Voltage Range — 12V to 48V DC, max 20A output
- Adjustable PWM Frequency — 250Hz to 16KHz
- 5-Year Guarantee
| Product Details — Model: PW5 | |
|---|---|
| Electrical | |
| Input Voltage | 12V – 48V DC |
| Output Voltage | 12V – 48V DC |
| Max Output Current | 20A |
| Voltage Type | Constant Voltage |
| PWM Frequency | 250Hz – 16KHz (adjustable) |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Frequency Range | 2.4GHz |
| Wireless Range | Up to 30 metres |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Operating Temperature | −10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| LED Strip Brands | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | PW5 |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What’s in the Box
- PW5 Receiver / Controller
- Instruction manual
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| PW5 MiBoxer 5-in-1 Controller — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
E2WR MiBoxer 2-In-1 Controller / Receiver WiFi / 2.4G RF (12V & 24V)
E2WR MiBoxer 2-In-1 Controller / Receiver WiFi / 2.4G RF (12V & 24V)
2-in-1 LED Controller — RF, Wi-Fi & MESH Networking
The MiBoxer E2WR is a compact 2-in-1 receiver and controller for 12V and 24V DC LED strips, offering wireless control via 2.4GHz RF handsets, wall panels, or the Tuya app on your smartphone or smart speaker — no gateway required. It can be set to single colour dimming or colour temperature (CCT) mode, with the indicator light glowing red for single colour and green for dual colour (CCT). Push Dimming allows a momentary push switch to be wired directly to the unit for manual switching and dimming. Multiple receivers can synchronise wirelessly to form a MESH network, with each unit passing signal to the next (up to 30m apart) — no interconnecting control cables needed. The “Do Not Disturb” function returns the lighting to its last state or off should power be interrupted. PWM frequency is selectable at 250Hz or 16KHz to minimise flicker and banding. Suitable for commercial and domestic installations.
Key Features
- 2-in-1 Mode — single colour dimming or CCT (colour temperature adjustable)
- RF + Wi-Fi Control — compatible with all 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — receivers sync wirelessly, up to 30m between each unit
- Push Dimming — wire a momentary push switch directly to the receiver
- Do Not Disturb — returns to last setting or off state after a power interruption
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Adjustable PWM Frequency — 250Hz or 16KHz to reduce flicker and banding
- 5-Year Guarantee
| Product Details — Model: E2WR | |
|---|---|
| Electrical | |
| Input Voltage | 12V / 24V DC |
| Output Voltage | 12V / 24V DC |
| Max Output Current | 12A |
| Rated Current per Channel | 6A |
| Voltage Type | Constant Voltage |
| PWM Frequency | 250Hz or 16KHz (selectable) |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Frequency Range | 433MHz |
| Wireless Range | Up to 500 metres |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Operating Temperature | −10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| LED Strip Brands | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | E2WR |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What's in the Box
- E2WR Receiver / Controller
- Adhesive pad
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| E2WR MiBoxer 2-In-1 Controller — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.

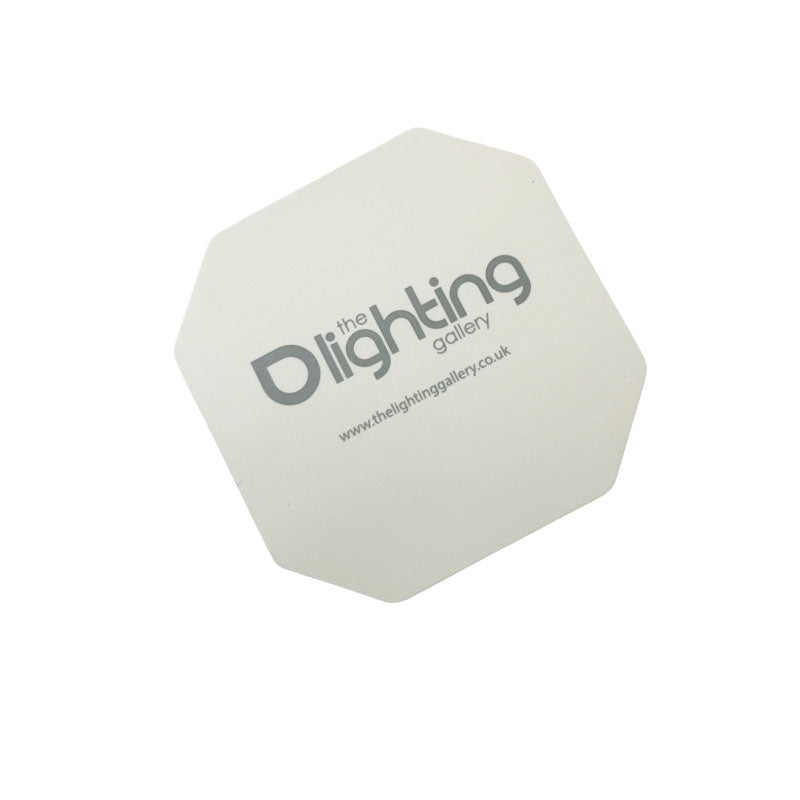

| Product Details - Model: WiFi + 2.4G AC Triac Dimmer | |
|---|---|
| Features | |
| Control | 2.4G RF Remote & Smartphone App + WiFi |
| Voice Control | Compatible with Amazon Alexa, Google Home, Yandex Alice |
| Push Switch Support | ON/OFF and continuous dimming |
| Dimming Range | 0–100% brightness, flicker-free |
| Dimming Mode | Back edge phase (Triac) dimming |
| Brightness Setting | Set lowest brightness via key or app |
| Temperature Detection | Overheat protection with auto-recovery |
| Power Protection | Overload protection and automatic power limit |
| Signal Sync | Signal auto-transmitting & mode auto-synchronization |
| Installation | Fits standard 86*86 wall junction box |
| Safety Case | V0 class anti-fire |
| Technical Specification | |
| Input Voltage | AC 100V ~ 240V, 50/60Hz |
| Output Voltage | AC 100V ~ 240V, 50/60Hz |
| Output Current | Max 1.4A |
| Max Output Power | 154W @ 110V, 308W @ 220V |
| Working Temperature | -20°C ~ +40°C |
| Control Distance | 30m (Open and barrier-free) |
| Product Size | 49*49*24 mm (L*W*H) |
| Notes | |
| 1. Ensure proper AC input voltage. 2. Do not exceed max load. 3. Do not dismantle the unit. 4. Avoid direct sunlight, moisture, or high temperature. 5. Installation should be in a standard wall junction box. 6. Use suitable wiring according to load. 7. Keep away from metal enclosures or strong magnetic fields. |
|

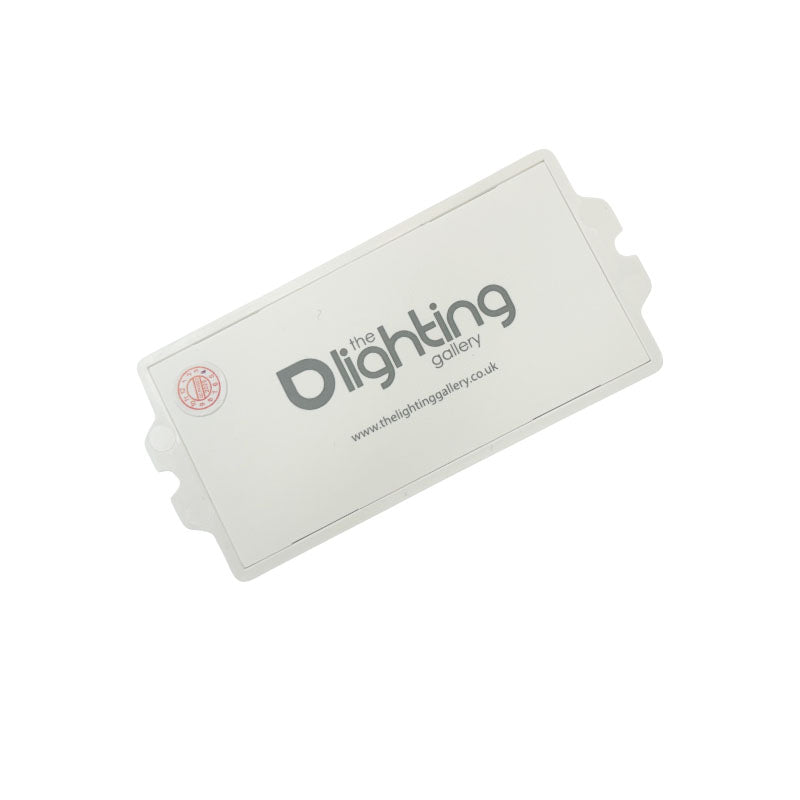

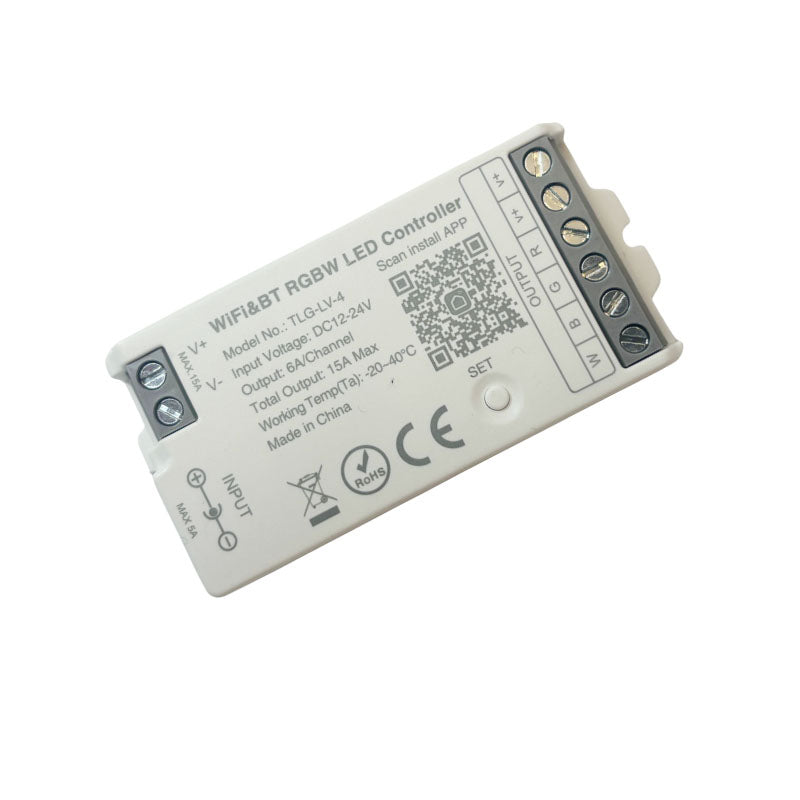

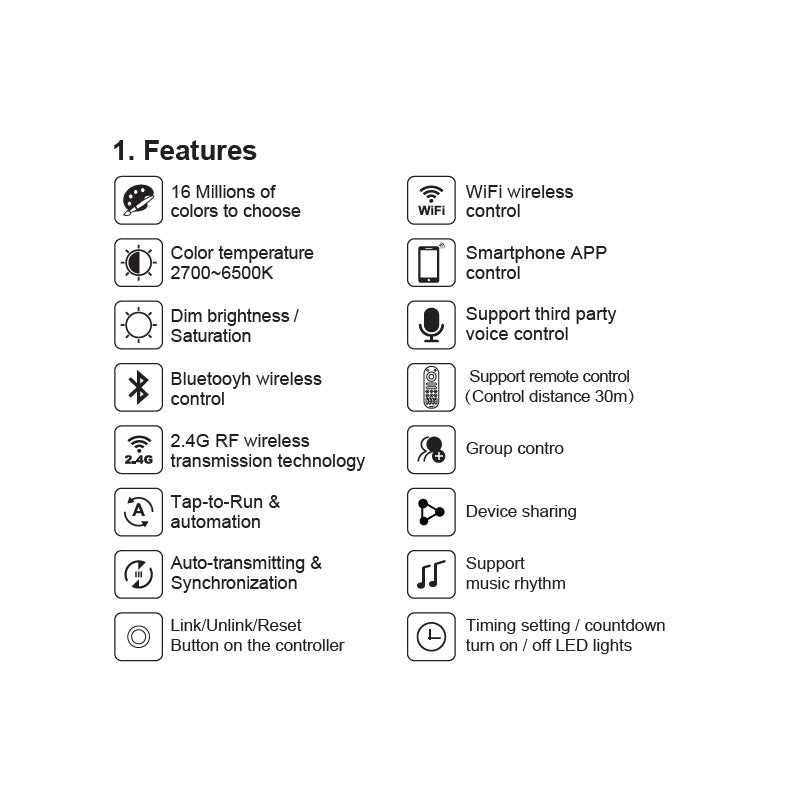

| Product Details - Model: WiFi + Bluetooth RGBW LED Controller | |
|---|---|
| Features | |
| Device Type | WiFi + Bluetooth RGBW LED Controller |
| Control App | Smart Life / Tuya Smart |
| Remote Control | 2.4GHz RF Compatible |
| Voice Control | Supports Amazon Alexa, Google Assistant, and other third-party voice assistants |
| Bluetooth Control | Yes, within 20 meters when WiFi is off |
| Control Distance | 30 meters |
| Specifications | |
| Input Voltage | DC12-24V (5.5*2.1mm) |
| Output | 4 Channels (RGBW), 6A per channel; Total 15A Max |
| Working Temperature | -20~40°C |
| Size | 74.5 × 35.6 × 16.5 mm |
| Support | WiFi & 2.4GHz RF & Bluetooth |
| Smartphone Setup | |
| App Setup | Download Tuya Smart or Smart Life, register/login, follow pairing steps |
| Pairing Mode | Long press SET or toggle power 4 times until light blinks |
| Bluetooth Pairing | After WiFi off, open Bluetooth and wait to control within 20m |
| Remote Control | |
| Remote Compatibility | Multiple remote types (sold separately) |
| Signal Transmission | Up to 30m from one controller to another |
| Mode Synchronization | Yes, if same remote, mode, and speed used |
| Pairing & Unlinking | |
| Pairing (1st Way) | Hold SET 3s, then press remote ON 3× within 5s |
| Pairing (2nd Way) | Turn light off → wait 10s → turn on → press ON 3× within 5s |
| Unlink (1st Way) | Hold SET 3s → press ON 5× → light blinks 10× |
| Unlink (2nd Way) | Turn off → wait 10s → turn on → press ON 5× within 5s |
| Notes | |
| 1. Ensure input voltage is DC12-24V and connections are correct. 2. Controller damaged above 24V. 3. Do not dismantle the unit. 4. Avoid direct sunlight, moisture, or high temperature. 5. Avoid metal surroundings or magnetic fields. 6. Use ≥1.5mm² wire for 15A load. 7. For load >10A, keep cable <40cm between DC port and strip. 8. Ensure installation in well-ventilated area. |
|

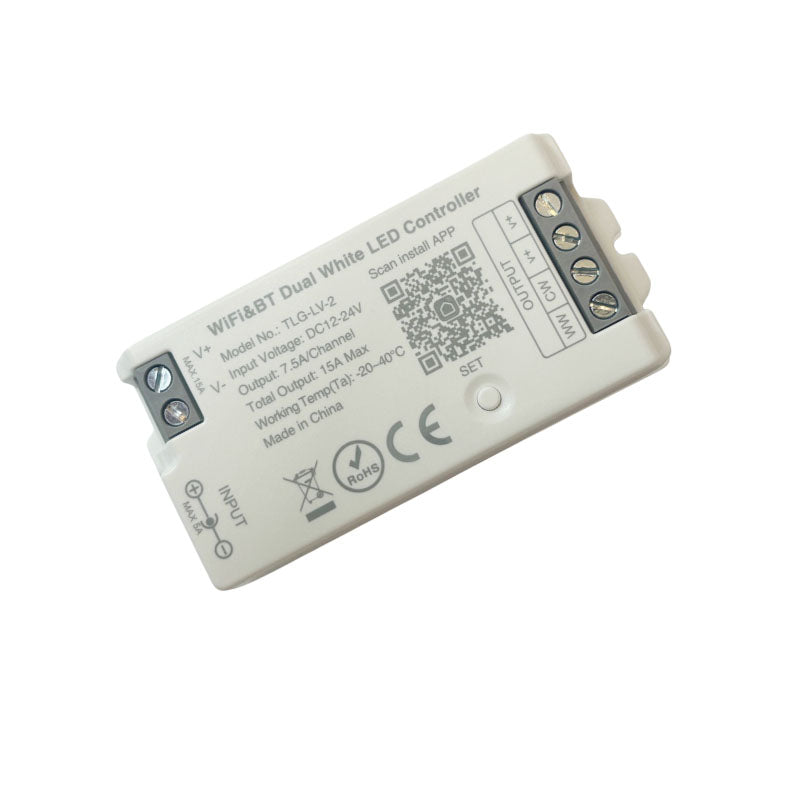

| Product Details - Model: WiFi + Bluetooth Dual Colour LED Controller | |
|---|---|
| Features | |
| Device Type | WiFi + Bluetooth Dual Colour (CCT) LED Controller |
| Control App | Smart Life / Tuya Smart |
| Voice Control | Supports Amazon Alexa and Google Assistant |
| Bluetooth Control | Yes, within 20 meters when WiFi is off |
| Control Distance | Up to 30 meters |
| Specifications | |
| Input Voltage | DC 12V–24V |
| Output Channels | 2 Channels (Warm White & Cool White) |
| Max Output Power | 96W (12V) / 192W (24V) |
| Control Method | App, Voice Assistant, Bluetooth |
| IP Rating | IP20 (Non-Waterproof) |
| Operating Temperature | -20°C to 55°C |
| Smartphone Setup | |
| App Setup | Download Tuya Smart or Smart Life, register/login, follow pairing steps |
| Pairing Mode | Long press SET or toggle power 4 times until light blinks |
| Bluetooth Pairing | After WiFi off, open Bluetooth and wait to control within 20m |
| Remote Control | |
| Remote Compatibility | Multiple remote types (sold separately) |
| Signal Transmission | Up to 30m from one controller to another |
| Mode Synchronization | Yes, if same remote, mode, and speed used |
| Pairing & Unlinking | |
| Pairing (1st Way) | Hold SET 3s, then press remote ON 3× within 5s |
| Pairing (2nd Way) | Turn light off → wait 10s → turn on → press ON 3× within 5s |
| Unlink (1st Way) | Hold SET 3s → press ON 5× → light blinks 10× |
| Unlink (2nd Way) | Turn off → wait 10s → turn on → press ON 5× within 5s |
| Notes | |
| 1. Ensure input voltage is DC12-24V and connections are correct. 2. Controller damaged above 24V. 3. Do not dismantle the unit. 4. Avoid direct sunlight, moisture, or high temperature. 5. Avoid metal surroundings or magnetic fields. 6. Use ≥1.5mm² wire for 15A load. 7. For load >10A, keep cable <40cm between DC port and strip. 8. Ensure installation in well-ventilated area. |
|

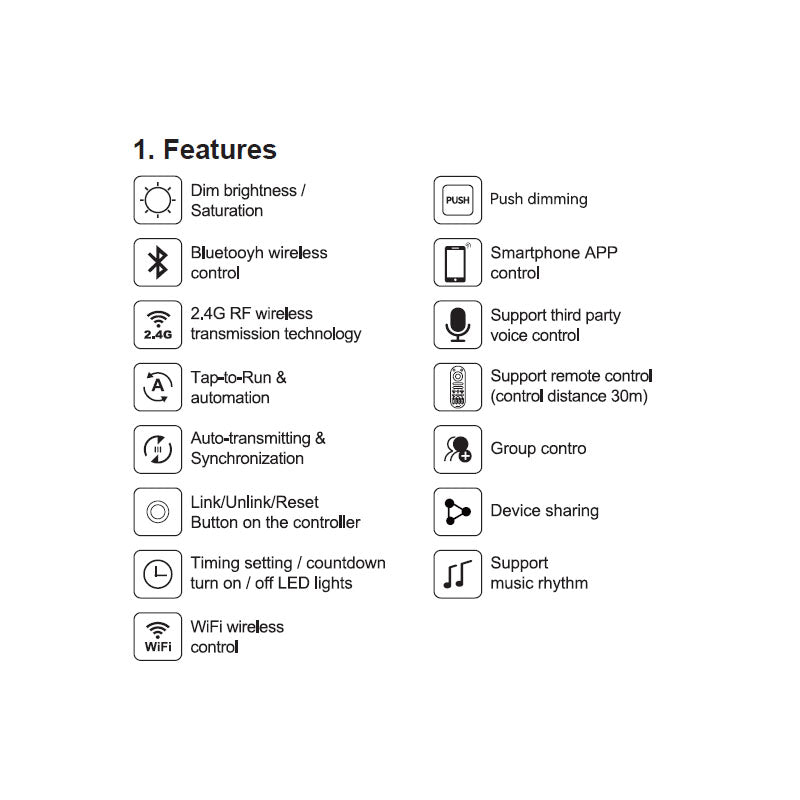

| Product Details - Model: WiFi Single Colour LED Controller | |
|---|---|
| Features | |
| Device Type | WiFi Single Colour LED Controller |
| Control App | Smart Life / Tuya Smart |
| Voice Control | Supports Amazon Alexa and Google Assistant |
| Bluetooth Control | Yes, within 20 meters when WiFi is off |
| Control Distance | Up to 30 meters |
| Specifications | |
| Input Voltage | DC 12V–24V |
| Output | Single Channel |
| Max Output Power | 96W (12V) / 192W (24V) |
| Control Method | App, Voice Assistant, Bluetooth |
| IP Rating | IP20 (Non-Waterproof) |
| Operating Temperature | -20°C to 55°C |
| Smartphone Setup | |
| App Setup | Download Tuya Smart or Smart Life, register/login, follow pairing steps |
| Pairing Mode | Long press SET or toggle power 4 times until light blinks |
| Bluetooth Pairing | After WiFi off, open Bluetooth and wait to control within 20m |
| Remote Control | |
| Remote Compatibility | Multiple remote types (sold separately) |
| Signal Transmission | Up to 30m from one controller to another |
| Mode Synchronization | Yes, if same remote, mode, and speed used |
| Pairing & Unlinking | |
| Pairing (1st Way) | Hold SET 3s, then press remote ON 3× within 5s |
| Pairing (2nd Way) | Turn light off → wait 10s → turn on → press ON 3× within 5s |
| Unlink (1st Way) | Hold SET 3s → press ON 5× → light blinks 10× |
| Unlink (2nd Way) | Turn off → wait 10s → turn on → press ON 5× within 5s |
| Notes | |
| 1. Ensure input voltage is DC12-24V and connections are correct. 2. Controller damaged above 24V. 3. Do not dismantle the unit. 4. Avoid direct sunlight, moisture, or high temperature. 5. Avoid metal surroundings or magnetic fields. 6. Use ≥1.5mm² wire for 15A load. 7. For load >10A, keep cable <40cm between DC port and strip. 8. Ensure installation in well-ventilated area. |
|
