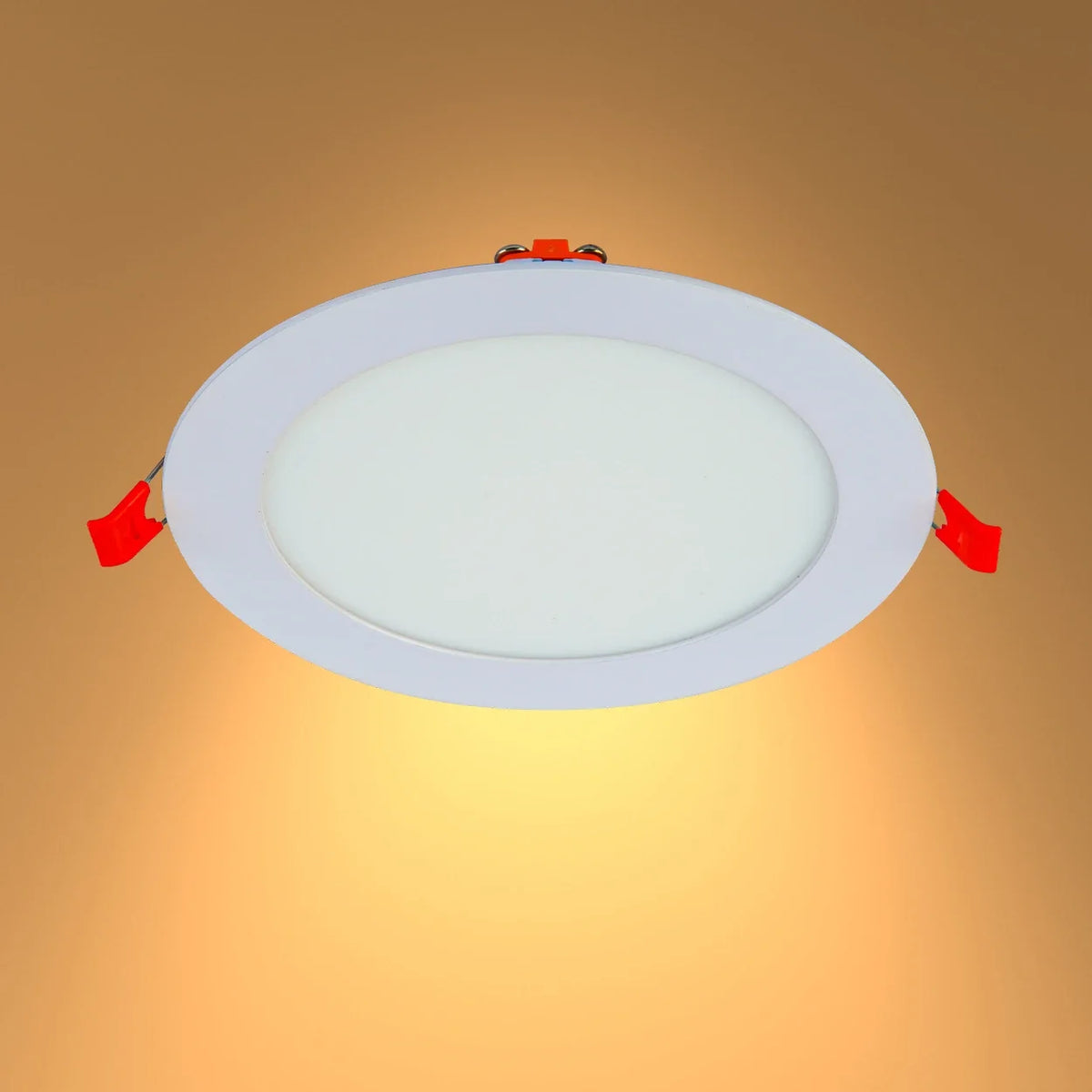

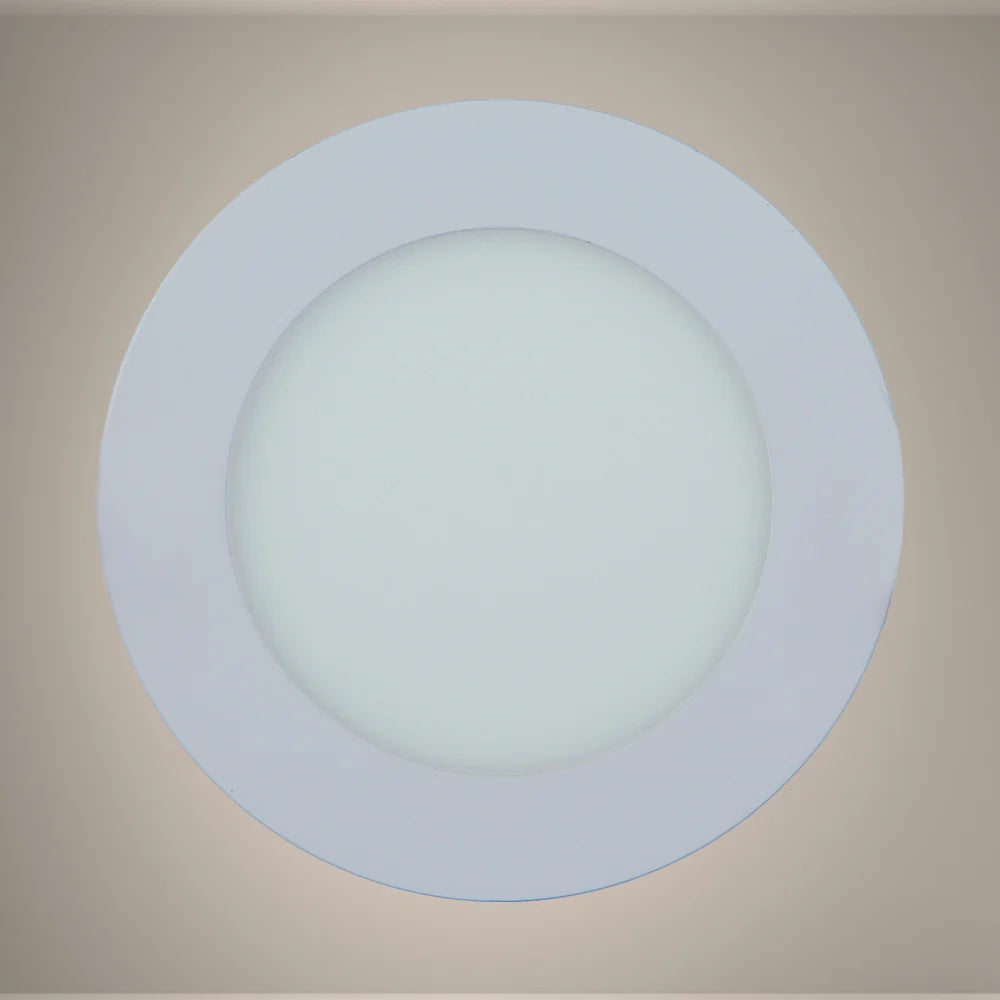

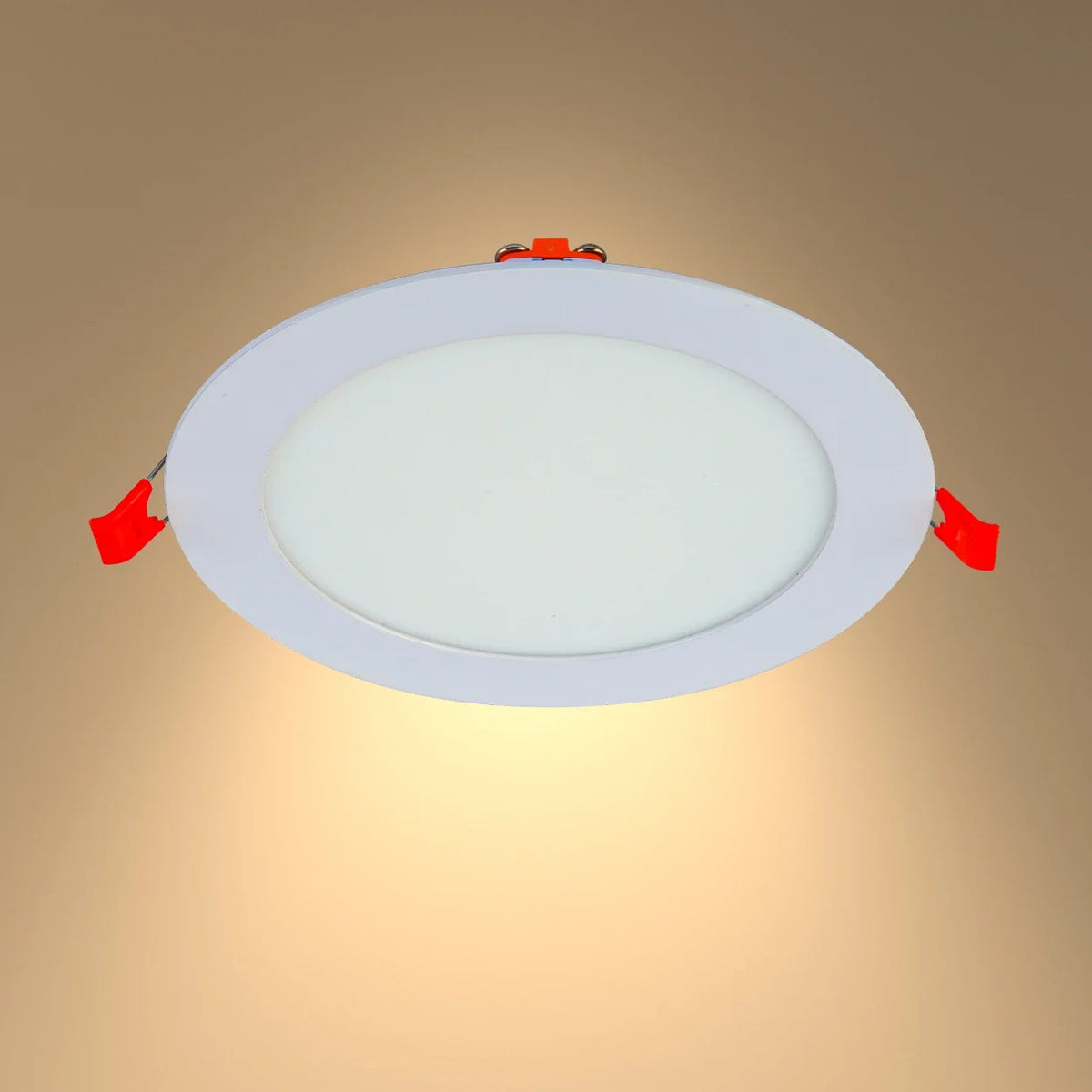

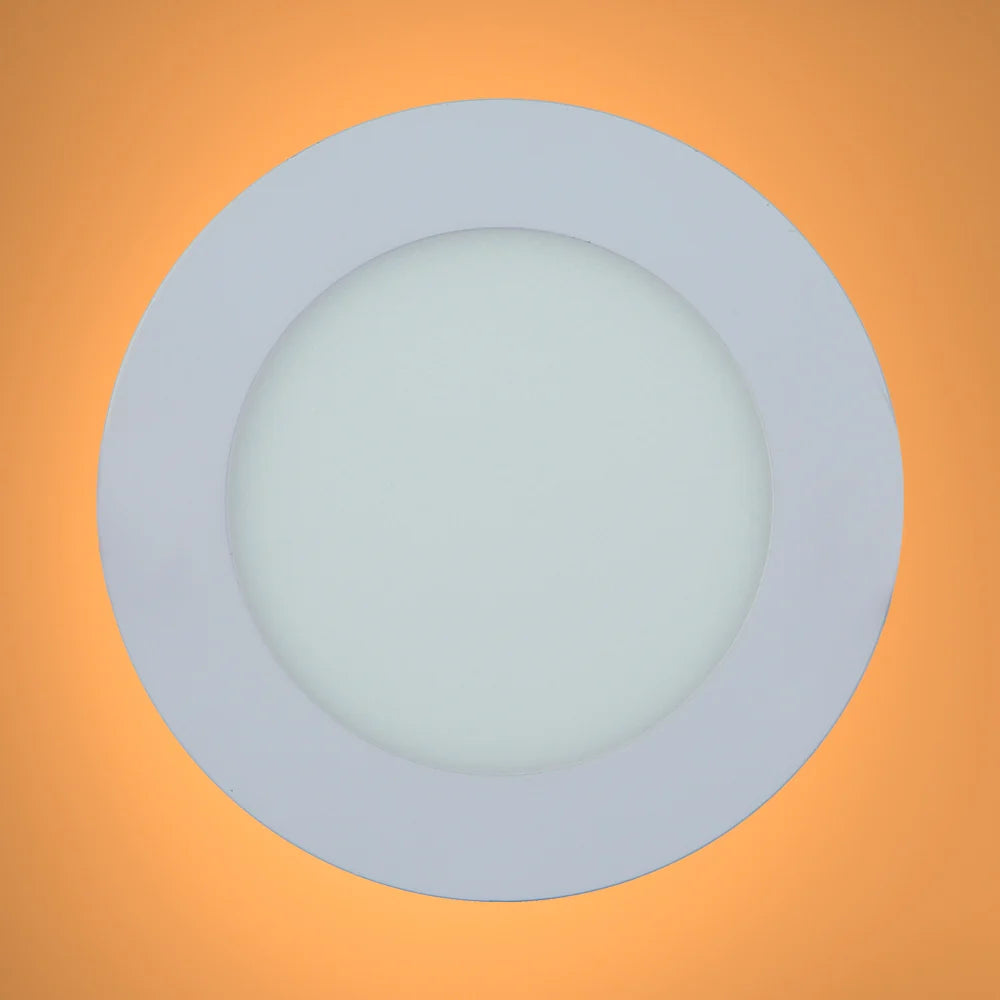

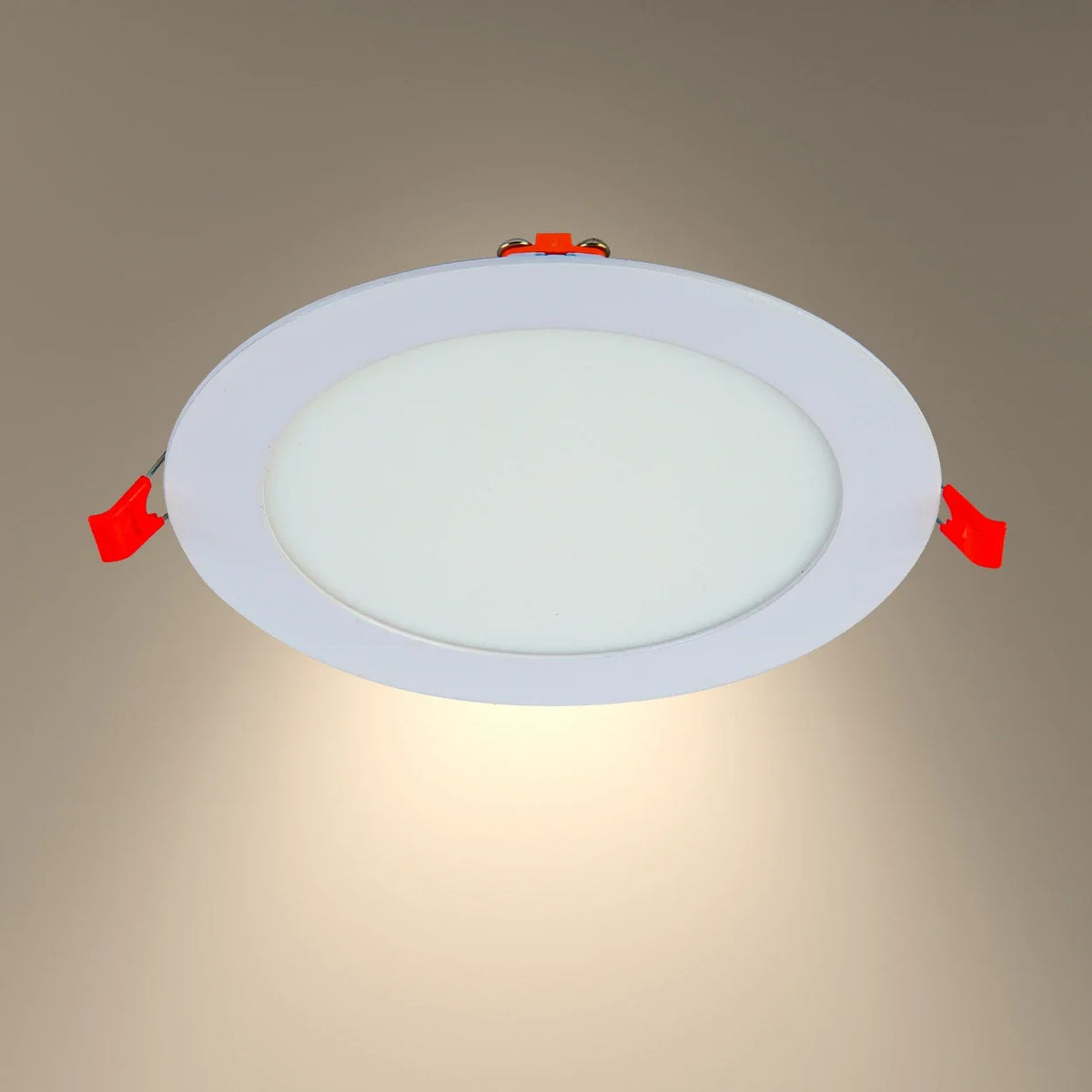

12W Downlight LED Round Slim Panel Light D170mm
Estimated delivery between October 18 and October 20.
Product Overview

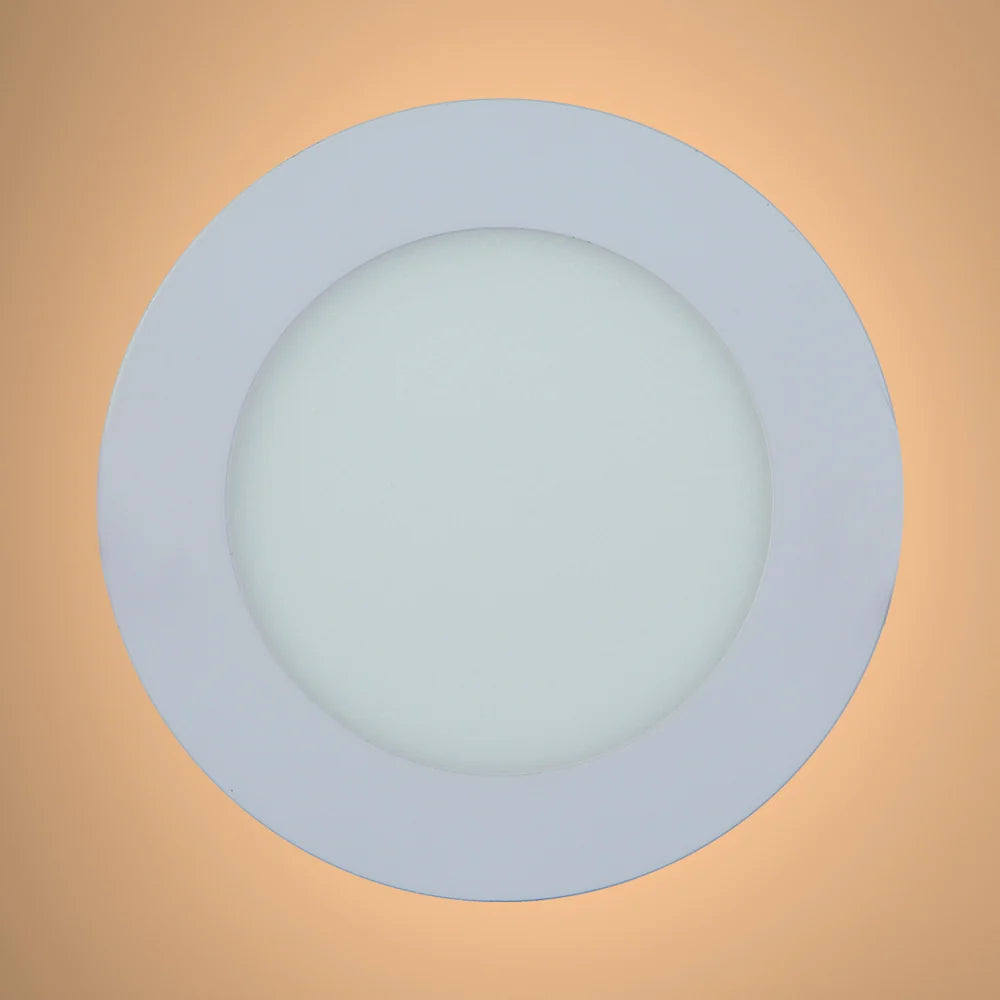

This slim, round downlight is perfect for adding a touch of elegance to any room. Its edge-lit design provides a soft, even glow, while the flicker-free operation ensures comfortable lighting for your eyes. Choose from three colour temperatures - warm white, cool white, or cool daylight - to create the perfect ambience.
Key details at a glance:
- Dimensions: 170mm (D) x 17mm (H)
- Cutout size: 150mm (D)
- Compatible bulbs: Integrated LED - no need for additional bulbs
- Power: 12W
- Dimmable: No
Perfect for:

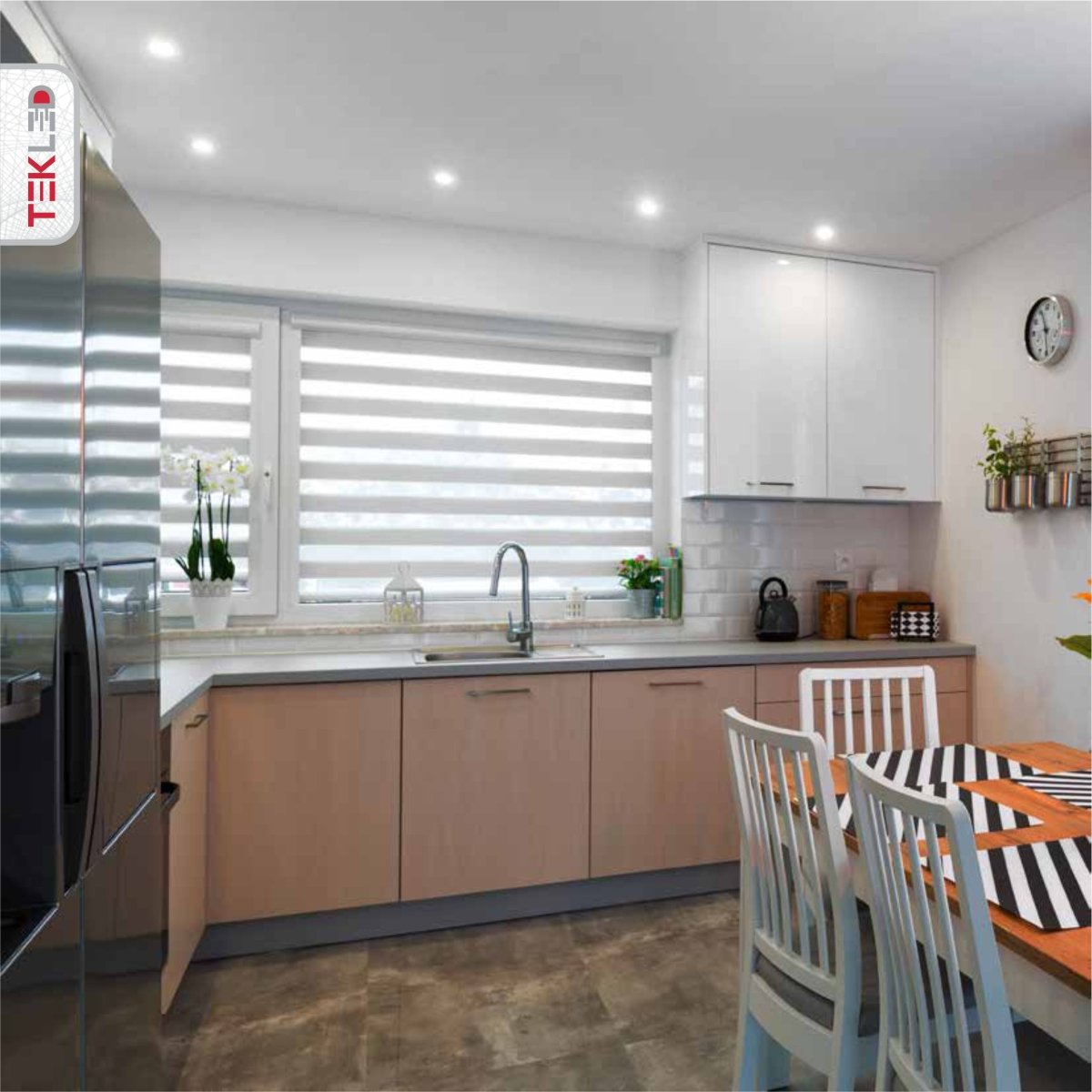

- Kitchens: Task lighting for food prep areas
- Bathrooms: Creates a relaxing spa-like atmosphere

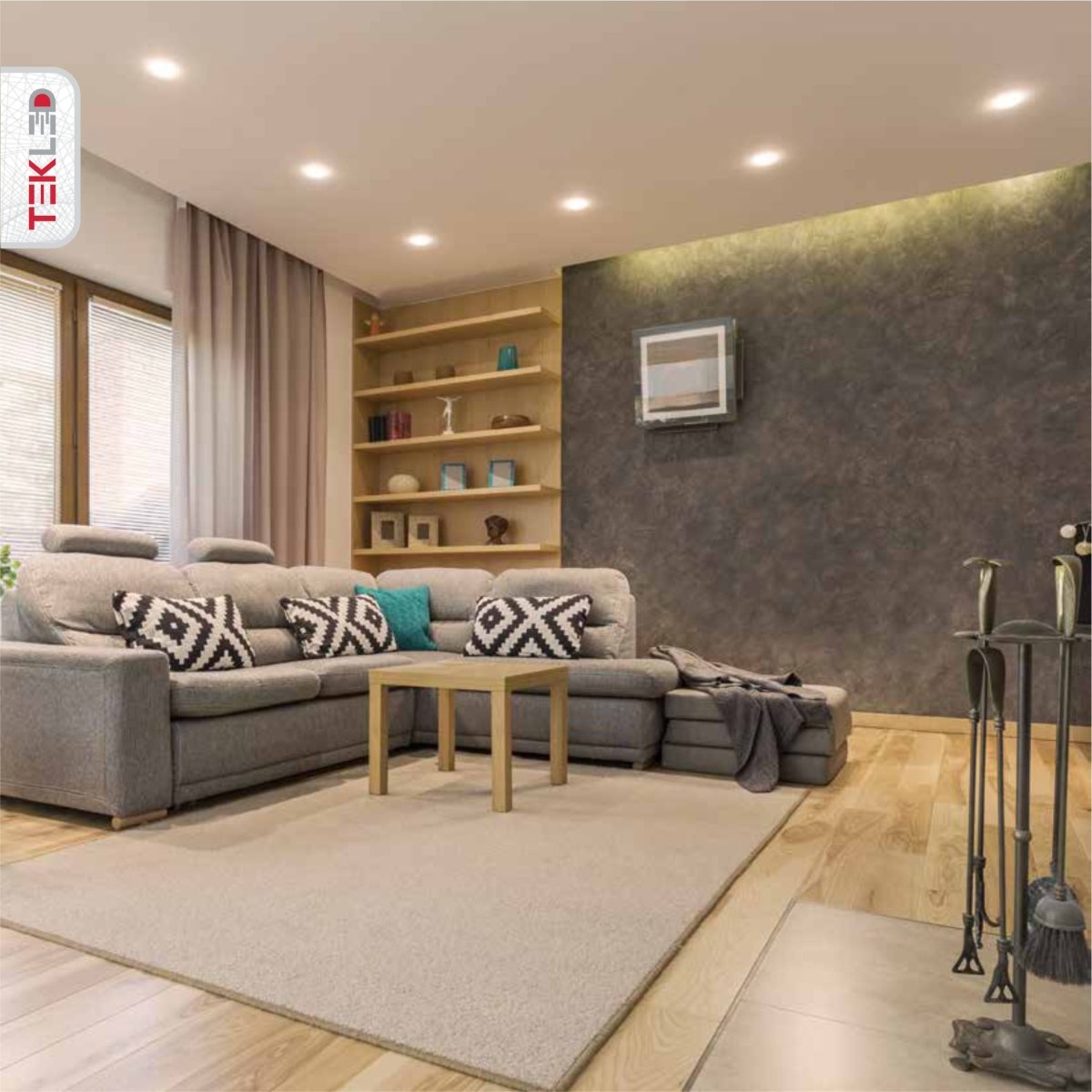

- Living rooms: Adds a touch of style and sophistication

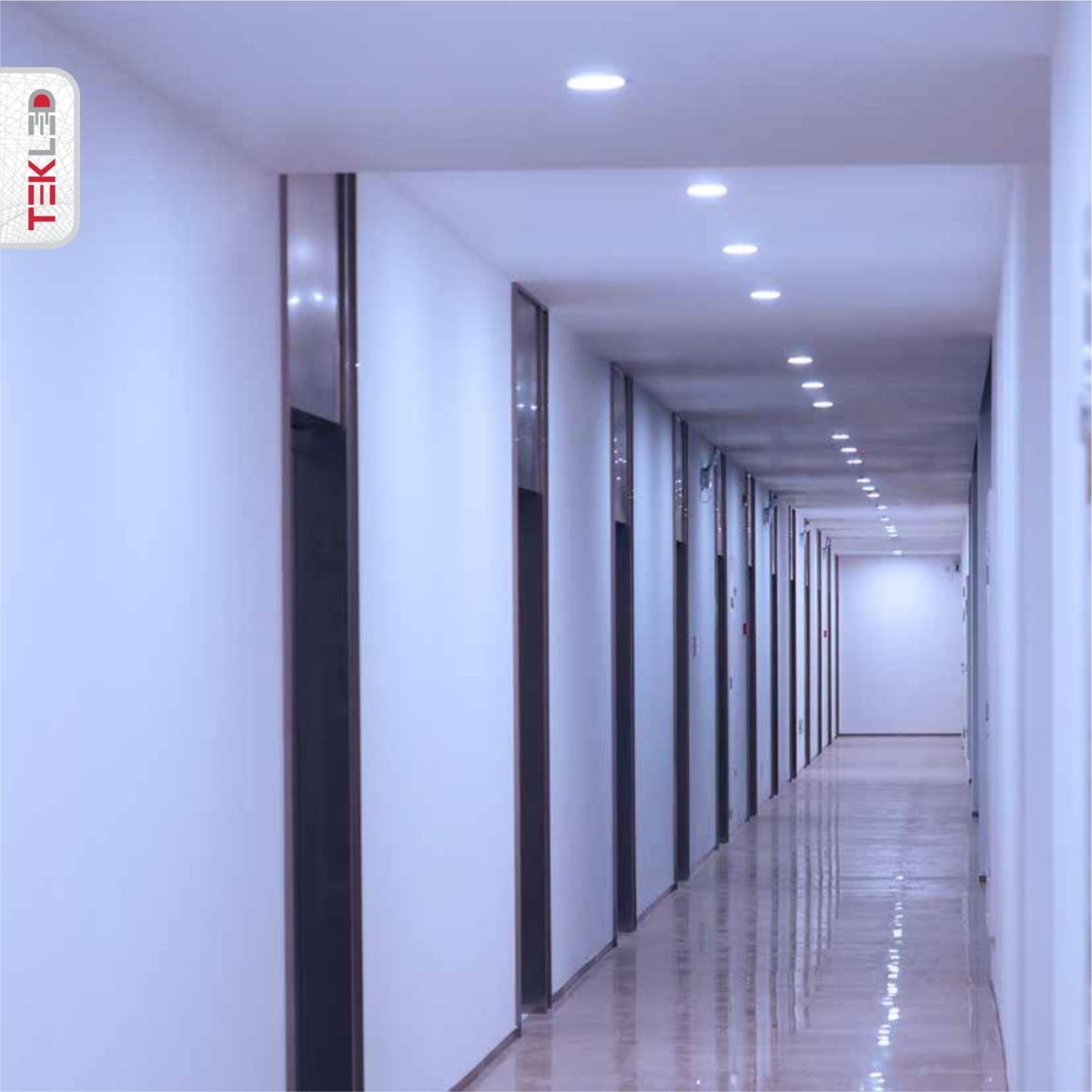

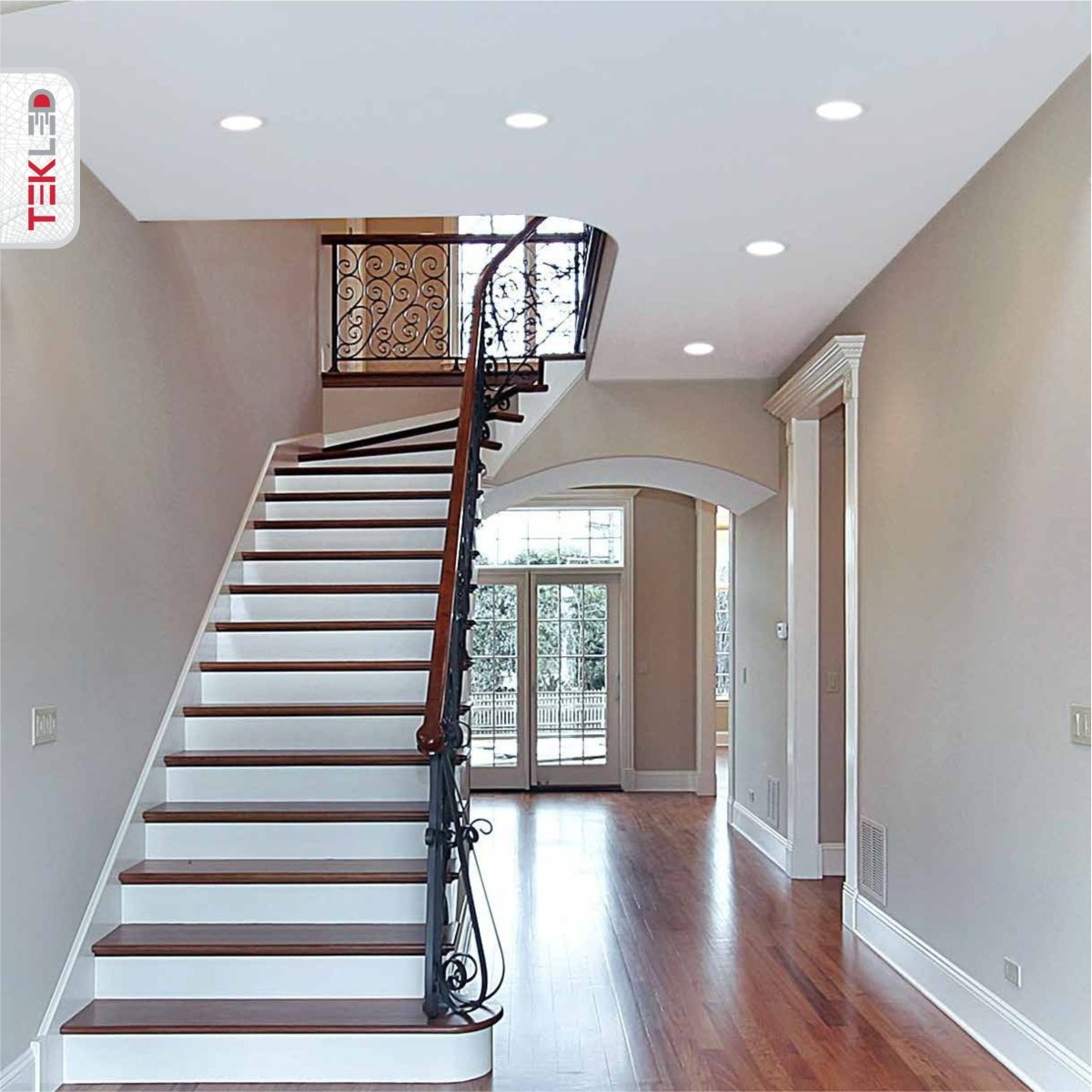

- Hallways: Provides a warm, welcoming glow
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Name | Downlight LED Round Slim Panel Light 12W Warm White Cool White Cool Daylight D170mm |
| Product Code | 165-03608 | 165-03609 | 165-03610 |
| Power | 12W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Lamp Holder Type | Built-in LED |
| Protection Class | Class II |
| Dimmability | Non-Dimmable |
| Light Source | SMD 2835 LED |
| Led Quantity | 5P12S 60 PCS |
| Bulbs | Integrated LED, no need additional bulb |

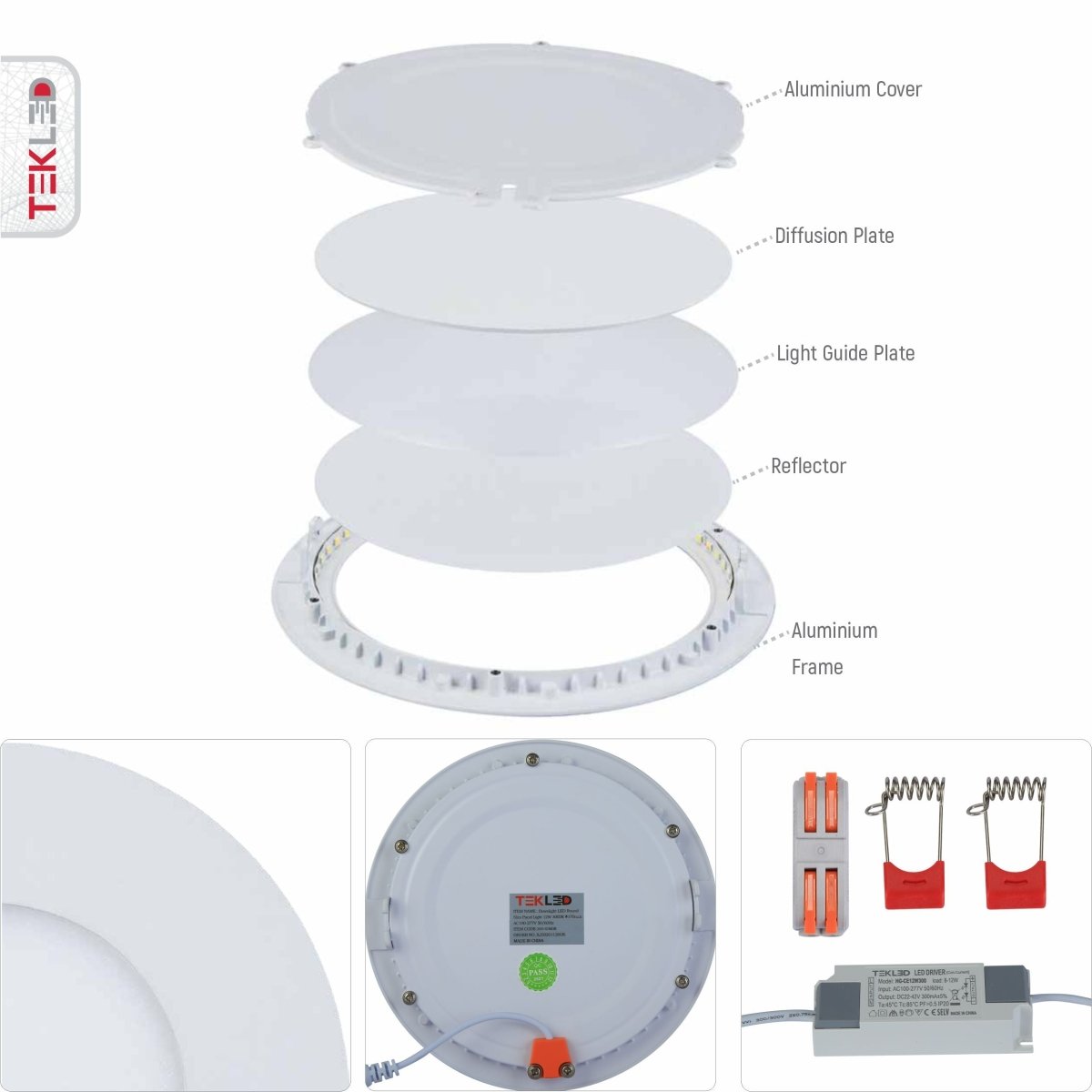

| Lit Type | Edge Lit |
| Lumen | 1100lm |
| Luminous Efficacy | 90lm/W |
| Lux | 36Lux @2m | 37Lux @2m |
| CRI | CRI>80 |
| CCT (Kelvin) Light Colour | 3000K Warm White | 4000K Cool White | 5700K Cool Daylight |
| Flickering | Flicker-free |
| IP Class | IP20 |

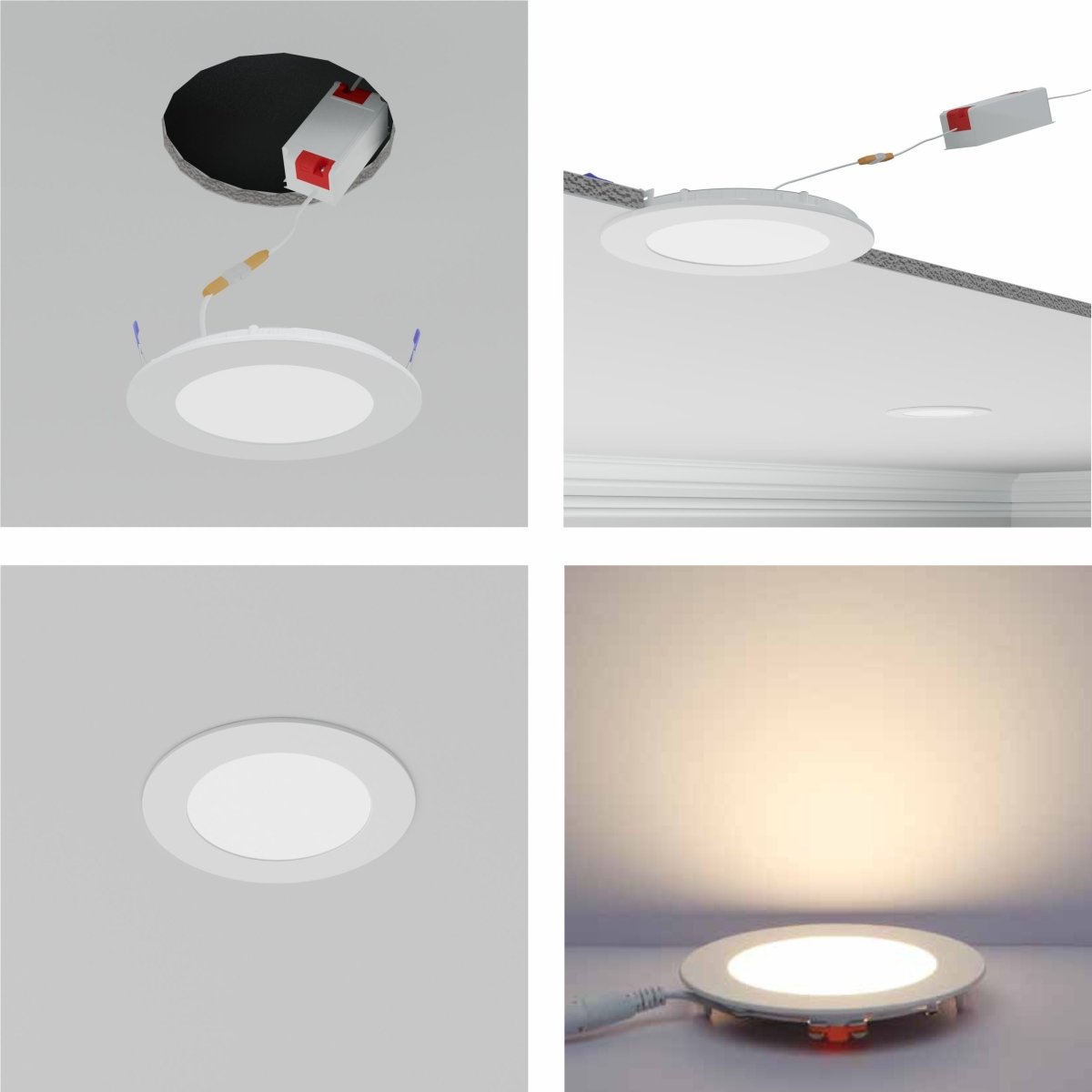

| Mount Type | Recessed Mount |

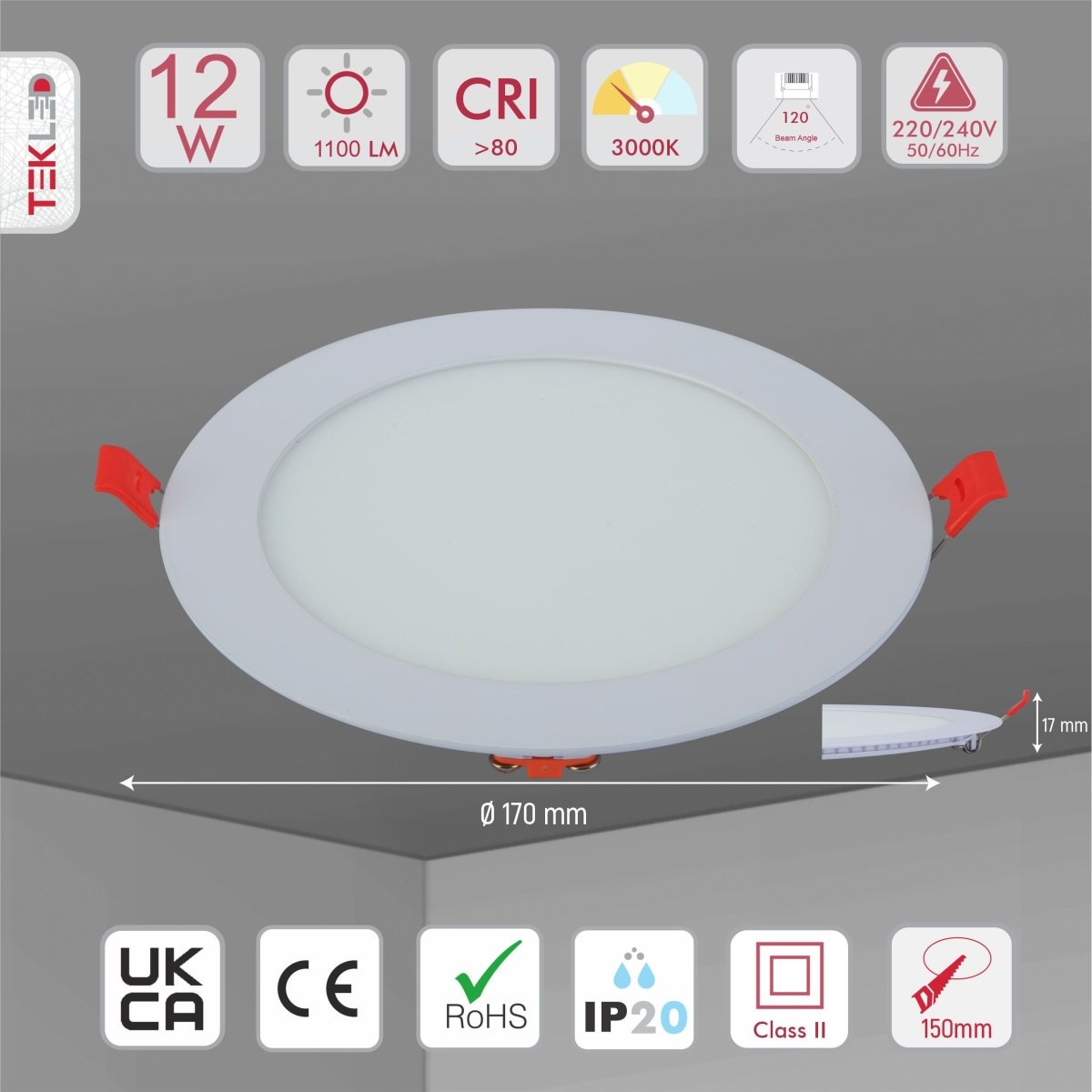

| Product Dimensions (LxWxH) (DxH) | D170x17mm |
| Cutout Size | D150mm |
| Power Cord Length | 150mm |
| Made Of Materials | Aluminium, Steel, Polystyrene |
| Product Colour | White |
| Paint Type | Spray Painted |
| Diffuser Material | PS (Polystyrene) |
| Diffuser Type | Opal |

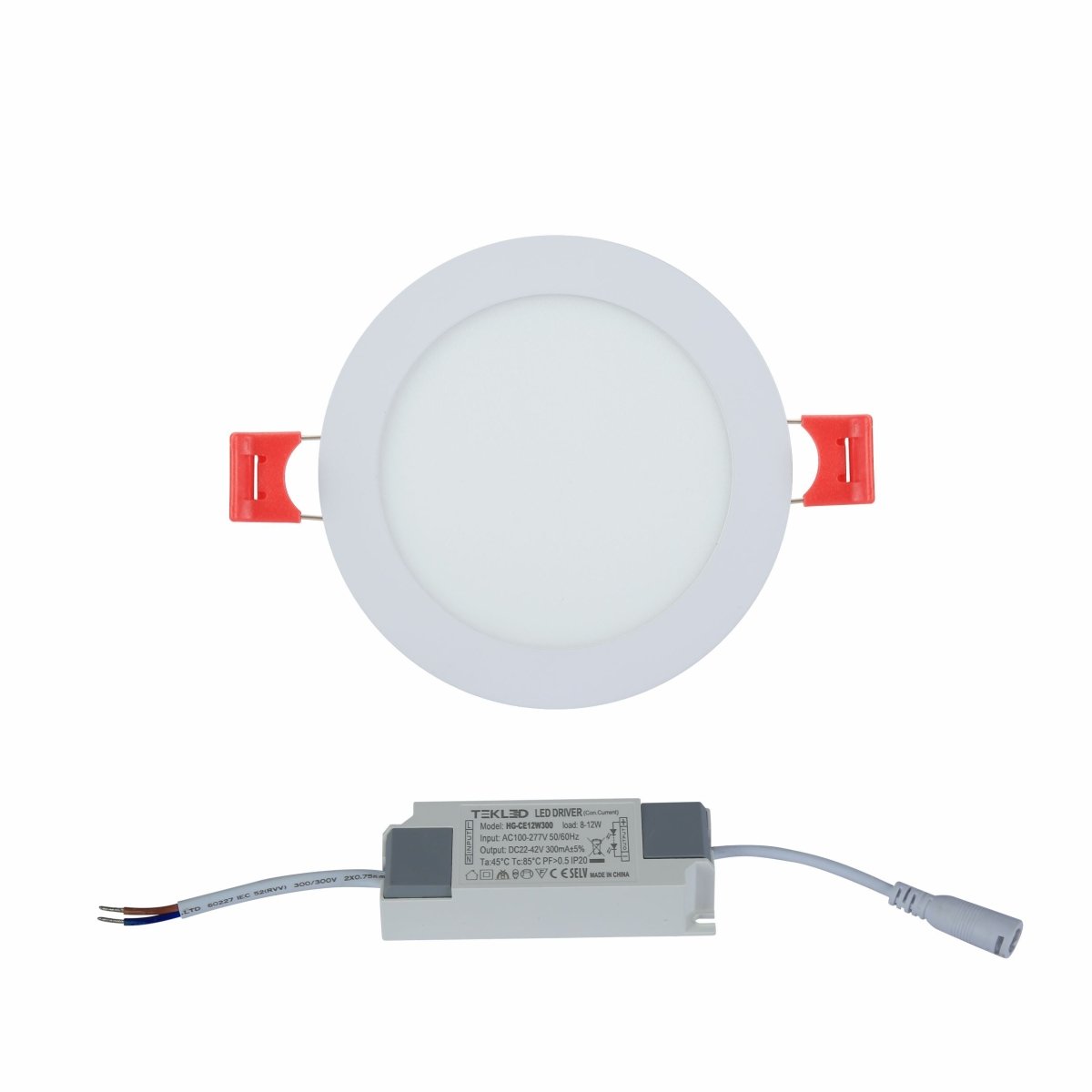

| Driver Type | Constant Current Driver |
| Driver Power | 12W |
| Driver Input Voltage | 100-277V AC 50/60Hz |
| Driver Output Voltage | 22-42V DC |
| Driver Output Current | 300mA |
| Surge Protection Level | 2kV |
| Power Factor | pf>0.5 |
| Control | On/Off |
| Operating Temperature (C) | -20/+55C |
| New Energy Rating | F |
| Energy Rating Range | A-G |
| Warranty | 2 year |
| Life Span | 30000h |
| Net Weight | 220g |
| Gross Weight | 260g |
| Box Dimension (LxWxH) | 17.5x2.5x20.5cm |
| Box Content | 1 pc Light Fixture, User Manual, 2 pcs Springs, 1 pc Terminal |
| Certifications | UKCA, CE, RoHS |
