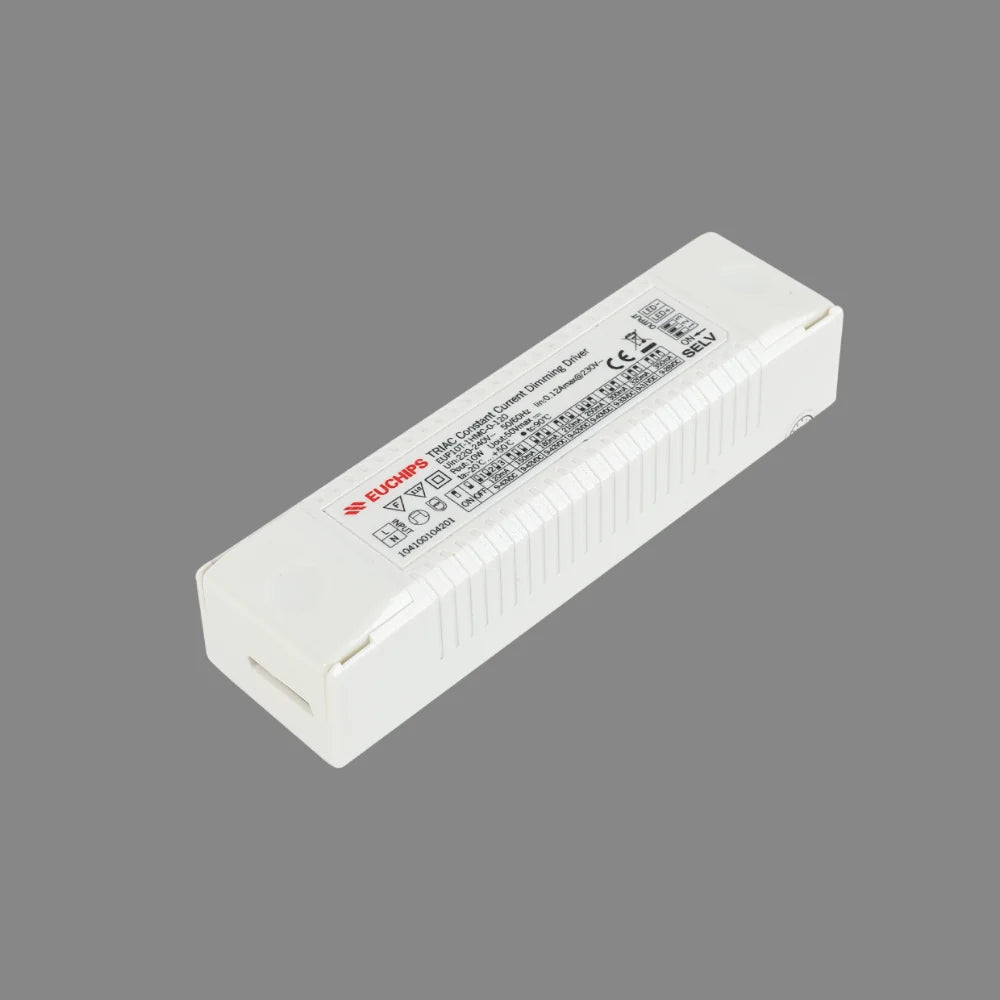

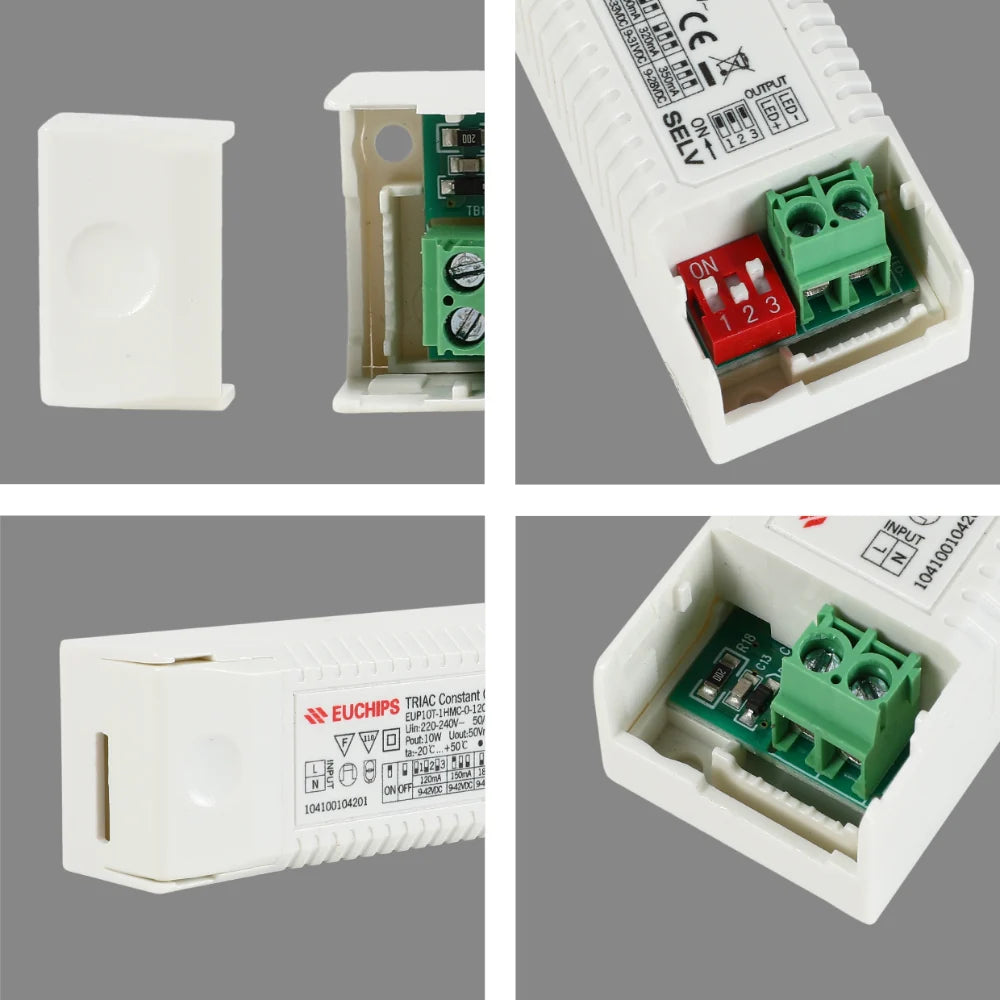

Euchips Triac Dimmable LED Driver 9-33V 150-300mA 10W
Estimated delivery between October 18 and October 20.
Product Overview
This Euchips triac dimmable LED driver gives you smooth, flicker-free dimming control over your lights. It’s compatible with most trailing-edge dimmers. Simply pair it with your dimmer switch and enjoy the perfect ambience.
Key details at a glance:
- Dimensions: 110mm (L) x 30mm (W) x 25mm (H)
- Power: 10W
- Driver output voltage: 9-42V DC
- Driver output current: 120-350mA
- Dimming: Requires LED wall dimmer switch
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Name | Euchips Triac Dimmable LED Driver 9-33V 150-300mA 10W |
| Product Code | 890-15960 |
| Power | 10W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Protection Class | Class II |
| Function Mode | Triac Dimming via wall dimmers |
| Dimming | via LED wall dimmer switch |
| Product Dimensions (LxWxH) (DxH) | 110x30x25mm |
| Made Of Materials | Plastic Case |
| Product Colour | White |
| Driver Brand | EUCHIPS |
| Driver Input Voltage | 220-240V AC 50/60Hz |
| Driver Output Voltage | 9-42V DC |
| Driver Output Current | 120-350mA |
| Surge Protection Level | 2.5kV |
| Power Factor | pf>0.9 |
| Operating Temperature (C) | -20/+50C |
| Warranty | 5 year |
| Life Span | 30000h |
| Net Weight | 0.58kg |
| Gross Weight | 0.69kg |
| Box Dimension (LxWxH) | 590x250x150mm (outer box) |
| Box Content | 1 pc LED Driver |
| Pieces/Box | 1 |
| Certifications | CE, UKCA |
