MiBoxer FUT035W-PLUS 2-in-1 Single Colour & CCT LED Receiver — WiFi & 2.4GHz RF (12V/24V DC, 12A)

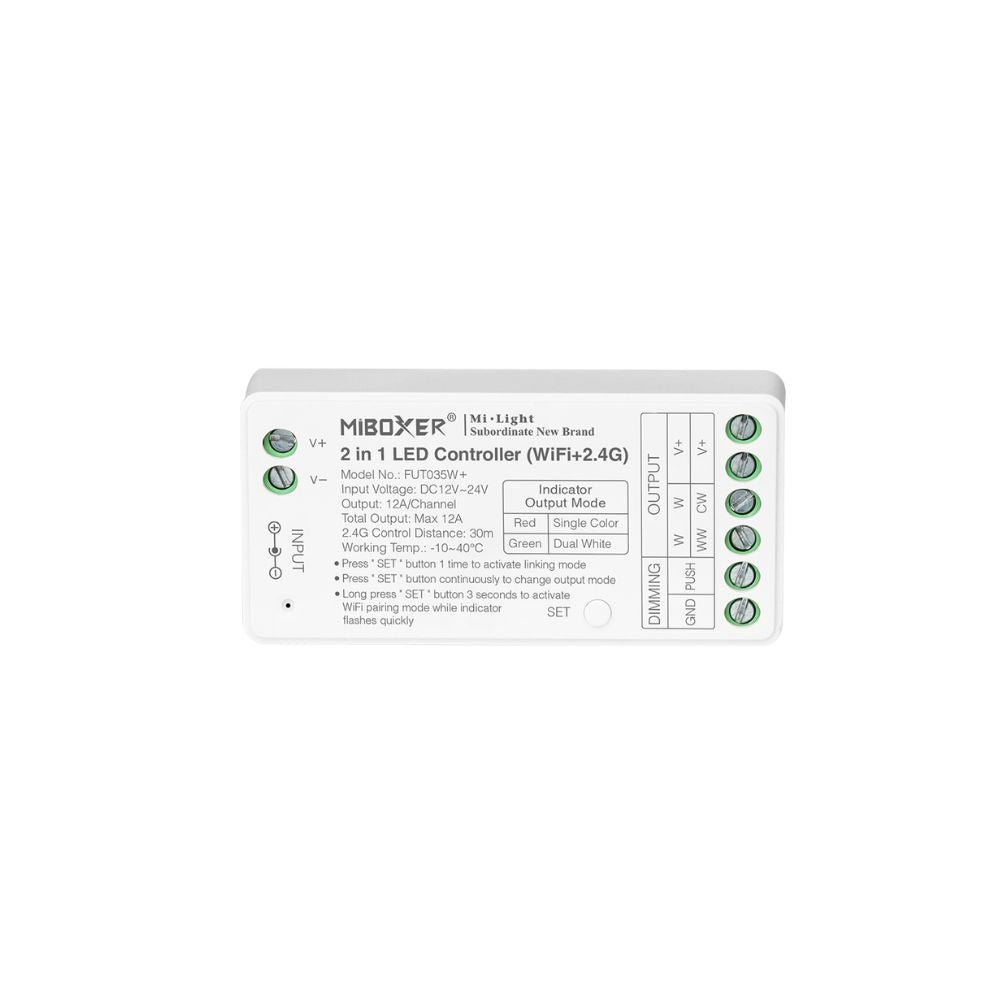

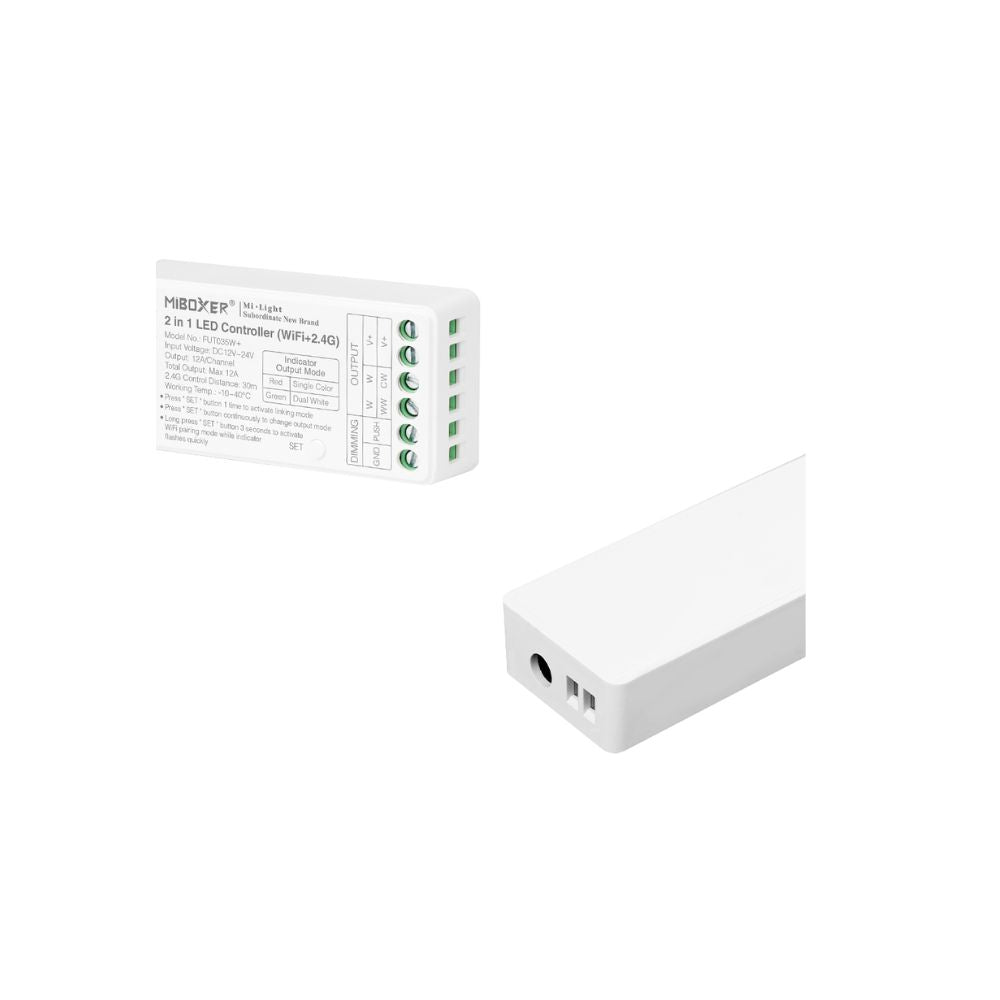

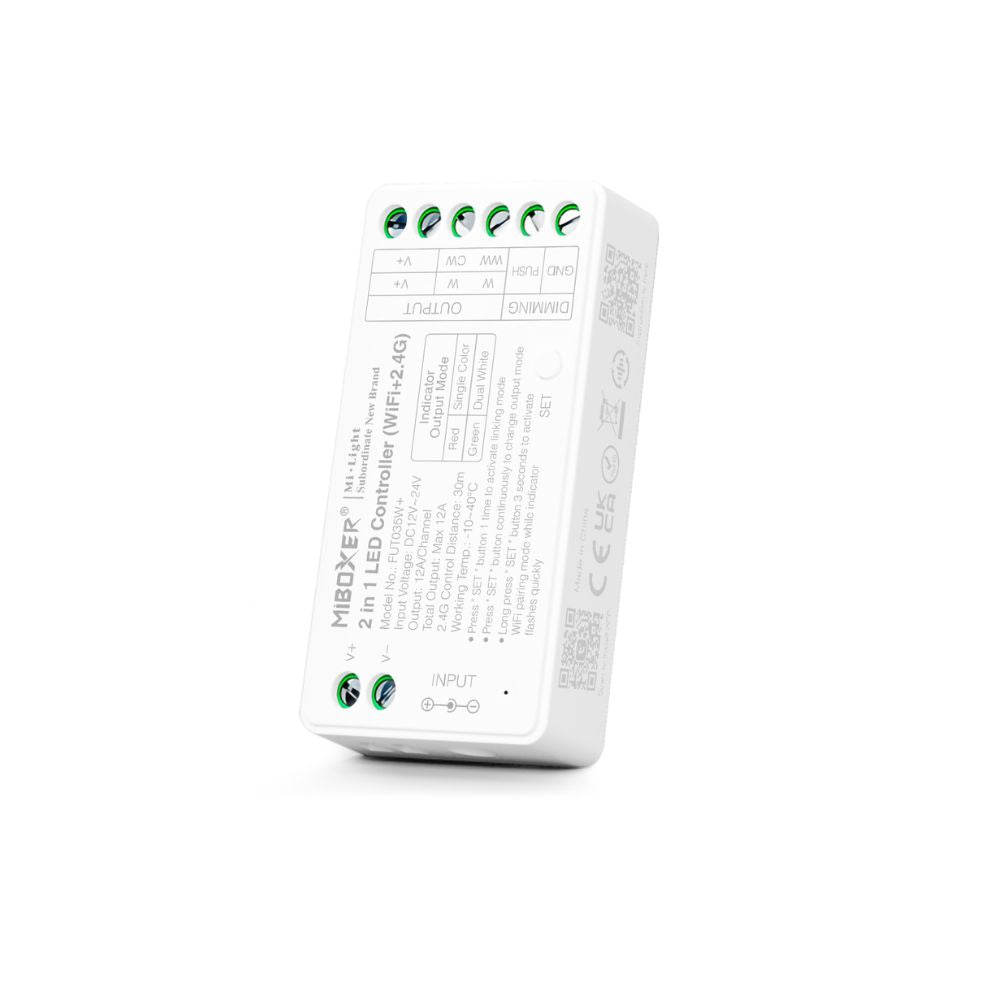

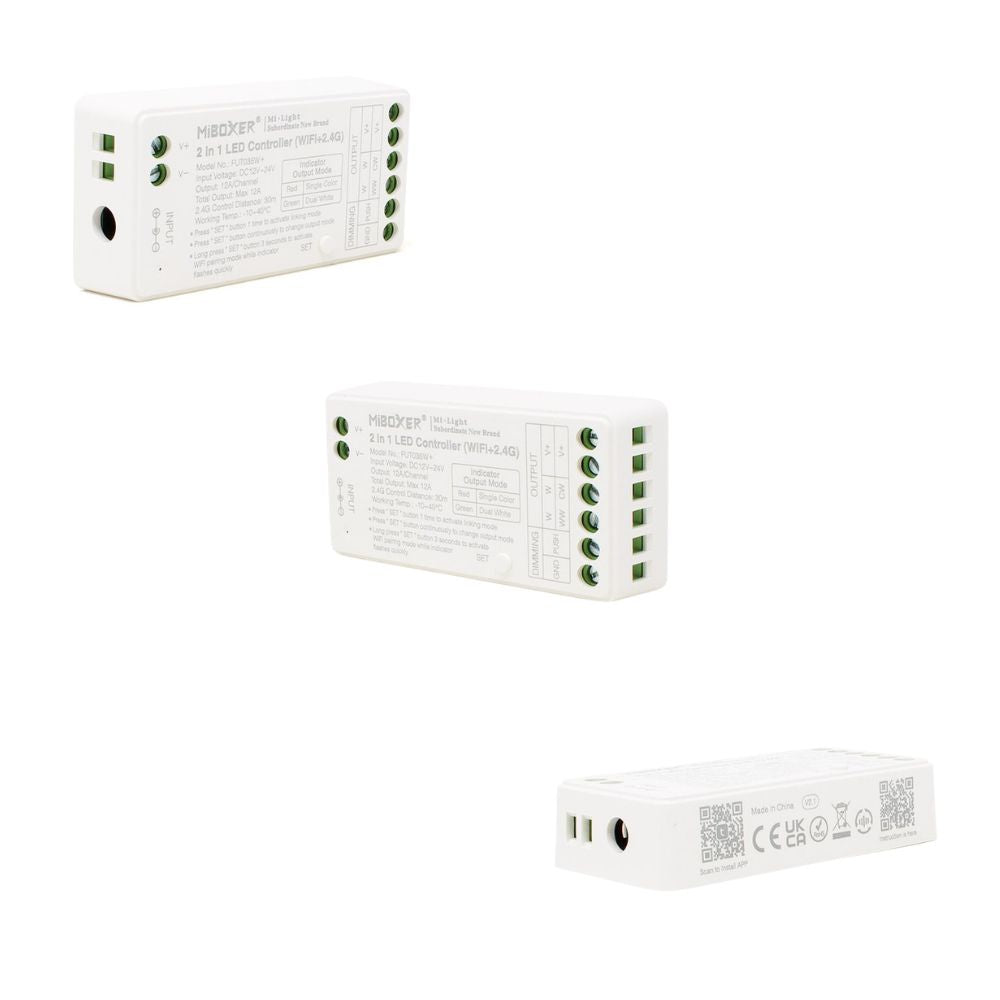

The MiBoxer FUT035W-PLUS is a compact 2-in-1 LED receiver and controller for single colour and colour temperature (CCT) LED strips at 12V or 24V DC, up to 12A maximum output. It can be controlled wirelessly via 2.4GHz RF handsets and wall panels, or through the Tuya app on your smartphone or smart speaker — no gateway required. A push dimming input allows a hard-wired momentary switch to switch and dim connected LED strips directly. The PWM frequency can be set to 16kHz or 250Hz to reduce flicker and banding in photography and video. A mode indicator glows red for single colour and green for CCT (dual colour) mode. Multiple units synchronise wirelessly to form a MESH network, with each receiver passing the signal to the next within a 30-metre range. Suitable for commercial and domestic LED strip installations.
Key Features
- 2-in-1 Single Colour & CCT Control — switch between single colour (red indicator) and dual colour/CCT mode (green indicator) via the set button
- RF + Wi-Fi Control — compatible with 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — units sync wirelessly within 30m, extending range across grouped zones
- Push Dimming Input — wire a momentary push switch for manual switching and dimming
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Selectable PWM Frequency — 16kHz or 250Hz to minimise flicker in photography and video
- Common Anode Output
- 5-Year Guarantee
| Product Details — Model: FUT035W-PLUS | |
|---|---|
| Electrical | |
| Input Voltage | 12V / 24V DC |
| Output Voltage | 12V / 24V DC |
| Max Output Current | 12A |
| Output per Channel | 12A |
| Output Type | Common Anode |
| Voltage Type | Constant Voltage |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi (IEEE 802.11b/g/n) |
| Wireless Range | Up to 30 metres |
| PWM Frequency | 16kHz or 250Hz (selectable) |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Dimensions | 74.5mm x 36mm x 17mm |
| Operating Temperature | -10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | FUT035W-PLUS |
| Guarantee Period | 5 Years |

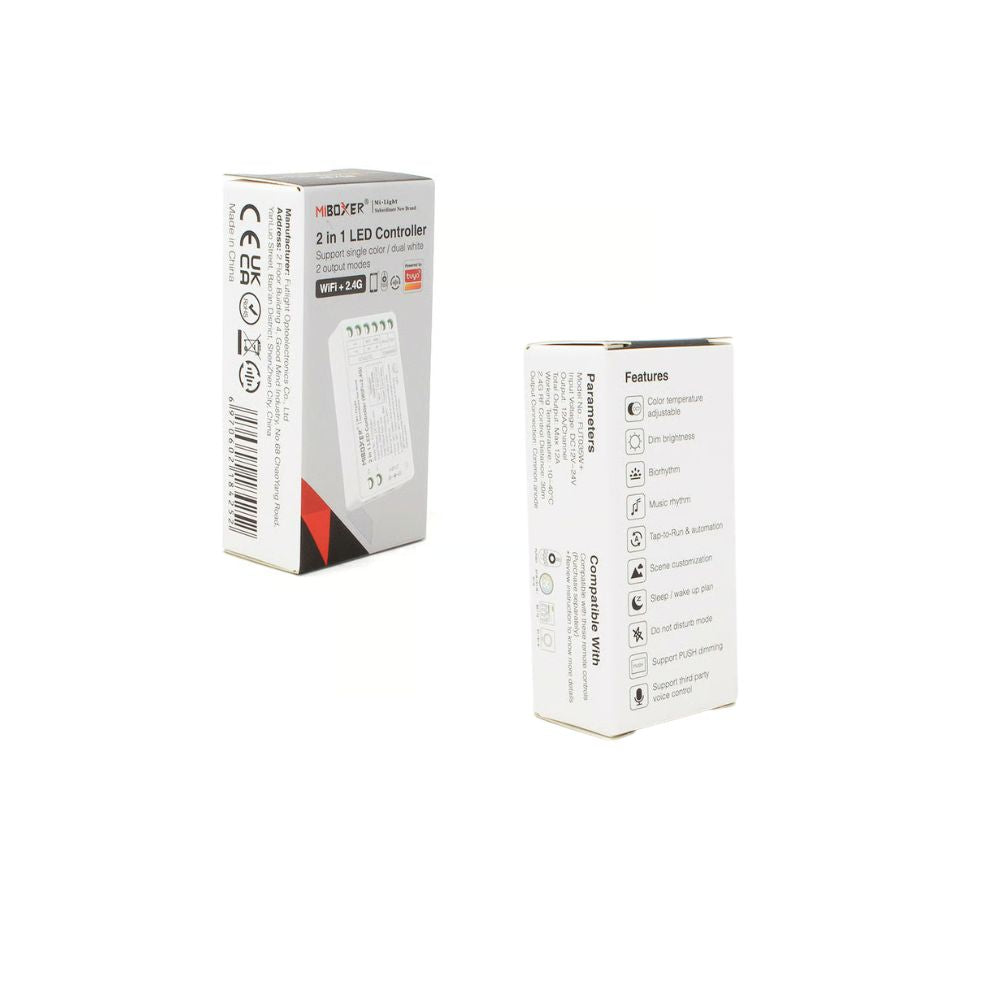

| Packaging | Gift box |
What's in the Box
- 1 x FUT035W-PLUS MiBoxer 2-in-1 RF / Wi-Fi LED Receiver
- Sticky fixing pad
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| FUT035W-PLUS MiBoxer — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
