Hager ADA110U 10A 10ka Type B RCBO RCBO 1P+N 6kA B-10A 30mA A Class ADA910U

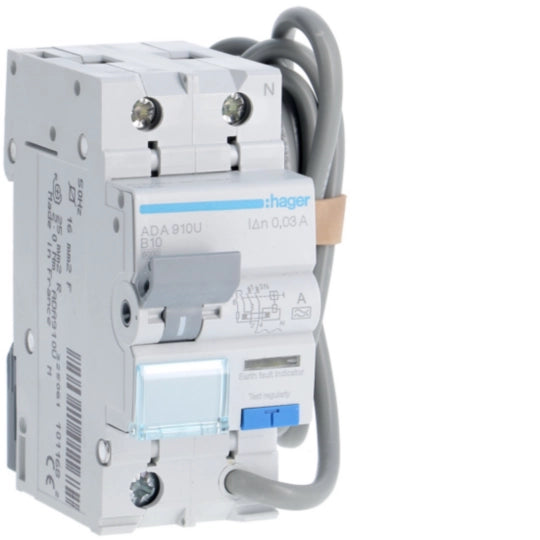

Hager ADA910U 10A 1P+N RCBO with Type B curve and Type A residual current protection for 240V AC circuits. It provides 30mA residual operating current and 6kA short-circuit breaking capacity in a compact 2-module design.

Key features

• Rated current: 10A
• Type B curve
• Type A residual current protection
• Residual operating current: 30mA
• Short-circuit breaking capacity: 6kA
• 1P+N pole configuration
• IP20 protection rating
• 240V AC rated operational voltage

Technical specifications

• Rated insulation voltage: 500V
• Rated impulse withstand voltage: 4,000V
• Frequency: 50Hz
• Power dissipation at rated current: 3.40W
• Operating temperature: -25°C to 40°C
• Storage and transport temperature: -25°C to 70°C
• Electrical endurance: 2,000 cycles
• Mechanical endurance: 2,000 operations

Installation and connection

• Bottom connection: biconnect
• Flexible conductor capacity: 1 to 16mm²
• Rigid conductor capacity: 1 to 25mm²
• Nominal terminal tightening torque: 2.10Nm
• Maximum altitude: 2,000m

Dimensions

• Height: 83mm
• Width: 35mm
• Depth: 68mm
• Number of modules: 2

Environmental information

RoHS compliant.

Certifications and documents

• PEP - RCBO 1P+N 6kA B-16A 30mA A (English)
• REACH declaration ADA910U
• RoHS report ADA910U
