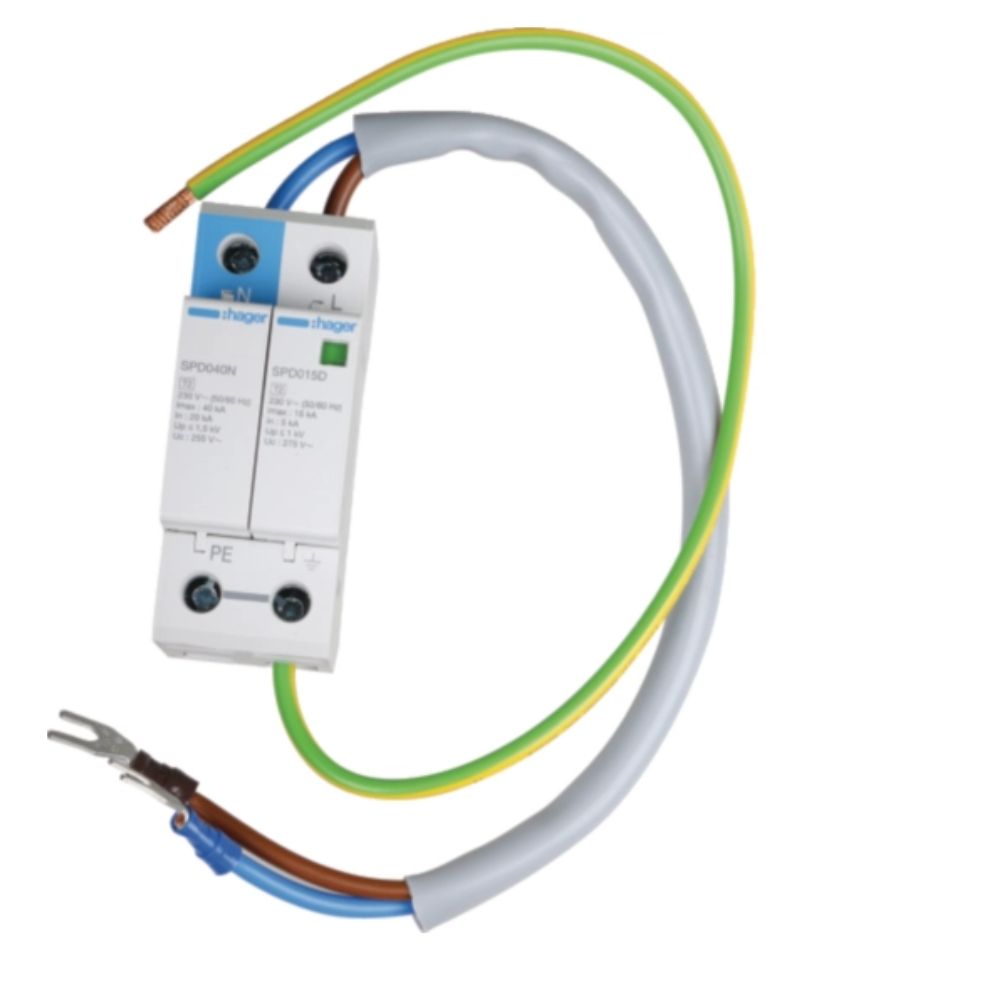

Hager VM02SPD Type 2 Surge Protection Kit
The Hager VM02SPD is a Type 2 surge protection kit for consumer units and distribution boards. Designed for TN-S and TT networks, it provides protection between line and neutral and between neutral and protective earth, with a 275 V continuous operating voltage, optical disconnector indication and DIN rail mounting.
Key Features
- Type 2 surge protection: IEC 61643 requirement class T2 for protecting electrical installations against transient overvoltage.
- Compact format: Two modules wide for installation in a consumer unit or distribution board.
- Discharge performance: Maximum discharge current of 15 kA for L-N (PEN) and 40 kA for N-PE.
- Voltage protection: Protection level Up of 1 kV for L-N (PEN) and 1,500 V for N-PE.
- Network compatibility: Suitable for TN-S and TT network configurations.
- Installation: DIN rail mounting with screw connections and optical disconnector indication.
- Protection and durability: IP20 enclosure, Class II insulation and operating temperature from -40 to 60°C.
Technical Specifications
| Hager VM02SPD Technical Data | |
|---|---|
| Capacity | |
| Number of modules | 2 |
| Voltage | |
| Continuous operating voltage Uc according to IEC 61643-1 | 275 V |
| Voltage protection level Up according to IEC 61643-1 | 1 kV |
| Voltage protection level Up N-PE IEC 61643-11 | 1,500 V |
| Voltage protection level Up L-N (PEN) | 1 kV |
| Type voltage supply | AC |
| Nominal voltage | 240 V AC ± 10 % |
| Electrical and Discharge Performance | |
| Maximum overcurrent protection device, parallel connection (fuse) | 125 A |
| Maximum discharge current (Imax) | 15 kA |
| Maximum discharge current (Imax) L-N (PEN) | 15 kA |
| Maximum discharge current (Imax) N-PE | 40 kA |
| Nominal discharge current In | 20 kA |
| Nominal discharge current In 8 - 20 µs L-N (PEN) | 5 kA |
| Nominal discharge current In 8 - 20 µs N-PE | 20 kA |
| Follow current interrupting rating | 0.1 kA |
| Short-circuit current rating (Isccr) | 50 kA |
| Residual current Ipe | < 5 μA |
| Dimensions | |
| Height | 90 mm |
| Width | 100 mm |
| Depth | 170 mm |
| Safety | |
| Ingress Protection (IP) class | IP20 |
| Protection class | Isolation class II |
| TOV behaviour at UT (N-PE) | 1200 V AC (200 ms / withstand mode) |
| Mode of protection | L-N, N-PE |
| TOV behaviour at UT (L-N) | 350 V AC (5 s / withstand mode) |
| Use Conditions | |
| Operating temperature | -40 - 60 °C |
| Air humidity protection | 5 - 95% |
| Storage/transport temperature | -40 - 80 °C |
| Degree of pollution according to IEC 60664 / IEC 60947-2 | 2 |
| Maximum altitude | 2,000 m |
| Materials | |
| Product colour | Light grey |
| RAL code | 7035 |
| Material | Thermoplastic |
| Network Configuration | |
| Network type | TN-S, TT |
| Network TN | No |
| Network TN-C | No |
| Network DC | No |
| Network IT | No |
| Network TT | Yes |
| Network TN-C-S | No |
| Network TN-S | Yes |
| Equipment | |
| With remote signalling contact | No |
| Rated load current IL | 80 A |
| Connection | |
| Cross-section for rigid conductor, for protective conductor | 1.5 - 35 mm² |
| Cross-section for flexible conductor, for protective conductor | 1.5 - 25 mm² |
| Cross-section flexible conductor | 1.5 - 25 mm² |
| Cross-section rigid conductor | 1.5 - 35 mm² |
| Connector/plug type | Screw terminal |
| Number of connections | 1 |
| Standards and Frequency | |
| Requirement class IEC 61643 | T2 |
| Frequency | 50 - 60 Hz |
| Installation and Architecture | |
| Nominal tightening torque | 3.6 - 3.6 Nm |
| Suitable for indoor usage | Yes |
| Type of pole | 2P+T |
| Neutral position | Left |
| Connectivity and Functions | |
| Mounting type | DIN rail |
| Type of connection | Screw connection |
| Disconnector indication | Optical |
| Fuse | |
| Fuse characteristics | gG |
| General | |
| Barcode | 5015652606444 |
| RoHS conform | Yes |
| REACh-SVHC free | Yes |
| Halogen free | Yes |
What's in the Box
Hager VM02SPD Type 2 surge protection kit. Additional accessories are not specified in the available product information.
Downloads
| Document | Format | Link |
|---|---|---|
| REACH declaration VM02SPD | Download PDF | |
| RoHS report VM02SPD | Download PDF |
