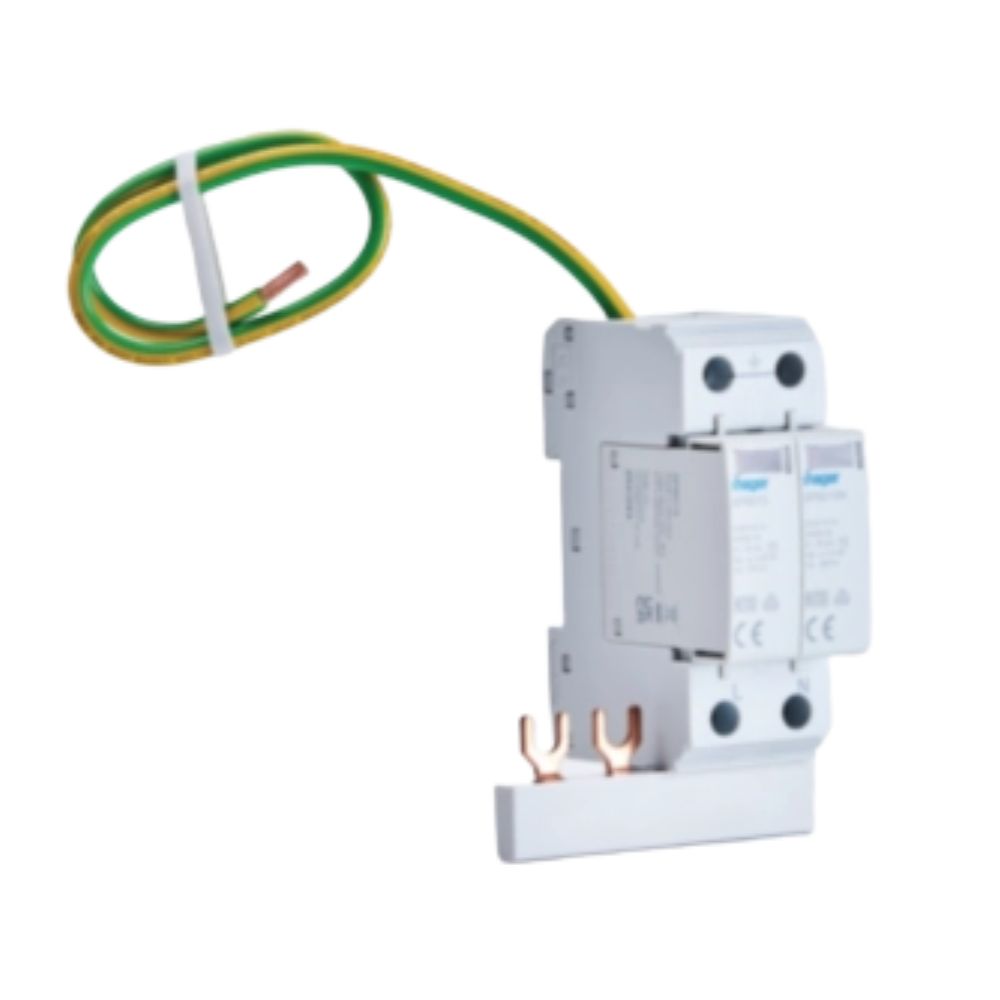

Hager VME02SPD Type 2 Surge Protection Kit
The Hager VME02SPD is a Type 2 surge protection kit for consumer units and distribution boards. It provides voltage-limiting protection for TN and TT networks, with a 275 V continuous operating voltage, 1.35 kV voltage protection level and optical disconnector indication. Its built-in installation format is designed for indoor use.
Key Features
- Type 2 surge protection: IEC 61643 requirement class T2 for protecting electrical installations against transient overvoltage.
- Voltage-limiting design: 275 V continuous operating voltage Uc and 1.35 kV protection level Up.
- Discharge performance: 40 kA maximum discharge current, 20 kA nominal discharge current and 25 kA short-circuit current rating.
- Network compatibility: Designed for TN and TT network configurations, with L-N and L-PEN protection modes.
- Installation: Built-in installation for indoor use with optical disconnector indication.
- Protection and durability: IP20 enclosure, operating temperature from -40 to 80°C and maximum altitude of 2,000 m.
Technical Specifications
| Hager VME02SPD Technical Data | |
|---|---|
| Voltage | |
| Reference test voltage Utest AC | 255 V |
| Overvoltage category according to IEC 60947-1 | 3 |
| Type voltage supply | AC |
| Continuous operating voltage Uc according to IEC 61643-1 | 275 V |
| Voltage protection level Up according to IEC 61643-1 | 1.35 kV |
| Nominal voltage | 240 V AC ± 10 % |
| Mode of protection design | Voltage-limiting type |
| Equipment and Use Conditions | |
| With remote signalling contact | No |
| Operating temperature | -40 - 80 °C |
| Maximum altitude | 2,000 m |
| Degree of pollution according to IEC 60664 / IEC 60947-2 | 2 |
| Storage/transport temperature | -40 - 80 °C |
| Air humidity protection | 5 - 95% |
| Standards and Frequency | |
| Requirement class IEC 61643 | T2 |
| Frequency | 50 - 60 Hz |
| Dimensions and Connectivity | |
| Height | 95 mm |
| Width | 100 mm |
| Depth | 240 mm |
| Mounting type | Built in installation |
| Electrical and Discharge Performance | |
| Short-circuit current rating (Isccr) | 25 kA |
| Maximum discharge current (Imax) | 40 kA |
| Maximum overcurrent protection device, parallel connection (fuse) | 125 A |
| Nominal discharge current In | 20 kA |
| Functions and Installation | |
| Disconnector indication | Optical |
| Suitable for indoor usage | Yes |
| Safety | |
| Mode of protection | L-N, L-PEN |
| TOV behaviour at UT | 350 V AC (5 s / withstand mode), 460 V AC (120 min / safe failure mode) |
| Ingress Protection (IP) class | IP20 |
| Materials and Network | |
| Material | Polyamide (PA) |
| Colour | Light grey |
| RAL code | 7035 |
| Network type | TN, TT |
| General | |
| EAN shown in existing product description | 5015652608714 |
| Current product barcode | 5015652606444 |
| RoHS conform | Yes |
What's in the Box
Hager VME02SPD Type 2 surge protection kit. Additional accessories are not specified in the available product information.
Downloads
| Document | Format | Link |
|---|---|---|
| PEP - 12 Way 100A Metal Customer Unit Round KO + T2 SPD (English) | Download PDF | |
| REACH declaration VME02SPD | Download PDF | |
| Hager RoHS report VME02SPD | Download PDF |
For help checking compatibility or selecting the right surge protection device, please contact thelightinggallery.
