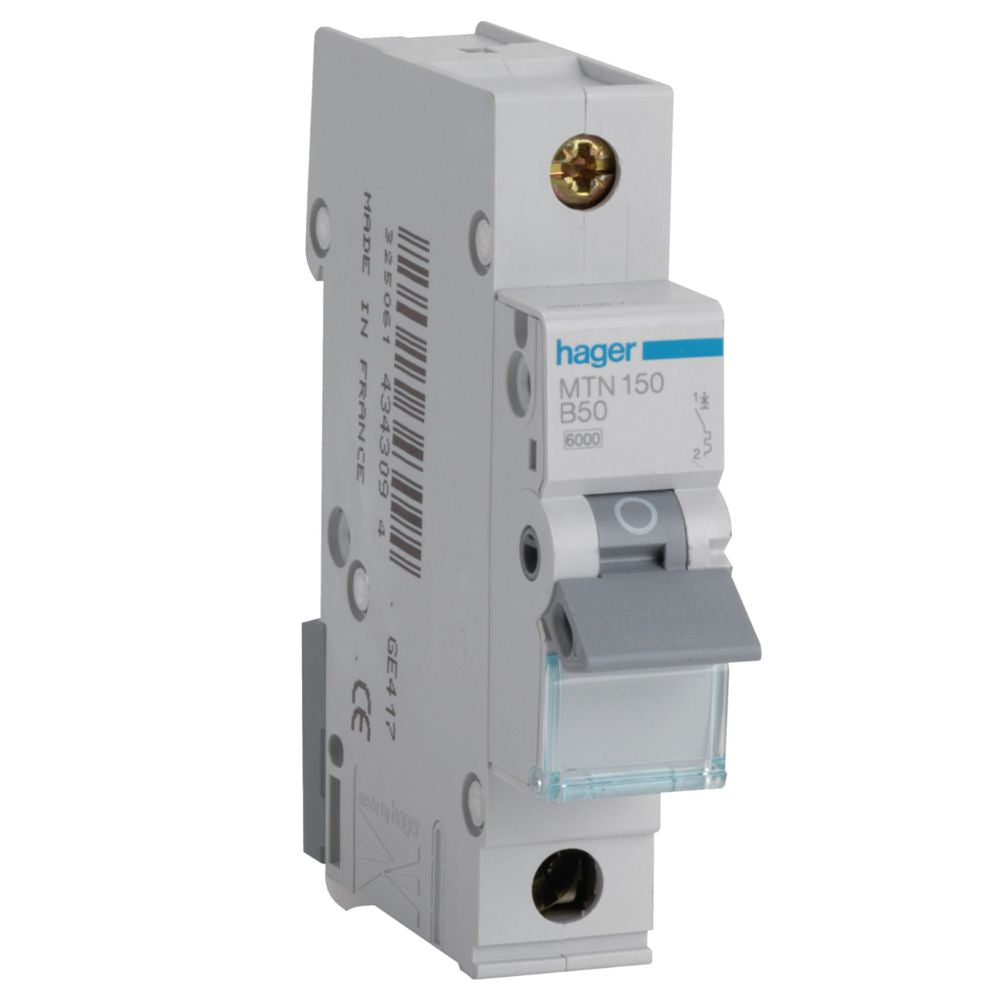

Hager MTN150 50A Type B Single-Pole MCB
The Hager MTN150 is a compact 50A Type B miniature circuit breaker designed to protect electrical circuits against overloads and short circuits. Its single-pole, one-module format, 6kA breaking capacity and biconnect terminal system provide dependable circuit protection in compatible residential and light-commercial distribution boards.
Key Features
- Rated current: 50A at 30°C
- Tripping curve: Type B
- Breaking capacity: 6kA
- Configuration: Single pole (1P), one module
- Operating voltage: 230–400V AC
- Connection: Screw terminal with biconnect bottom connection
- Mounting flexibility: 360° mounting position possible
- Protection rating: IP20
- Environmental compliance: RoHS conform
Technical Specifications
| Hager MTN150 Technical Data | |
|---|---|
| Electrical | |
| Rated current IN | 50 A |
| Rated service breaking capacity Ics at 230V AC | 6 kA according to IEC 60947-2 |
| Rated short-circuit breaking capacity Icn at 230V AC | 6 kA according to IEC 60898-1 |
| Rated short-circuit breaking capacity Icn AC | 6 kA according to IEC 60898-1 |
| Rated operational voltage Ue | 230–400 V |
| Voltage supply | AC |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4,000 V |
| Frequency | 50–60 Hz |
| Power dissipation at IN | 4.7 W |
| Energy limitation class I²t | 3 |
| Architecture & Installation | |
| Number of poles | 1P |
| Tripping curve | B |
| Number of modules | 1 |
| Top connection | Screw terminal |
| Bottom connection | Biconnect |
| Connection alignment | Aligned terminal, top and bottom |
| Nominal tightening torque | 2.80–2.80 Nm |
| Mounting position | 360° mounting possible |
| Rigid conductor cross-section | 1–35 mm² |
| Flexible conductor cross-section | 1–25 mm² |
| Rated Current by Ambient Temperature | |
| -15°C | 62.8 A |
| -10°C | 61.4 A |
| -5°C | 60 A |
| 0°C | 58.5 A |
| 5°C | 57.1 A |
| 10°C | 55.7 A |
| 15°C | 54.3 A |
| 20°C | 52.8 A |
| 25°C | 51.4 A |
| 30°C | 50 A |
| 35°C | 49.2 A |
| 40°C | 48.5 A |
| 45°C | 47.7 A |
| 50°C | 47 A |
| 55°C | 46.2 A |
| 60°C | 45.4 A |
| 65°C | 44.7 A |
| 70°C | 43.9 A |
| Dimensions & General | |
| Height | 83 mm |
| Width | 17.5 mm |
| Depth | 70 mm |
| Ingress protection | IP20 |
| Grid distance | 60 mm |
| Pollution degree | 2 according to IEC 60664 / IEC 60947-2 |
| Air humidity protection | For all climates |
| Operating temperature | -25–70°C |
| RoHS conform | Yes |
| EAN | 3250614343094 |
What's in the Box
- 1 × Hager MTN150 50A Type B single-pole MCB
Downloads
| Document | Download |
|---|---|
| Product Environmental Profile – MCB 1P 6kA B-16A, 1 module | View PDF |
| REACH Declaration – MTN150 | View PDF |
| RoHS Report – MTN150 | View PDF |
Need help checking compatibility with your distribution board or installation? Contact The Lighting Gallery team before ordering. Electrical installation should be carried out by a suitably qualified professional.
