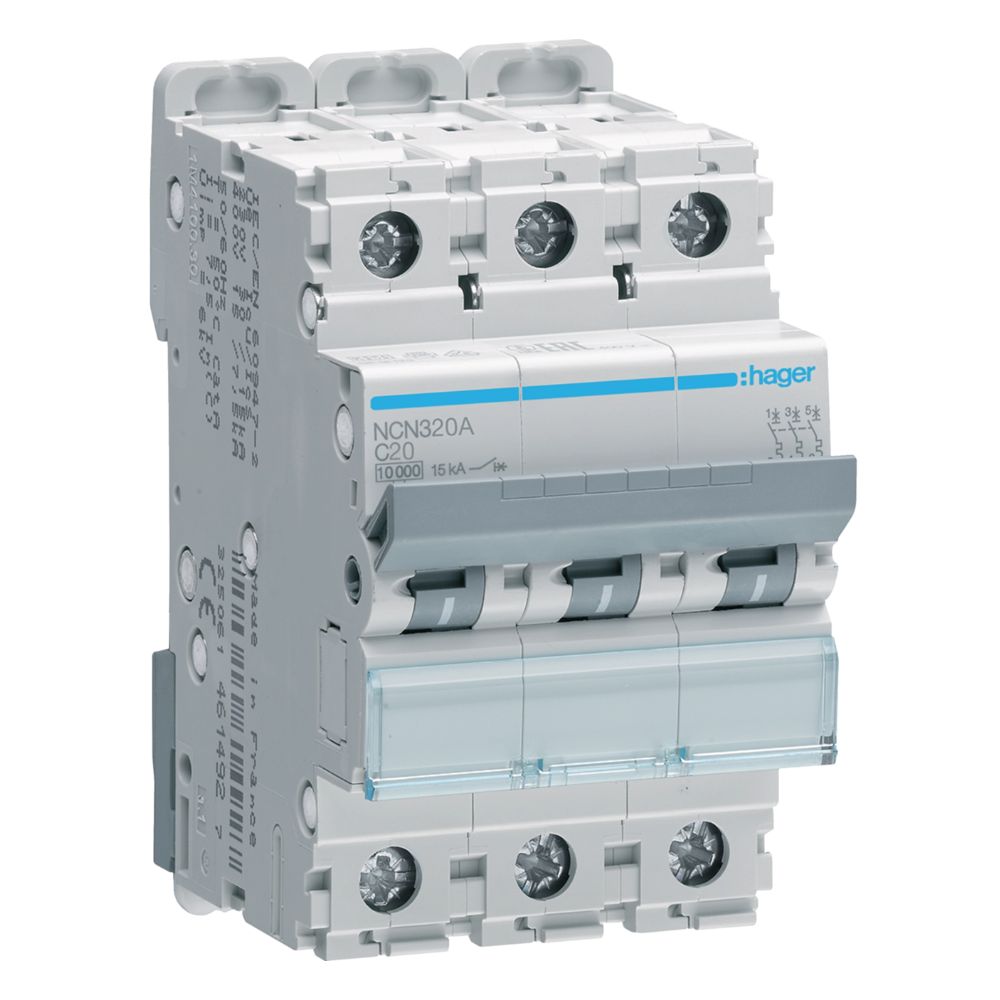

Hager NCN320A 3-Pole 20A Type C MCB
The Hager NCN320A is a 3-pole miniature circuit breaker with a 20 A rated current and Type C curve. It provides reliable three-phase protection against overload and short circuits in residential and light commercial distribution boards. Rated at 400 V AC, it combines a compact three-module format with screw and biconnect terminals for practical installation.
Key Features
- 3-pole protection: 3P configuration across three modules.
- Type C curve: Suitable for three-phase distribution and light commercial applications.
- Breaking capacity: 10 kA Icn at 400 V AC according to IEC 60898-1, with 15 kA Icu at 400 V AC and 30 kA Icu at 230 V AC according to IEC 60947-2.
- Electrical rating: 20 A rated current, 400 V AC operating voltage and 50–60 Hz frequency.
- Connection: Screw and biconnect terminals accepting conductors from 1–35 mm², with aligned top and bottom connections.
- Compact modular format: Three modules wide, with IP20 protection and 360° mounting possible.
- Endurance: 20,000 mechanical operations and 4,000 electrical operations.
Technical Specifications
| Hager NCN320A Technical Data | |
|---|---|
| Electrical | |
| Rated current IN | 20 A |
| Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1 | 20 kA |
| Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2 | 15 kA |
| Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2 | 15 kA |
| Rated current at -15°C | 23.98 A |
| Rated current at -10°C | 23.57 A |
| Rated current at -5°C | 23.16 A |
| Rated current at 0°C | 22.73 A |
| Rated current at 5°C | 22.30 A |
| Rated current at 10°C | 21.86 A |
| Rated current at 15°C | 21.41 A |
| Rated current at 20°C | 20.95 A |
| Rated current at 25°C | 20.48 A |
| Rated current at 30°C | 20 A |
| Rated current at 35°C | 19.48 A |
| Rated current at 40°C | 18.94 A |
| Rated current at 45°C | 18.39 A |
| Rated current at 50°C | 17.81 A |
| Rated current at 55°C | 17.22 A |
| Rated current at 60°C | 16.61 A |
| Rated current at 65°C | 15.98 A |
| Rated current at 70°C | 15.32 A |
| Rated short-circuit breaking capacity Icn under 400 V AC according to IEC 60898-1 | 10 kA |
| Rated service breaking capacity Ics AC according to IEC 60898-1 | 7.50 kA |
| Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2 | 30 kA |
| Architecture and Capacity | |
| Type of pole | 3P |
| Curve | C |
| Number of modules | 3 |
| Installation and Mounting | |
| Nominal tightening torque top terminal | 2.80 - 2.80 Nm |
| Nominal tightening torque down terminal | 2.80 - 2.80 Nm |
| Nominal tightening torque | 2.80 - 2.80 Nm |
| Type of bottom connection for modular devices | biconnect |
| Type of top connection for modular devices | Screw terminal |
| 360° mounting position possible | Yes |
| Mechanical endurance | 20,000 operations |
| Electrical endurance | 4,000 operations |
| Voltage and Frequency | |
| Rated operational voltage Ue | 400 - 400 V |
| Type voltage supply | AC |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6,000 V |
| Frequency | 50 - 60 Hz |
| Connection | |
| Cross-section of input and output with screws, for massive conductors | 1 - 35 mm² |
| Cross-section of input and output with screws, for flexible conductors | 1 - 25 mm² |
| Cross-section of input with screws, for flexible conductors | 1 - 25 mm² |
| Cross-section of input with screws, for massive conductors | 1 - 35 mm² |
| Safety and Use Conditions | |
| Ingress Protection (IP) class | IP20 |
| Grid distance | 60 mm |
| Degree of pollution according to IEC 60664 / IEC 60947-2 | 2 |
| Class of energy limitation I²t | 3 |
| Operating temperature | -25 - 70 °C |
| Power and Connectivity | |
| Power dissipation at IN | 8.04 W |
| Type of connection | Screw terminal |
| Top connection alignment for modular devices | Aligned terminal |
| Down connection alignment for modular devices | Aligned terminal |
| Dimensions | |
| Height | 83 mm |
| Width | 52.50 mm |
| Depth | 70 mm |
| General | |
| EAN | 3250614615832 |
| RoHS conform | Yes |
What's in the Box
Hager NCN320A 3-pole 20 A Type C miniature circuit breaker. Accessories are not specified in the available product information.
Downloads
| Document | Format | Link |
|---|---|---|
| PEP - MCB 1P 6kA B-16A, 1 module (English) | Download PDF | |
| REACH declaration NCN320A | Download PDF | |
| RoHS report NCN320A | Download PDF |
