Hager Miniature Circuit Breaker 1P 40A 6kA Curve B, biconnect, 1 Module MTN140
Estimated delivery between September 27 and September 29.

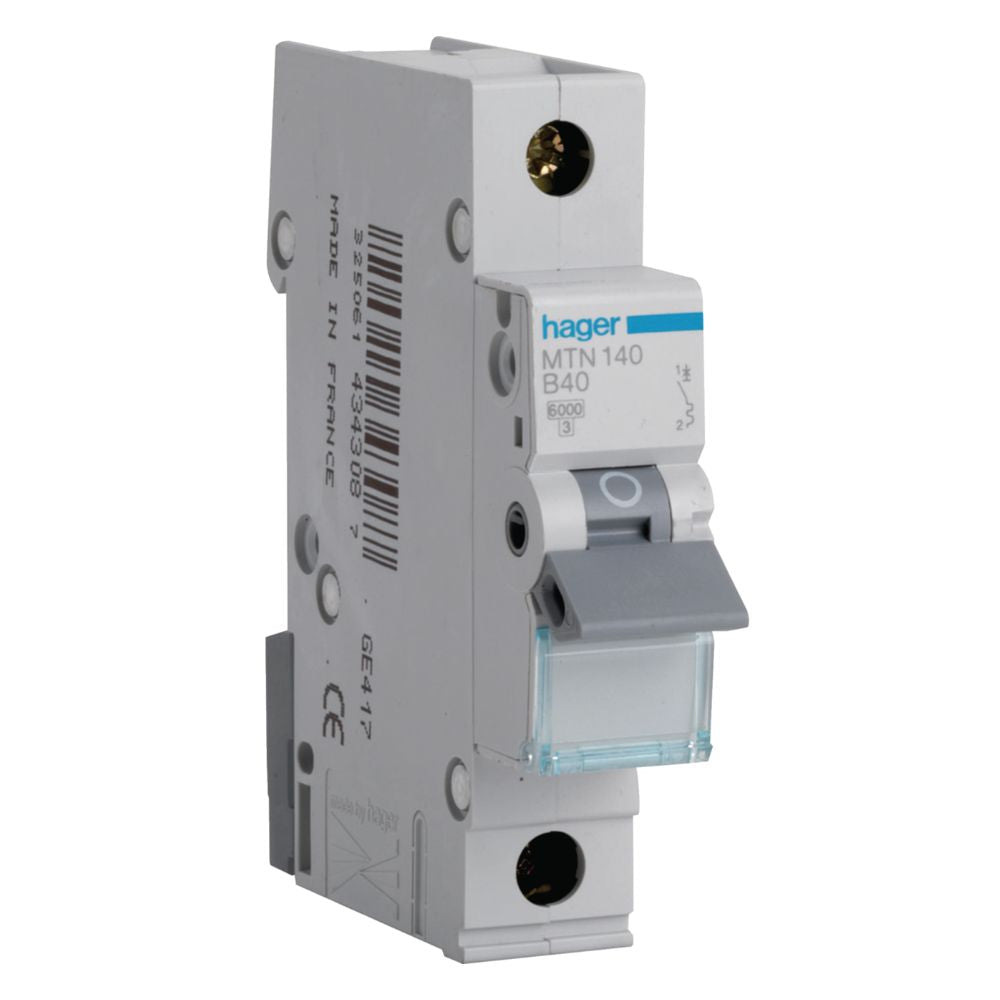

Hager MTN140 40A Type B Single-Pole MCB
The Hager MTN140 is a compact 40A Type B miniature circuit breaker designed to protect electrical circuits against overloads and short circuits. Its single-pole, one-module format, 6kA breaking capacity and biconnect terminal system make it suitable for compatible residential and light-commercial distribution boards.
Key Features
- Rated current: 40A at 30°C
- Tripping curve: Type B
- Breaking capacity: 6kA according to IEC 60898-1
- Configuration: Single pole (1P), one module
- Operating voltage: 230–400V AC
- Connection: Screw terminal with biconnect bottom connection
- Mounting flexibility: 360° mounting position possible
- Protection rating: IP20
- Environmental compliance: RoHS conform
Technical Specifications
| Hager MTN140 Technical Data | |
|---|---|
| Electrical | |
| Rated current IN | 40 A |
| Rated short-circuit breaking capacity Icn at 230V AC | 6 kA according to IEC 60898-1 |
| Rated short-circuit breaking capacity Icn AC | 6 kA according to IEC 60898-1 |
| Rated operational voltage Ue | 230–400 V |
| Voltage supply | AC |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4,000 V |
| Frequency | 50–60 Hz |
| Power dissipation at IN | 4.80 W |
| Energy limitation class I²t | 3 |
| Architecture & Installation | |
| Number of poles | 1P |
| Tripping curve | B |
| Number of modules | 1 |
| Top connection | Screw terminal |
| Bottom connection | Biconnect |
| Connection alignment | Aligned terminal, top and bottom |
| Nominal tightening torque | 2.80–2.80 Nm |
| Mounting position | 360° mounting possible |
| Rigid conductor cross-section | 1–35 mm² |
| Flexible conductor cross-section | 1–25 mm² |
| Rated Current by Ambient Temperature | |
| -15°C | 49.5 A |
| -10°C | 48.5 A |
| -5°C | 47.5 A |
| 0°C | 46.5 A |
| 5°C | 45.5 A |
| 10°C | 44.5 A |
| 15°C | 43.4 A |
| 20°C | 42.3 A |
| 25°C | 41.2 A |
| 30°C | 40 A |
| 35°C | 38.8 A |
| 40°C | 37.6 A |
| 45°C | 36.3 A |
| 50°C | 35 A |
| 55°C | 33.6 A |
| 60°C | 32.2 A |
| 65°C | 30.7 A |
| 70°C | 29.1 A |
| Dimensions & General | |
| Height | 83 mm |
| Width | 17.50 mm |
| Depth | 70 mm |
| Ingress protection | IP20 |
| Grid distance | 60 mm |
| Pollution degree | 2 according to IEC 60664 / IEC 60947-2 |
| Air humidity protection | For all climates |
| Operating temperature | -25–70°C |
| RoHS conform | Yes |
| EAN | 3250614343087 |
What's in the Box
- 1 × Hager MTN140 40A Type B single-pole MCB
Downloads
| Document | Download |
|---|---|
| Product Environmental Profile – MCB 1P 6kA B-16A, 1 module | View PDF |
| REACH Declaration – MTN140 | View PDF |
| RoHS Report – MTN140 | View PDF |
Need help checking compatibility with your distribution board or installation? Contact The Lighting Gallery team before ordering. Electrical installation should be carried out by a suitably qualified professional.
