Hager RCBO 1P 20A B 30mA Type A 10kA 1 Module ADB420U
2499
Estimated delivery between September 25 and September 27.

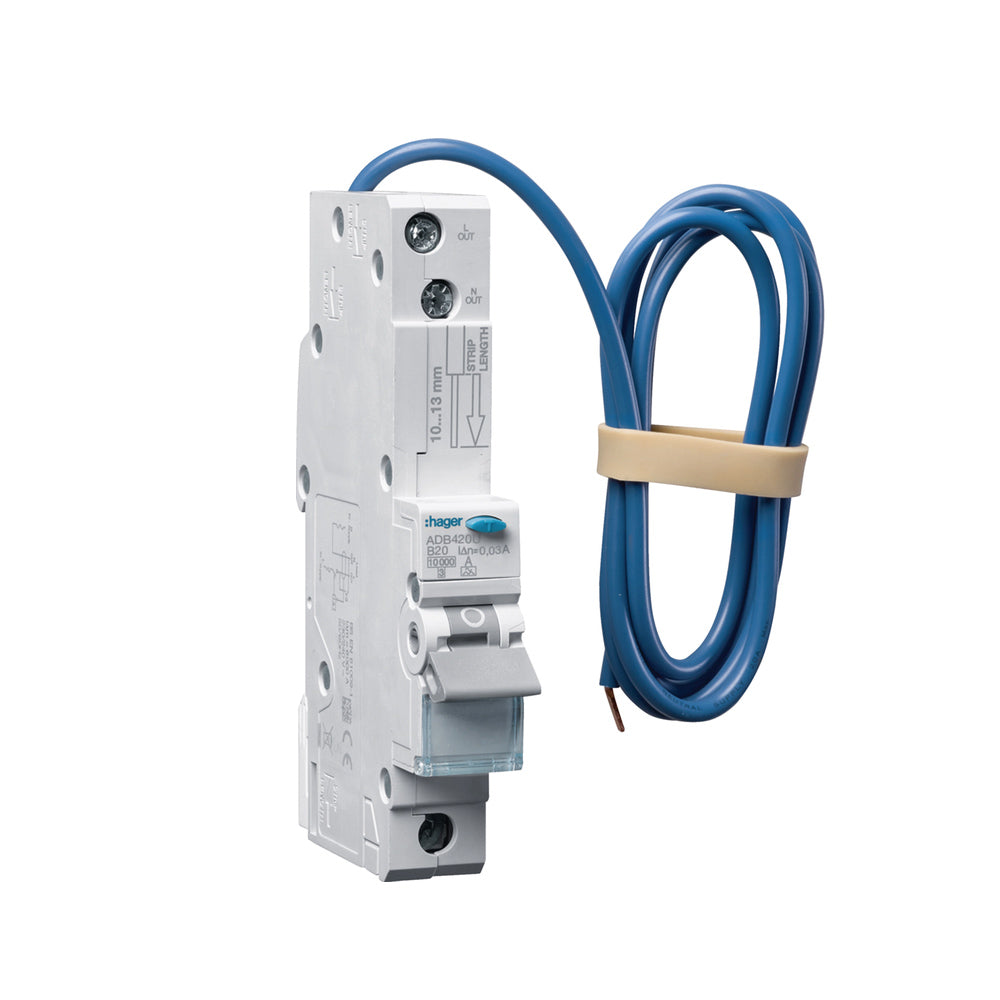

Hager RCBO 1P 20A 10kA Curve B 30mA Type A
The Hager RCBO 1M 1P B-20A Type A combines MCB and RCD protection in a single 1-module device. It safeguards circuits against overloads and short circuits with a 10kA breaking capacity, while providing 30mA Type A earth-leakage protection suitable for pulsed DC faults. Rated 20A with a B-curve, 230–240V, 50–60Hz, and IP20 protection, it is suitable for residential and light commercial use.
Key Features
- Combined protection: MCB and RCD protection against overload, short circuit, and earth leakage
- Rated current: 20A
- Residual operating current: 30mA
- Curve: B
- Residual current type: Type A
- Breaking capacity: 10kA
- Compact design: 1 module for DIN-rail installation
- Protection rating: IP20
Technical Specifications
| Product Details - Hager ADB420U | |
|---|---|
| Architecture | |
| Type of pole | 1P |
| Number of protected poles | 1 |
| Curve | B |
| Electrical Current | |
| Rated current IN | 20 A |
| Rated residual operating current Idn | 30 mA |
| Rated current at -25°C | 25.09 A |
| Rated current at -20°C | 24.63 A |
| Rated current at -15°C | 24.16 A |
| Rated current at -10°C | 23.70 A |
| Rated current at -5°C | 23.24 A |
| Rated current at 0°C | 22.78 A |
| Rated current at 5°C | 22.31 A |
| Rated current at 10°C | 21.85 A |
| Rated current at 15°C | 21.39 A |
| Rated current at 20°C | 20.93 A |
| Rated current at 25°C | 20.46 A |
| Rated current at 30°C | 20 A |
| Rated current at 35°C | 19.53 A |
| Rated current at 40°C | 19.05 A |
| Rated current at 50°C | 18.10 A |
| Rated current at 55°C | 17.63 A |
| Rated current at 60°C | 17.15 A |
| Min./max. threshold value of the AC thermal operation | 1.13 - 1.45 A |
| Safety | |
| Residual current type | A |
| Ingress Protection (IP) class | IP20 |
| Main Electrical Attributes | |
| Rated short-circuit breaking capacity Icn AC according to IEC 60898-1 | 10 kA |
| Voltage | |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4,000 V |
| Rated operational voltage Ue | 230 - 240 V |
| Overvoltage category according to IEC 60947-1 | 3 |
| Power | |
| Power dissipation at IN | 6.50 W |
| Frequency | |
| Frequency | 50 - 60 Hz |
| Use Conditions | |
| Maximum altitude | 2,000 m |
| Class of energy limitation I²t | 3 |
| Operating temperature | -25 - 40 °C |
| Storage/transport temperature | -40 - 70 °C |
| Endurance | |
| Electrical endurance in number of cycles | 2,000 |
| Number of mechanical operations | 10,000 |
| Connection | |
| Cross-section of input with screws, for flexible conductors | 1 - 10 mm² |
| Cross-section of input with screws, for massive conductors | 1 - 16 mm² |
| Cross-section of input and output with screws, for flexible conductors | 1 - 16 mm² |
| Cross-section of input and output with screws, for massive conductors | 1 - 25 mm² |
| Cross-section of output with screws, for flexible conductors | 1 - 16 mm² |
| Cross-section of output with screws, for massive conductors | 1 - 25 mm² |
| Installation and Mounting | |
| Type of top connection for modular devices | Screw terminal |
| Type of bottom connection for modular devices | biconnect |
| Capacity | |
| Number of modules | 1 |
| Dimensions | |
| Height | 115 mm |
| Width | 17.80 mm |
| Depth | 70 mm |
| Compatibility | |
| Suitable for DIN rail | Yes |
Product Information
| Packaging and Identification | |
|---|---|
| EAN | 3250611036869 |
| Packaging | 1 piece |
Hager RCBO 1P 20A B 30mA Type A 10kA 1 Module ADB420U
SKU : ADB420U
2499
Estimated delivery between September 25 and September 27.
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
2499
Hager RCBO 1P 20A 10kA Curve B 30mA Type A
The Hager RCBO 1M 1P B-20A Type A combines MCB and RCD protection in a single 1-module device. It safeguards circuits against overloads and short circuits with a 10kA breaking capacity, while providing 30mA Type A earth-leakage protection suitable for pulsed DC faults. Rated 20A with a B-curve, 230–240V, 50–60Hz, and IP20 protection, it is suitable for residential and light commercial use.
Key Features
- Combined protection: MCB and RCD protection against overload, short circuit, and earth leakage
- Rated current: 20A
- Residual operating current: 30mA
- Curve: B
- Residual current type: Type A
- Breaking capacity: 10kA
- Compact design: 1 module for DIN-rail installation
- Protection rating: IP20
Technical Specifications
| Product Details - Hager ADB420U | |
|---|---|
| Architecture | |
| Type of pole | 1P |
| Number of protected poles | 1 |
| Curve | B |
| Electrical Current | |
| Rated current IN | 20 A |
| Rated residual operating current Idn | 30 mA |
| Rated current at -25°C | 25.09 A |
| Rated current at -20°C | 24.63 A |
| Rated current at -15°C | 24.16 A |
| Rated current at -10°C | 23.70 A |
| Rated current at -5°C | 23.24 A |
| Rated current at 0°C | 22.78 A |
| Rated current at 5°C | 22.31 A |
| Rated current at 10°C | 21.85 A |
| Rated current at 15°C | 21.39 A |
| Rated current at 20°C | 20.93 A |
| Rated current at 25°C | 20.46 A |
| Rated current at 30°C | 20 A |
| Rated current at 35°C | 19.53 A |
| Rated current at 40°C | 19.05 A |
| Rated current at 50°C | 18.10 A |
| Rated current at 55°C | 17.63 A |
| Rated current at 60°C | 17.15 A |
| Min./max. threshold value of the AC thermal operation | 1.13 - 1.45 A |
| Safety | |
| Residual current type | A |
| Ingress Protection (IP) class | IP20 |
| Main Electrical Attributes | |
| Rated short-circuit breaking capacity Icn AC according to IEC 60898-1 | 10 kA |
| Voltage | |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4,000 V |
| Rated operational voltage Ue | 230 - 240 V |
| Overvoltage category according to IEC 60947-1 | 3 |
| Power | |
| Power dissipation at IN | 6.50 W |
| Frequency | |
| Frequency | 50 - 60 Hz |
| Use Conditions | |
| Maximum altitude | 2,000 m |
| Class of energy limitation I²t | 3 |
| Operating temperature | -25 - 40 °C |
| Storage/transport temperature | -40 - 70 °C |
| Endurance | |
| Electrical endurance in number of cycles | 2,000 |
| Number of mechanical operations | 10,000 |
| Connection | |
| Cross-section of input with screws, for flexible conductors | 1 - 10 mm² |
| Cross-section of input with screws, for massive conductors | 1 - 16 mm² |
| Cross-section of input and output with screws, for flexible conductors | 1 - 16 mm² |
| Cross-section of input and output with screws, for massive conductors | 1 - 25 mm² |
| Cross-section of output with screws, for flexible conductors | 1 - 16 mm² |
| Cross-section of output with screws, for massive conductors | 1 - 25 mm² |
| Installation and Mounting | |
| Type of top connection for modular devices | Screw terminal |
| Type of bottom connection for modular devices | biconnect |
| Capacity | |
| Number of modules | 1 |
| Dimensions | |
| Height | 115 mm |
| Width | 17.80 mm |
| Depth | 70 mm |
| Compatibility | |
| Suitable for DIN rail | Yes |
Product Information
| Packaging and Identification | |
|---|---|
| EAN | 3250611036869 |
| Packaging | 1 piece |
Then
£33.24
Now
£24.99
