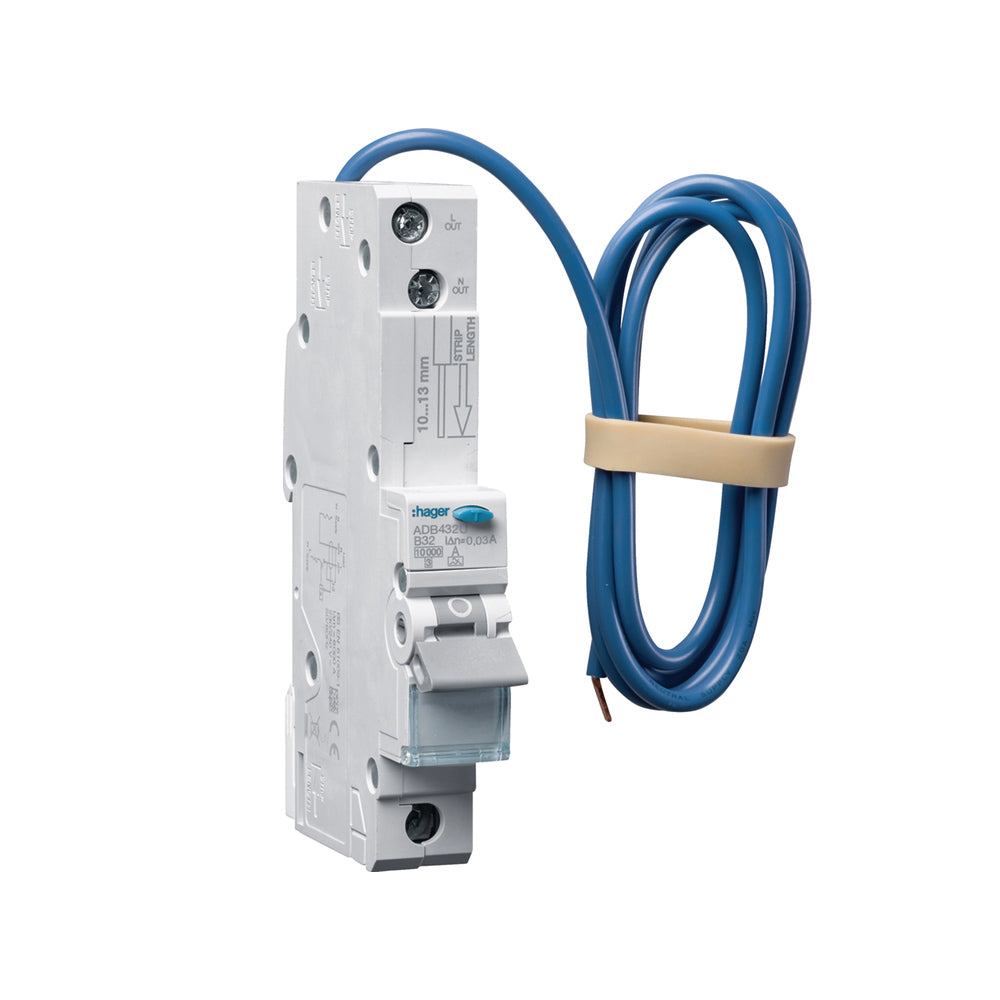

Hager RCBO 1P 32A B-curve 30mA Type A 10kA 1 Module ADB432U
1999
Estimated delivery between September 25 and September 27.
Hager RCBO 1M 1P B-20A 30mA Type A
The Hager RCBO 1M 1P B-20A Type A combines MCB and RCD protection in a single 1-module device. It safeguards circuits against overloads and short circuits with a 10kA breaking capacity, while providing 30mA Type A earth-leakage protection suitable for pulsed DC faults. Rated 20A with a B-curve, 230–240V, 50–60Hz, and IP20 protection, it is suitable for residential and light commercial use.
Key Features
- Combined protection: MCB and RCD protection against overload, short circuit, and earth leakage
- Rated current: 20A
- Residual operating current: 30mA
- Curve: B
- Residual current type: Type A
- Breaking capacity: 10kA
- Compact design: 1 module for DIN-rail installation
- Protection rating: IP20
Technical Specifications
| Product Details - Hager RCBO 1M 1P B-20A | |
|---|---|
| Architecture | |
| Type of pole | 1P |
| Number of protected poles | 1 |
| Curve | B |
| Electrical Current | |
| Rated current IN | 20 A |
| Rated residual operating current Idn | 30 mA |
| Rated current at -25°C | 25.09 A |
| Rated current at -20°C | 24.63 A |
| Rated current at -15°C | 24.16 A |
| Rated current at -10°C | 23.70 A |
| Rated current at -5°C | 23.24 A |
| Rated current at 0°C | 22.78 A |
| Rated current at 5°C | 22.31 A |
| Rated current at 10°C | 21.85 A |
| Rated current at 15°C | 21.39 A |
| Rated current at 20°C | 20.93 A |
| Rated current at 25°C | 20.46 A |
| Rated current at 30°C | 20 A |
| Rated current at 35°C | 19.53 A |
| Rated current at 40°C | 19.05 A |
| Rated current at 50°C | 18.10 A |
| Rated current at 55°C | 17.63 A |
| Rated current at 60°C | 17.15 A |
| Min./max. threshold value of the AC thermal operation | 1.13 - 1.45 A |
| Safety | |
| Residual current type | A |
| Ingress Protection (IP) class | IP20 |
| Main Electrical Attributes | |
| Rated short-circuit breaking capacity Icn AC according to IEC 60898-1 | 10 kA |
| Voltage | |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4,000 V |
| Rated operational voltage Ue | 230 - 240 V |
| Overvoltage category according to IEC 60947-1 | 3 |
| Power | |
| Power dissipation at IN | 6.50 W |
| Frequency | |
| Frequency | 50 - 60 Hz |
| Use Conditions | |
| Maximum altitude | 2,000 m |
| Class of energy limitation I²t | 3 |
| Operating temperature | -25 - 40 °C |
| Storage/transport temperature | -40 - 70 °C |
| Endurance | |
| Electrical endurance in number of cycles | 2,000 |
| Number of mechanical operations | 10,000 |
| Connection | |
| Cross-section of input with screws, for flexible conductors | 1 - 10 mm² |
| Cross-section of input with screws, for massive conductors | 1 - 16 mm² |
| Cross-section of input and output with screws, for flexible conductors | 1 - 16 mm² |
| Cross-section of input and output with screws, for massive conductors | 1 - 25 mm² |
| Cross-section of output with screws, for flexible conductors | 1 - 16 mm² |
| Cross-section of output with screws, for massive conductors | 1 - 25 mm² |
| Installation and Mounting | |
| Type of top connection for modular devices | Screw terminal |
| Type of bottom connection for modular devices | biconnect |
| Capacity | |
| Number of modules | 1 |
| Dimensions | |
| Height | 115 mm |
| Width | 17.80 mm |
| Depth | 70 mm |
| Compatibility | |
| Suitable for DIN rail | Yes |
Product Information
| Packaging and Identification | |
|---|---|
| EAN | 3250611036869 |
| Packaging | 1 piece |
Hager RCBO 1P 32A B-curve 30mA Type A 10kA 1 Module ADB432U
SKU : ADB432U
1999
Estimated delivery between September 25 and September 27.
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
1999
Hager RCBO 1M 1P B-20A 30mA Type A
The Hager RCBO 1M 1P B-20A Type A combines MCB and RCD protection in a single 1-module device. It safeguards circuits against overloads and short circuits with a 10kA breaking capacity, while providing 30mA Type A earth-leakage protection suitable for pulsed DC faults. Rated 20A with a B-curve, 230–240V, 50–60Hz, and IP20 protection, it is suitable for residential and light commercial use.
Key Features
- Combined protection: MCB and RCD protection against overload, short circuit, and earth leakage
- Rated current: 20A
- Residual operating current: 30mA
- Curve: B
- Residual current type: Type A
- Breaking capacity: 10kA
- Compact design: 1 module for DIN-rail installation
- Protection rating: IP20
Technical Specifications
| Product Details - Hager RCBO 1M 1P B-20A | |
|---|---|
| Architecture | |
| Type of pole | 1P |
| Number of protected poles | 1 |
| Curve | B |
| Electrical Current | |
| Rated current IN | 20 A |
| Rated residual operating current Idn | 30 mA |
| Rated current at -25°C | 25.09 A |
| Rated current at -20°C | 24.63 A |
| Rated current at -15°C | 24.16 A |
| Rated current at -10°C | 23.70 A |
| Rated current at -5°C | 23.24 A |
| Rated current at 0°C | 22.78 A |
| Rated current at 5°C | 22.31 A |
| Rated current at 10°C | 21.85 A |
| Rated current at 15°C | 21.39 A |
| Rated current at 20°C | 20.93 A |
| Rated current at 25°C | 20.46 A |
| Rated current at 30°C | 20 A |
| Rated current at 35°C | 19.53 A |
| Rated current at 40°C | 19.05 A |
| Rated current at 50°C | 18.10 A |
| Rated current at 55°C | 17.63 A |
| Rated current at 60°C | 17.15 A |
| Min./max. threshold value of the AC thermal operation | 1.13 - 1.45 A |
| Safety | |
| Residual current type | A |
| Ingress Protection (IP) class | IP20 |
| Main Electrical Attributes | |
| Rated short-circuit breaking capacity Icn AC according to IEC 60898-1 | 10 kA |
| Voltage | |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4,000 V |
| Rated operational voltage Ue | 230 - 240 V |
| Overvoltage category according to IEC 60947-1 | 3 |
| Power | |
| Power dissipation at IN | 6.50 W |
| Frequency | |
| Frequency | 50 - 60 Hz |
| Use Conditions | |
| Maximum altitude | 2,000 m |
| Class of energy limitation I²t | 3 |
| Operating temperature | -25 - 40 °C |
| Storage/transport temperature | -40 - 70 °C |
| Endurance | |
| Electrical endurance in number of cycles | 2,000 |
| Number of mechanical operations | 10,000 |
| Connection | |
| Cross-section of input with screws, for flexible conductors | 1 - 10 mm² |
| Cross-section of input with screws, for massive conductors | 1 - 16 mm² |
| Cross-section of input and output with screws, for flexible conductors | 1 - 16 mm² |
| Cross-section of input and output with screws, for massive conductors | 1 - 25 mm² |
| Cross-section of output with screws, for flexible conductors | 1 - 16 mm² |
| Cross-section of output with screws, for massive conductors | 1 - 25 mm² |
| Installation and Mounting | |
| Type of top connection for modular devices | Screw terminal |
| Type of bottom connection for modular devices | biconnect |
| Capacity | |
| Number of modules | 1 |
| Dimensions | |
| Height | 115 mm |
| Width | 17.80 mm |
| Depth | 70 mm |
| Compatibility | |
| Suitable for DIN rail | Yes |
Product Information
| Packaging and Identification | |
|---|---|
| EAN | 3250611036869 |
| Packaging | 1 piece |
Then
£33.24
Now
£19.99
