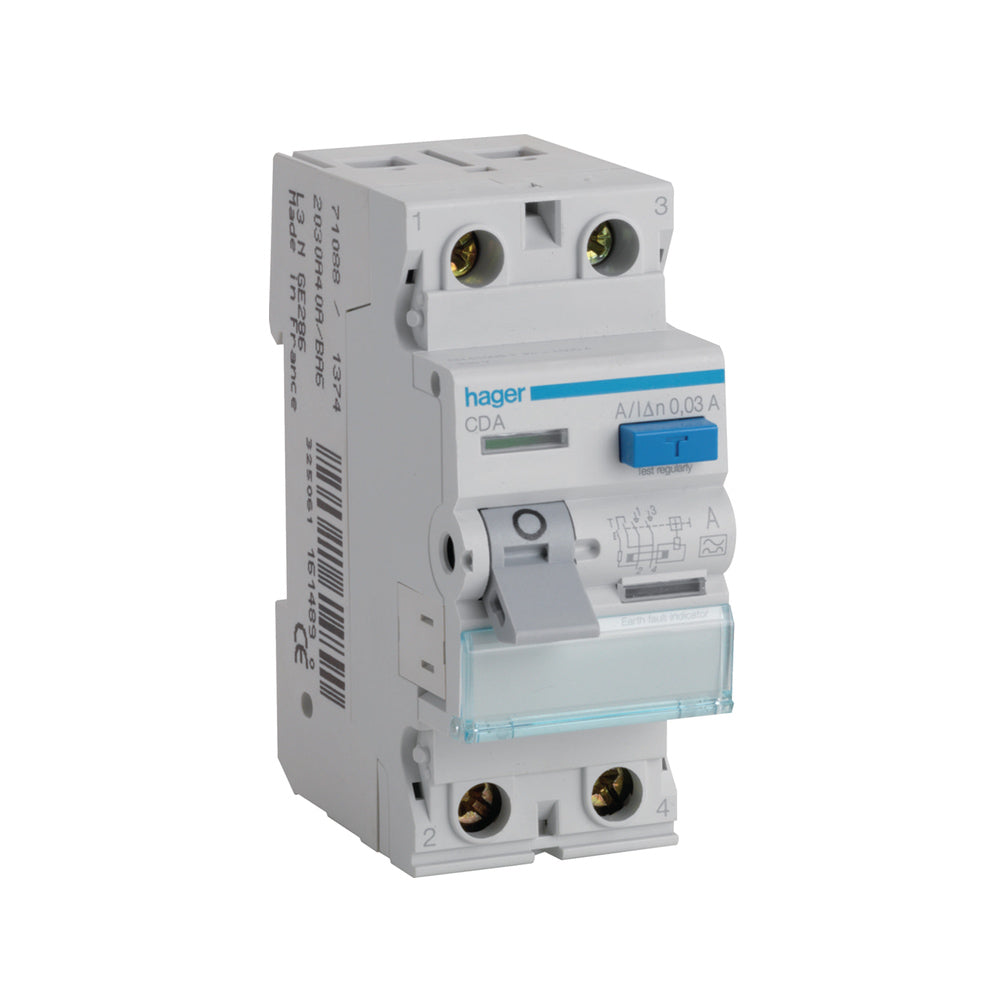

Hager RCCB 1P+N 100A 30mA Type A
The Hager RCCB 1P+N 100A 30mA Type A provides earth-leakage protection for single-phase circuits, helping enhance personal safety and fire prevention. Rated 100A at 230V AC with 30mA sensitivity and a 6kA conditional short-circuit rating, it is a compact 2-module DIN-rail unit with IP20 protection. Screw terminals accept rigid conductors from 1–50mm² and flexible conductors from 1–35mm², making it suitable for residential and commercial distribution boards.
Key Features
- Device type: RCCB
- Pole configuration: 1P+N, 2 poles
- Rated current: 100A
- Residual current protection: Type A
- Residual operating current: 30mA
- Conditional short-circuit rating: 6kA
- Compact design: 2 modules for DIN-rail installation
- Protection rating: IP20
Technical Specifications
| Product Details - Hager CD285U | |
|---|---|
| Architecture | |
| Type of pole | 1P+N |
| Number of poles | 2 |
| Electrical Current | |
| Rated current IN | 100 A |
| Rated residual operating current Idn | 30 mA |
| Breaking and opening capacity Idm | 1.50 kA |
| Rated conditional short-circuit current Inc according to EN61008-1 | 6 kA |
| Rated current at -25°C | 100 A |
| Rated current at -20°C | 100 A |
| Rated current at -15°C | 100 A |
| Rated current at -10°C | 100 A |
| Rated current at -5°C | 100 A |
| Rated current at 0°C | 100 A |
| Rated current at 5°C | 100 A |
| Rated current at 10°C | 100 A |
| Rated current at 15°C | 100 A |
| Rated current at 20°C | 100 A |
| Rated current at 25°C | 100 A |
| Rated current at 30°C | 100 A |
| Rated current at 35°C | 100 A |
| Rated current at 40°C | 100 A |
| Rated current at 45°C | 94 A |
| Rated current at 50°C | 88 A |
| Rated current at 55°C | 81 A |
| Rated current at 60°C | 74 A |
| Rated current at 65°C | 66 A |
| Rated current at 70°C | 56 A |
| Installation and Mounting | |
| Nominal tightening torque top terminal | 3.30 - 3.30 Nm |
| Nominal tightening torque down terminal | 3.30 - 3.30 Nm |
| Type of top connection for modular devices | Screw terminal |
| Type of bottom connection for modular devices | Screw terminal |
| Nominal tightening torque | 3.30 - 3.30 Nm |
| Voltage | |
| Rated operational voltage Ue | 230 - 230 V |
| Type voltage supply | AC |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4,000 V |
| Maximum operating voltage | 253 V |
| Frequency | |
| Frequency | 50 - 50 Hz |
| Capacity | |
| Number of modules | 2 |
| Compatibility | |
| Suitable for DIN rail | Yes |
| Safety | |
| Residual current type | A |
| Ingress Protection (IP) class | IP20 |
| Connection | |
| Cross-section of output with screws, for massive conductors | 1 - 50 mm² |
| Cross-section of output with screws, for flexible conductors | 1 - 35 mm² |
| Cross-section flexible conductor | 35 mm² max. |
| Cross-section rigid conductor | 50 mm² max. |
| Cross-section of input and output with screws, for flexible conductors | 1 - 35 mm² |
| Cross-section of input and output with screws, for massive conductors | 1 - 50 mm² |
| Power | |
| Power dissipation at IN | 14.30 W |
| Use Conditions | |
| Maximum altitude | 2,000 m |
| Operating temperature | -25 - 40 °C |
| Endurance | |
| Electrical endurance in number of cycles | 2,000 |
| Number of mechanical operations | 4,000 |
| Connectivity | |
| Type of connection | Screw terminal |
| Top connection alignment for modular devices | Aligned terminal |
| Down connection alignment for modular devices | Aligned terminal |
| Dimensions | |
| Height | 83 mm |
| Width | 35 mm |
| Depth | 70 mm |
Product Information
| Packaging and Identification | |
|---|---|
| EAN | 3250611615033 |
| Packaging | 1 piece |
Hager RCCB 1P+N 100A 30mA Type A 230V AC 6kA 2 Modules CD285U
SKU : CDA263U
2599
Estimated delivery between September 25 and September 27.
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
2599
Hager RCCB 1P+N 100A 30mA Type A
The Hager RCCB 1P+N 100A 30mA Type A provides earth-leakage protection for single-phase circuits, helping enhance personal safety and fire prevention. Rated 100A at 230V AC with 30mA sensitivity and a 6kA conditional short-circuit rating, it is a compact 2-module DIN-rail unit with IP20 protection. Screw terminals accept rigid conductors from 1–50mm² and flexible conductors from 1–35mm², making it suitable for residential and commercial distribution boards.
Key Features
- Device type: RCCB
- Pole configuration: 1P+N, 2 poles
- Rated current: 100A
- Residual current protection: Type A
- Residual operating current: 30mA
- Conditional short-circuit rating: 6kA
- Compact design: 2 modules for DIN-rail installation
- Protection rating: IP20
Technical Specifications
| Product Details - Hager CD285U | |
|---|---|
| Architecture | |
| Type of pole | 1P+N |
| Number of poles | 2 |
| Electrical Current | |
| Rated current IN | 100 A |
| Rated residual operating current Idn | 30 mA |
| Breaking and opening capacity Idm | 1.50 kA |
| Rated conditional short-circuit current Inc according to EN61008-1 | 6 kA |
| Rated current at -25°C | 100 A |
| Rated current at -20°C | 100 A |
| Rated current at -15°C | 100 A |
| Rated current at -10°C | 100 A |
| Rated current at -5°C | 100 A |
| Rated current at 0°C | 100 A |
| Rated current at 5°C | 100 A |
| Rated current at 10°C | 100 A |
| Rated current at 15°C | 100 A |
| Rated current at 20°C | 100 A |
| Rated current at 25°C | 100 A |
| Rated current at 30°C | 100 A |
| Rated current at 35°C | 100 A |
| Rated current at 40°C | 100 A |
| Rated current at 45°C | 94 A |
| Rated current at 50°C | 88 A |
| Rated current at 55°C | 81 A |
| Rated current at 60°C | 74 A |
| Rated current at 65°C | 66 A |
| Rated current at 70°C | 56 A |
| Installation and Mounting | |
| Nominal tightening torque top terminal | 3.30 - 3.30 Nm |
| Nominal tightening torque down terminal | 3.30 - 3.30 Nm |
| Type of top connection for modular devices | Screw terminal |
| Type of bottom connection for modular devices | Screw terminal |
| Nominal tightening torque | 3.30 - 3.30 Nm |
| Voltage | |
| Rated operational voltage Ue | 230 - 230 V |
| Type voltage supply | AC |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4,000 V |
| Maximum operating voltage | 253 V |
| Frequency | |
| Frequency | 50 - 50 Hz |
| Capacity | |
| Number of modules | 2 |
| Compatibility | |
| Suitable for DIN rail | Yes |
| Safety | |
| Residual current type | A |
| Ingress Protection (IP) class | IP20 |
| Connection | |
| Cross-section of output with screws, for massive conductors | 1 - 50 mm² |
| Cross-section of output with screws, for flexible conductors | 1 - 35 mm² |
| Cross-section flexible conductor | 35 mm² max. |
| Cross-section rigid conductor | 50 mm² max. |
| Cross-section of input and output with screws, for flexible conductors | 1 - 35 mm² |
| Cross-section of input and output with screws, for massive conductors | 1 - 50 mm² |
| Power | |
| Power dissipation at IN | 14.30 W |
| Use Conditions | |
| Maximum altitude | 2,000 m |
| Operating temperature | -25 - 40 °C |
| Endurance | |
| Electrical endurance in number of cycles | 2,000 |
| Number of mechanical operations | 4,000 |
| Connectivity | |
| Type of connection | Screw terminal |
| Top connection alignment for modular devices | Aligned terminal |
| Down connection alignment for modular devices | Aligned terminal |
| Dimensions | |
| Height | 83 mm |
| Width | 35 mm |
| Depth | 70 mm |
Product Information
| Packaging and Identification | |
|---|---|
| EAN | 3250611615033 |
| Packaging | 1 piece |
