Hager TPN Distribution Board 12 Way 125A Glazed Door Surface Mount IP3X IK05 JK112BG
Estimated delivery between September 25 and September 27.

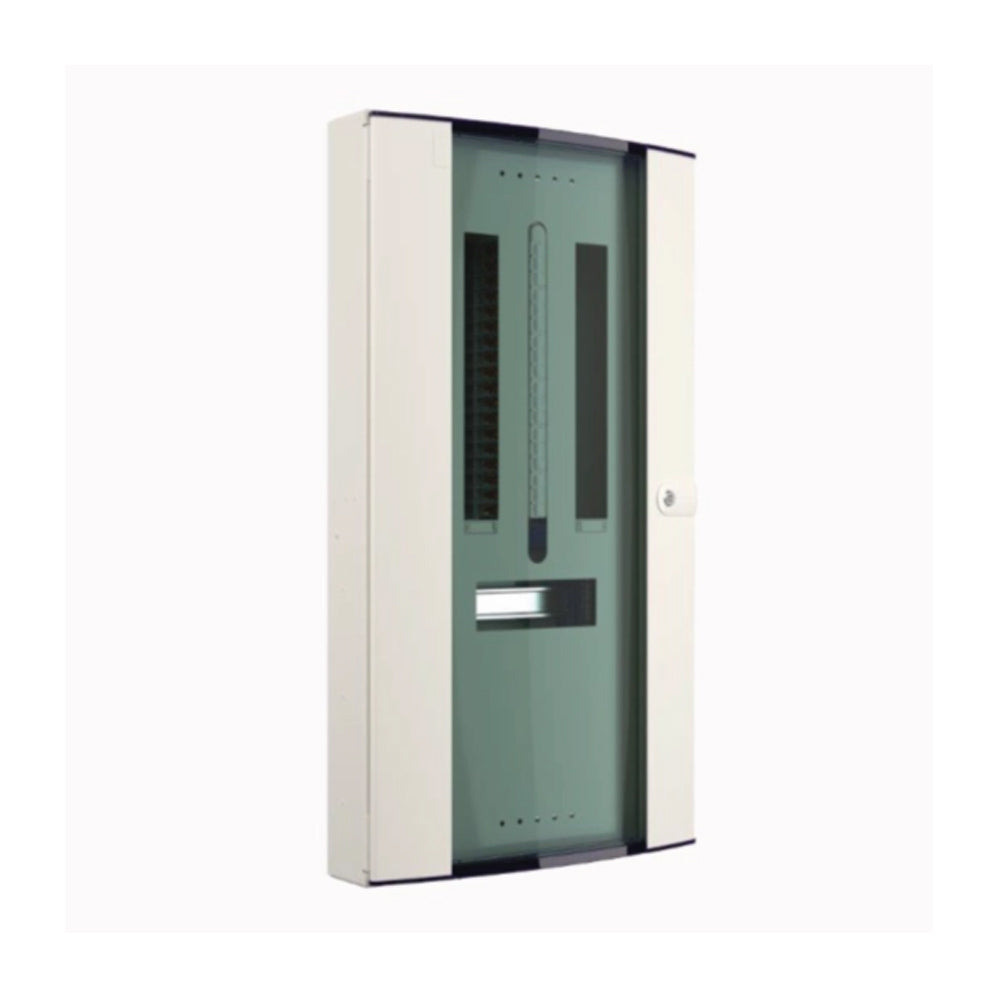

Hager JK112BG 125A 12 Way TPN Distribution Board – Glazed Door, IP3X, IK05
The Hager JK112BG 125A 12 Way TPN board delivers reliable three-phase distribution for commercial and light industrial applications. The surface-mounted steel enclosure in RAL 7035 offers IP3X, IK05 and Class III insulation. The transparent door aids quick inspection while a key or quarter-turn lock secures access, and neutral and earth terminal blocks are supplied for neat wiring. Ideal for indoor mains and sub-distribution.
Key Features
- 125 A rated current – suited to commercial and light industrial distribution.
- 12 way TPN configuration – three phase and neutral distribution with high capacity.
- Glazed transparent door – check device status without opening the board.
- Lockable – key lock and quarter turn lock for restricted access.
- Fully terminated – neutral and earthing terminal blocks included.
- Robust steel enclosure – RAL 7035 light grey finish, IK05 impact resistance.
- Surface mounting – straightforward indoor installation.
Specifications
| Hager JK112BG – Technical Characteristics | |
|---|---|
| Electrical | |
| Rated current IN | 125 A |
| Installation & Mounting | |
| Mounting on | Surface mounting |
| Suitable for outdoor usage | No |
| Equipment | |
| With lock | Yes |
| Has neutral terminal block | Yes |
| Has earthing terminal block | Yes |
| Cover & Door | |
| Number of cabinet doors | 1 |
| Door/cover is transparent | Yes |
| Dimensions | |
| Height | 850 mm |
| Width | 465 mm |
| Depth | 132.50 mm |
| Materials | |
| Material | Steel |
| RAL code | 7035 |
| Colour | Light grey |
| Safety | |
| Protection class | Isolation class III |
| Impact resistance IK | IK05 |
| Ingress Protection (IP) class | IP3X |
| Locking type | Key lock, Quarter turn lock |
| General | |
| Brand | Hager |
| Model | JK112BG |
| EAN | 5015652250357 |
| Packaging | 1 piece |
What's in the Box
- 1 x Hager JK112BG 125A 12 Way TPN distribution board with glazed door
- Neutral and earth terminal blocks (fitted)
- Door lock keys
Environmental Value
Hager is committed to bettering its environmental performance by reducing its footprint while acting as a sustainability enabler for customers.
Need help choosing the right distribution board or matching devices? Get in touch with our team at The Lighting Gallery and we'll be happy to advise.
