Hager TPN Distribution Board 18 Way 125A Glazed Door IP30 Lockable Surface Mount JK118BG
Estimated delivery between September 27 and September 29.

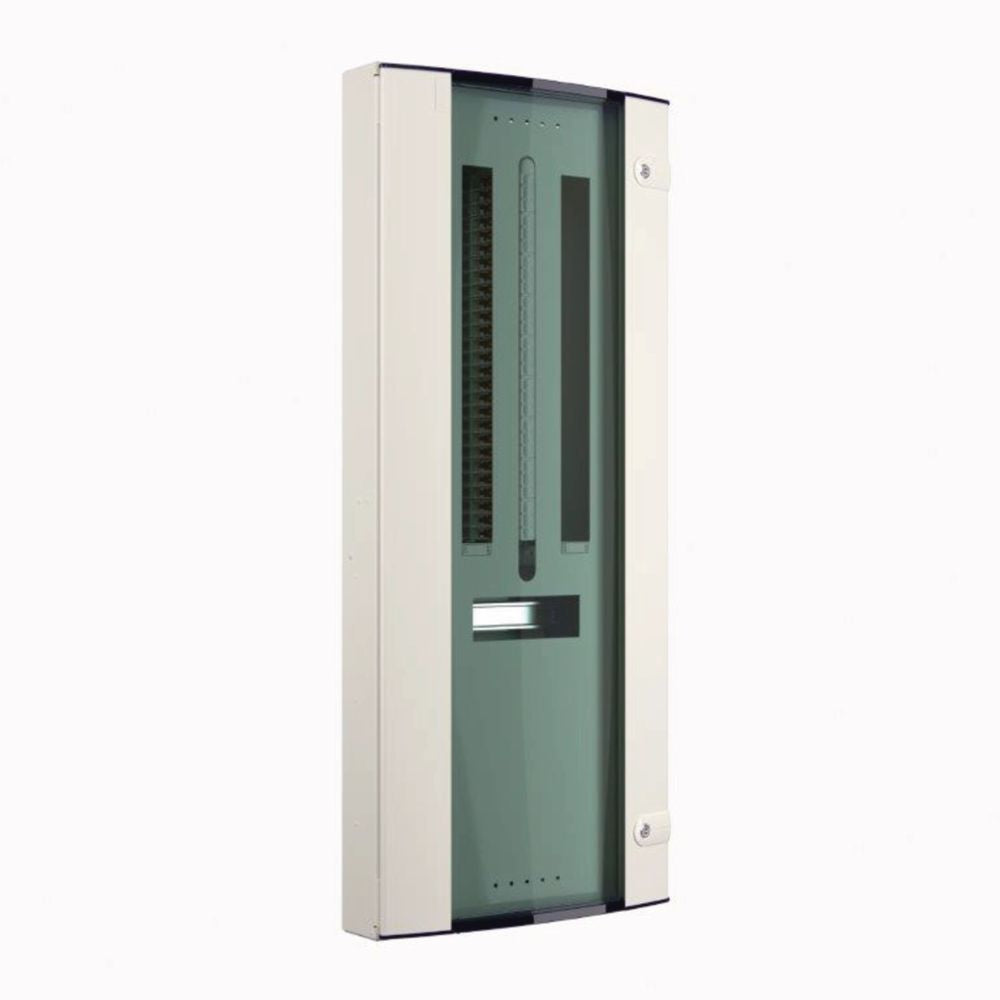

Hager JK118BG 125A 18 Way TPN Distribution Board
The Hager JK118BG is a robust 18 way TPN distribution board designed for dependable three-phase and neutral power distribution in indoor commercial and light industrial installations. Its surface-mounted steel enclosure has a light grey RAL 7035 finish, while the transparent glazed door supports quick visual inspection and the key or quarter-turn lock helps secure access.
Key Features
- 18 Way TPN Design: Suitable for three-phase and neutral mains or sub-distribution applications.
- 125A Rated Current: Built for reliable commercial and light industrial power distribution.
- Glazed Lockable Door: Transparent single door allows easy inspection and can be secured by key or quarter-turn lock.
- Surface Mounting: Designed for straightforward indoor surface-mounted installation.
- Complete Termination: Includes neutral and earthing terminal blocks for organised wiring.
- Durable Steel Enclosure: Light grey RAL 7035 construction with IP30 and IK05 protection ratings.
Technical Specifications
| Product Details | |
|---|---|
| Brand | Hager |
| Model | JK118BG |
| Product Type | TPN distribution board |
| Number of Ways | 18 way |
| EAN | 5015652276807 |
| Packaging | 1 piece |
| Electrical | |
| Rated Current | 125 A |
| Neutral Terminal Block | Yes |
| Earthing Terminal Block | Yes |
| Installation | |
| Mounting | Surface mounting |
| Suitable for Outdoor Use | No |
| Enclosure & Door | |
| Material | Steel |
| Colour | Light grey |
| RAL Code | 7035 |
| Number of Cabinet Doors | 1 |
| Transparent Door / Cover | Yes |
| Lock Included | Yes |
| Locking Type | Key lock, quarter-turn lock |
| Protection | |
| Protection Class | Isolation class III |
| Ingress Protection | IP30 |
| Impact Resistance | IK05 |
| Dimensions | |
| Height | 1,100 mm |
| Width | 465 mm |
| Depth | 132.50 mm |
What's in the Box
- 1 x Hager JK118BG 125A 18 Way TPN distribution board
- Neutral terminal block
- Earthing terminal block
- Glazed lockable door
Need help confirming suitability for your installation? Contact The Lighting Gallery team before ordering and we’ll be happy to assist.
