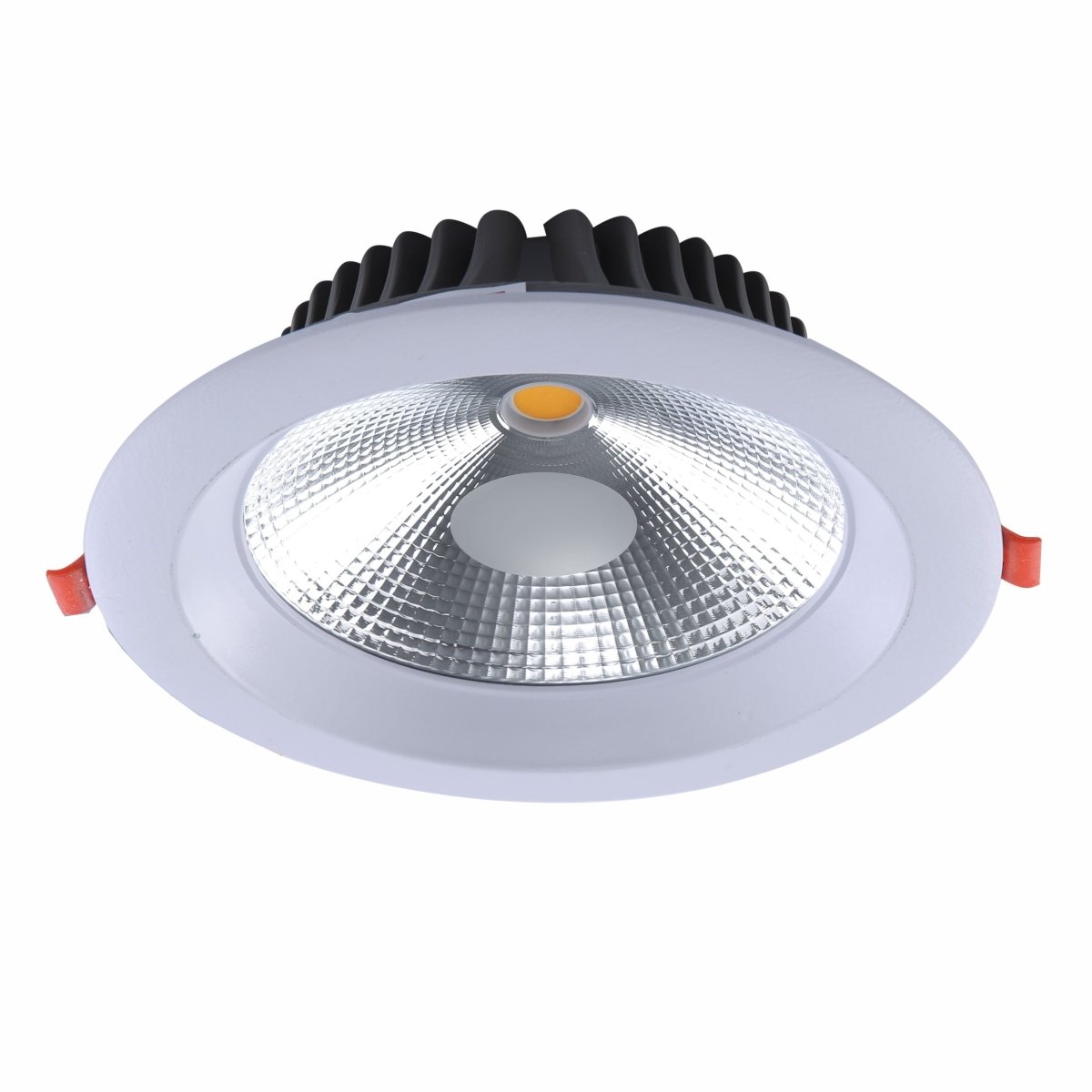

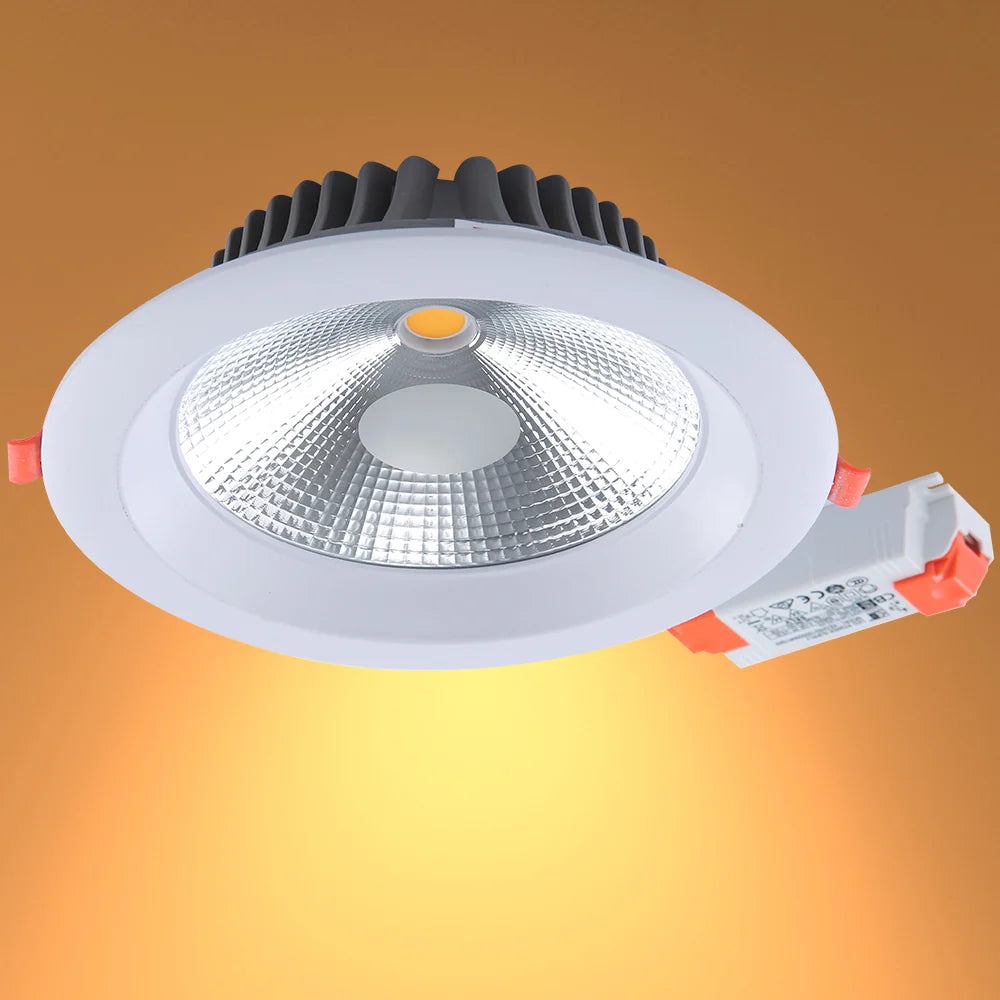

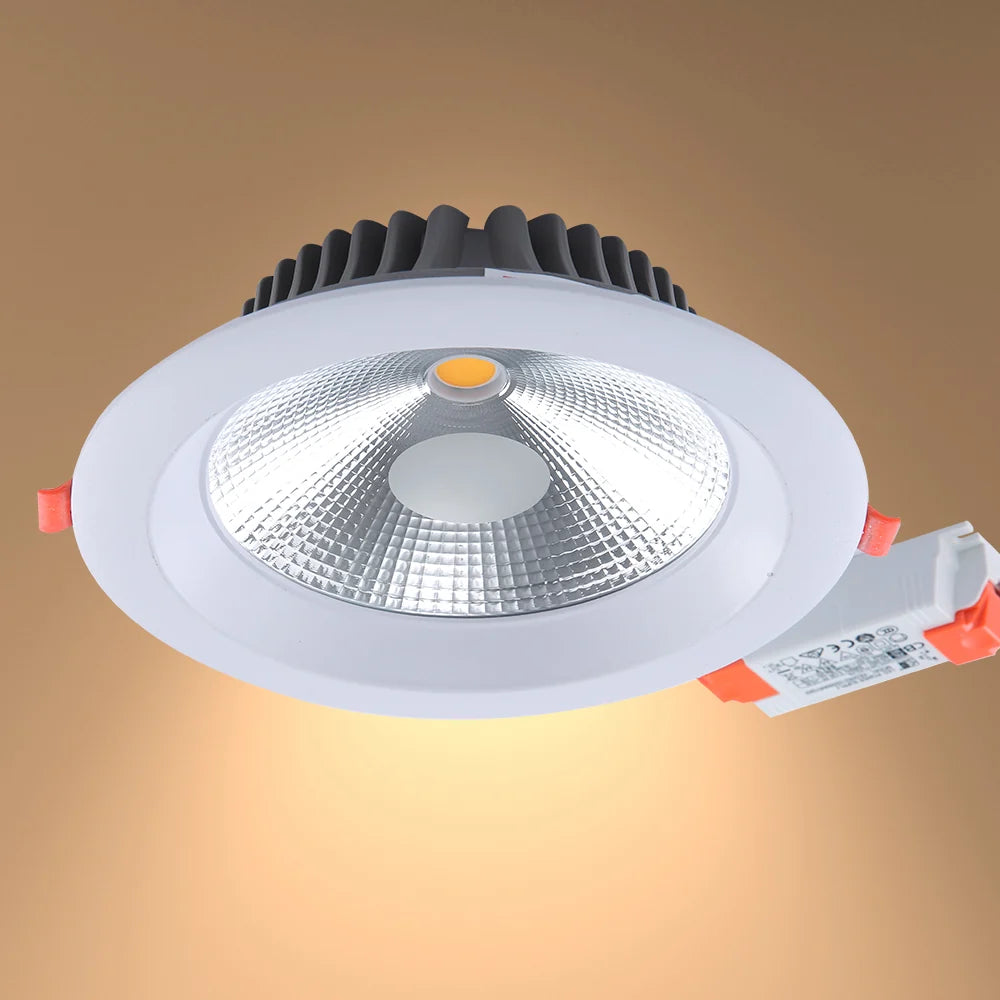

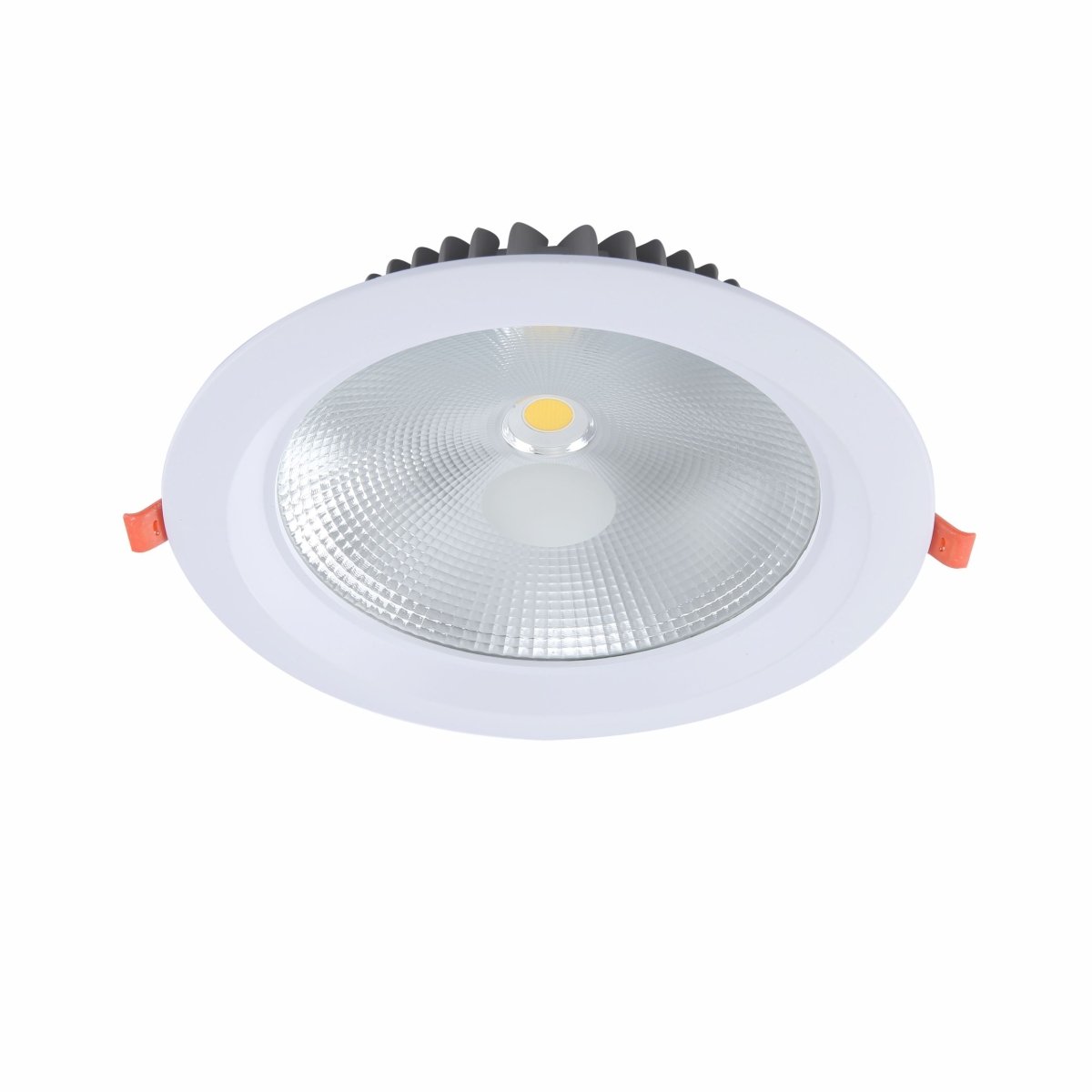

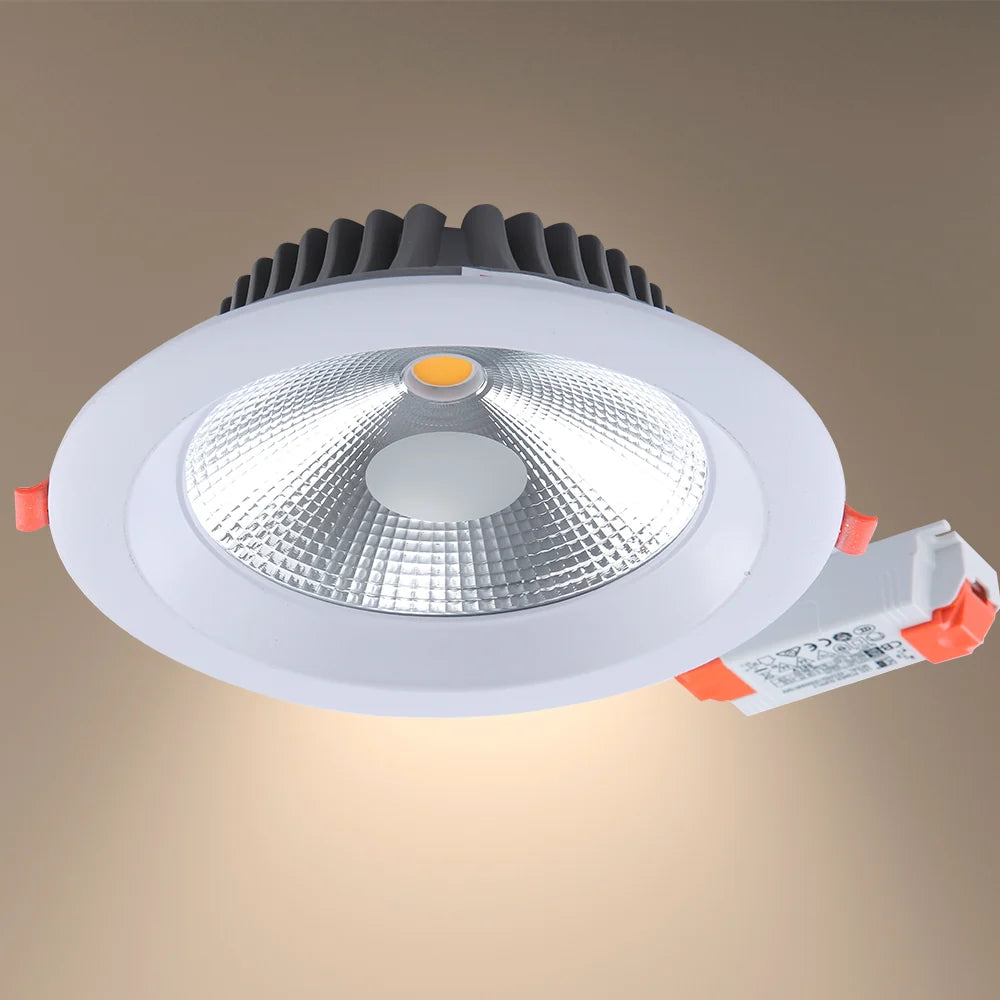

LED COB Recessed Fixed Downlight
1209
Estimated delivery between October 18 and October 20.
Product Overview

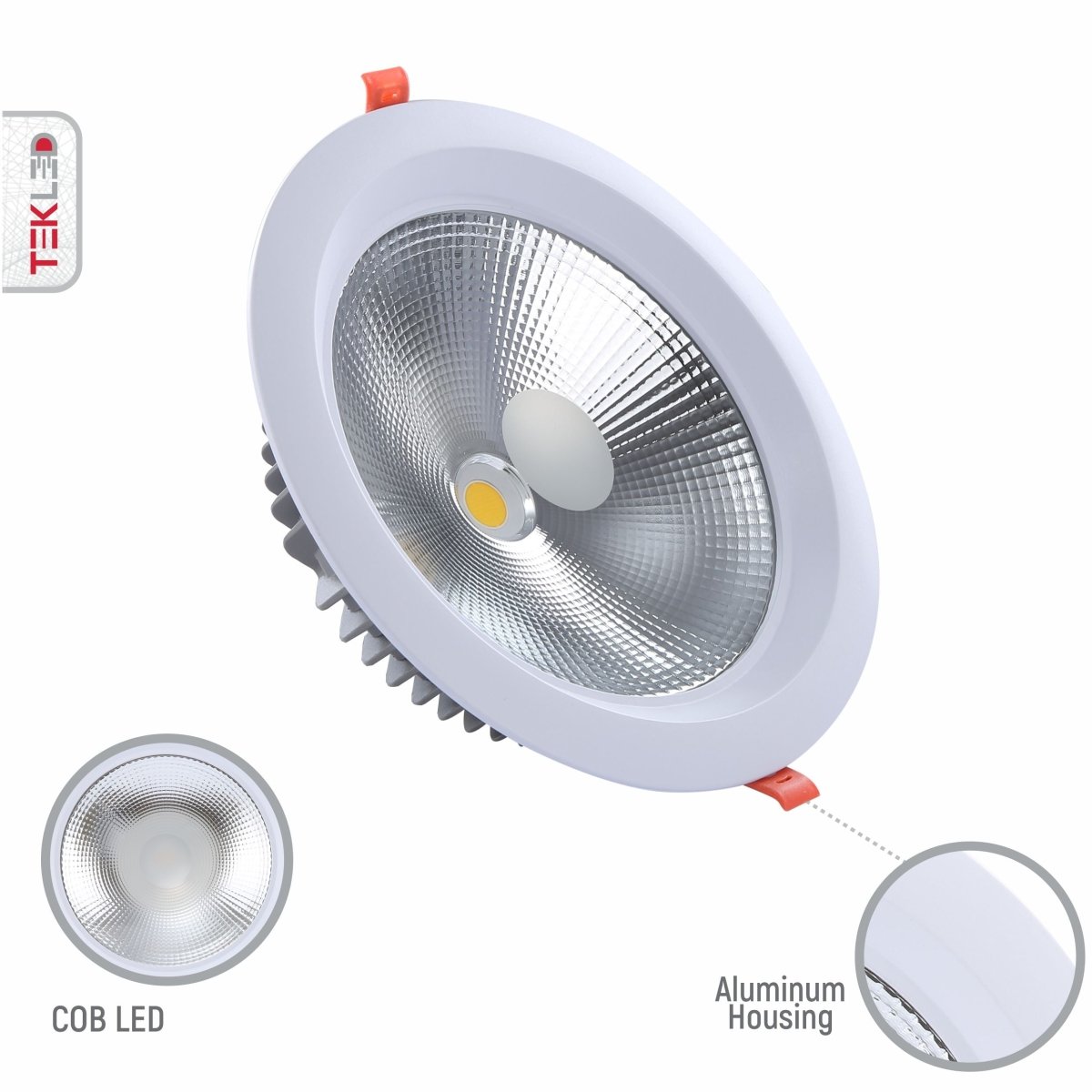

Brighten up any room with our energy-efficient LED COB recessed downlight. You can select the perfect wattage for your needs, from 10W to 30W, and choose between a warm white (3000K) or cool white (4000K/5000K) colour temperature. Its sleek, minimalist design seamlessly integrates into any ceiling, making it a versatile lighting solution.
Key details at a glance:

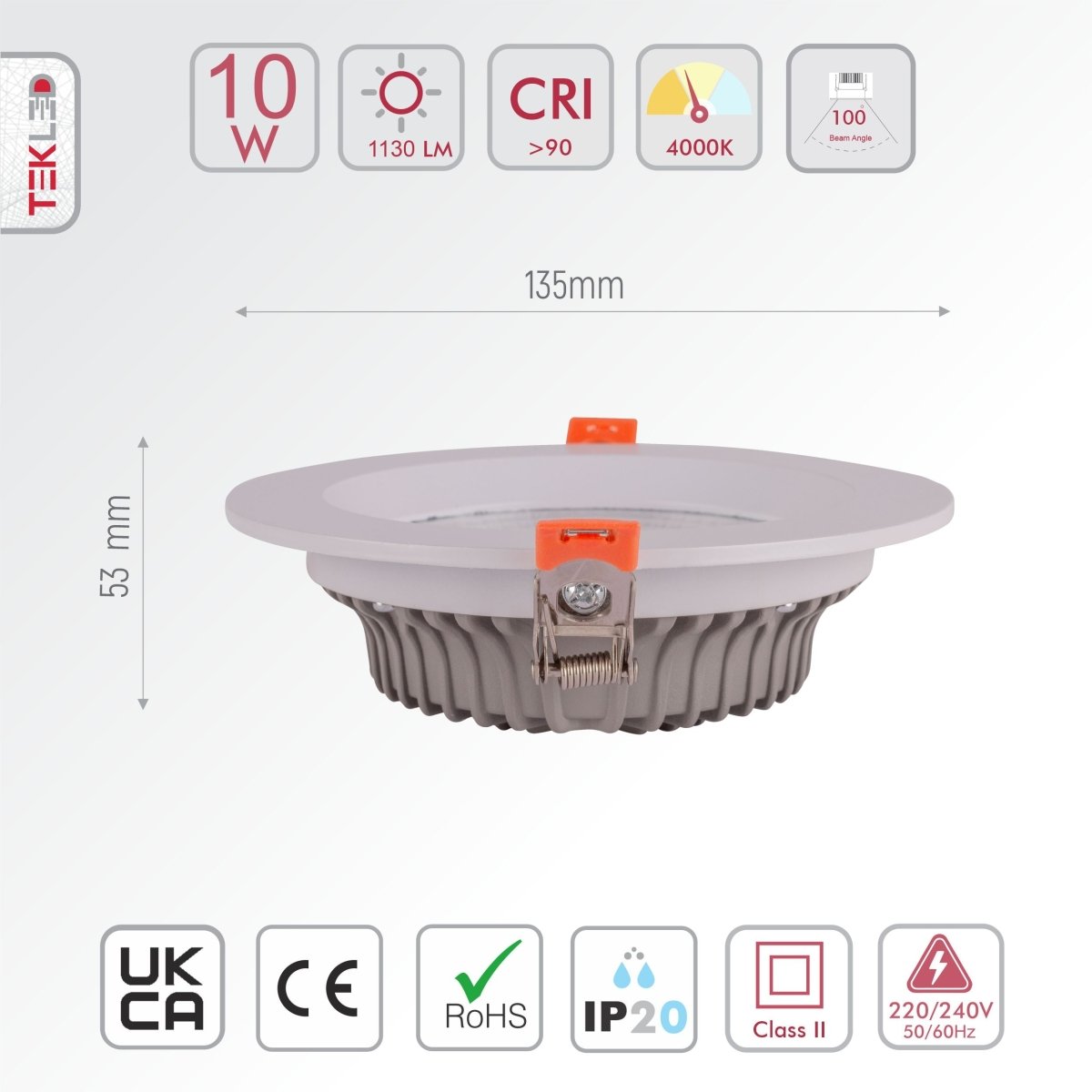

- Dimensions: 135mm (D) x 53mm (H) - for the 10W version
- Wattage options: Available in 10W, 20W, and 30W
- Colour temperatures: Choose between 3000K warm white, 4000K cool white or 5000K cool white
- Lifespan: Enjoy better value for money with a lifespan of up to 36,000 hours
- Non-dimmable: Consistent brightness for ease of use
Perfect for:
- Kitchens: Provides focused task lighting

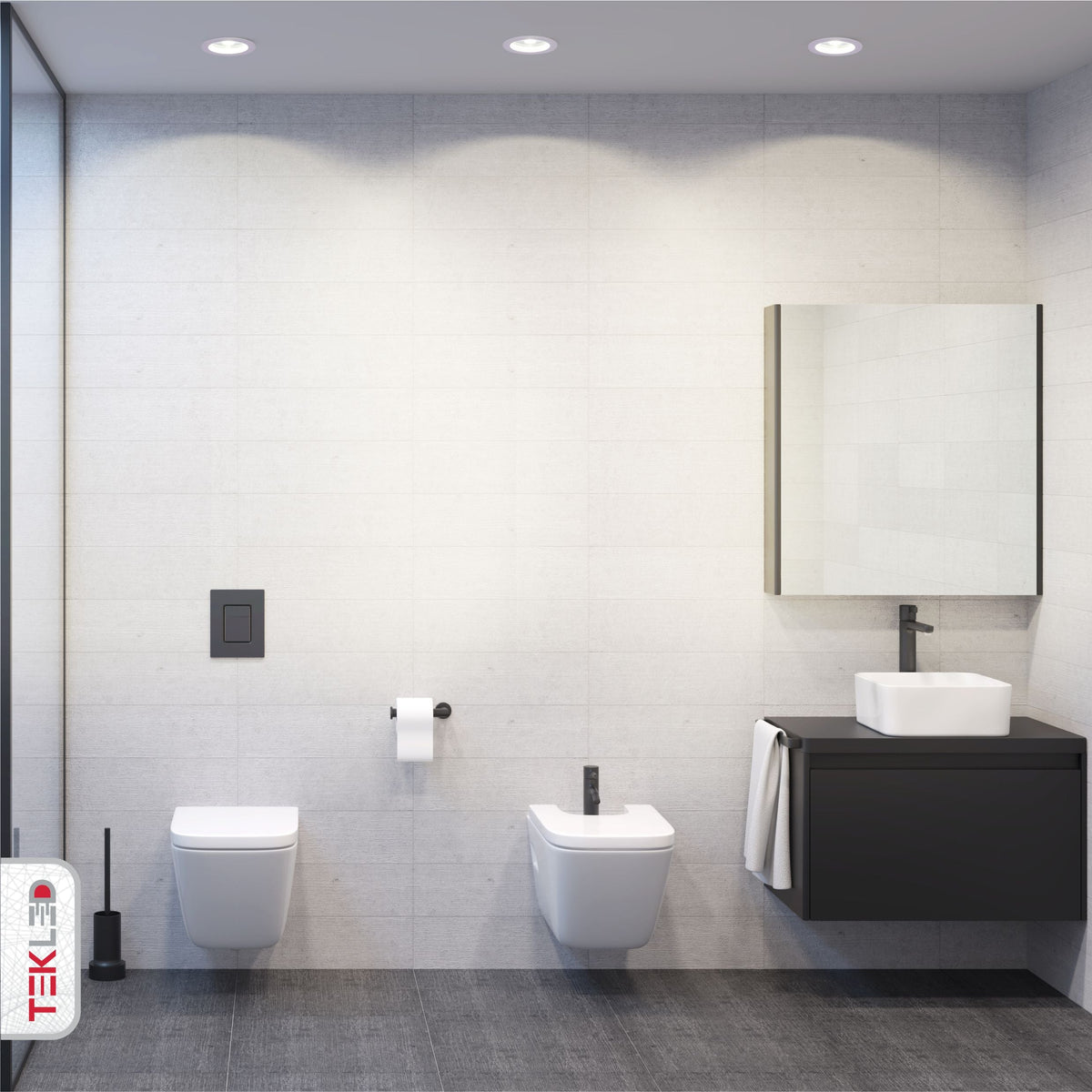

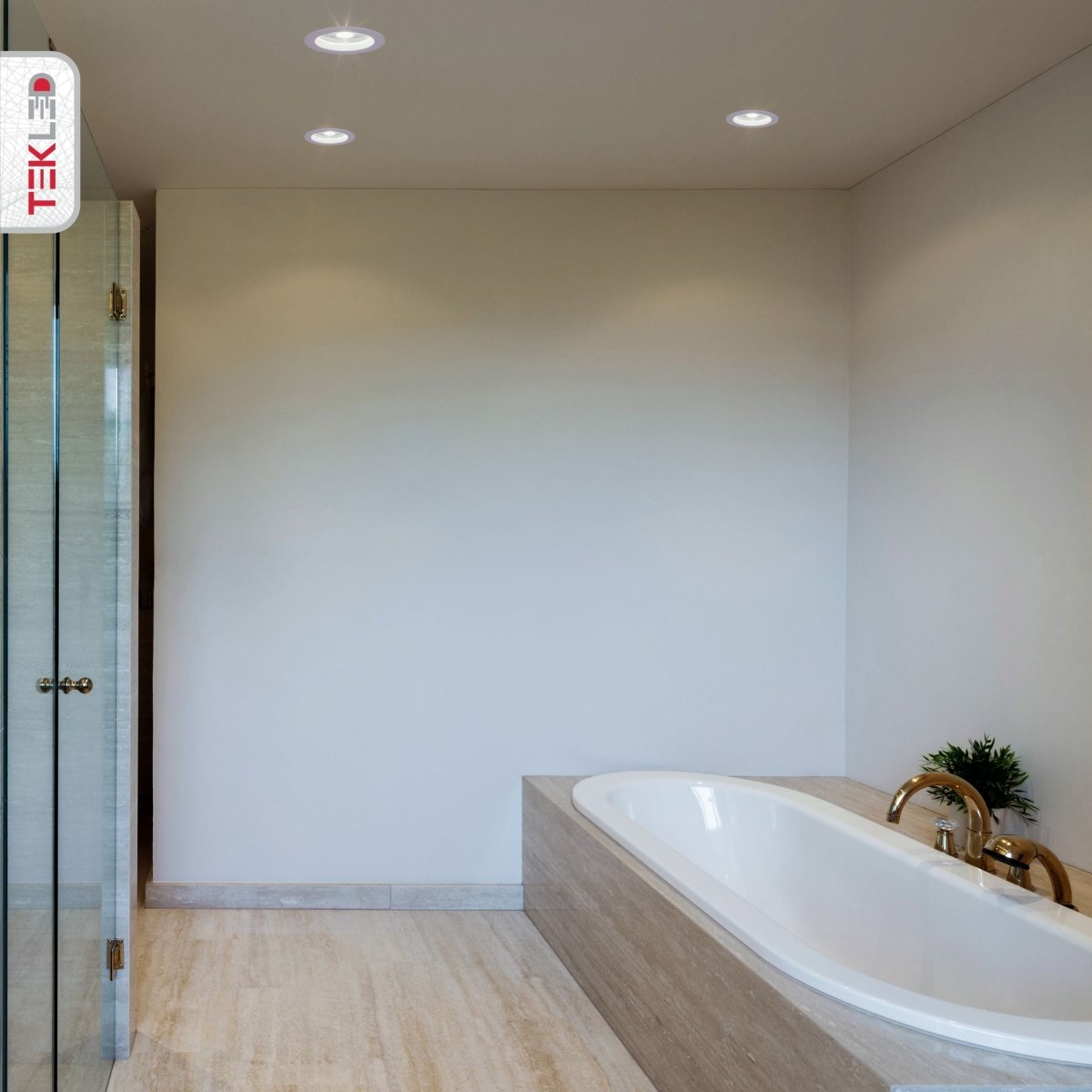

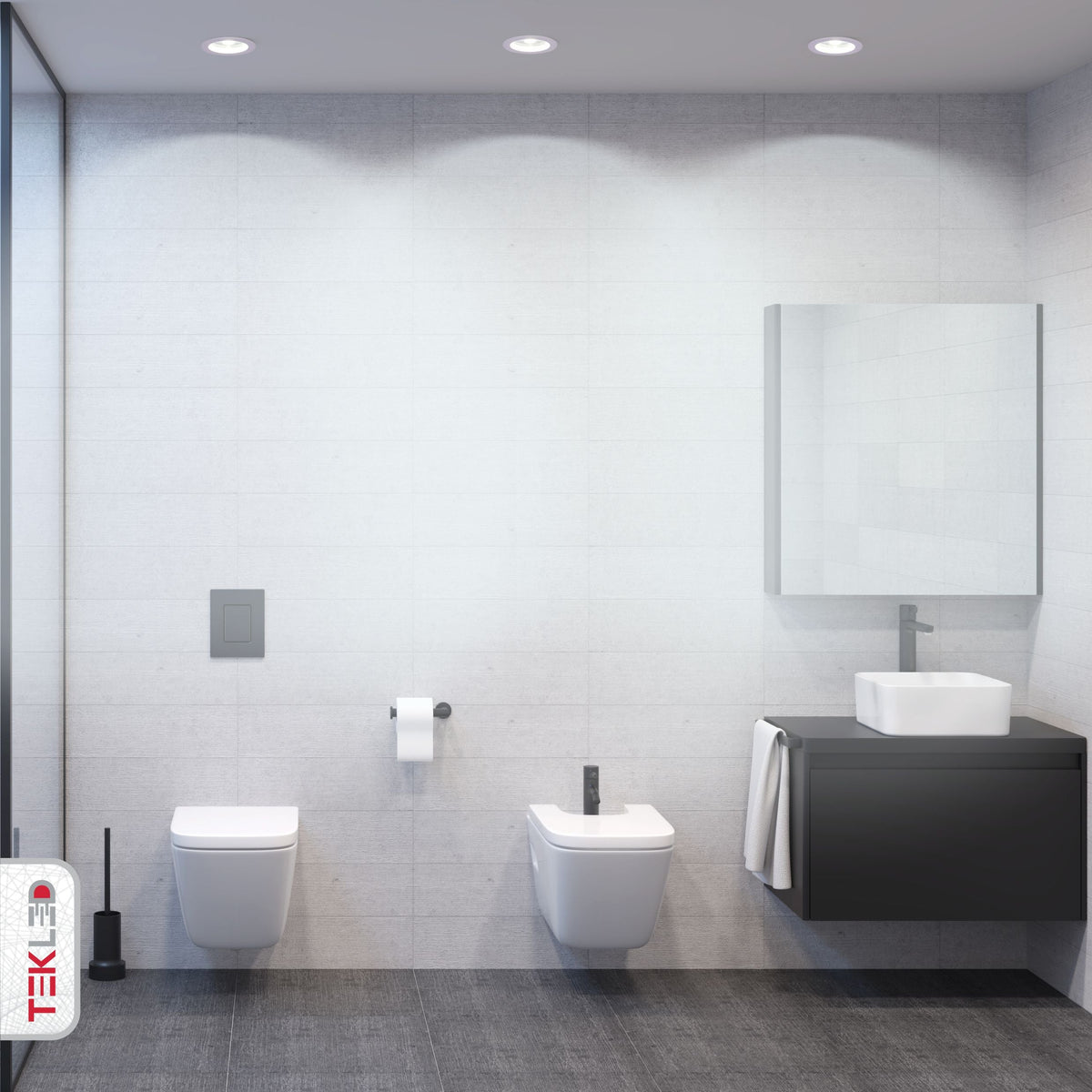

- Bathrooms: Creates a bright and refreshing atmosphere
- Living rooms: Adds a touch of elegance and sophistication
- Hallways: Illuminates dark areas effectively
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Name | LED COB Recessed Downlight 10W 20W 30W Warm White or Cool White |
| Product Code | 165-03398 | 165-03400 | 165-034010 | 165-034011 | 165-034031 | 165-03404 |
| Power | 10W | 20W | 30W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Lamp Holder Type | Built-in LED |
| Protection Class | Class II |
| Dimmability | Non-Dimmable |
| Light Source | COB 1414-10W LED | COB 1919-20W LED | COB 1919-30W LED |
| Led Quantity | 1PC COB |
| Bulbs | Integrated LED, no need additional bulb |
| Lumen | 1130lm | 2200lm | 3170lm |
| Luminous Efficacy | 108lm/W | 111lm/W | 110lm/W |
| Lux | avg 68Lux @2m | avg68Lux @2m | avg 112Lux @2m, max 197Lux | avg 130Lux @2m, max 372Lux |
| CRI | CRI>90 |
| CCT (Kelvin) Light Colour | 4000K Cool White | 5000K Cool White | 3000K Warm White |
| Flickering | Flicker-free |
| IP Class | IP20 |
| Mount Type | Recessed Mount |

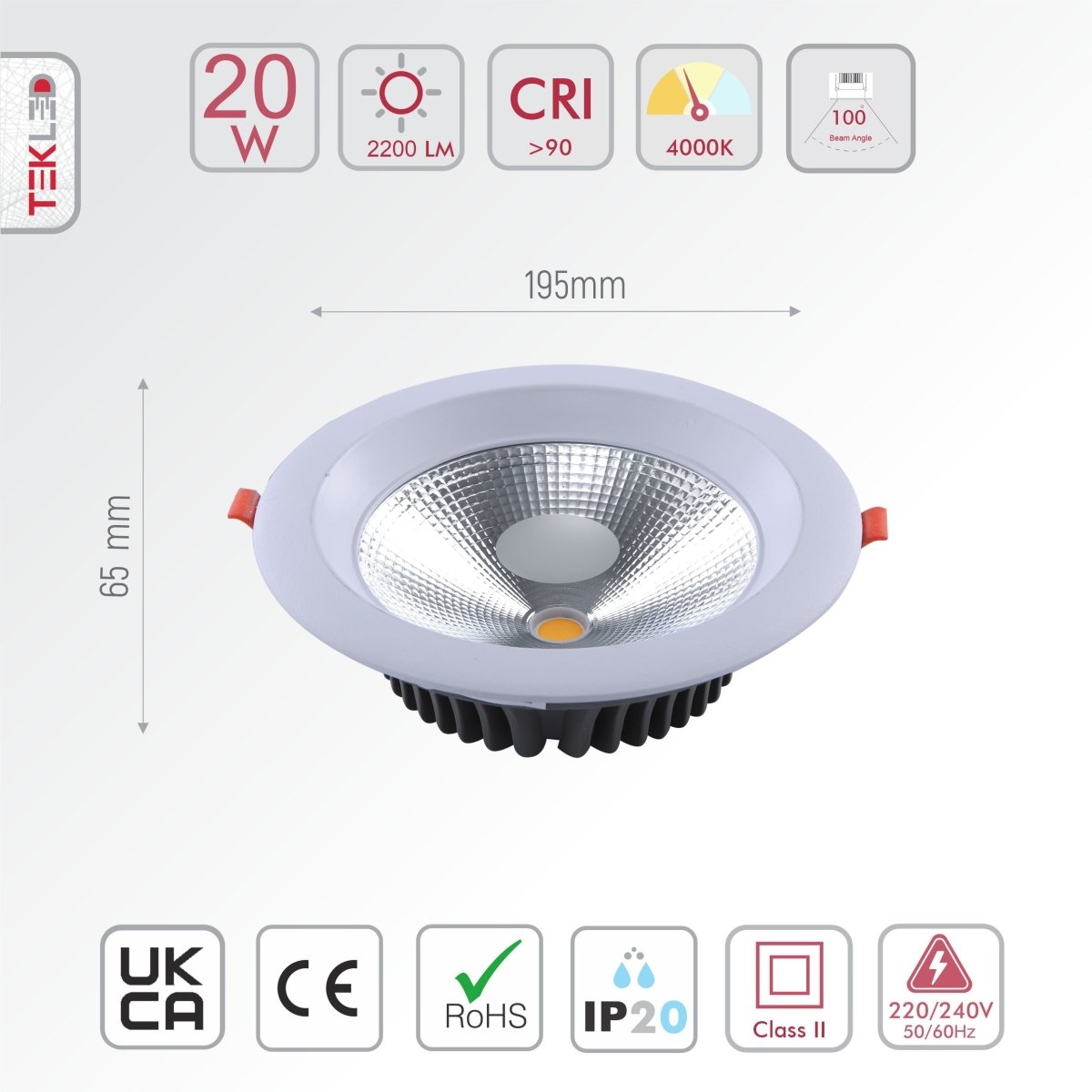

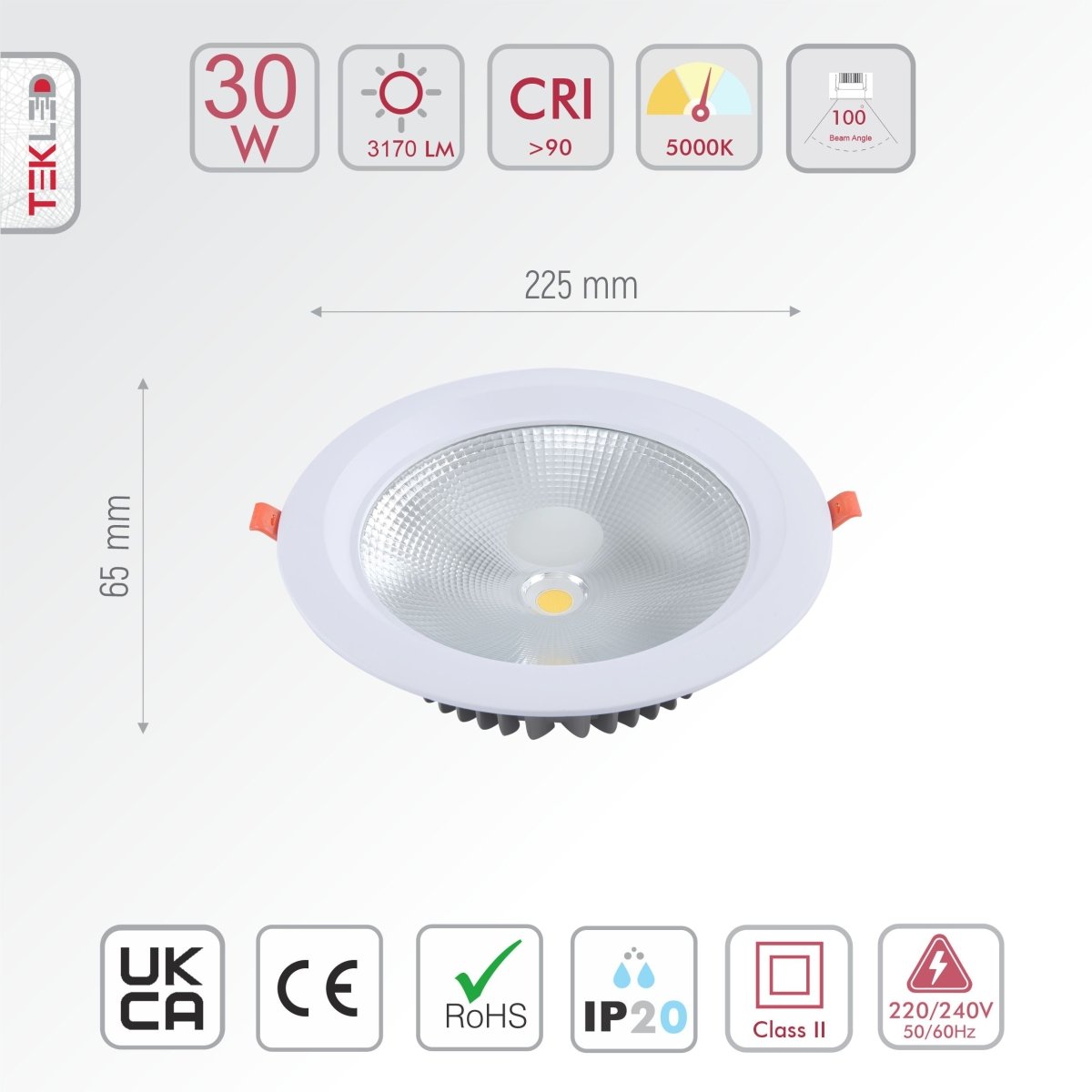

| Product Dimensions (LxWxH) (DxH) | D135x53mm | D195x65mm | D225x65mm |
| Cutout Size | D120mm | D170mm | D200mm |
| Made Of Materials | Aluminium, Glass |
| Product Colour | White |
| Paint Type | Powder Coated |
| Optic Type | Reflector |
| Optic Material | Aluminium |
| Diffuser Material | Glass |
| Diffuser Type | Clear |

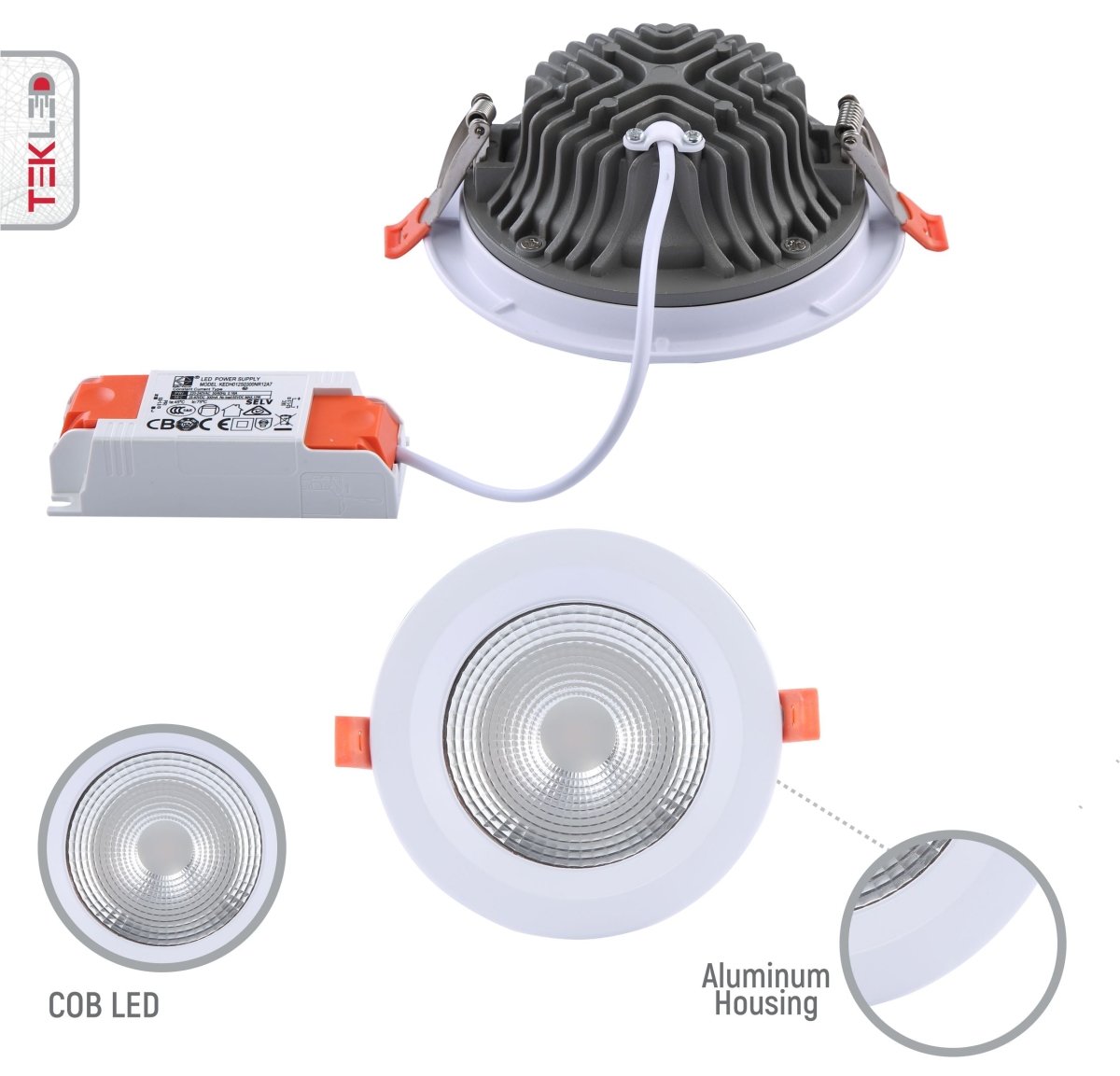

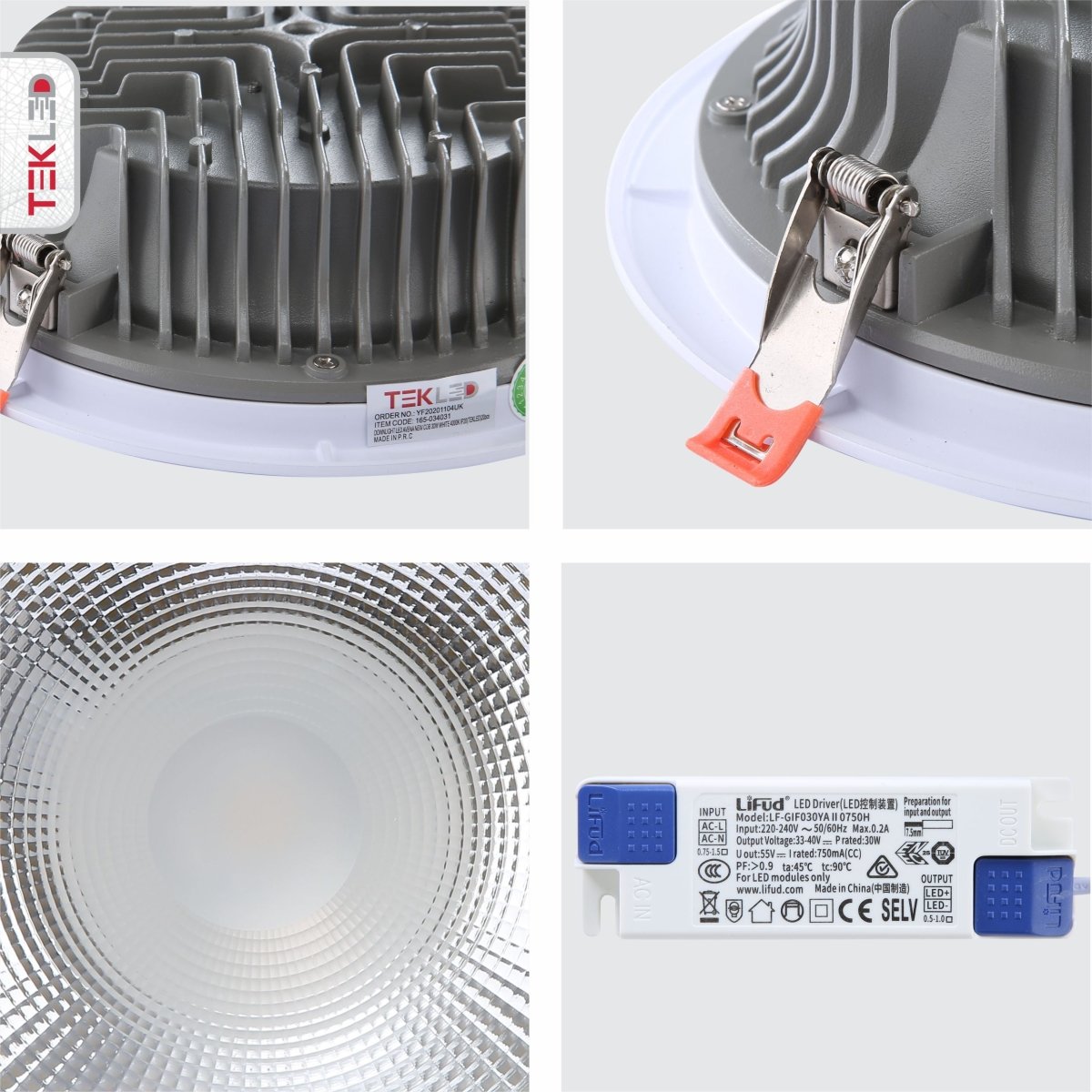

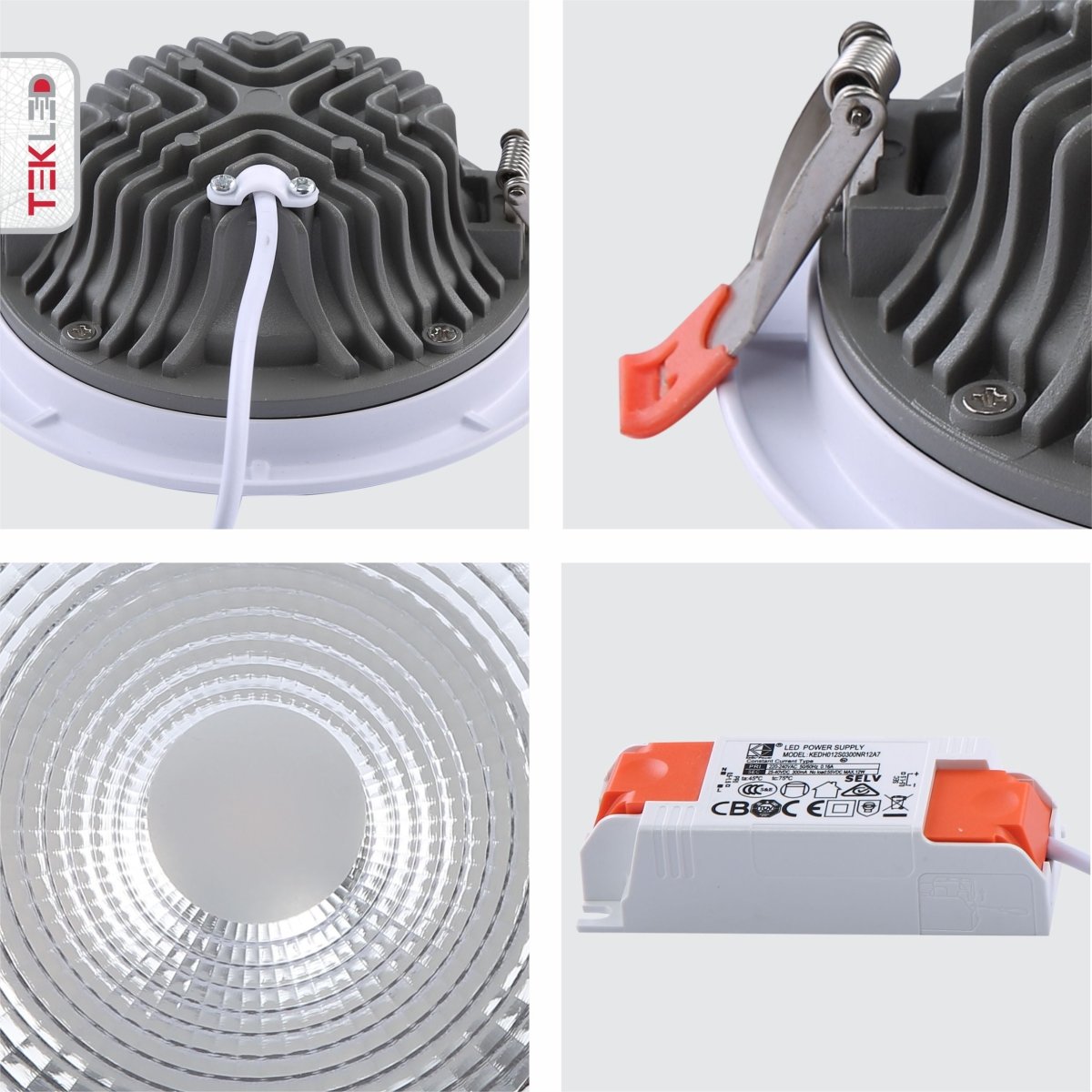

| Driver Brand | KeGu | LIFUD |
| Driver Type | Constant Current Driver |
| Driver Power | 12W | 21W | 30W |
| Driver Input Voltage | 220~240V AC 50/60Hz |
| Driver Output Voltage | 25-40V DC | 27-42V DC | 33-40V DC |
| Driver Output Current | 300mA | 500mA | 750mA |
| Surge Protection Level | 1kV |
| Power Factor | pf>0.5 | pf>0.5 | pf>0.9 |
| Control | On/Off |
| Operating Temperature (C) | -20/+45C |
| New Energy Rating | F | E | F |
| Energy Rating Range | A-G |
| Warranty | 3 year |
| Life Span | 36000h |
| Net Weight | 280g | 0.55kg | 0.7kg |
| Gross Weight | 320g | 0.62kg | 0.79kg |
| Box Dimension (LxWxH) | 140x140x70mm | 210x205x75mm | 235x235x75mm |
| Box Content | 1 pc Lamp Body , 1 pc Instruction |
| Certifications | UKCA, CE (LVD, EMC) |
