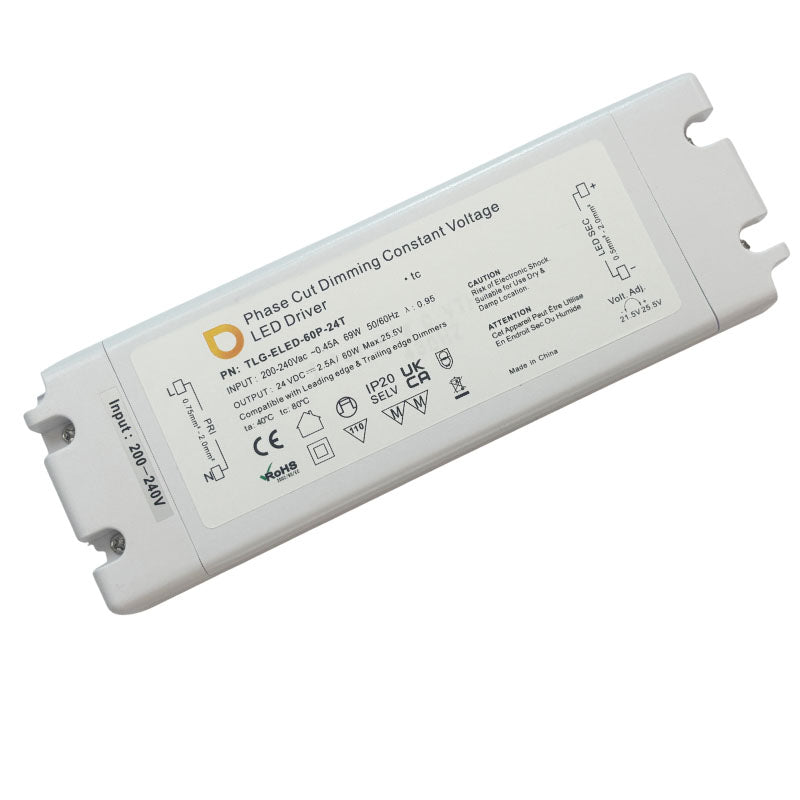

Constant Voltage LED Driver 60W 24V DC IP20 TRIAC Dimmable 180-240V TLG-ELED-60P-24T
4729
£47.29
Unit price perEstimated delivery between June 20 and June 22.
| Product Details - Model: TLG-ELED-60P-24T | |
|---|---|
| Features | |
|
• Output constant voltage • Range AC input: 200-240VAC • Efficiency: up to 85% • Protections: Short circuit / Over loading / Over current / Over temperature • Full protection plastic housing easy installation • IP20 design for indoor installation • Cooling by free air convection • Work with leading edge and trailing edge TRIAC dimmers • Strong compatibility, flicker-free dimming • Suitable for LED lighting and moving sign application |
|
| Output Specifications | |
| DC Voltage | 24V |
| Voltage Tolerance | ±0.5V |
| Rated Current | 1.25A |
| Rated Power | 60W |
| Input Specifications | |
| Voltage Range | 200-240VAC |
| Frequency Range | 47-63Hz |
| Full Load Efficiency | 85% |
| AC Current (Max.) | 0.38A |
| Leakage Current | <0.50mA |
| Power Factor |
PF≧0.98/200VAC PF≧0.98/230VAC PF≧0.98/240VAC (Full Loading) |
| Protection | |
| Short Circuit | Shut down o/p voltage, re-power on to recover after fault is removed |
| Over Loading | ≤120%, hiccup mode, recovers automatically after fault is removed |
| Over Current | ≤1.2 × I out |
| Over Temperature | 100°C ±10°C, shut down o/p voltage, re-power on to recover |
| Environment | |
| Working Temperature | -40 ~ +70℃ |
| Working Humidity | 20-90% RH, non-condensing |
| Storage Temperature & Humidity | -40 ~ +80℃, 10-95% RH |
| Temperature Coefficient | ±0.03%/°C (0-50°C) |
| Vibration | 10-500Hz, 2G 10min/1 cycle, 72min each on X, Y, Z axes |
| Safety & EMC | |
| Safety Standards | EN61347-1, EN61347-2-13 |
| Withstand Voltage | I/P-O/P: 3.75KVAC |
| Isolation Resistance | I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH |
| EMC Emission | Compliance to EN55015, EN61000-3-2,3 (>60% load) |
| Other Specifications | |
| Net Weight | 0.35 kg |

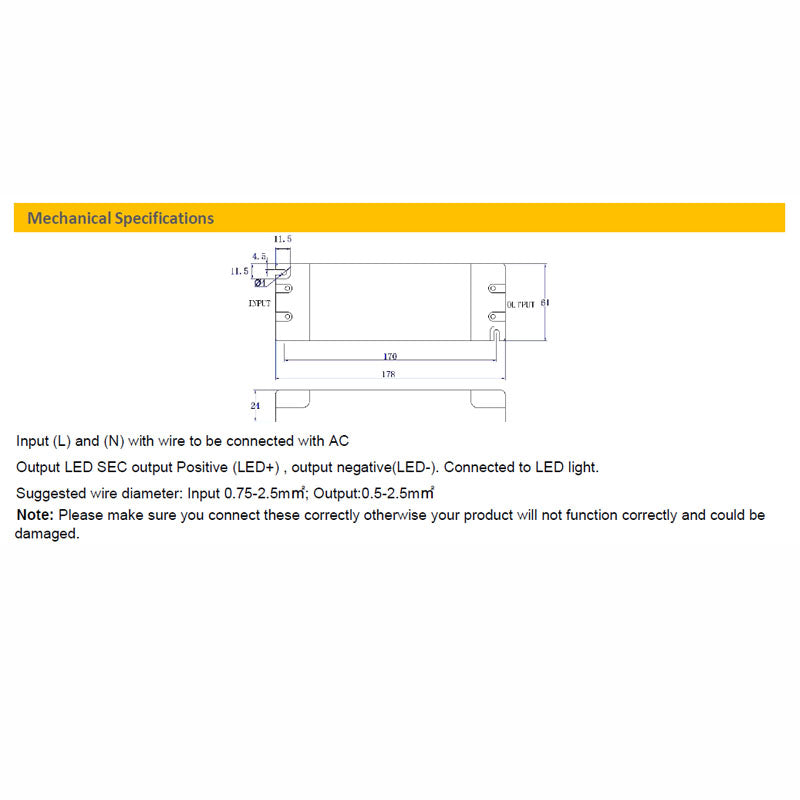

| Size | 178 × 61 × 24 mm (L × W × H) |
| Packing |
185 × 65 × 28 mm (inner box) 290 × 215 × 240 mm (20 PCS/CTN) |
| Notes | |
|
• All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ ambient temperature • Tolerance includes setup tolerance, line regulation, and load regulation • The power supply is a component intended for use with final equipment; final EMC performance must be re-evaluated • Loading range: 10% to 100% |
|
