Magnetic Track Light 48V DC Power Supply
Estimated delivery between October 18 and October 20.

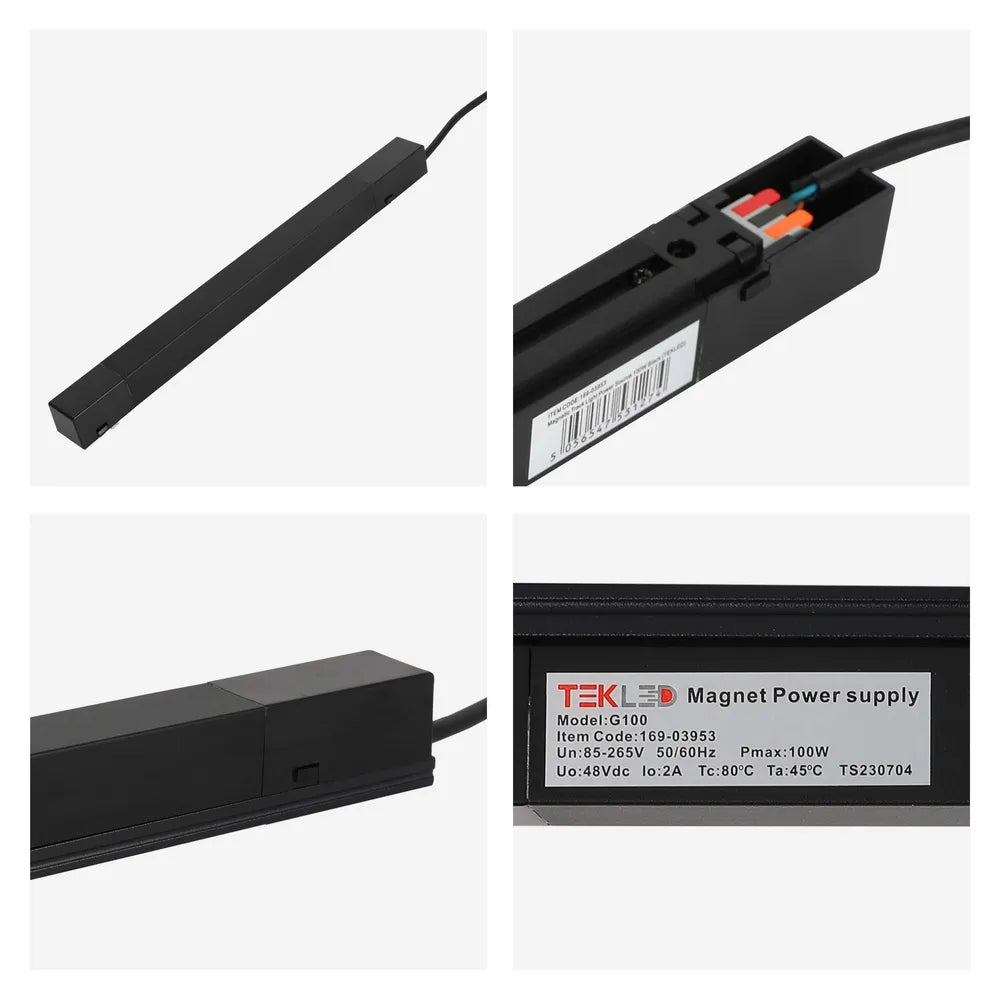

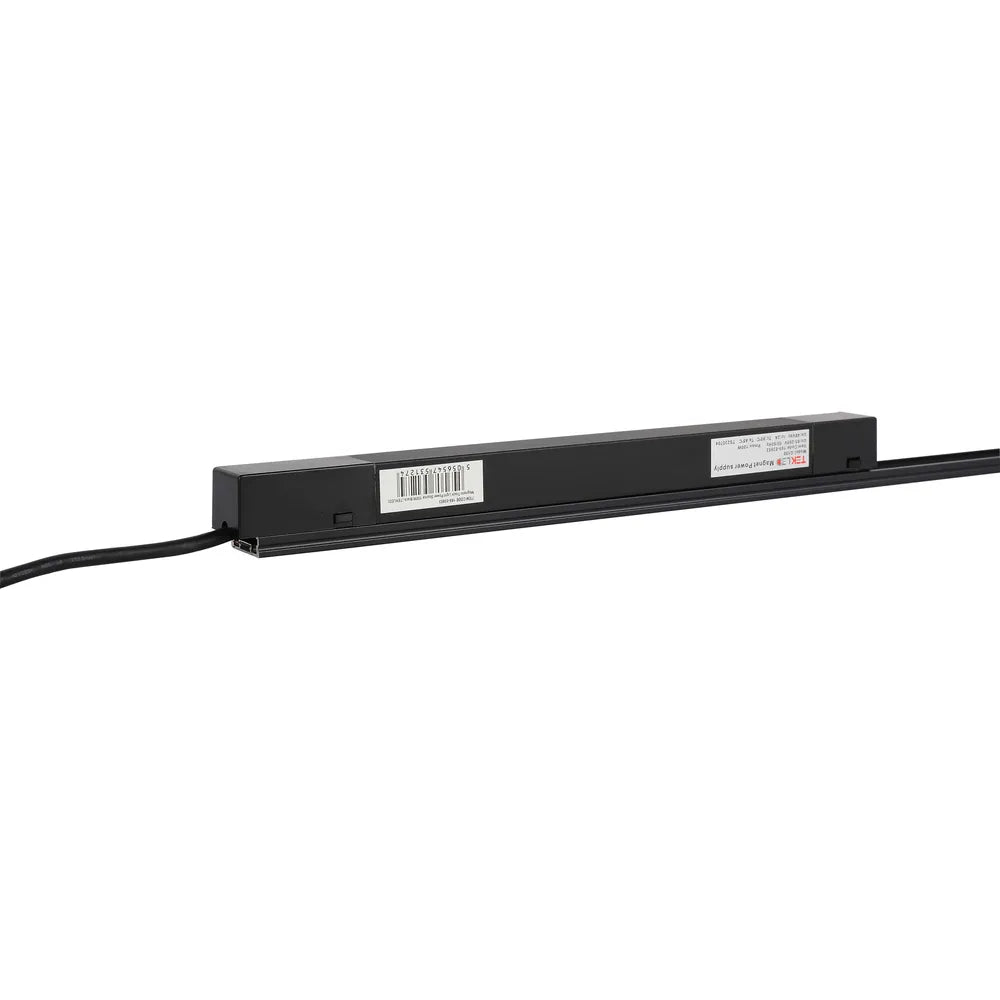

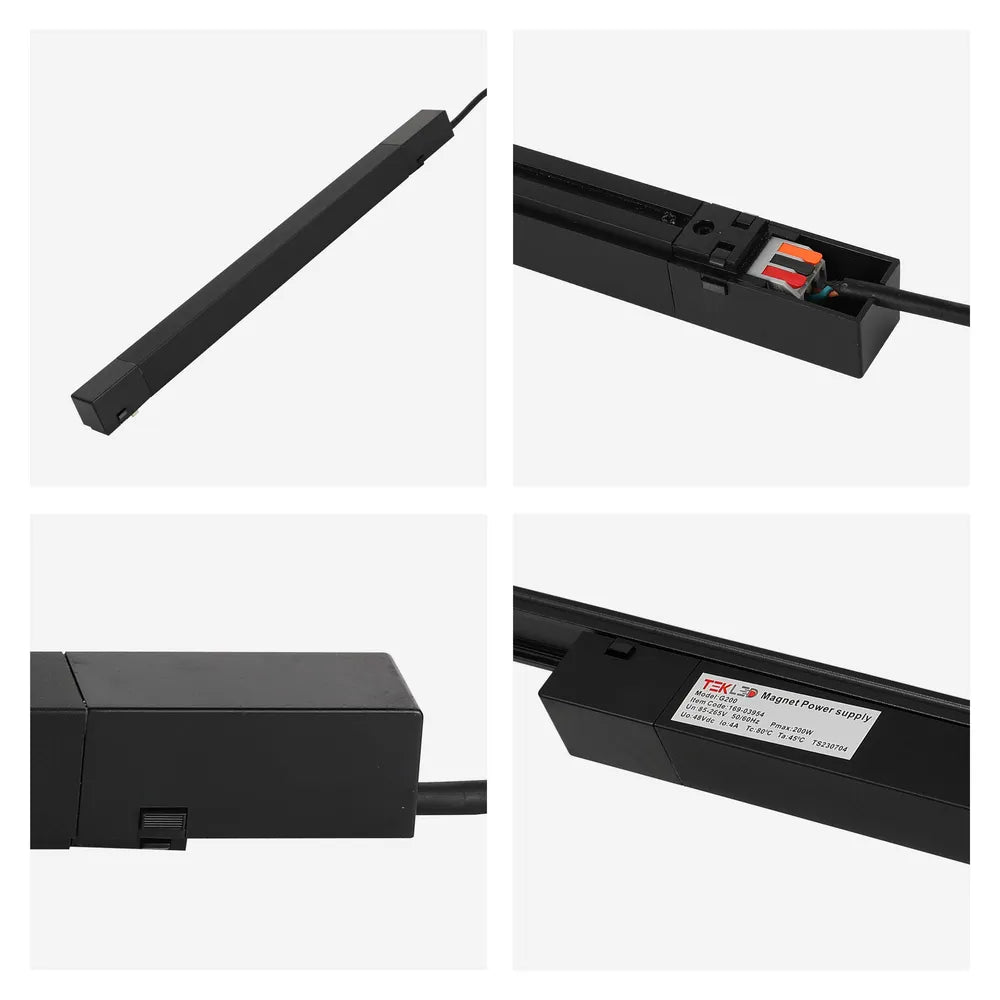

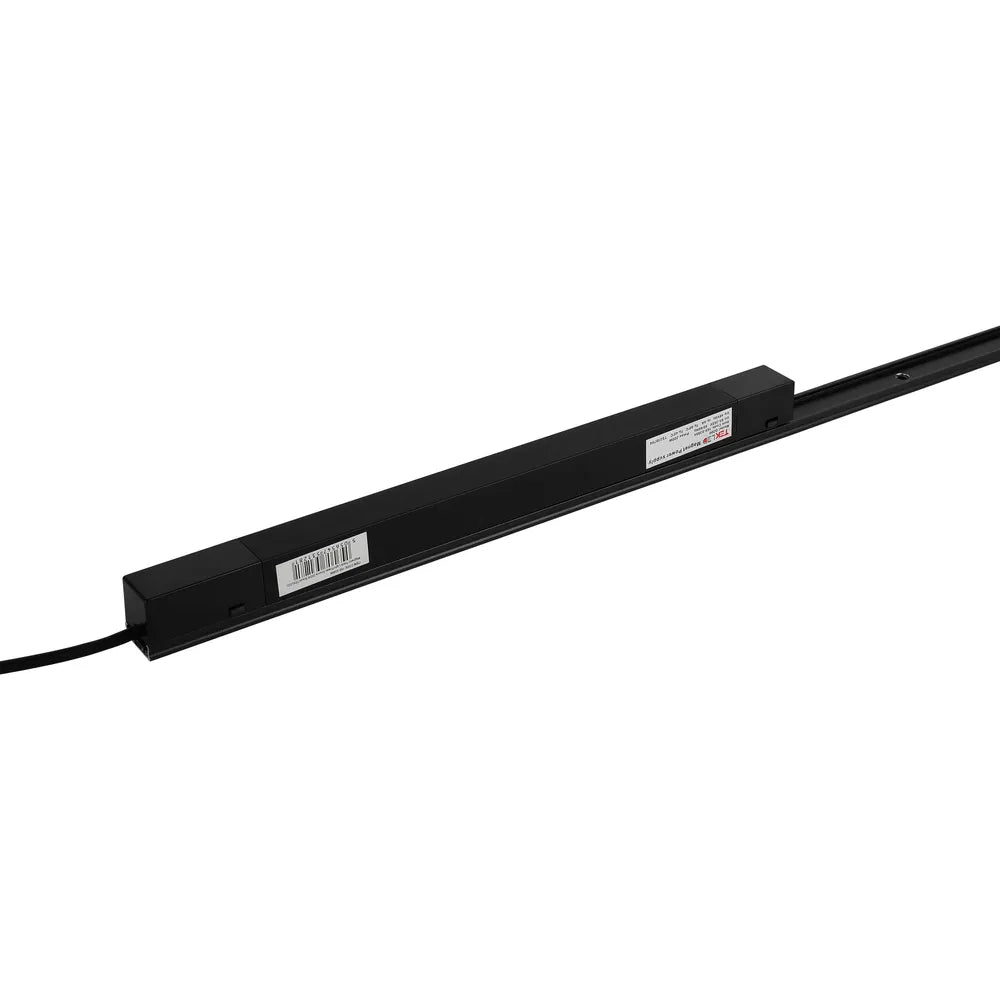

Product Overview
This magnetic track light power supply is a must-have component for your magnetic track lighting system. Available in 100W and 200W, it provides a safe and reliable power source for your lights. Its sleek, black design blends seamlessly with any track, ensuring a clean and professional look.
Key details at a glance:

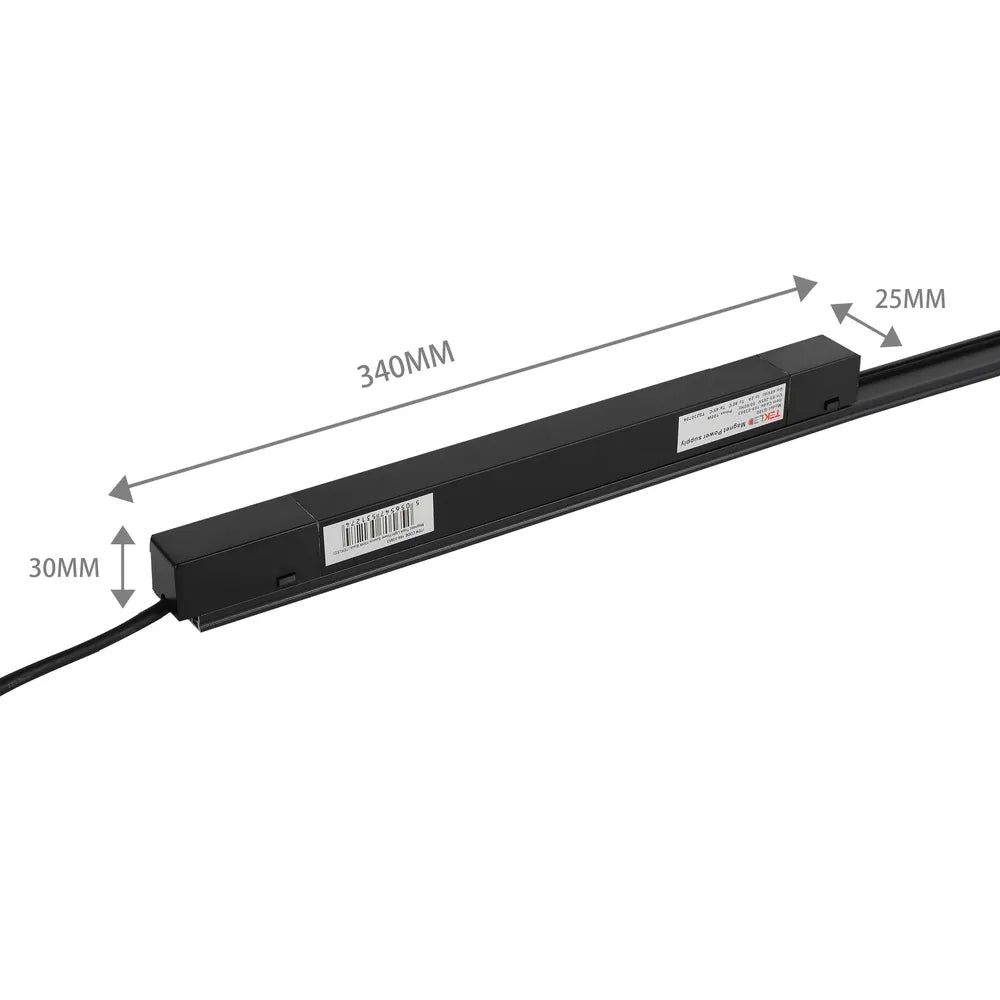

- Dimensions: 342mm (L) x 25mm (W) x 33mm (H)
- Power: 100W or 200W
- Voltage: 85-265V AC 50/60Hz
- Output Voltage: DC 48V
- Lifespan: 30,000 hours
For more details, see the full technical specifications on the corresponding tab.
Technical Specifications
| Product Code | 169-03953 | 169-03954 |
| Power | 100W | 200W |
| Power Source | Hardwired |
| Voltage | 85-265V AC 50/60Hz |
| Power Factor | pf>0.6 |
| Protection Class | Class I |
| IP Class | IP20 |
| Mount Type | Magnetic track |

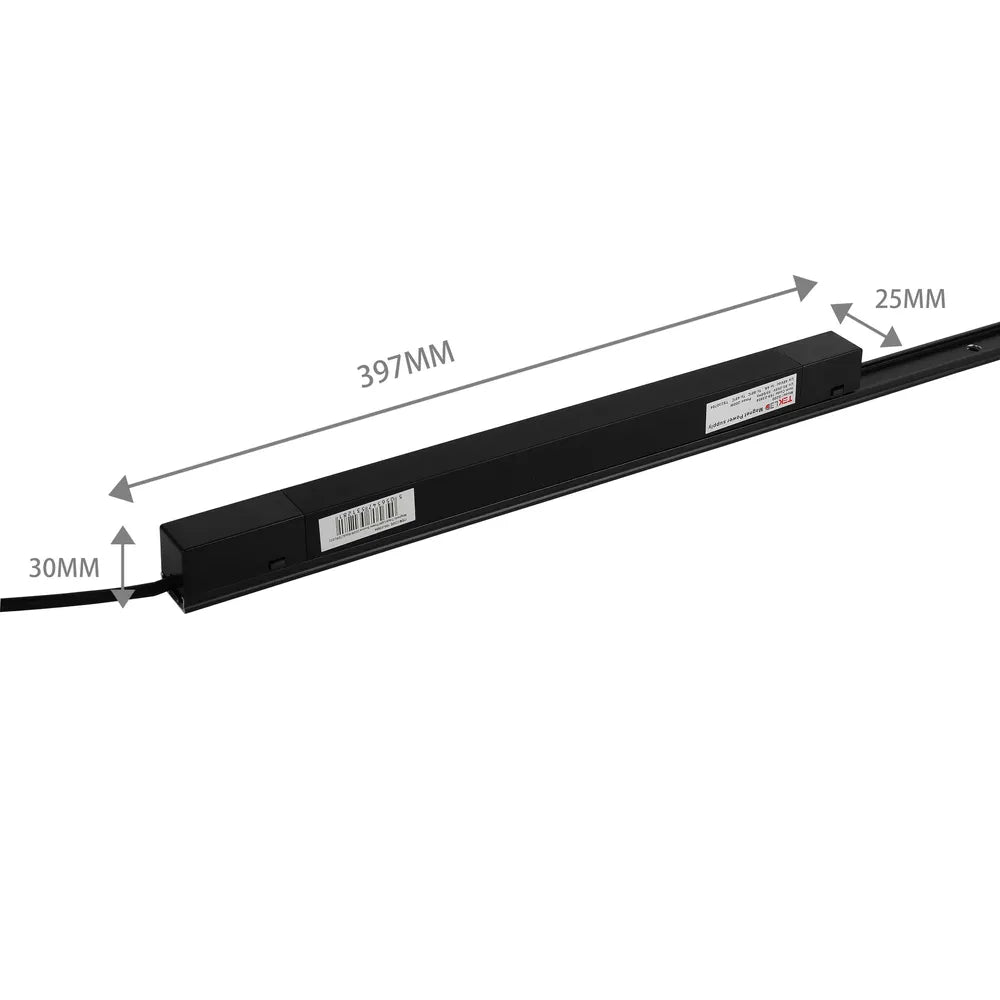

| Product Dimensions (L x W x H) (D x H) | 342*25*33mm | 400*25*33mm |
| Product Length | 342mm | 400mm |
| Made Of Materials | Aluminium, PC |
| Product Colour | Black |
| Paint Type | Dusting |
| Driver Type | CV Driver |
| Driver Input Voltage | 85-265 | 85-265V |
| Driver Output Voltage | DC 48V |
| Driver Output Current | MAX2000MA | MAX4000MA |
| Operating Temperature (°C) | -20/+45 C |
| Warranty | 3 year |
| Life Span | 30000h |
| Box Dimension (L x W x H) | 350*38*35mm | 410*38*35mm |
| Net Weight | 0.34kg | 0.49kg |
| Gross Weight | 0.37kg | 0.53kg |
| Box Content | 1PC Magnetic Track Light Power Source |
| Pieces/Box | 1 |
| Certifications | CE |
| Name | Magnetic Track Light Power Source 100W Black(TEKLED) | Magnetic Track Light Power Source 200W Black(TEKLED) |
