PW2 MiBoxer 2-In-1 Controller / Receiver WiFi / 2.4G RF (12V to 48V)
Estimated delivery between August 10 and August 12.

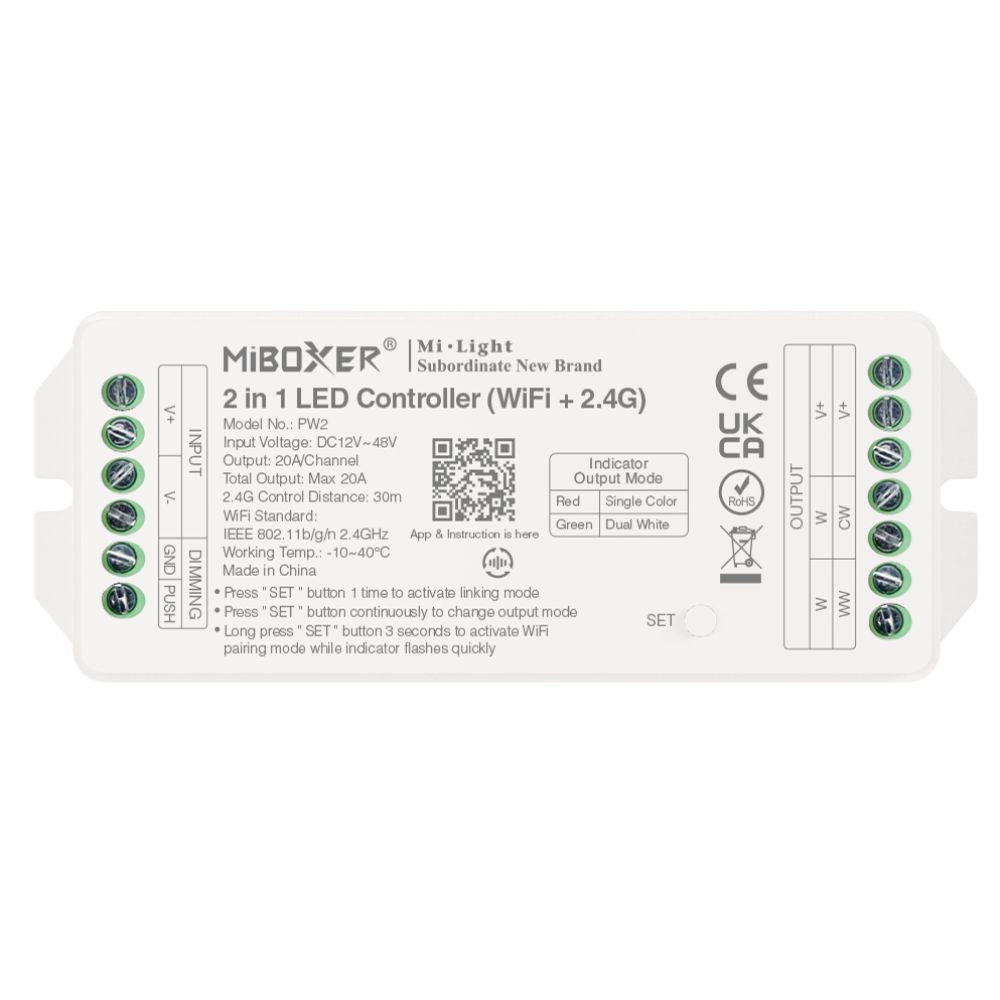

MiBoxer PW2 2-in-1 Single Colour & CCT LED Controller / Receiver — WiFi & 2.4GHz RF (12V–48V DC, 20A)
The MiBoxer PW2 is a versatile 2-in-1 LED controller and receiver for single colour and colour temperature (CCT) LED strips, compatible with 12V to 48V DC systems up to 20A. It can be controlled wirelessly via 2.4GHz RF handsets and wall panels, or through the Tuya app on your smartphone or smart speaker — no gateway required. A push dimming input allows a hard-wired momentary switch to switch and dim connected LED strips directly. The PWM frequency can be set to 16kHz or 250Hz to reduce flicker and banding in photography and video. A mode indicator glows red for single colour and green for CCT (dual colour) mode. Multiple units synchronise wirelessly to form a MESH network, with each receiver passing the signal to the next within a 30-metre range. The do-not-disturb function retains the last lighting state or sets the output to off when power is restored. Suitable for commercial and domestic LED strip installations.
Key Features
- 2-in-1 Single Colour & CCT Control — switch between single colour (red indicator) and dual colour/CCT mode (green indicator) via the set button
- RF + Wi-Fi Control — compatible with 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- Wide Voltage Range — 12V to 48V DC, up to 20A total output
- MESH Networking — units sync wirelessly within 30m, extending range across grouped zones

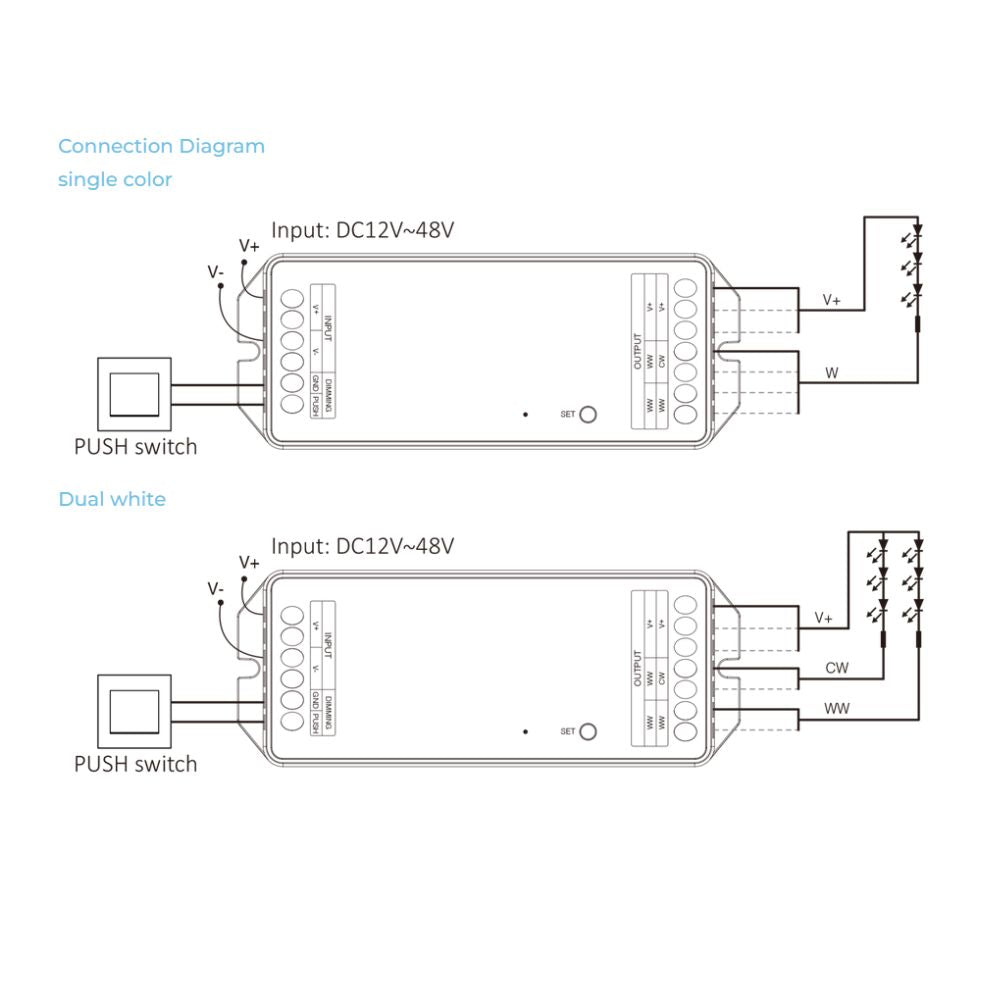

- Push Dimming Input — wire a momentary push switch for manual switching and dimming
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Selectable PWM Frequency — 16kHz or 250Hz to minimise flicker in photography and video
- Do Not Disturb Function — returns to last setting or off state after a power interruption

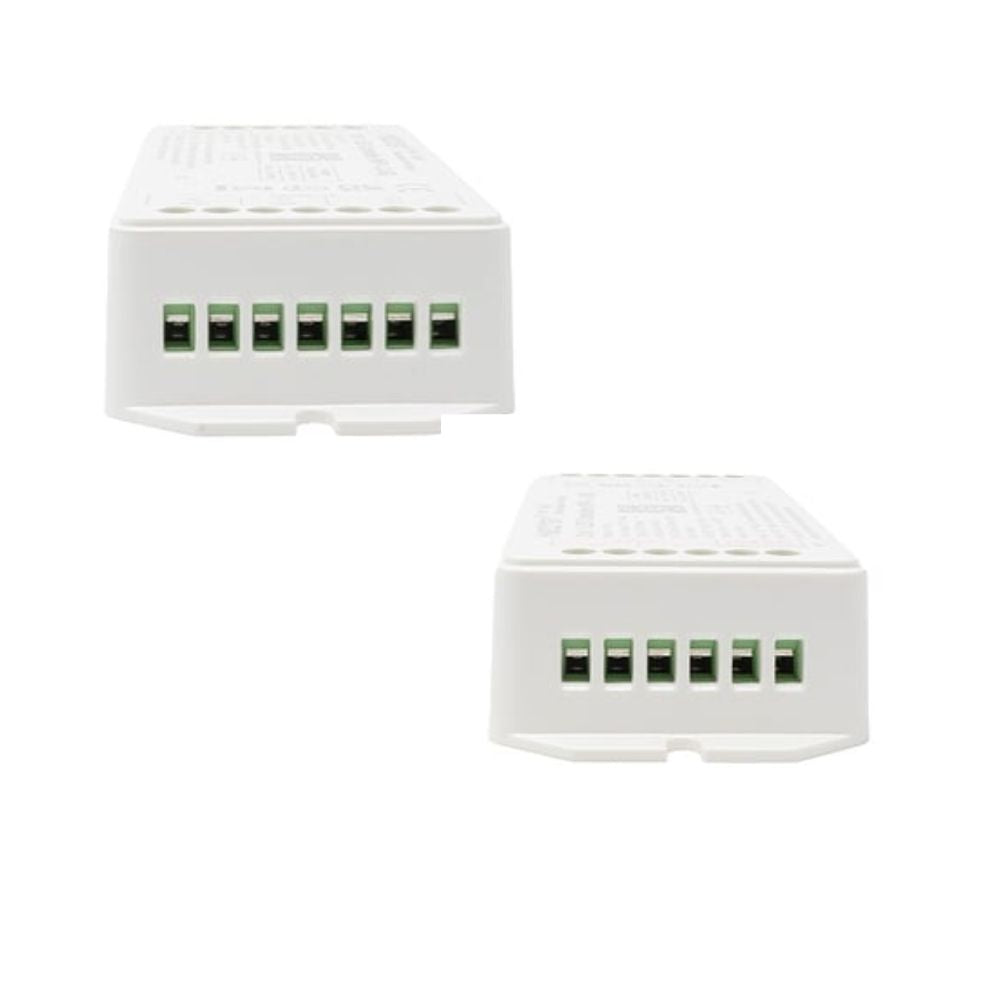

- Fast Latch Lever Connections — tool-free wiring for quick installation
- 5-Year Guarantee
| Product Details — Model: PW2 | |
|---|---|
| Electrical | |
| Input Voltage | 12V – 48V DC |
| Output Voltage | 12V – 48V DC |
| Max Output Current | 20A |
| Output per Channel | 6A |
| Voltage Type | Constant Voltage |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Wireless Range | Up to 30 metres |
| PWM Frequency | 16kHz or 250Hz (selectable) |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Operating Temperature | -10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | PW2 |
| Guarantee Period | 5 Years |
| Packaging | Gift box |

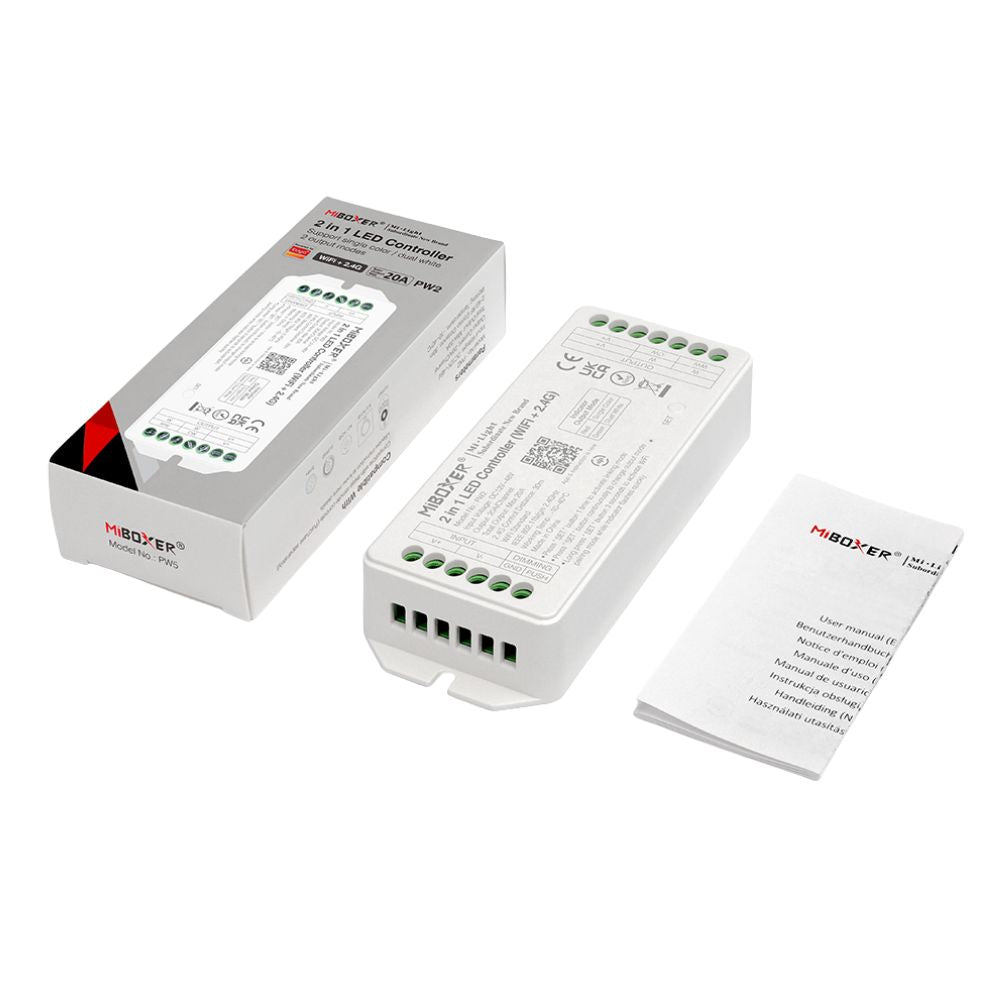

What's in the Box
- 1 x PW2 MiBoxer 2-in-1 Controller / Receiver
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| PW2 MiBoxer 2-In-1 Controller — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
