PW5 MiBoxer 5-In-1 Controller Wi-Fi + 2.4G RF 12V to 48V
Estimated delivery between August 07 and August 09.
5-in-1 LED Controller — RF, Wi-Fi & MESH Networking
This feature rich 5-in-1, 2.4GHz RF and Wi-Fi controller / receiver from Mi-Light can be controlled wirelessly using a compatible 2.4GHz Mi-Light & Mi-Boxer handset or wall panel. It can also connect to your smartphone or smart speaker via the Tuya app — no additional gateway required. The receiver can be set to single channel dimming, colour temperature (CCT), RGB, RGBW, or RGB+CCT modes, and is suitable for 12V to 48V LED strips up to a maximum load of 20A. Multiple receivers can synchronise wirelessly to form a MESH network — signal passes from receiver to receiver (up to 30m apart) with no interconnecting control cables. The “Do Not Disturb” function returns the lighting to full brightness or off state should power be lost and restored. Suitable for both commercial and domestic installations. PWM frequency is adjustable from 250Hz to 16KHz.
Key Features
- 5-in-1 Mode — single dimming, CCT, RGB, RGBW, RGB+CCT
- RF + Wi-Fi Control — compatible with all 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — receivers sync wirelessly, up to 30m between each unit
- Do Not Disturb — returns to last setting or off state after a power interruption
- Wide Voltage Range — 12V to 48V DC, max 20A output
- Adjustable PWM Frequency — 250Hz to 16KHz
- 5-Year Guarantee
| Product Details — Model: PW5 | |
|---|---|
| Electrical | |
| Input Voltage | 12V – 48V DC |
| Output Voltage | 12V – 48V DC |
| Max Output Current | 20A |
| Voltage Type | Constant Voltage |
| PWM Frequency | 250Hz – 16KHz (adjustable) |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Frequency Range | 2.4GHz |
| Wireless Range | Up to 30 metres |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Operating Temperature | −10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| LED Strip Brands | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | PW5 |
| Guarantee Period | 5 Years |
| Packaging | Gift box |

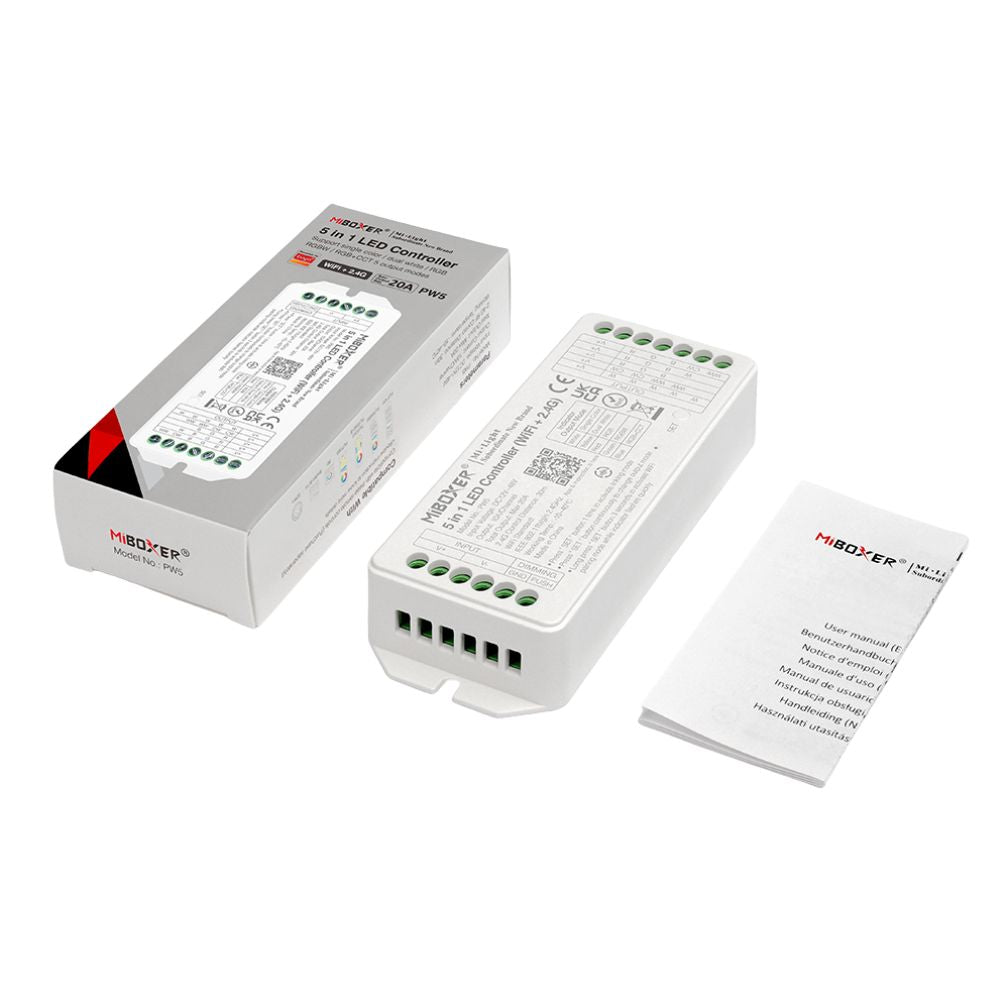

What’s in the Box
- PW5 Receiver / Controller
- Instruction manual
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| PW5 MiBoxer 5-in-1 Controller — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
