TRI-C1WR AC Triac Dimmer (WiFi+2.4G+Push)
Estimated delivery between August 10 and August 12.
AC Triac Dimmer with Wi-Fi, 2.4GHz RF & Push Switch Control (300W)

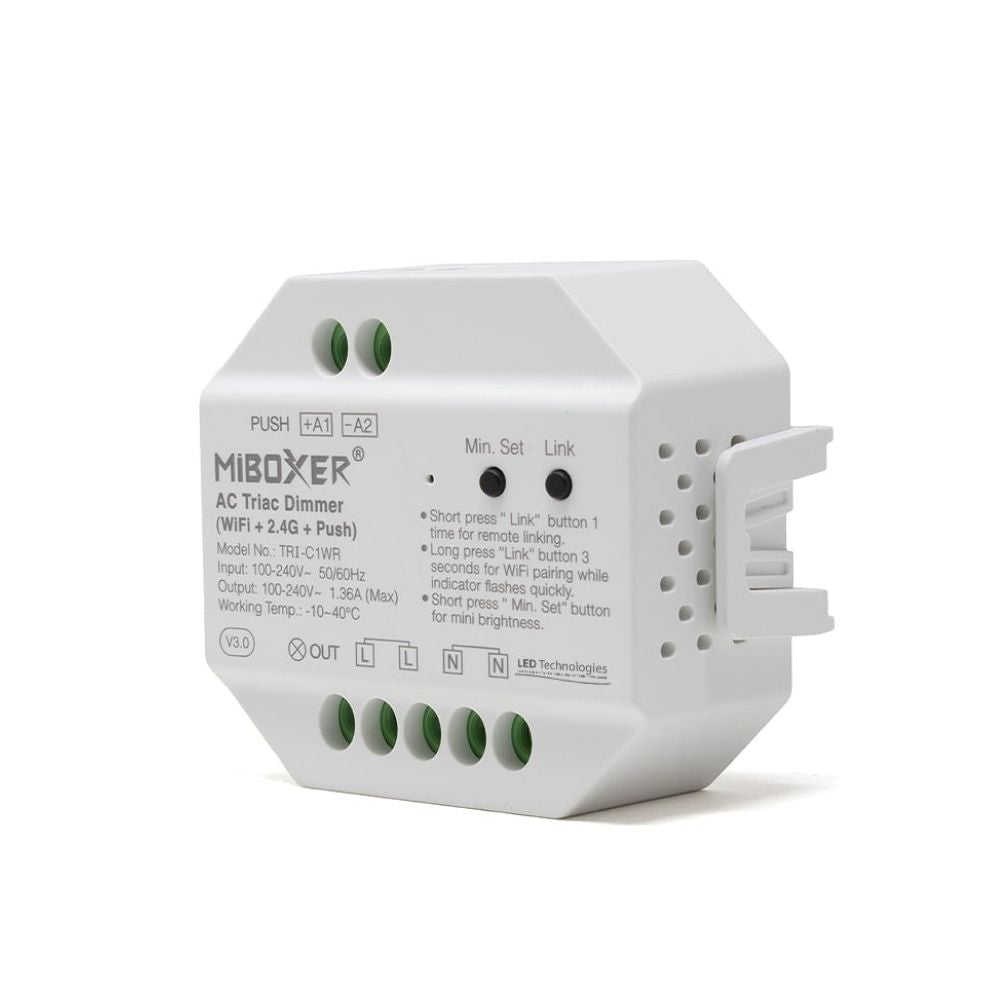

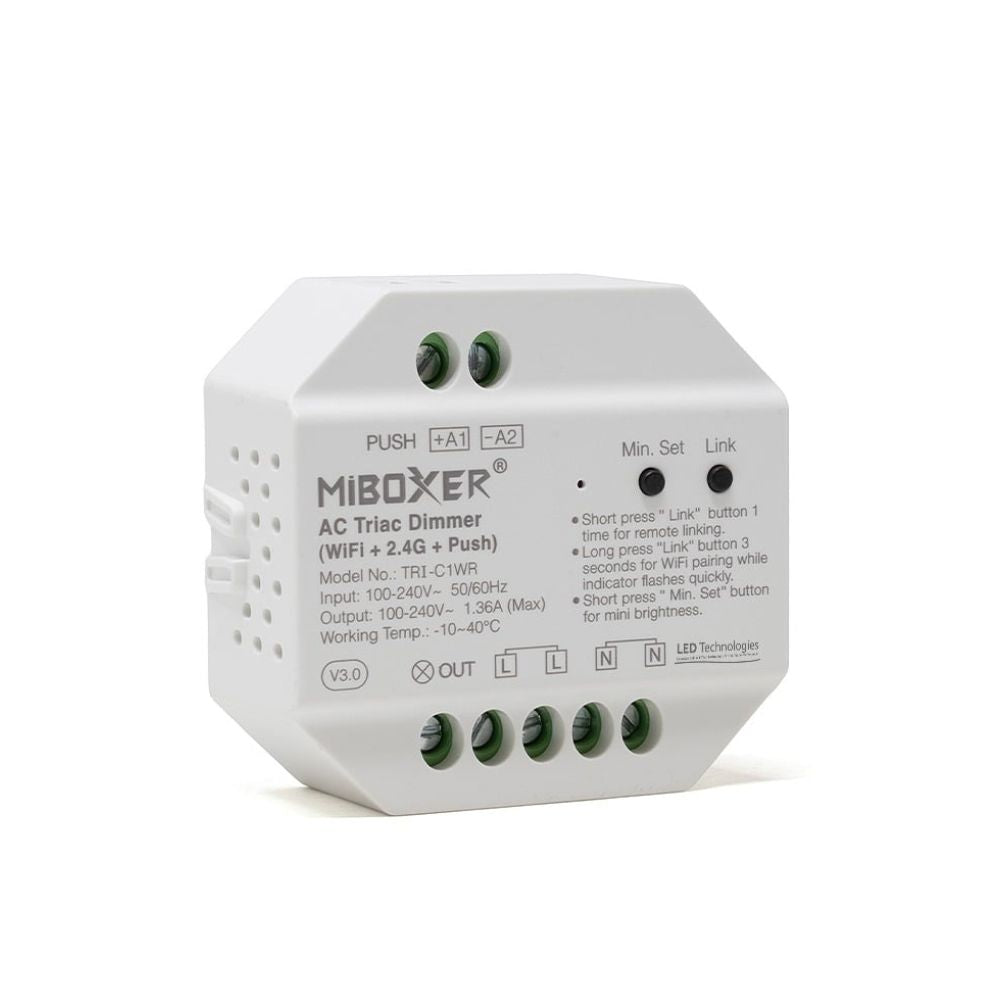

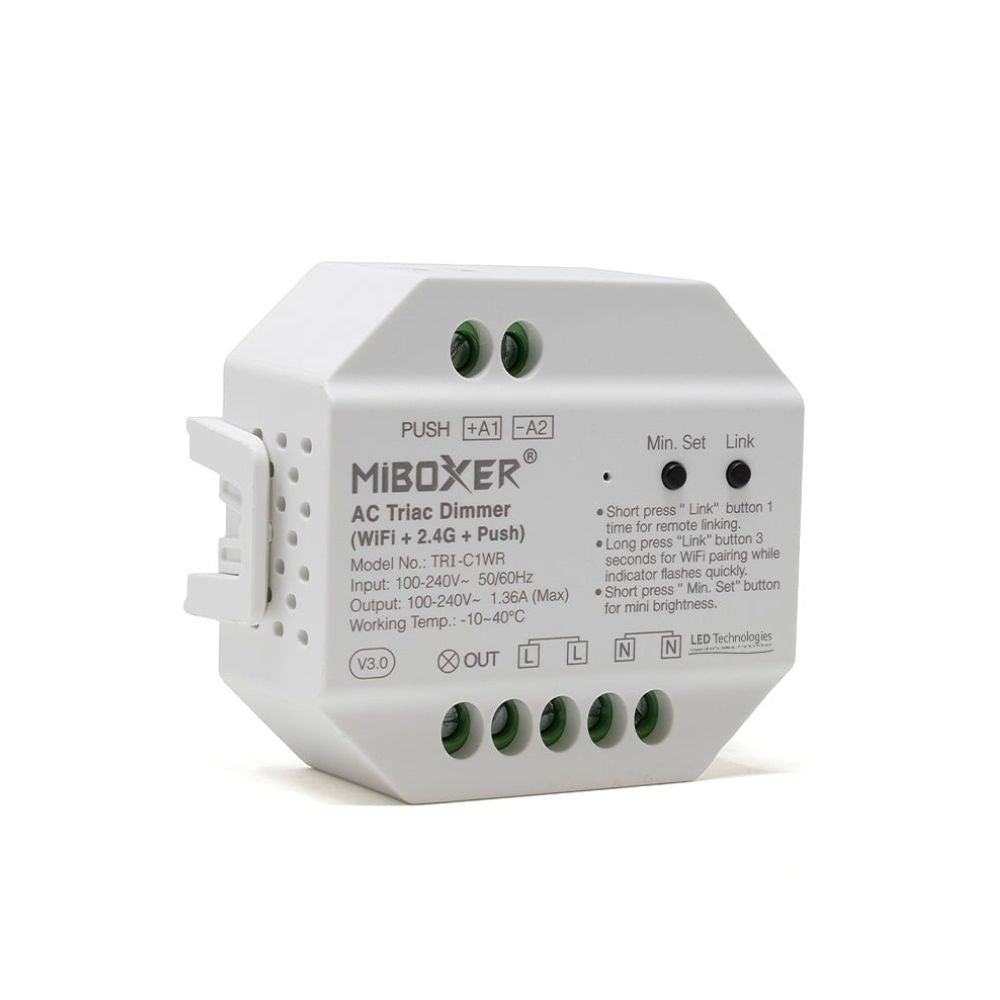

The MiBoxer TRIC1WR is a compact AC Triac dimmer for controlling mains-powered dimmable lighting wirelessly via 2.4GHz RF handsets, wall panels, or the Tuya app on your smartphone or smart speaker — no gateway required. It supports mains voltages from 100V to 240V AC and can dim loads up to 300W at 220V AC. A hard-wired push switch input allows a momentary switch to be connected directly to the unit for manual on/off and dimming control. Multiple units can synchronise wirelessly to form a MESH network, passing the signal from one unit to the next within a 30-metre range. A minimum brightness setting allows lighting to be pre-set to dim down to a defined level, and the do-not-disturb function returns the unit to its last setting or off state when power is restored. Suitable for commercial and domestic dimmable lighting installations.
Key Features
- AC Triac Dimmer — dims mains-powered dimmable lighting from 100V–240V AC up to 300W
- RF + Wi-Fi Control — compatible with 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — units sync wirelessly within 30m, extending range across grouped zones

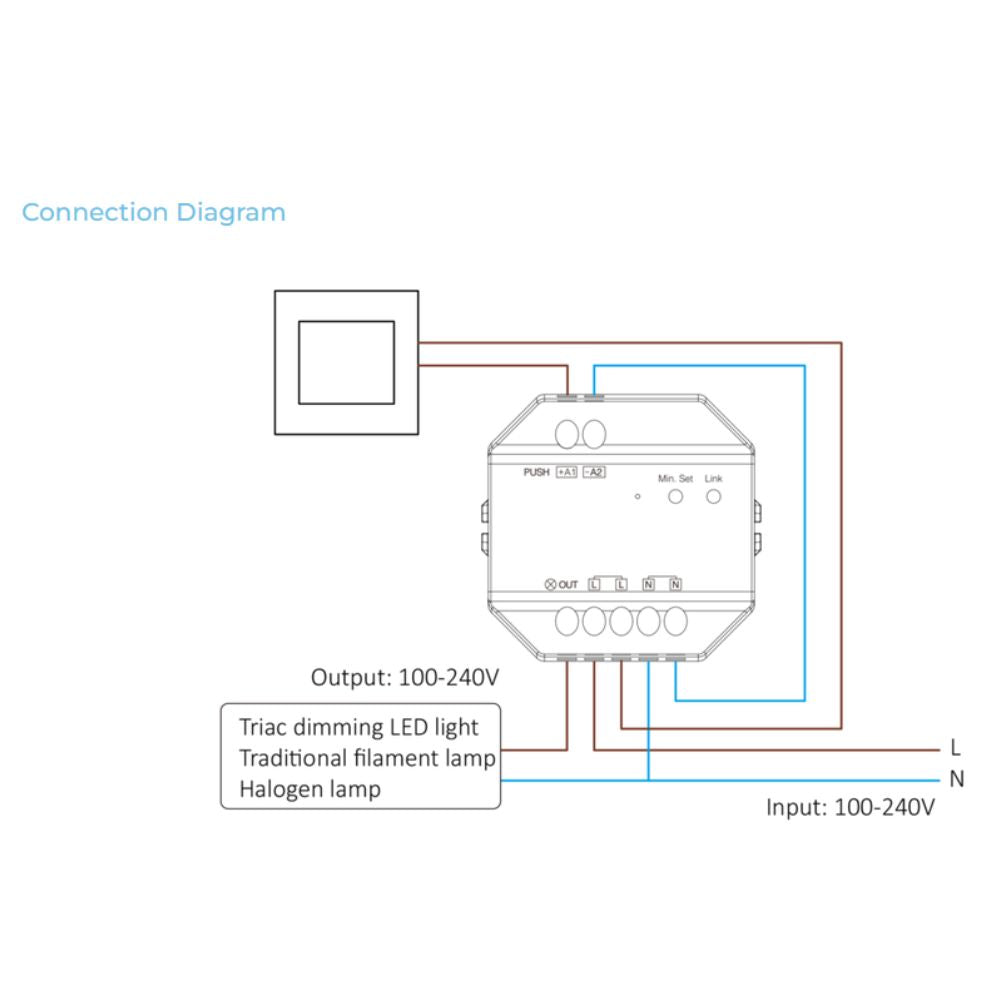

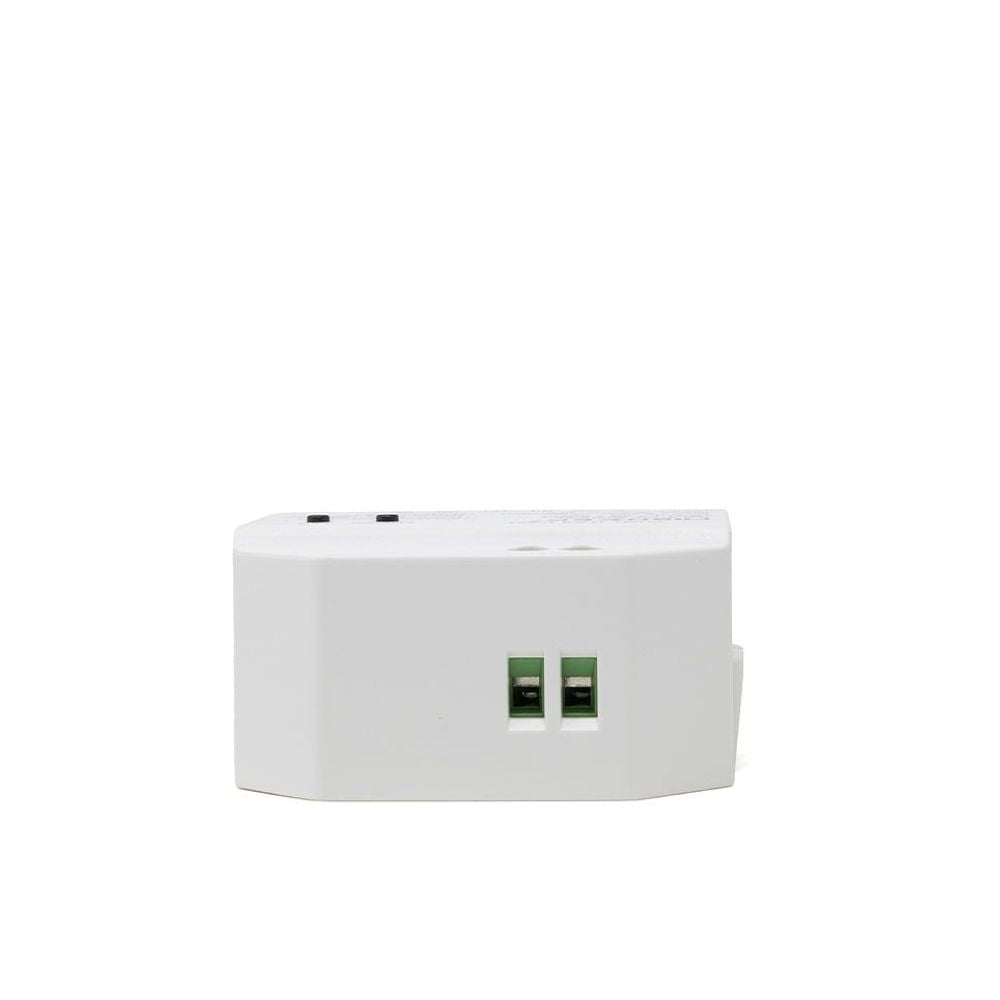

- Push Switch Input — wire a momentary push switch directly to the unit for manual on/off and dimming
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Minimum Brightness Setting — pre-set a minimum dim level to suit your installation
- Do Not Disturb Function — returns to last setting or off state after a power interruption
- 5-Year Guarantee
| Product Details — Model: TRIC1WR | |
|---|---|
| Electrical | |
| Input Voltage | 100V – 240V AC |
| Output Voltage | 100V – 240V AC |
| Max Output Current | 1.36A |
| Max Load | 300W at 220V AC |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Wireless Range | Up to 30 metres |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |

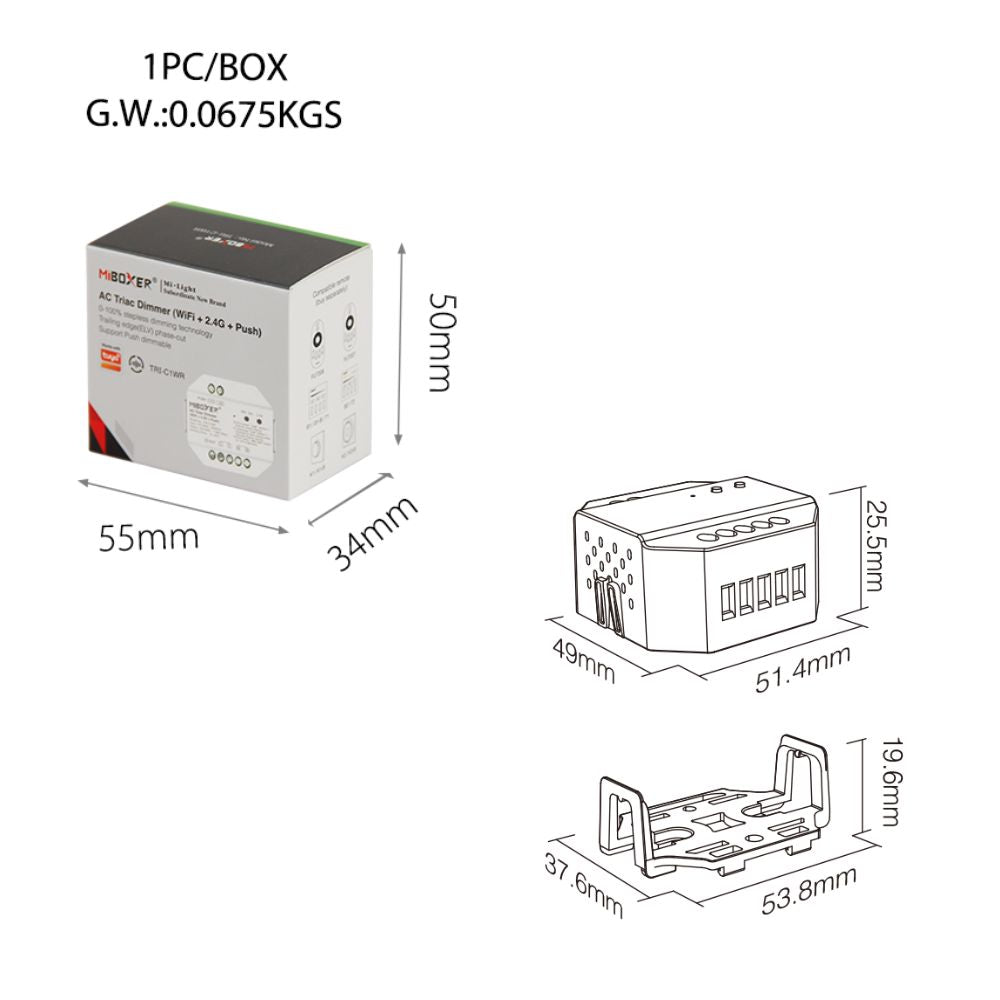

| Dimensions | 49mm x 51.4mm x 25.5mm (without bracket); Bracket: 37.6mm x 53.8mm x 19.6mm |
| Operating Temperature | -10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | TRIC1WR |
| Guarantee Period | 5 Years |
| Packaging | Gift box |

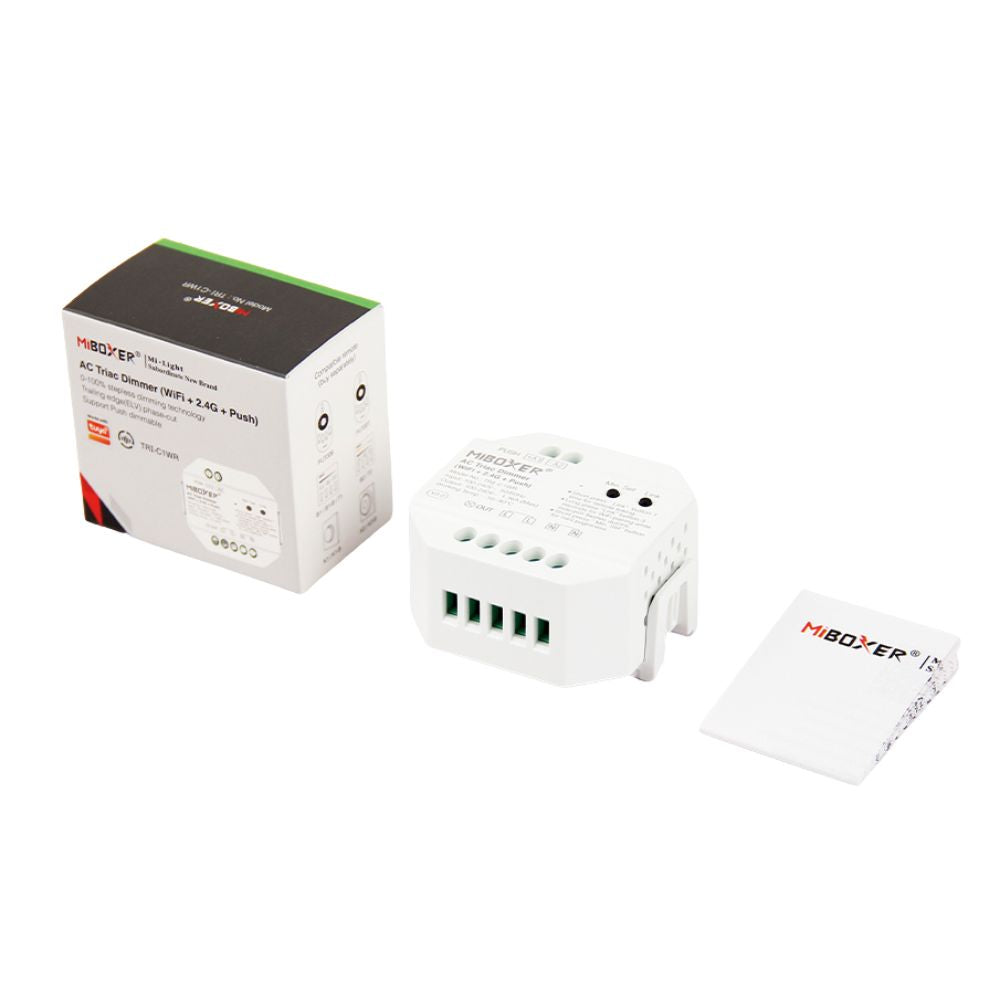

What's in the Box
- 1 x TRIC1WR MiBoxer AC Triac RF / Wi-Fi + Push Dimmer

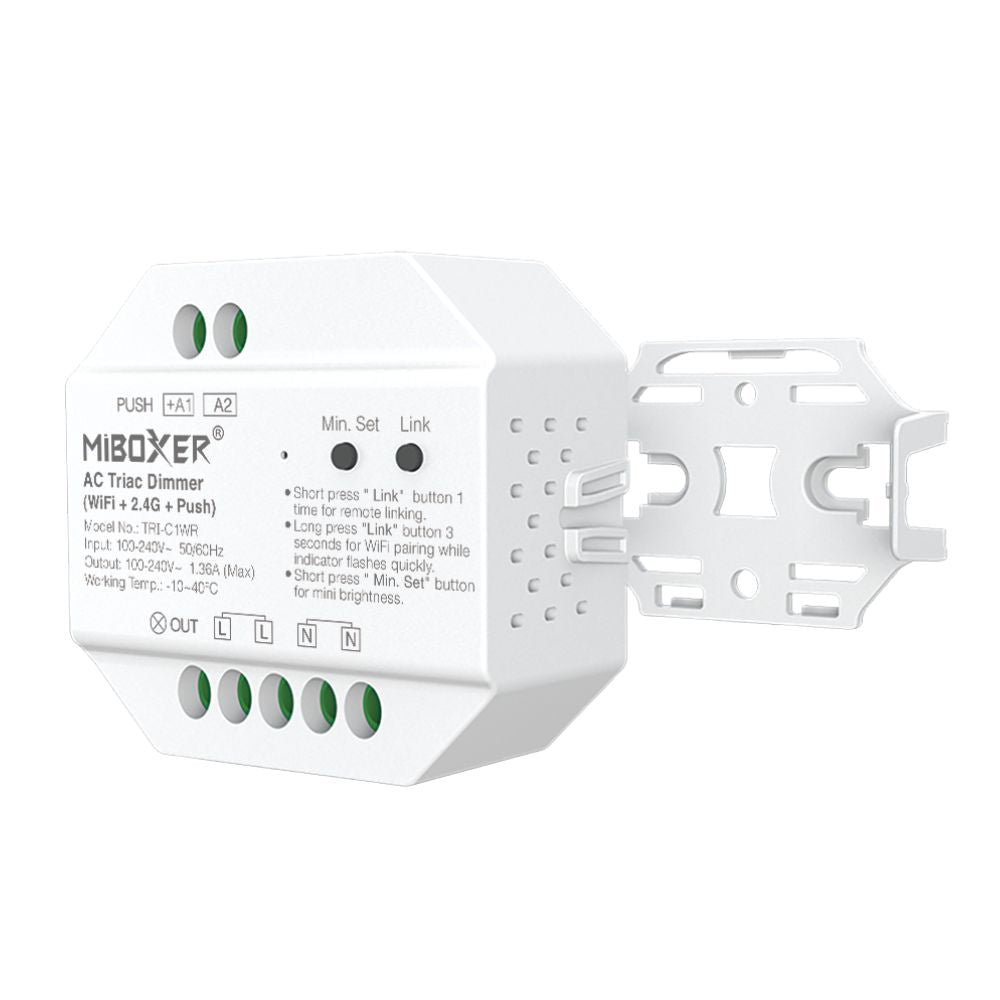

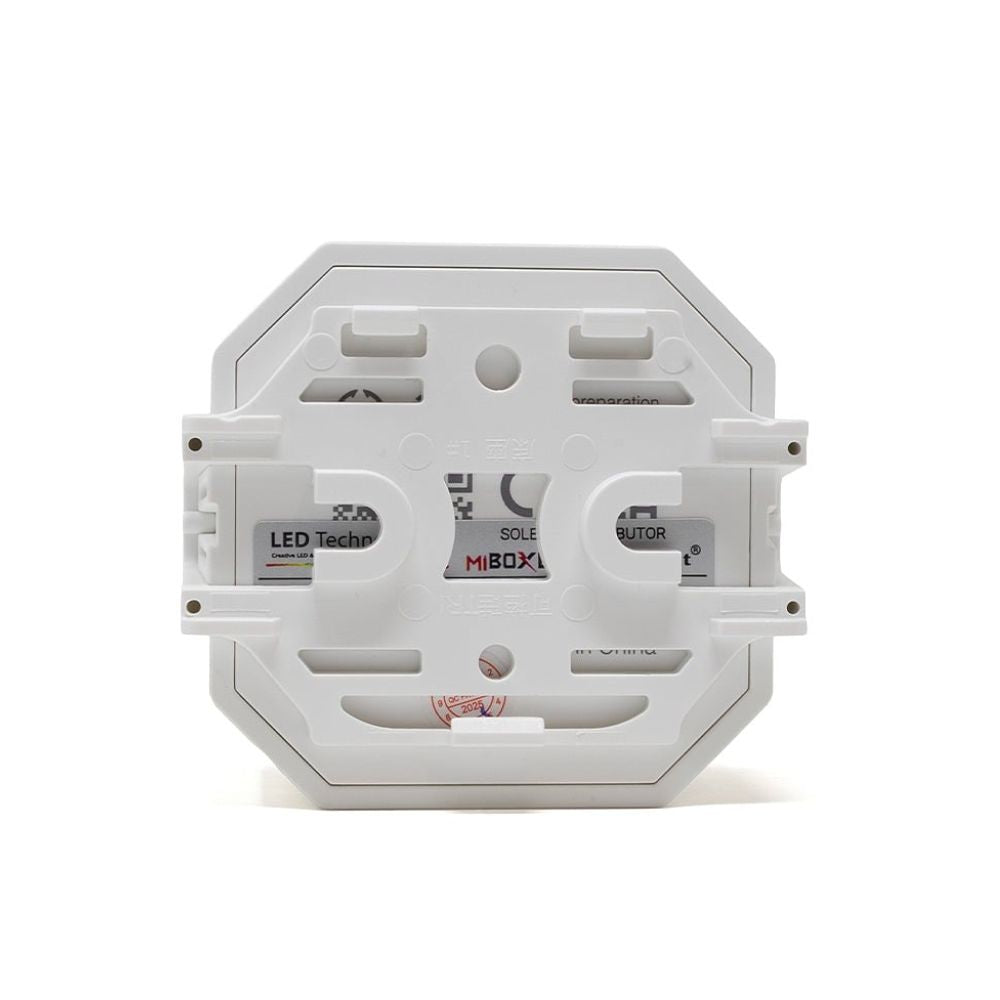

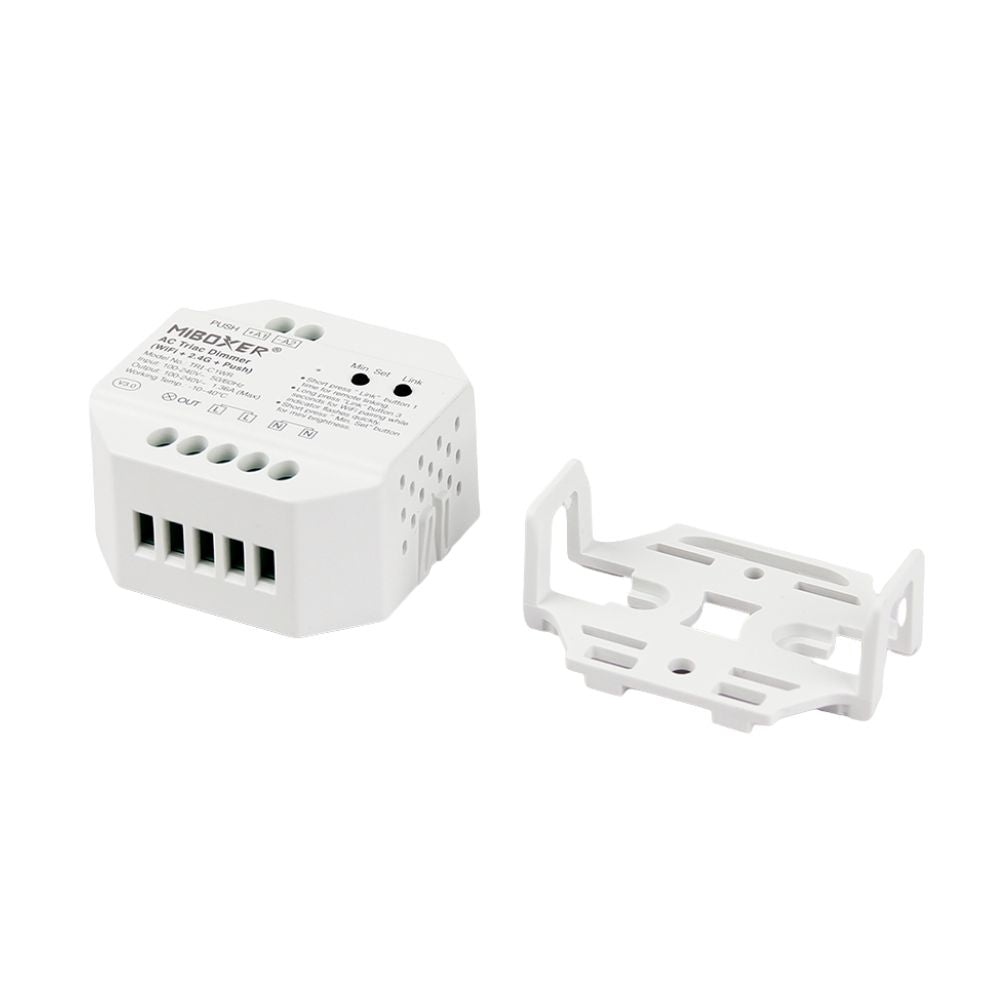

- Mounting bracket
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| TRIC1WR MiBoxer AC TRIAC Dimmer — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
