WLSW1 MiBoxer WiFi & 2.4G Smart Switch
Estimated delivery between August 09 and August 11.
Wi-Fi & 2.4GHz RF Smart Mains Switch with MESH Networking (10A)
The MiBoxer WLSW1 is a compact smart switch for controlling mains-powered devices wirelessly via 2.4GHz RF handsets, wall panels, or the Tuya app on your smartphone or smart speaker — no gateway required. It supports mains voltages from 100V to 240V AC and can switch loads up to 10A. A hard-wired push switch input allows a momentary switch to be connected directly to the unit for manual on/off control. Multiple units can synchronise wirelessly to form a MESH network, passing the signal from one unit to the next to extend range indefinitely. Timers and routines can be configured via the Tuya app. Suitable for commercial and domestic installations.
Key Features
- Mains Smart Switch — controls 100V–240V AC devices up to 10A
- RF + Wi-Fi Control — compatible with 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — units sync wirelessly, extending range indefinitely
- Push Switch Input — wire a momentary push switch directly to the unit for manual control
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Timers & Routines — schedule on/off times via the Tuya app
- Compact Design — 49mm x 49mm x 25mm
- 5-Year Guarantee
| Product Details — Model: WLSW1 | |
|---|---|
| Electrical | |
| Input Voltage | 100V – 240V AC |
| Output Voltage | 100V – 240V AC |
| Max Output Current | 10A |
| Total Output | Max 15A |
| Output per Channel | 6A |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Wireless Range | Up to 30 metres |
| Transmitting Power | 6dBm |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Dimensions | 49mm x 49mm x 25mm |
| Operating Temperature | -20°C to +60°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | WLSW1 |
| Guarantee Period | 5 Years |
| Packaging | Gift box |

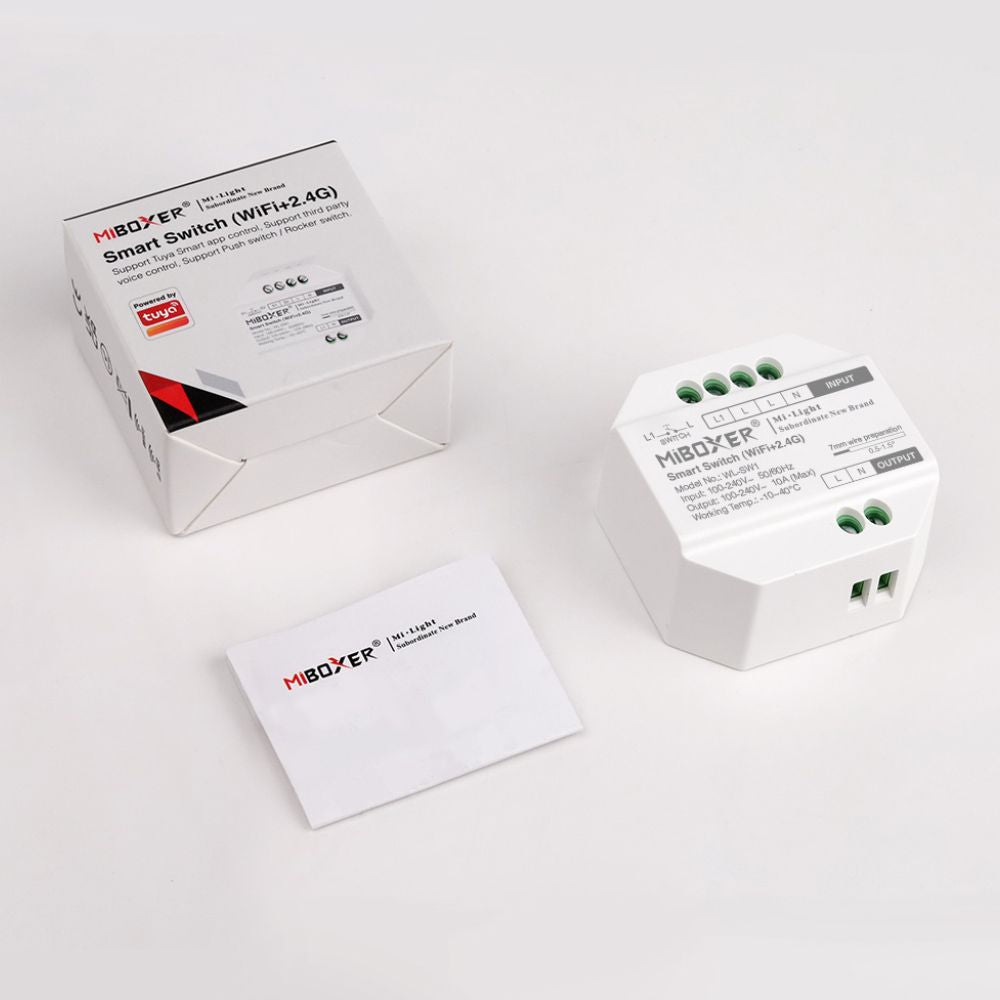

What's in the Box
- 1 x WLSW1 Wi-Fi & 2.4GHz Smart Switch
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| WLSW1 MiBoxer WiFi & 2.4G Smart Switch — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
