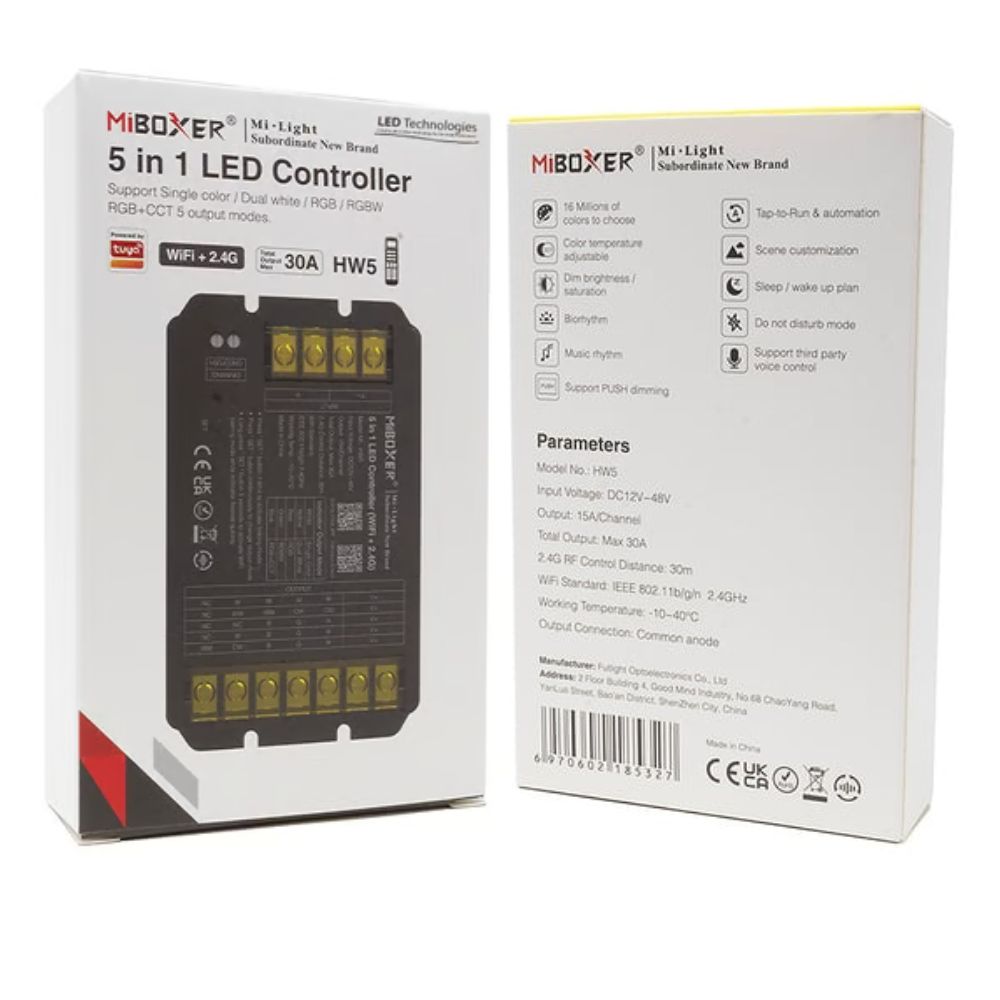

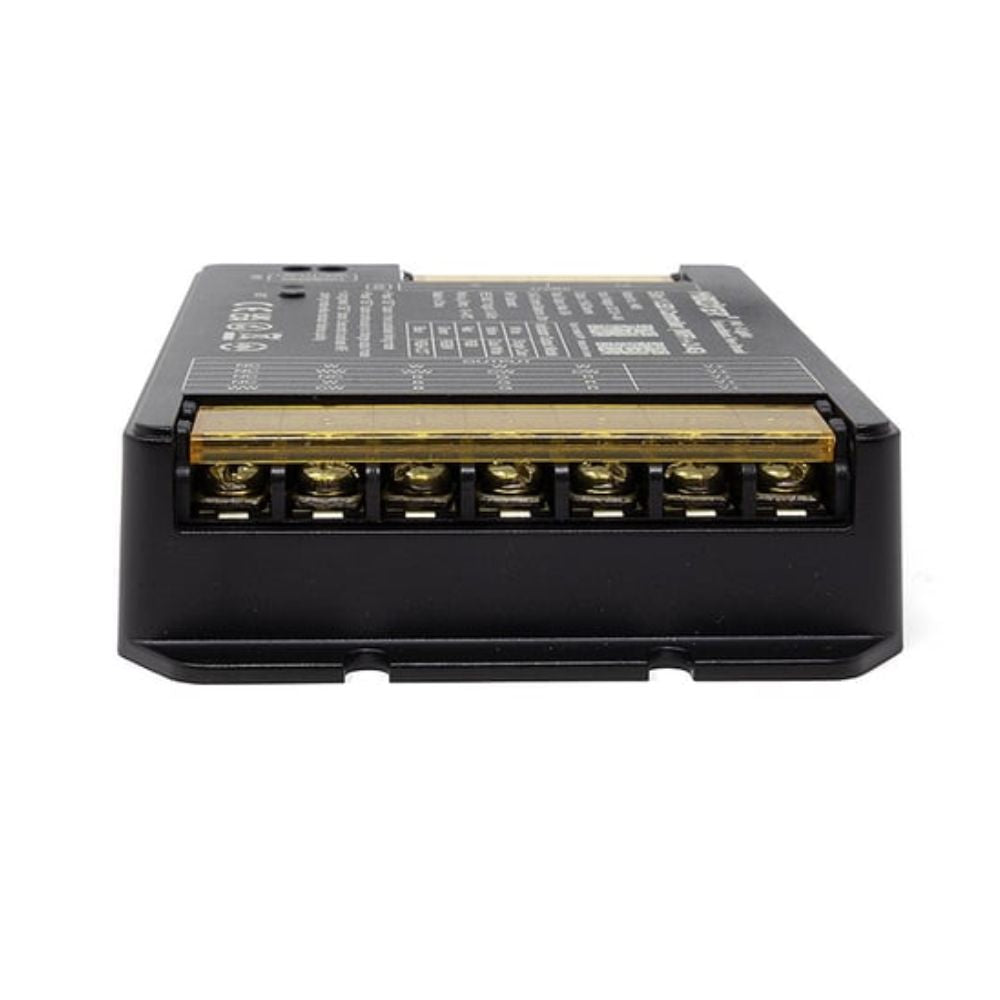

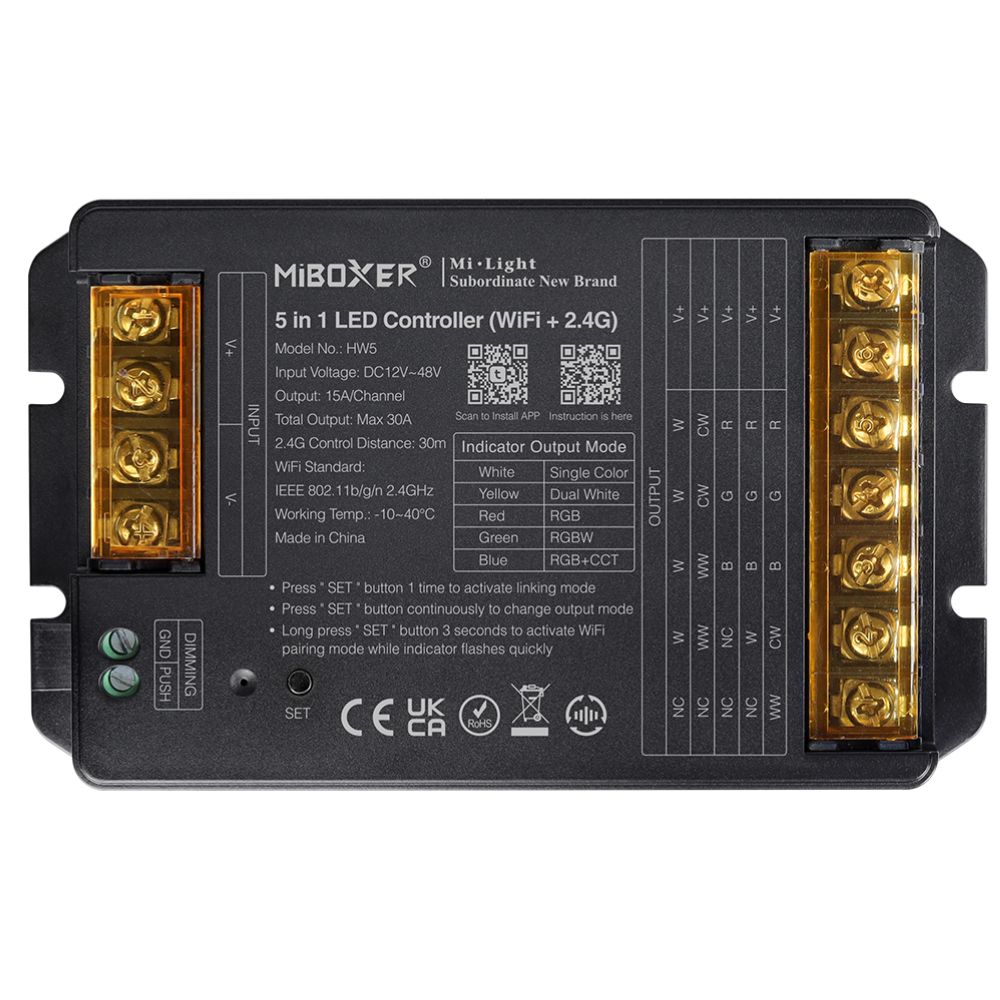

5-in-1 LED Controller — RF, Wi-Fi & MESH Networking (30A)
The MiBoxer HW5 is a high-current 5-in-1 receiver and controller for 12V to 48V DC LED strips, supporting up to 30A maximum output. It can be controlled wirelessly via 2.4GHz RF handsets, wall panels, or the Tuya app on your smartphone or smart speaker — no gateway required. The unit can be set to single colour dimming, colour temperature (CCT), RGB, RGBW, or RGB+CCT mode, with the indicator light showing the active colour mode. Push Dimming allows a momentary push switch to be wired directly to the unit for manual switching and dimming. Multiple receivers can synchronise wirelessly to form a MESH network, with each unit passing signal to the next (up to 30m apart) — no interconnecting control cables needed. The “Do Not Disturb” function returns the lighting to its last state or off should power be interrupted. PWM frequency is selectable at 250Hz or 16KHz to minimise flicker and banding. Suitable for commercial and domestic installations.
Key Features
- 5-in-1 Mode — single colour dimming, CCT, RGB, RGBW, RGB+CCT
- High Current Output — up to 30A maximum, ideal for larger installations
- RF + Wi-Fi Control — compatible with all 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — receivers sync wirelessly, up to 30m between each unit
- Push Dimming — wire a momentary push switch directly to the receiver
- Do Not Disturb — returns to last setting or off state after a power interruption
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Adjustable PWM Frequency — 250Hz or 16KHz to reduce flicker and banding
- 5-Year Guarantee
| Product Details — Model: HW5 | |
|---|---|
| Electrical | |
| Input Voltage | 12V – 48V DC |
| Output Voltage | 12V – 48V DC |
| Max Output Current | 30A |
| Rated Current per Channel | 12A |
| Voltage Type | Constant Voltage |
| PWM Frequency | 250Hz or 16KHz (selectable) |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Frequency Range | 2.4GHz |
| Wireless Range | Up to 200 metres |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Operating Temperature | −10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| LED Strip Brands | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | HW5 |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What's in the Box
- HW5 5-in-1 RF (2.4G) & WiFi Receiver / Controller
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.

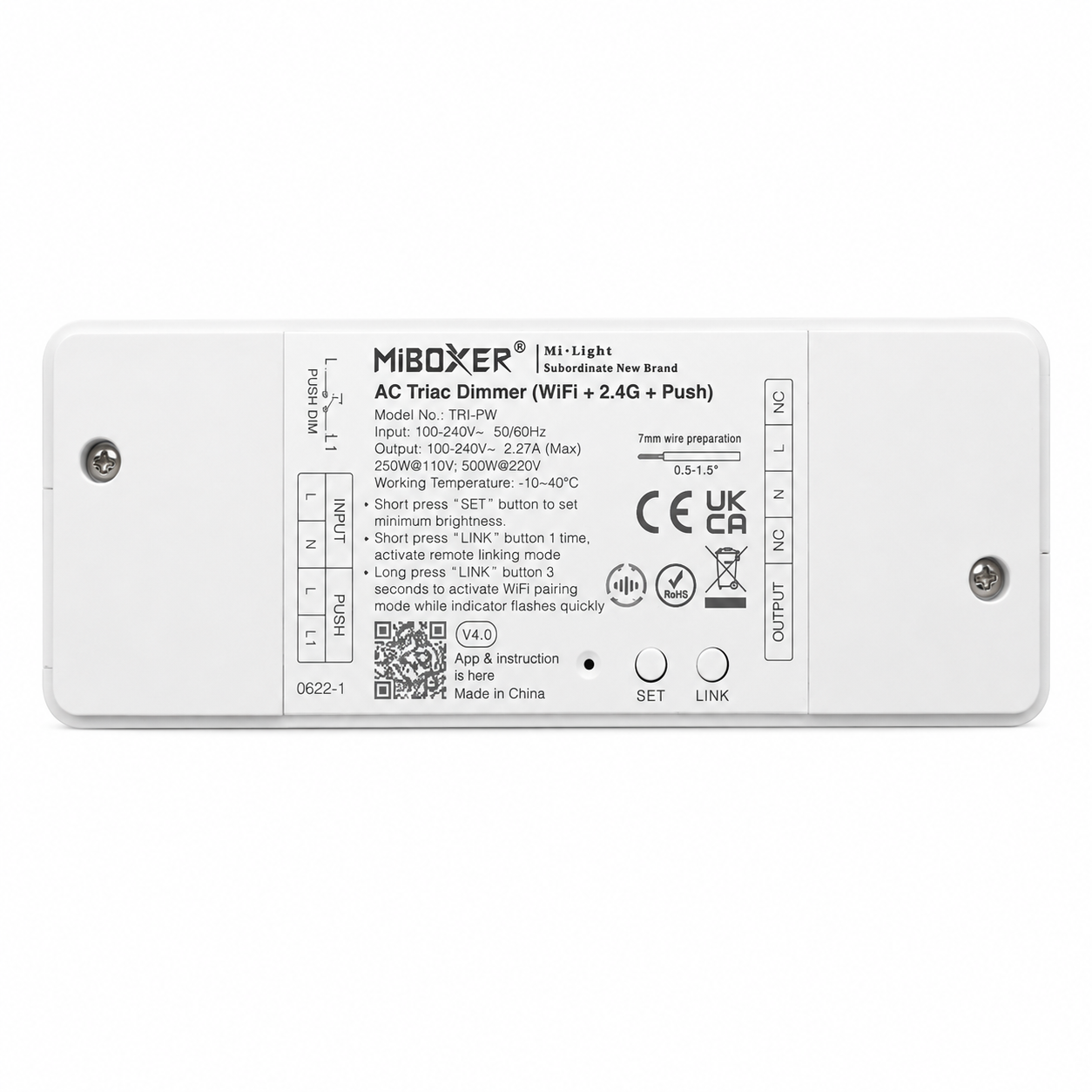

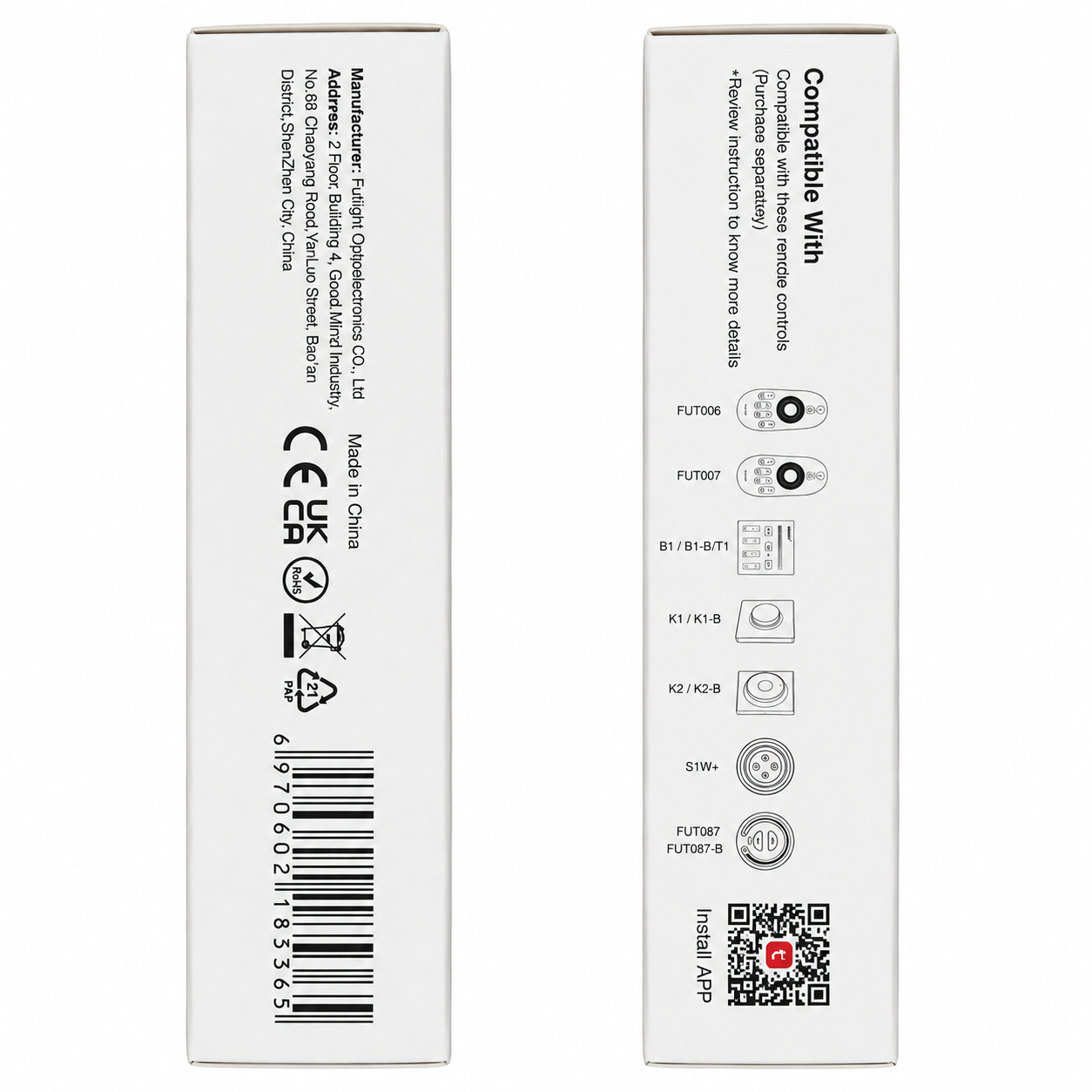

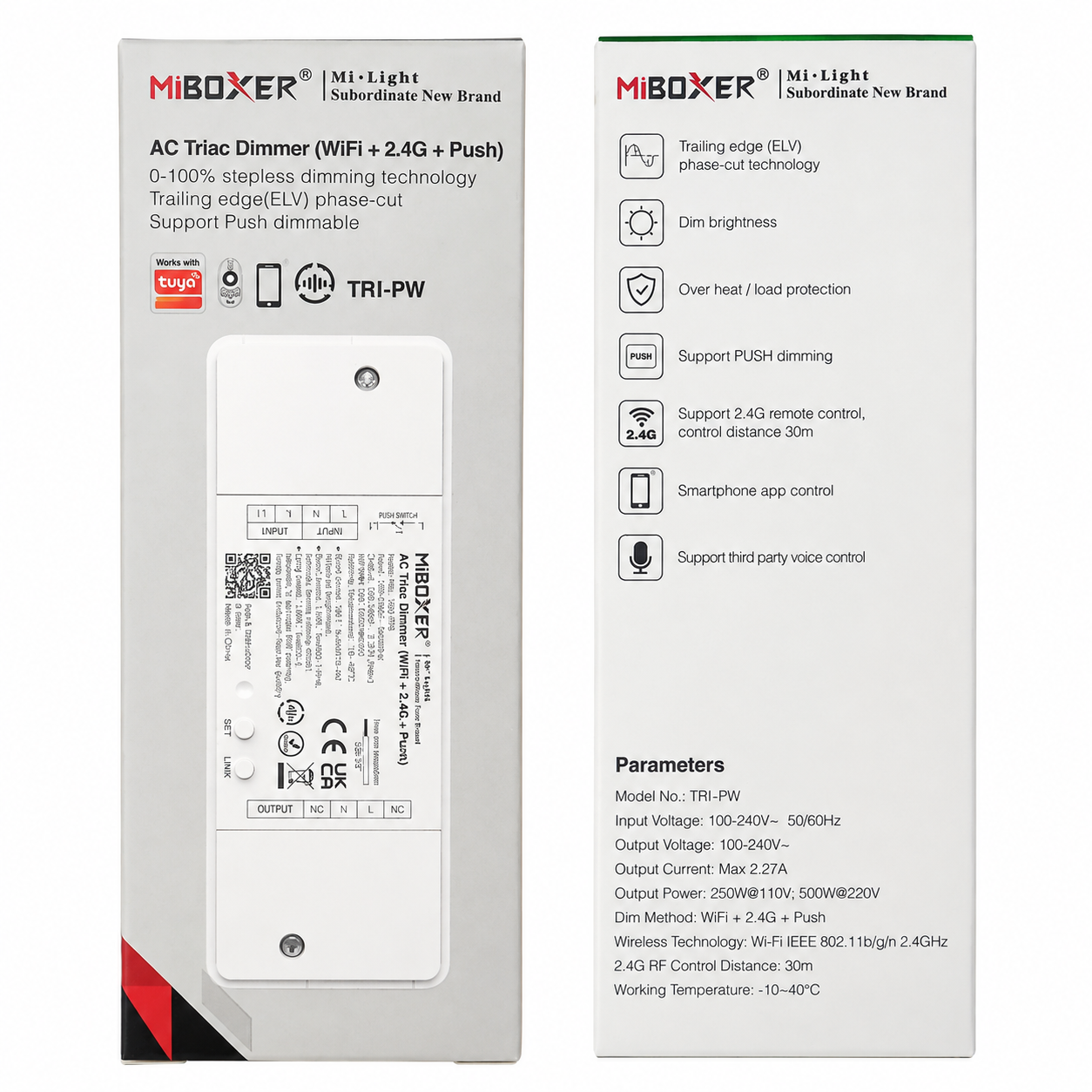

Smart AC Dimming — Wired, Wireless & App-Controlled
The MiBoxer TRIPW AC Triac Dimmer gives you complete control over your mains lighting through RF remote, Wi-Fi app, or a hard-wired push switch — all from a single compact unit. Compatible with the full range of 2.4G Mi-Light and Mi-Boxer handsets and wall panels, it also connects directly to your smartphone via the Tuya app or any smart speaker, with no gateway required.
Key Features
- RF + Wi-Fi + Push Switch — three control methods in one unit
- MESH Networking — sync multiple receivers in the same zone; devices within 30m of each other form a cable-free mesh
- Minimum Brightness Setting — pre-set a lower dim limit to suit your space
- Breaker Mode — converts the unit into a wireless AC switch (no dimming) for non-dimmable loads
- Do Not Disturb — returns to last setting or off state after a power interruption
- Wide Voltage Compatibility — works on 100V–240V AC mains
- 5-Year Guarantee
| Product Details — Model: TRIPW | |
|---|---|
| Electrical | |
| Input Voltage | 100V – 240V AC |
| Output Voltage | 100V – 240V AC |
| Max Output Current | 2.27A |
| Max Load | 500W at 220V AC |
| Connectivity | |
| Wireless Protocol | 2.4G RF (433MHz) & Wi-Fi |
| Wireless Range | Up to 30 metres |
| App Control | Tuya (no gateway required) |
| Smart Speaker Compatible | Yes |
| Physical | |
| Dimensions | 117mm × 45mm × 24mm |
| IP Rating | IP20 (indoor use) |
| Operating Temperature | −10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| Product Code | TRIPW |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What’s in the Box
- TRIPW MiBoxer AC Triac RF + Wi-Fi + Push Dimmer
- Instruction manual
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| TRIPW MiBoxer Triac Dimmer — Product Data Sheet | |
Need help choosing the right controller for your project? Contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.

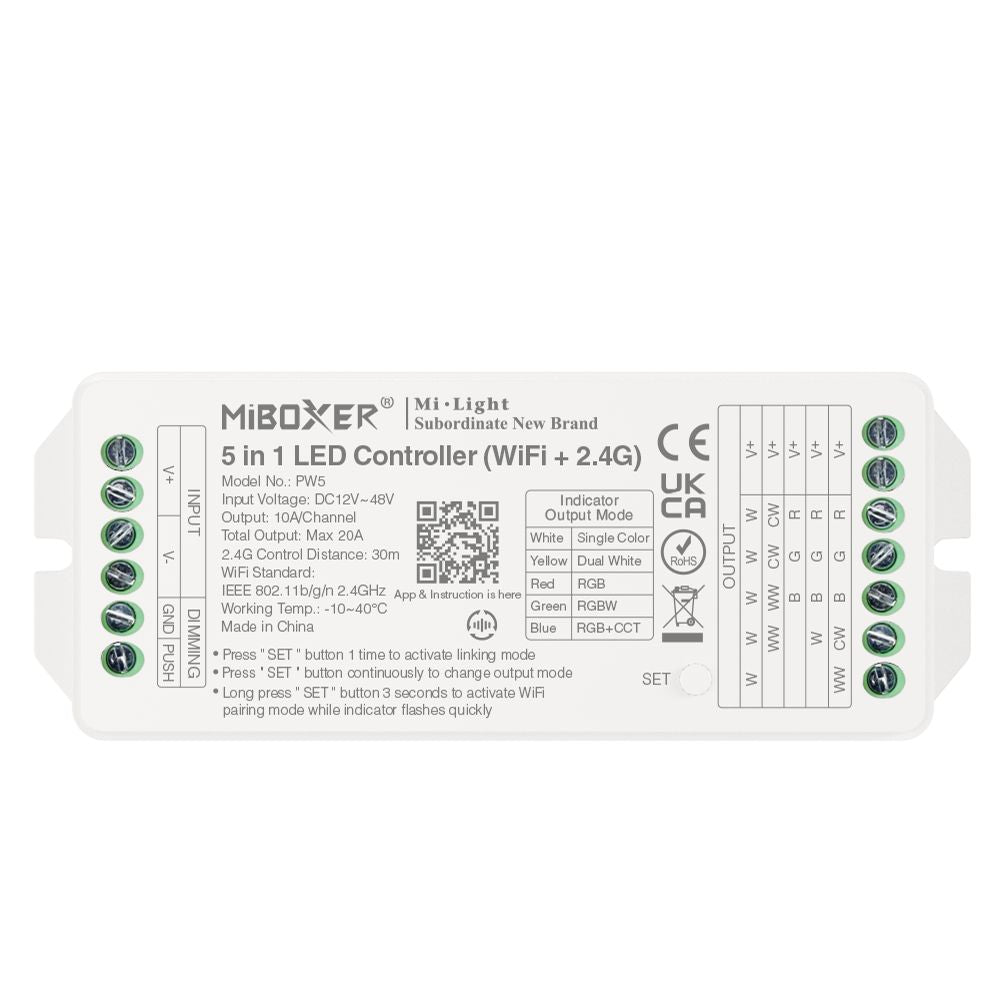

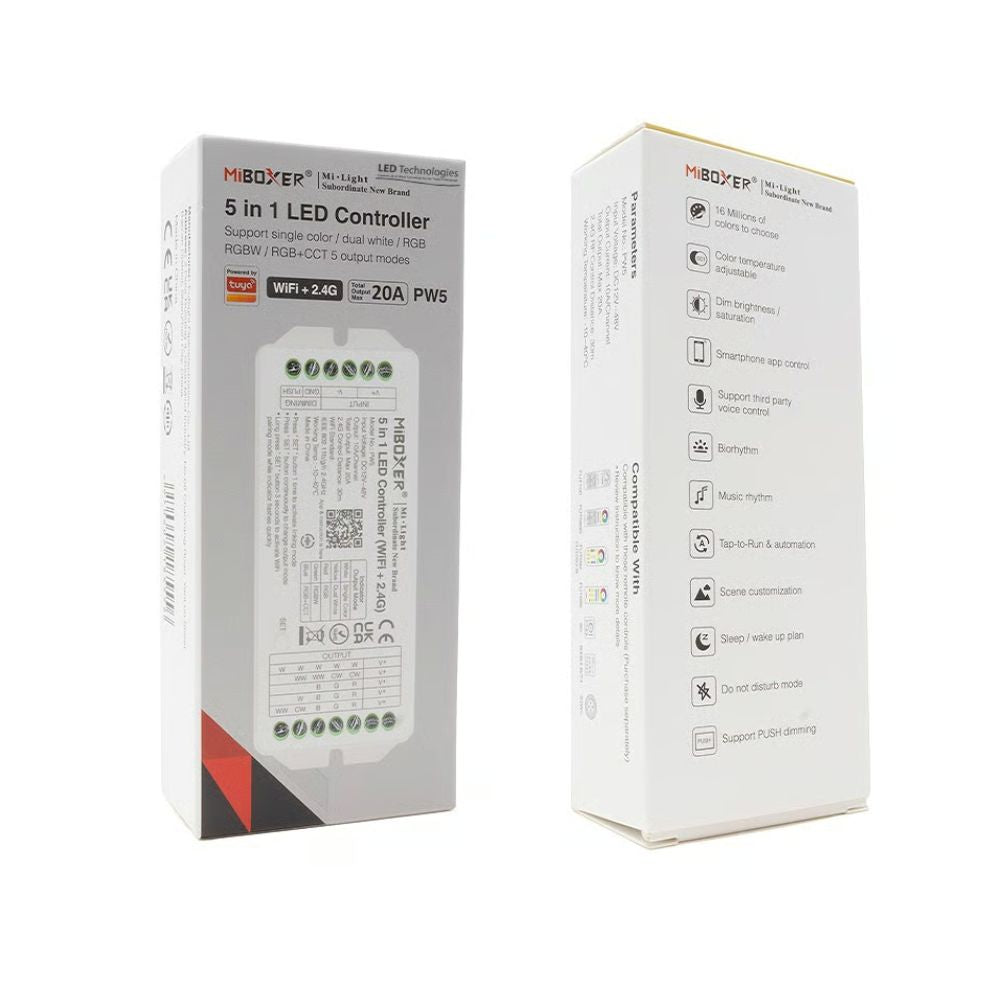

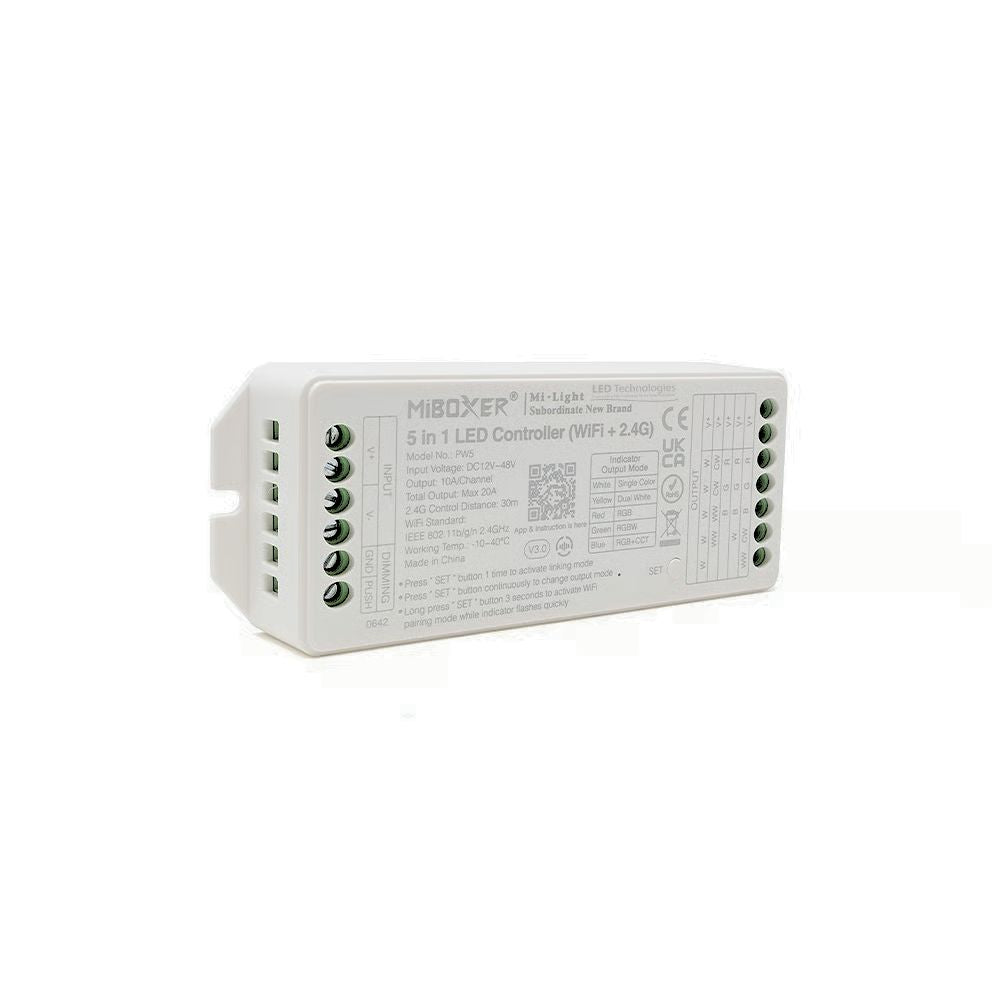

5-in-1 LED Controller — RF, Wi-Fi & MESH Networking
This feature rich 5-in-1, 2.4GHz RF and Wi-Fi controller / receiver from Mi-Light can be controlled wirelessly using a compatible 2.4GHz Mi-Light & Mi-Boxer handset or wall panel. It can also connect to your smartphone or smart speaker via the Tuya app — no additional gateway required. The receiver can be set to single channel dimming, colour temperature (CCT), RGB, RGBW, or RGB+CCT modes, and is suitable for 12V to 48V LED strips up to a maximum load of 20A. Multiple receivers can synchronise wirelessly to form a MESH network — signal passes from receiver to receiver (up to 30m apart) with no interconnecting control cables. The “Do Not Disturb” function returns the lighting to full brightness or off state should power be lost and restored. Suitable for both commercial and domestic installations. PWM frequency is adjustable from 250Hz to 16KHz.
Key Features
- 5-in-1 Mode — single dimming, CCT, RGB, RGBW, RGB+CCT
- RF + Wi-Fi Control — compatible with all 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — receivers sync wirelessly, up to 30m between each unit
- Do Not Disturb — returns to last setting or off state after a power interruption
- Wide Voltage Range — 12V to 48V DC, max 20A output
- Adjustable PWM Frequency — 250Hz to 16KHz
- 5-Year Guarantee
| Product Details — Model: PW5 | |
|---|---|
| Electrical | |
| Input Voltage | 12V – 48V DC |
| Output Voltage | 12V – 48V DC |
| Max Output Current | 20A |
| Voltage Type | Constant Voltage |
| PWM Frequency | 250Hz – 16KHz (adjustable) |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Frequency Range | 2.4GHz |
| Wireless Range | Up to 30 metres |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Operating Temperature | −10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| LED Strip Brands | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | PW5 |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What’s in the Box
- PW5 Receiver / Controller
- Instruction manual
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| PW5 MiBoxer 5-in-1 Controller — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.

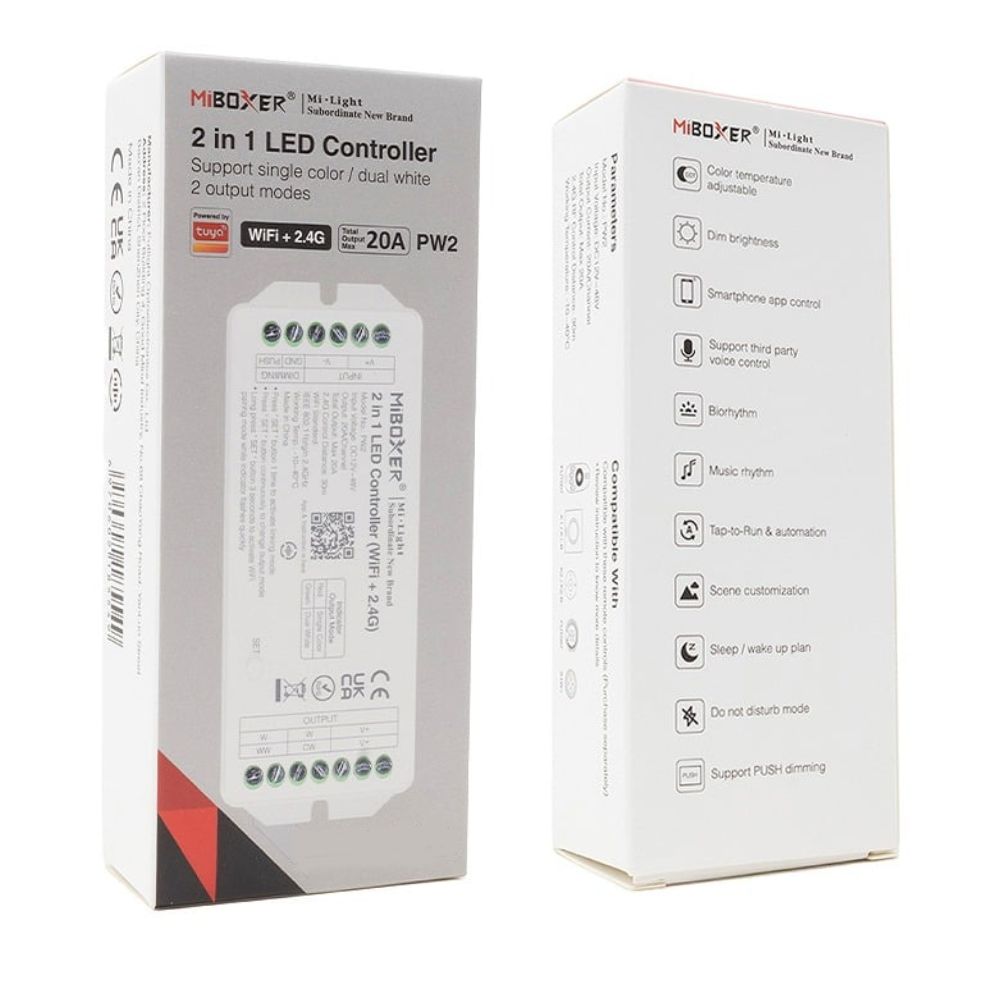

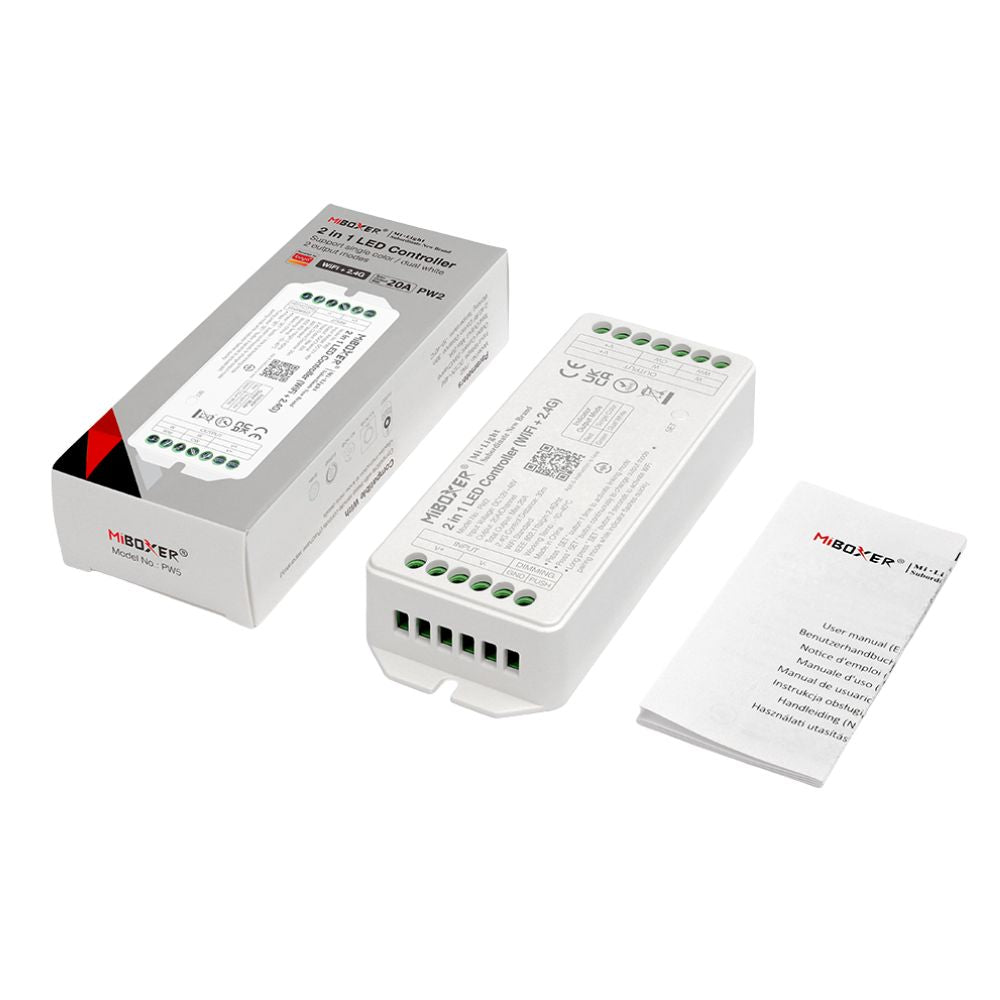

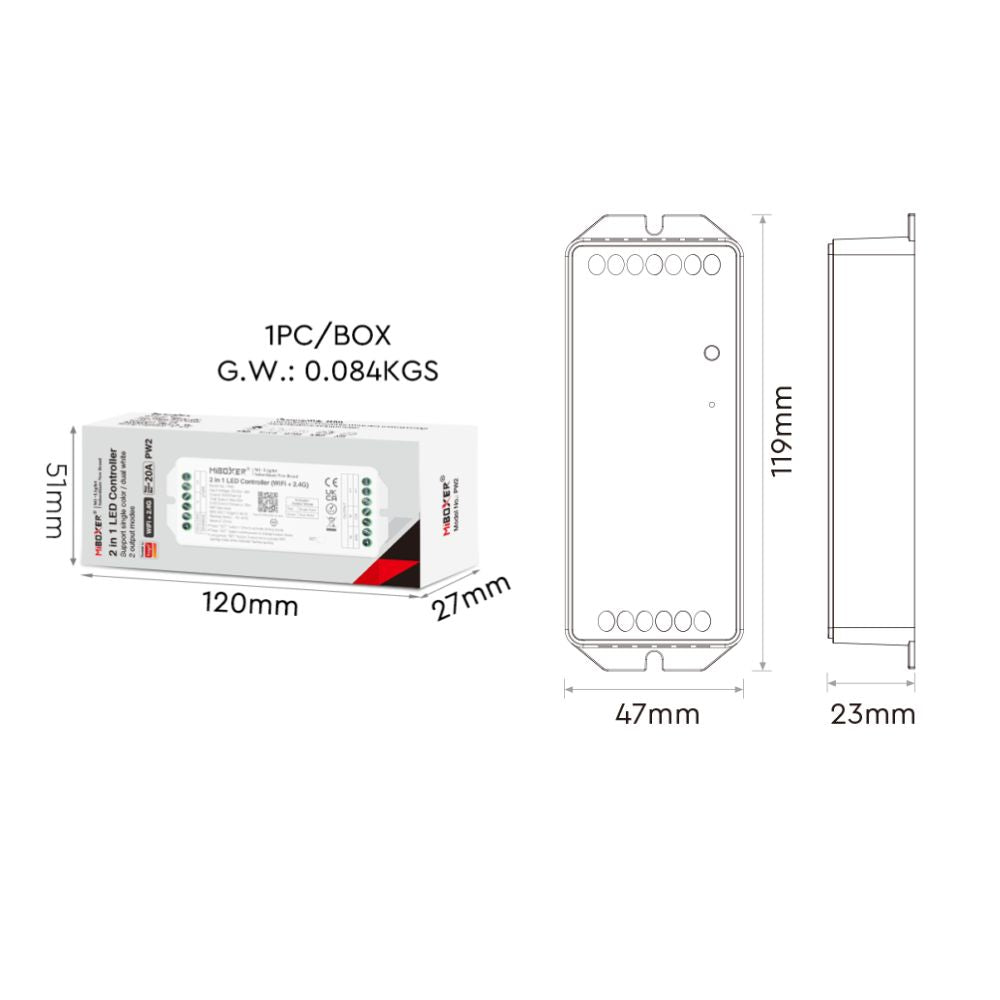

PW2 MiBoxer 2-In-1 Controller / Receiver WiFi / 2.4G RF (12V to 48V)
PW2 MiBoxer 2-In-1 Controller / Receiver WiFi / 2.4G RF (12V to 48V)
2-in-1 LED Controller — RF, Wi-Fi & MESH Networking
This multi-function 2-in-1, 2.4GHz RF and Wi-Fi receiver from Mi-Light can be controlled wirelessly using a compatible 2.4GHz Mi-Light & Mi-Boxer handset or wall panel. It can also connect to your smartphone or smart speaker via the Tuya app no additional gateway required. The receiver can be set to single colour dimming or colour temperature (CCT) mode, and is suitable for 12V to 48V LED strips up to a maximum load of 20A. Multiple receivers can synchronise wirelessly to form a MESH network signal passes from receiver to receiver (up to 30m apart) with no interconnecting control cables. The "Do Not Disturb" function returns the lighting to full brightness or off state should power be lost and restored. Push Dimming allows a momentary push switch to be wired directly to the receiver for manual switching and dimming. PWM frequency is adjustable at either 250Hz or 16KHz to reduce flicker and banding. Suitable for both commercial and domestic installations.
Key Features
- 2-in-1 Mode — single colour dimming or CCT (colour temperature adjustable)
- RF + Wi-Fi Control — compatible with all 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — receivers sync wirelessly, up to 30m between each unit
- Push Dimming — wire a momentary push switch directly to the receiver
- Do Not Disturb — returns to last setting or off state after a power interruption
- Wide Voltage Range — 12V to 48V DC, max 20A output
- Adjustable PWM Frequency — 250Hz or 16KHz
- 5-Year Guarantee
| Product Details — Model: PW2 | |
|---|---|
| Electrical | |
| Input Voltage | 12V – 48V DC |
| Output Voltage | 12V – 48V DC |
| Max Output Current | 20A |
| Rated Current per Channel | 6A |
| Voltage Type | Constant Voltage |
| PWM Frequency | 250Hz or 16KHz (selectable) |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Frequency Range | 2.4GHz |
| Wireless Range | Up to 30 metres |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Operating Temperature | −10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| LED Strip Brands | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | PW2 |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What's in the Box
- PW2 Receiver / Controller
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| PW2 MiBoxer 2-in-1 Controller — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.

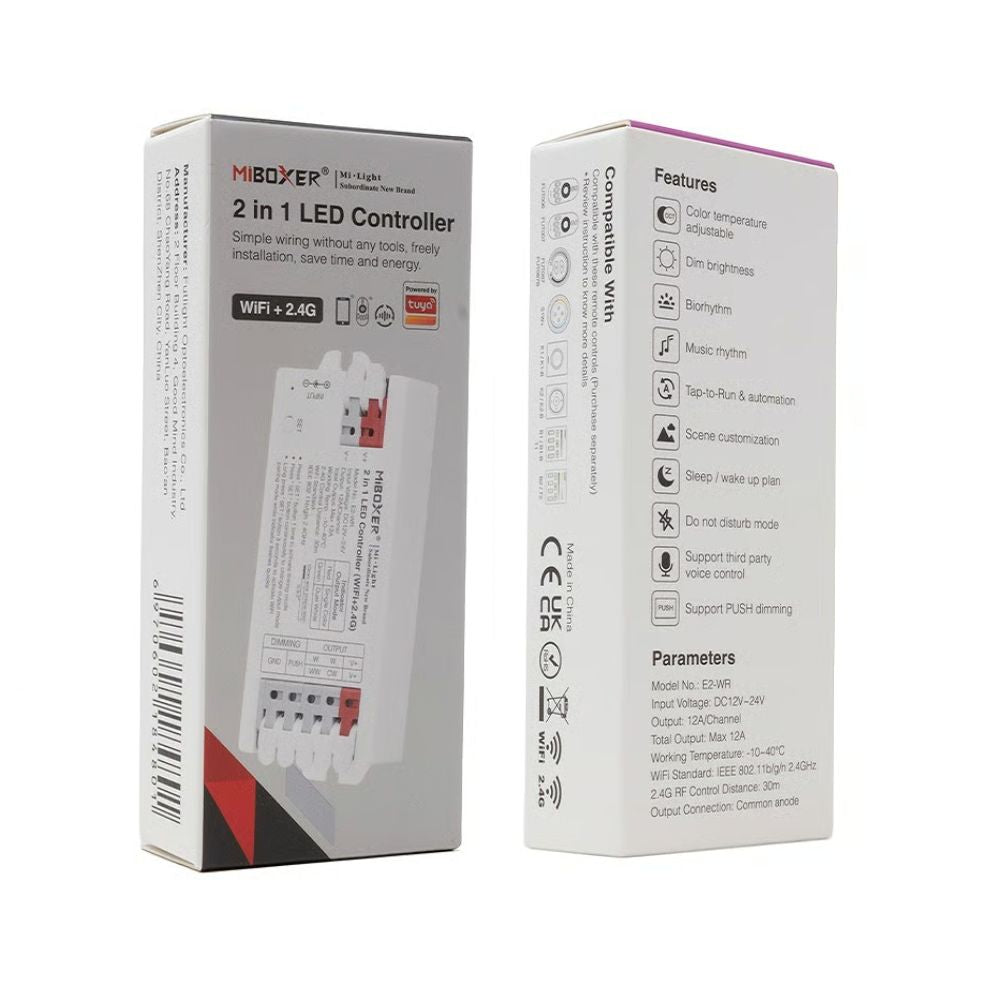

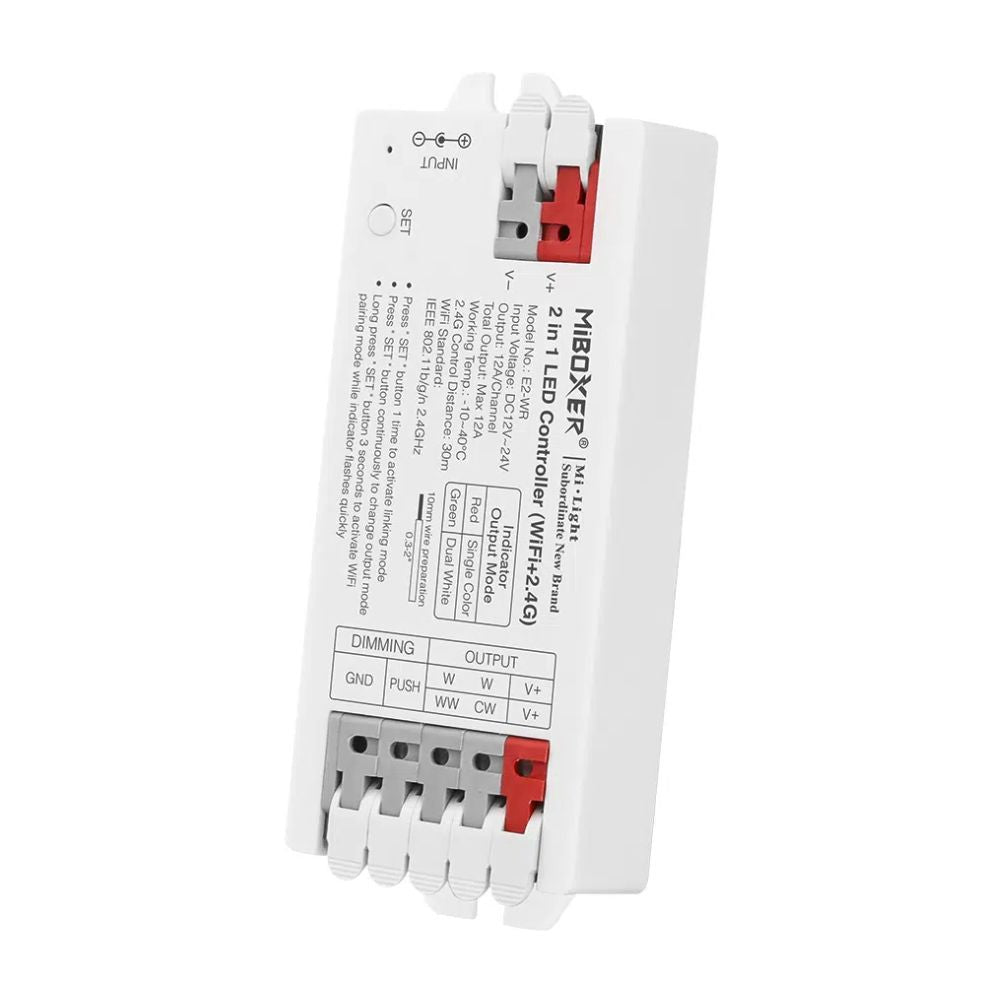

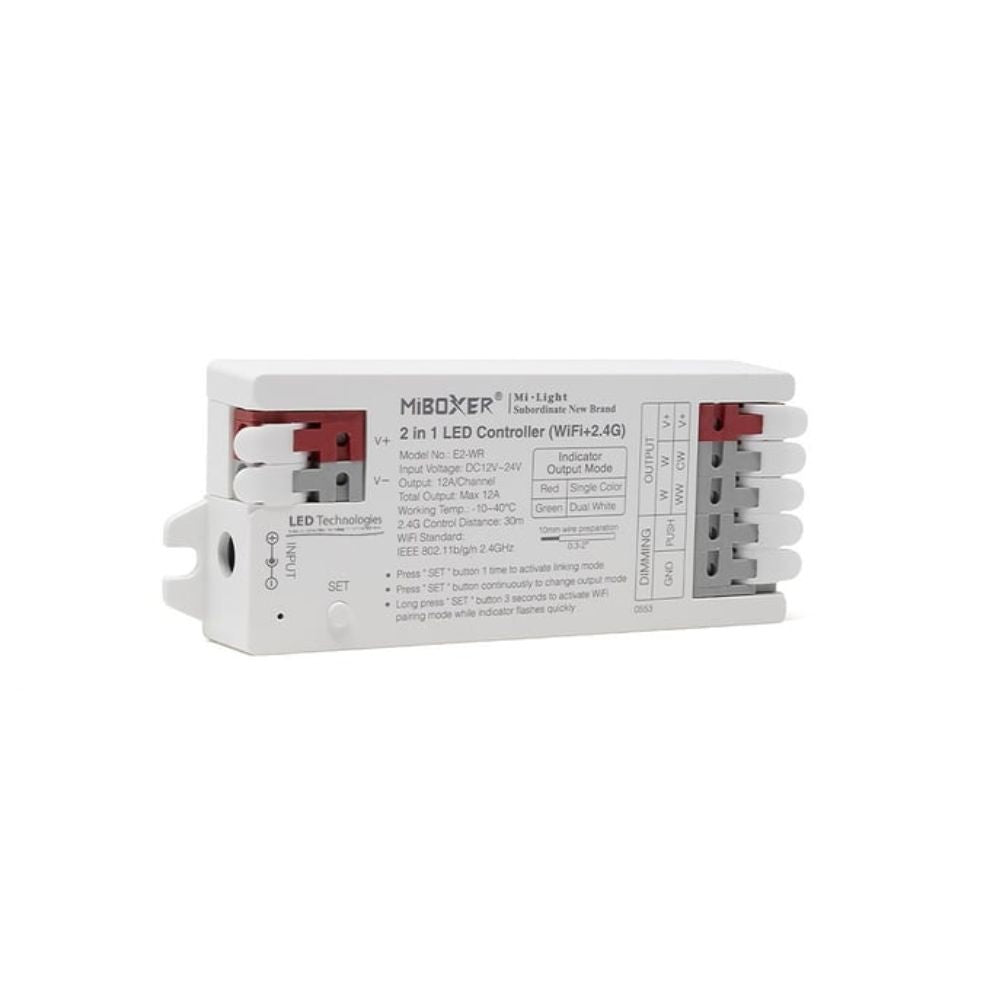

E2WR MiBoxer 2-In-1 Controller / Receiver WiFi / 2.4G RF (12V & 24V)
E2WR MiBoxer 2-In-1 Controller / Receiver WiFi / 2.4G RF (12V & 24V)
2-in-1 LED Controller — RF, Wi-Fi & MESH Networking
The MiBoxer E2WR is a compact 2-in-1 receiver and controller for 12V and 24V DC LED strips, offering wireless control via 2.4GHz RF handsets, wall panels, or the Tuya app on your smartphone or smart speaker — no gateway required. It can be set to single colour dimming or colour temperature (CCT) mode, with the indicator light glowing red for single colour and green for dual colour (CCT). Push Dimming allows a momentary push switch to be wired directly to the unit for manual switching and dimming. Multiple receivers can synchronise wirelessly to form a MESH network, with each unit passing signal to the next (up to 30m apart) — no interconnecting control cables needed. The “Do Not Disturb” function returns the lighting to its last state or off should power be interrupted. PWM frequency is selectable at 250Hz or 16KHz to minimise flicker and banding. Suitable for commercial and domestic installations.
Key Features
- 2-in-1 Mode — single colour dimming or CCT (colour temperature adjustable)
- RF + Wi-Fi Control — compatible with all 2.4GHz Mi-Light / Mi-Boxer handsets and wall panels
- MESH Networking — receivers sync wirelessly, up to 30m between each unit
- Push Dimming — wire a momentary push switch directly to the receiver
- Do Not Disturb — returns to last setting or off state after a power interruption
- Tuya App Compatible — smartphone and smart speaker control, no gateway required
- Adjustable PWM Frequency — 250Hz or 16KHz to reduce flicker and banding
- 5-Year Guarantee
| Product Details — Model: E2WR | |
|---|---|
| Electrical | |
| Input Voltage | 12V / 24V DC |
| Output Voltage | 12V / 24V DC |
| Max Output Current | 12A |
| Rated Current per Channel | 6A |
| Voltage Type | Constant Voltage |
| PWM Frequency | 250Hz or 16KHz (selectable) |
| Connectivity | |
| Wireless Protocol | 2.4GHz RF & Wi-Fi |
| Frequency Range | 433MHz |
| Wireless Range | Up to 500 metres |
| App Control | Tuya (no gateway required) |
| Physical | |
| IP Rating | IP20 Non-Waterproof |
| Operating Temperature | −10°C to +40°C |
| General | |
| Manufacturer | Mi-Light / MiBoxer |
| LED Strip Brands | Mi-Light / MiBoxer |
| Product Type | Controller / Receiver |
| Product Code | E2WR |
| Guarantee Period | 5 Years |
| Packaging | Gift box |
What's in the Box
- E2WR Receiver / Controller
- Adhesive pad
- Instruction manual
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
Downloads
| Product Documentation | |
|---|---|
| Data Sheets & Manuals | |
| E2WR MiBoxer 2-In-1 Controller — Product Data Sheet | |
For more information on this or any of our Mi-Light / Mi-Boxer range of products, please contact our technical sales team by phone, email, or via live chat and WhatsApp on our website.
| Product Details - Model: WiFi + 2.4G AC Triac Dimmer | |
|---|---|
| Features | |
| Control | 2.4G RF Remote & Smartphone App + WiFi |
| Voice Control | Compatible with Amazon Alexa, Google Home, Yandex Alice |
| Push Switch Support | ON/OFF and continuous dimming |
| Dimming Range | 0–100% brightness, flicker-free |
| Dimming Mode | Back edge phase (Triac) dimming |
| Brightness Setting | Set lowest brightness via key or app |
| Temperature Detection | Overheat protection with auto-recovery |
| Power Protection | Overload protection and automatic power limit |
| Signal Sync | Signal auto-transmitting & mode auto-synchronization |
| Installation | Fits standard 86*86 wall junction box |
| Safety Case | V0 class anti-fire |
| Technical Specification | |
| Input Voltage | AC 100V ~ 240V, 50/60Hz |
| Output Voltage | AC 100V ~ 240V, 50/60Hz |
| Output Current | Max 1.4A |
| Max Output Power | 154W @ 110V, 308W @ 220V |
| Working Temperature | -20°C ~ +40°C |
| Control Distance | 30m (Open and barrier-free) |
| Product Size | 49*49*24 mm (L*W*H) |
| Notes | |
| 1. Ensure proper AC input voltage. 2. Do not exceed max load. 3. Do not dismantle the unit. 4. Avoid direct sunlight, moisture, or high temperature. 5. Installation should be in a standard wall junction box. 6. Use suitable wiring according to load. 7. Keep away from metal enclosures or strong magnetic fields. |
|
| Product Details - Model: WiFi + Bluetooth RGBW LED Controller | |
|---|---|
| Features | |
| Device Type | WiFi + Bluetooth RGBW LED Controller |
| Control App | Smart Life / Tuya Smart |
| Remote Control | 2.4GHz RF Compatible |
| Voice Control | Supports Amazon Alexa, Google Assistant, and other third-party voice assistants |
| Bluetooth Control | Yes, within 20 meters when WiFi is off |
| Control Distance | 30 meters |
| Specifications | |
| Input Voltage | DC12-24V (5.5*2.1mm) |
| Output | 4 Channels (RGBW), 6A per channel; Total 15A Max |
| Working Temperature | -20~40°C |
| Size | 74.5 × 35.6 × 16.5 mm |
| Support | WiFi & 2.4GHz RF & Bluetooth |
| Smartphone Setup | |
| App Setup | Download Tuya Smart or Smart Life, register/login, follow pairing steps |
| Pairing Mode | Long press SET or toggle power 4 times until light blinks |
| Bluetooth Pairing | After WiFi off, open Bluetooth and wait to control within 20m |
| Remote Control | |
| Remote Compatibility | Multiple remote types (sold separately) |
| Signal Transmission | Up to 30m from one controller to another |
| Mode Synchronization | Yes, if same remote, mode, and speed used |
| Pairing & Unlinking | |
| Pairing (1st Way) | Hold SET 3s, then press remote ON 3× within 5s |
| Pairing (2nd Way) | Turn light off → wait 10s → turn on → press ON 3× within 5s |
| Unlink (1st Way) | Hold SET 3s → press ON 5× → light blinks 10× |
| Unlink (2nd Way) | Turn off → wait 10s → turn on → press ON 5× within 5s |
| Notes | |
| 1. Ensure input voltage is DC12-24V and connections are correct. 2. Controller damaged above 24V. 3. Do not dismantle the unit. 4. Avoid direct sunlight, moisture, or high temperature. 5. Avoid metal surroundings or magnetic fields. 6. Use ≥1.5mm² wire for 15A load. 7. For load >10A, keep cable <40cm between DC port and strip. 8. Ensure installation in well-ventilated area. |
|
| Product Details - Model: WiFi + Bluetooth Dual Colour LED Controller | |
|---|---|
| Features | |
| Device Type | WiFi + Bluetooth Dual Colour (CCT) LED Controller |
| Control App | Smart Life / Tuya Smart |
| Voice Control | Supports Amazon Alexa and Google Assistant |
| Bluetooth Control | Yes, within 20 meters when WiFi is off |
| Control Distance | Up to 30 meters |
| Specifications | |
| Input Voltage | DC 12V–24V |
| Output Channels | 2 Channels (Warm White & Cool White) |
| Max Output Power | 96W (12V) / 192W (24V) |
| Control Method | App, Voice Assistant, Bluetooth |
| IP Rating | IP20 (Non-Waterproof) |
| Operating Temperature | -20°C to 55°C |
| Smartphone Setup | |
| App Setup | Download Tuya Smart or Smart Life, register/login, follow pairing steps |
| Pairing Mode | Long press SET or toggle power 4 times until light blinks |
| Bluetooth Pairing | After WiFi off, open Bluetooth and wait to control within 20m |
| Remote Control | |
| Remote Compatibility | Multiple remote types (sold separately) |
| Signal Transmission | Up to 30m from one controller to another |
| Mode Synchronization | Yes, if same remote, mode, and speed used |
| Pairing & Unlinking | |
| Pairing (1st Way) | Hold SET 3s, then press remote ON 3× within 5s |
| Pairing (2nd Way) | Turn light off → wait 10s → turn on → press ON 3× within 5s |
| Unlink (1st Way) | Hold SET 3s → press ON 5× → light blinks 10× |
| Unlink (2nd Way) | Turn off → wait 10s → turn on → press ON 5× within 5s |
| Notes | |
| 1. Ensure input voltage is DC12-24V and connections are correct. 2. Controller damaged above 24V. 3. Do not dismantle the unit. 4. Avoid direct sunlight, moisture, or high temperature. 5. Avoid metal surroundings or magnetic fields. 6. Use ≥1.5mm² wire for 15A load. 7. For load >10A, keep cable <40cm between DC port and strip. 8. Ensure installation in well-ventilated area. |
|
| Product Details - Model: WiFi Single Colour LED Controller | |
|---|---|
| Features | |
| Device Type | WiFi Single Colour LED Controller |
| Control App | Smart Life / Tuya Smart |
| Voice Control | Supports Amazon Alexa and Google Assistant |
| Bluetooth Control | Yes, within 20 meters when WiFi is off |
| Control Distance | Up to 30 meters |
| Specifications | |
| Input Voltage | DC 12V–24V |
| Output | Single Channel |
| Max Output Power | 96W (12V) / 192W (24V) |
| Control Method | App, Voice Assistant, Bluetooth |
| IP Rating | IP20 (Non-Waterproof) |
| Operating Temperature | -20°C to 55°C |
| Smartphone Setup | |
| App Setup | Download Tuya Smart or Smart Life, register/login, follow pairing steps |
| Pairing Mode | Long press SET or toggle power 4 times until light blinks |
| Bluetooth Pairing | After WiFi off, open Bluetooth and wait to control within 20m |
| Remote Control | |
| Remote Compatibility | Multiple remote types (sold separately) |
| Signal Transmission | Up to 30m from one controller to another |
| Mode Synchronization | Yes, if same remote, mode, and speed used |
| Pairing & Unlinking | |
| Pairing (1st Way) | Hold SET 3s, then press remote ON 3× within 5s |
| Pairing (2nd Way) | Turn light off → wait 10s → turn on → press ON 3× within 5s |
| Unlink (1st Way) | Hold SET 3s → press ON 5× → light blinks 10× |
| Unlink (2nd Way) | Turn off → wait 10s → turn on → press ON 5× within 5s |
| Notes | |
| 1. Ensure input voltage is DC12-24V and connections are correct. 2. Controller damaged above 24V. 3. Do not dismantle the unit. 4. Avoid direct sunlight, moisture, or high temperature. 5. Avoid metal surroundings or magnetic fields. 6. Use ≥1.5mm² wire for 15A load. 7. For load >10A, keep cable <40cm between DC port and strip. 8. Ensure installation in well-ventilated area. |
|
