| Download Datasheet | |
| Product Details – Model: HLG-40H-24A | |
|---|---|
| Features | |
| Output Type | Constant Voltage / Mix Mode (CV + CC) |
| Rated Power | 40 W |
| Output Voltage | 24 V DC |
| Rated Current | 1.67 A |
| Input Voltage Range | 90-305 VAC / 127-431 VDC :contentReference[oaicite:0]{index=0} |
| Efficiency | Up to ~88-90% typical at full load :contentReference[oaicite:1]{index=1} |
| Protections | Short circuit / Over current / Over voltage / Over temperature :contentReference[oaicite:2]{index=2} |
| IP Rating | IP65 – suitable for outdoor/damp environments :contentReference[oaicite:3]{index=3} |
| Mechanical & Environmental | |
| Operating Temperature | −40 °C to +80 °C case (derating applies) :contentReference[oaicite:4]{index=4} |
| Dimensions (L × W × H) | 171 × 61.5 × 36.8 mm :contentReference[oaicite:5]{index=5} |
| Weight | ~0.73 kg :contentReference[oaicite:6]{index=6} |
| Safety & Compliance | EN61347-1, EN61347-2-13, IP65, CE & other regional marks :contentReference[oaicite:7]{index=7} |
| Download Datasheet | |
| Product Details – Model: HLG-60H-24A | |
|---|---|
| Features | |
| Power Rating | 60W |
| Output Voltage | 24V DC |
| Output Current | 2.5 A |
| Input Voltage Range | 90-305 VAC / 127-431 VDC :contentReference[oaicite:0]{index=0} |
| IP Rating | IP65 – suitable for outdoor and damp environments :contentReference[oaicite:1]{index=1} |
| Mode | Constant Voltage + Constant Current (CV + CC) mix-mode, “A” version with potentiometer for Vo/Io adjustment :contentReference[oaicite:2]{index=2} |
| Protections | Short circuit / Over current / Over voltage / Over temperature :contentReference[oaicite:3]{index=3} |
| Efficiency | ~90-90.5% typical at full load :contentReference[oaicite:4]{index=4} |
| Mechanical & Environmental | |
| Operating Temperature | -40 °C to +80 °C (case) :contentReference[oaicite:5]{index=5} |
| Dimensions (L × W × H) | 171 × 61.5 × 36.8 mm :contentReference[oaicite:6]{index=6} |
| Weight | ~0.73 kg :contentReference[oaicite:7]{index=7} |
| Additional Notes | |
| Ideal for applications requiring reliable power in damp/outdoor areas; includes potentiometer for fine-tuning output. Ensure proper ventilation and correct installation. Warranty details per manufacturer. | |
| Download Datasheet | |
| Product Details – Model: HLG-80H-24A | |
|---|---|
| Features | |
| Rated Power | ≈ 81.6 W |
| Output Voltage | 24 V DC |
| Input Voltage Range | 90-305 VAC / 127-431 VDC :contentReference[oaicite:0]{index=0} |
| Efficiency | Up to ~91% :contentReference[oaicite:1]{index=1} |
| IP Rating | IP65 (some variants IP67) :contentReference[oaicite:2]{index=2} |
| Protections | Short Circuit / Over Current / Over Voltage / Over Temperature :contentReference[oaicite:3]{index=3} |
| Cooling | Fanless, convection cooling :contentReference[oaicite:4]{index=4} |
| Output & Physical Specs | |
| Rated Current | 3.4 A :contentReference[oaicite:5]{index=5} |
| Output Voltage Typical Range | ~22-27 V (actual adjustment via potentiometer) :contentReference[oaicite:6]{index=6} |
| Dimensions (L × W × H) | 195.6 × 61.5 × 38.8 mm :contentReference[oaicite:7]{index=7} |
| Operating Temperature | −40 °C to +80 °C case (derating applies at high ambient) :contentReference[oaicite:8]{index=8} |
| Weight | ~0.84 kg :contentReference[oaicite:9]{index=9} |
| Other Specs & Notes | |
| Dimming Capability | Non-dimmable for this model; however internal potentiometer allows minor voltage / current adjustment :contentReference[oaicite:10]{index=10} |
| Lifespan | > 62,000 hours typical life expectancy :contentReference[oaicite:11]{index=11} |
| Warranty | 7 Years (manufacturer) :contentReference[oaicite:12]{index=12} |
| Typical Applications | Outdoor signage / architectural lighting / LED strips / lighting for harsh or damp conditions :contentReference[oaicite:13]{index=13} |
| Download Datasheet | |
| Product Details – Model: LPV-100-24 | |
|---|---|
| Features | |
| Output Type | Constant Voltage (CV) |
| Power Rating | 100 W (≈100.8 W) |
| Output Voltage | 24 V DC |
| Rated Current | 4.2 A |
| Input Voltage Range | 90-264 VAC / 127-370 VDC :contentReference[oaicite:0]{index=0} |
| Efficiency (Typical) | ≈ 89% :contentReference[oaicite:1]{index=1} |
| IP Rating | IP67 – suitable for damp or outdoor use :contentReference[oaicite:2]{index=2} |
| Dimming | Non-dimmable |
| Output & Physical Specs | |
| Ripple & Noise (Max) | ≈ 150 mVp-p (for 24V model) :contentReference[oaicite:3]{index=3} |
| Line Regulation | ±1% :contentReference[oaicite:4]{index=4} |
| Load Regulation | ±5% :contentReference[oaicite:5]{index=5} |
| Dimensions (L × W × H) | 190 × 52 × 37 mm :contentReference[oaicite:6]{index=6} |
| Weight | ≈ 0.63 kg :contentReference[oaicite:7]{index=7} |
| Environment & Compliance | |
| Working Temperature | -25-70 °C (ambient) non-condensing :contentReference[oaicite:8]{index=8} |
| Storage Temperature / Humidity | -40-80 °C, 10-95% RH :contentReference[oaicite:9]{index=9} |
| Safety Standards | UL8750, CE, EN55032 / EN61000-3-2 / EMC & Surge compliance :contentReference[oaicite:10]{index=10} |
| Other Notes | |
| Fully encapsulated plastic housing. Free-air convection cooling. Suitable for LED signage, outdoor lighting, architectural lighting. Warranty and specifications per Mean Well datasheet. :contentReference[oaicite:11]{index=11} | |
| Download Datasheet | |
| Product Details - Model: LPV-20-24 | |
|---|---|
| Features | |
| Output | Constant voltage |
| AC Input Range | 90–264VAC |
| Maximum Output Power | 20W |
| Protections | Short circuit / Overload / Overvoltage |
| Housing | IP67, waterproof and dust-tight |
| Cooling | Free air convection |
| Dimming | Non-dimmable |
| Applications | LED lighting, signage, commercial and outdoor use |
| Output Specifications | |
| DC Voltage | 24V |
| Voltage Tolerance | ±0.5V |
| Rated Current | 0–0.84A |
| Rated Power | 20W |
| Input Specifications | |
| Voltage Range | 90–264VAC |
| Frequency Range | 47–63Hz |
| Full Load Efficiency | Up to 80% |
| AC Current (Max.) | 0.25A |
| Leakage Current | <0.5mA |
| Power Factor | PF ≥ 0.9 @ full load |
| Environment | |
| Working Temperature | -30 to +70°C |
| Working Humidity | 20–90% RH (non-condensing) |
| Storage Temp & Humidity | -40 to +80°C, 10–95% RH |
| Safety & EMC | |
| Safety Standards | UL1310, UL879, IEC/EN 62368-1 |
| Isolation Resistance | ≥100MΩ / 500VDC |
| EMC Emission | Compliant with EN55015, EN61000-3-2,3 |
| Other Specifications | |
| Net Weight | 0.18 kg |
| Dimensions (L×W×H) | 118 × 35 × 26 mm |
| Notes | |
| All parameters are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. IP67 housing suitable for outdoor installation. | |
| Download Datasheet | |

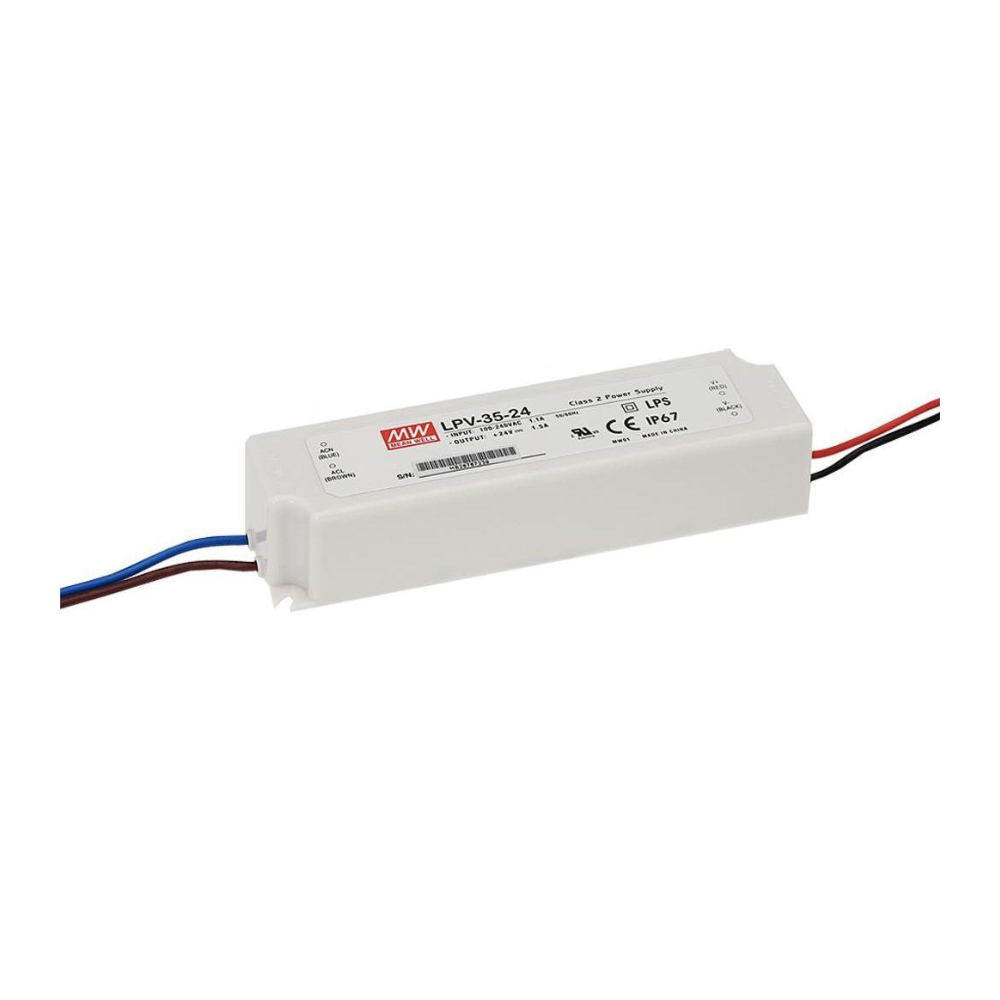

| Product Details - Model: LPV-35-24TF | |
|---|---|
| Features | |
| Output | Constant voltage |
| AC Input Range | 90–264VAC |
| Maximum Output Power | 35W |
| Protections | Short circuit / Overload / Overvoltage |
| Housing | IP67, waterproof and dust-tight |
| Cooling | Free air convection |
| Dimming | Non-dimmable |
| Applications | LED lighting, signage, commercial and outdoor use |
| Output Specifications | |
| DC Voltage | 24V |
| Voltage Tolerance | ±0.5V |
| Rated Current | 0–1.46A |
| Rated Power | 35W |
| Input Specifications | |
| Voltage Range | 90–264VAC |
| Frequency Range | 47–63Hz |
| Full Load Efficiency | Up to 85% |
| AC Current (Max.) | 0.35A |
| Leakage Current | <0.5mA |
| Power Factor | PF ≥ 0.9 @ full load |
| Environment | |
| Working Temperature | -30 to +70°C |
| Working Humidity | 20–90% RH (non-condensing) |
| Storage Temp & Humidity | -40 to +80°C, 10–95% RH |
| Safety & EMC | |
| Safety Standards | UL1310, UL879, IEC/EN 62368-1 |
| Isolation Resistance | ≥100MΩ / 500VDC |
| EMC Emission | Compliant with EN55015, EN61000-3-2,3 |
| Other Specifications | |
| Net Weight | 0.22 kg |
| Dimensions (L×W×H) | 118 × 45 × 30 mm |
| Notes | |
| All parameters are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. IP67 housing suitable for outdoor installation. | |
| Download Datasheet | |

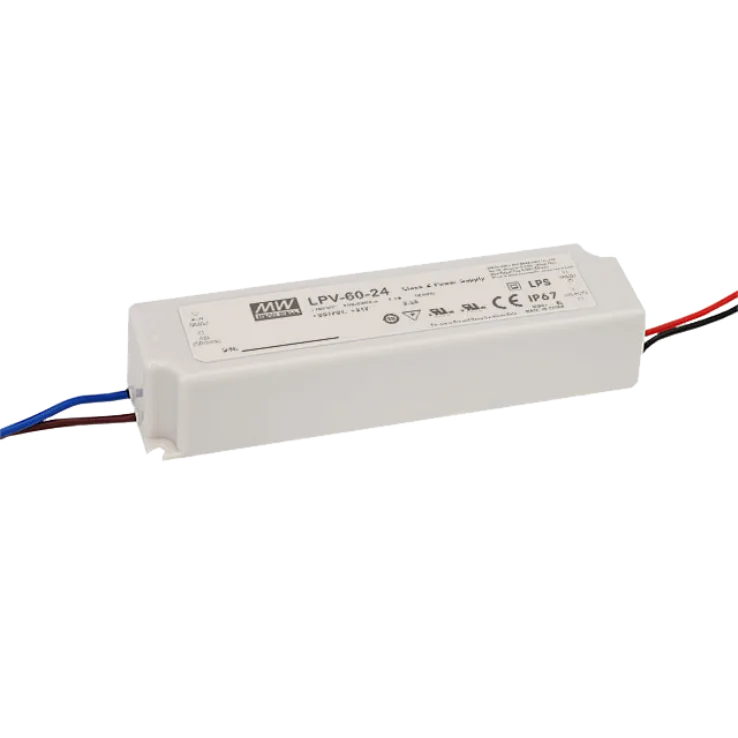

| Product Details - Model: LPV-60-24 | |
|---|---|
| Features | |
| Output | Constant voltage |
| AC Input Range | 90–264VAC |
| Maximum Output Power | 60W |
| Protections | Short circuit / Overload / Overvoltage |
| Housing | Fully encapsulated with IP67 rating |
| Cooling | Free air convection |
| Dimming | Non-dimmable |
| Applications | LED lighting, signage, commercial and outdoor use |
| Output Specifications | |
| DC Voltage | 24V |
| Voltage Tolerance | ±0.5V |
| Rated Current | 0–2.5A |
| Rated Power | 60W |
| Input Specifications | |
| Voltage Range | 90–264VAC |
| Frequency Range | 47–63Hz |
| Full Load Efficiency | Up to 86% |
| AC Current (Max.) | 0.35A |
| Leakage Current | <0.5mA |
| Power Factor | PF ≥ 0.9 @ full load |
| Environment | |
| Working Temperature | -30 to +70°C |
| Working Humidity | 20–90% RH (non-condensing) |
| Storage Temp & Humidity | -40 to +80°C, 10–95% RH |
| Safety & EMC | |
| Safety Standards | UL1310, UL879, IEC/EN 62368-1 |
| Isolation Resistance | ≥100MΩ / 500VDC |
| EMC Emission | Compliant with EN55015, EN61000-3-2,3 |
| Other Specifications | |
| Net Weight | 0.22 kg |
| Dimensions (L×W×H) | 162.5 × 42.5 × 32 mm |
| Notes | |
| All parameters are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. IP67 housing suitable for outdoor installation. | |
| Download Datasheet | |

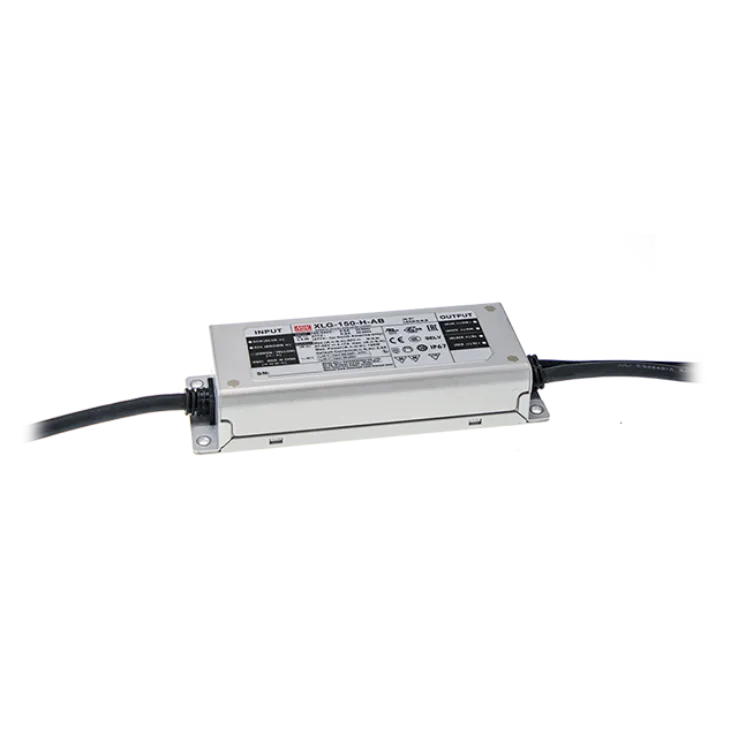

| Product Details - Model: XLG-150-24-A | |
|---|---|
| Features | |
| Output | Constant Voltage / Constant Current |
| AC Input Range | 100–305VAC |
| Maximum Output Power | 150W |
| Protections | Short circuit / Over voltage / Over temperature / Over power |
| Housing | Metal housing with IP67 rating |
| Cooling | Free air convection |
| Dimming | Non-dimmable |
| Applications | LED lighting, signage, commercial and outdoor use |
| Output Specifications | |
| DC Voltage | 24V |
| Voltage Tolerance | ±0.5V |
| Rated Current | 6.25A |
| Rated Power | 150W |
| Input Specifications | |
| Voltage Range | 100–305VAC |
| Frequency Range | 47–63Hz |
| Full Load Efficiency | Up to 93% |
| AC Current (Max.) | 1.8A |
| Leakage Current | <0.5mA |
| Power Factor | PF ≥ 0.9 @ full load |
| Environment | |
| Working Temperature | -40 to +90°C |
| Working Humidity | 20–90% RH (non-condensing) |
| Storage Temp & Humidity | -40 to +80°C, 10–95% RH |
| Safety & EMC | |
| Safety Standards | UL8750, UL879 |
| Withstand Voltage | 4.2kVAC |
| Isolation Resistance | ≥100MΩ / 500VDC |
| EMC Emission | Compliant with EN55015, EN61000-3-2,3 |
| Other Specifications | |
| Net Weight | 0.8 kg |
| Dimensions (L×W×H) | 169 × 63 × 35.5 mm |
| Notes | |
| All parameters are measured at 230VAC input, rated load, and 25°C ambient temperature. Tolerance includes setup tolerance, line regulation, and load regulation. IP67 housing suitable for outdoor installation. | |
